Pontiac

1960

MASTER PARTS CATALOG



hosted by

www.PontiacSafari.com




Switch to 1956 Master Parts Catalog.



Read Me - about this Pontiac Master Parts Catalog (MPC), tips, problems, and contact info.



Part Number and Casting Number Prefixes - Lists three-digit prefix used for each year.



1958 ACCESSORY SECTION provides accessory part numbers for 1957-58. Thanks Bob Johnson for providing these pages.



Body Parts Section - this link jumps to page 581.



CONTENTS

Page
1 Front Cover / Contents

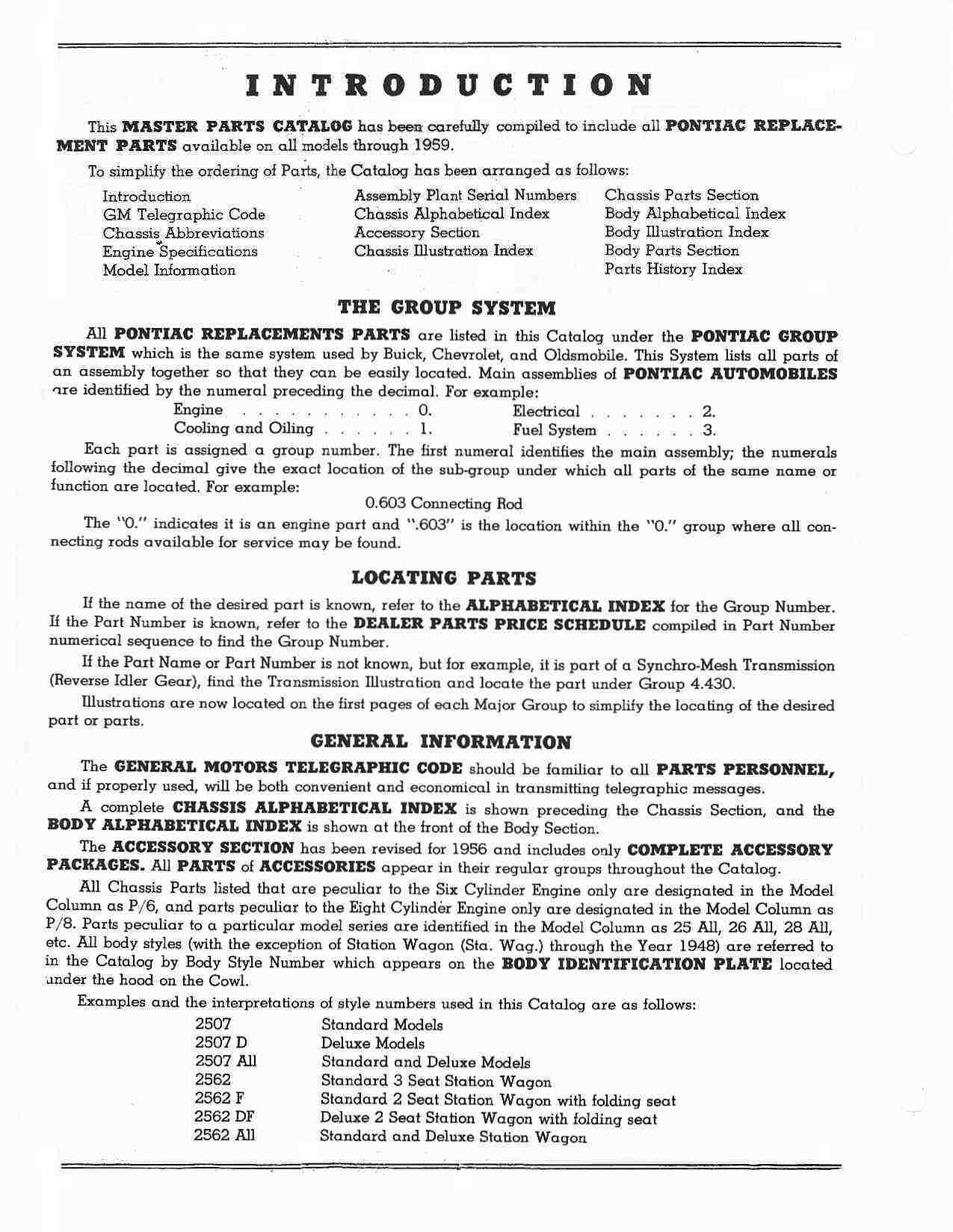

2 Introduction (how to use the MPC)
3-4 Parts Ordering Information

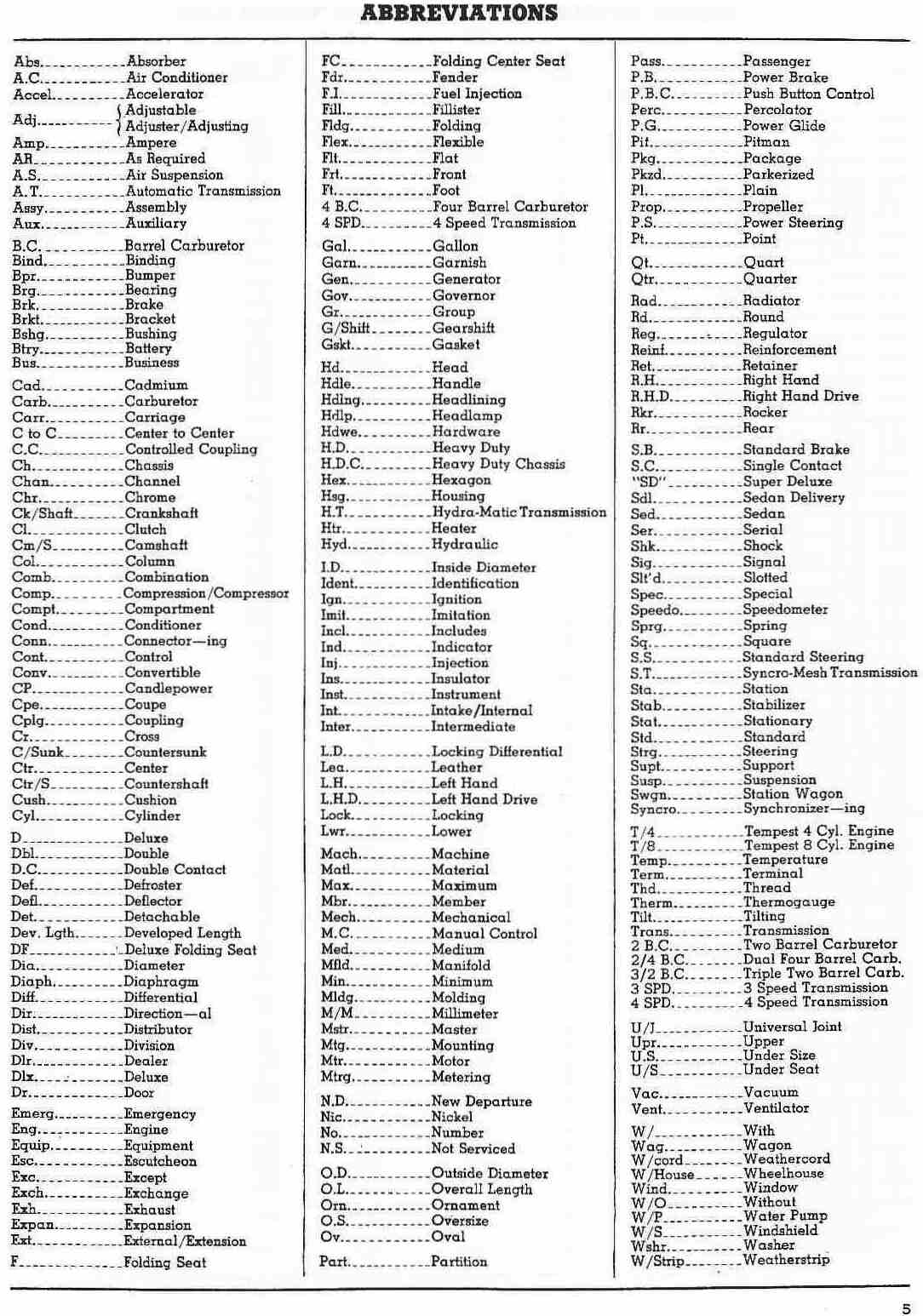

5 ABBREVIATIONS

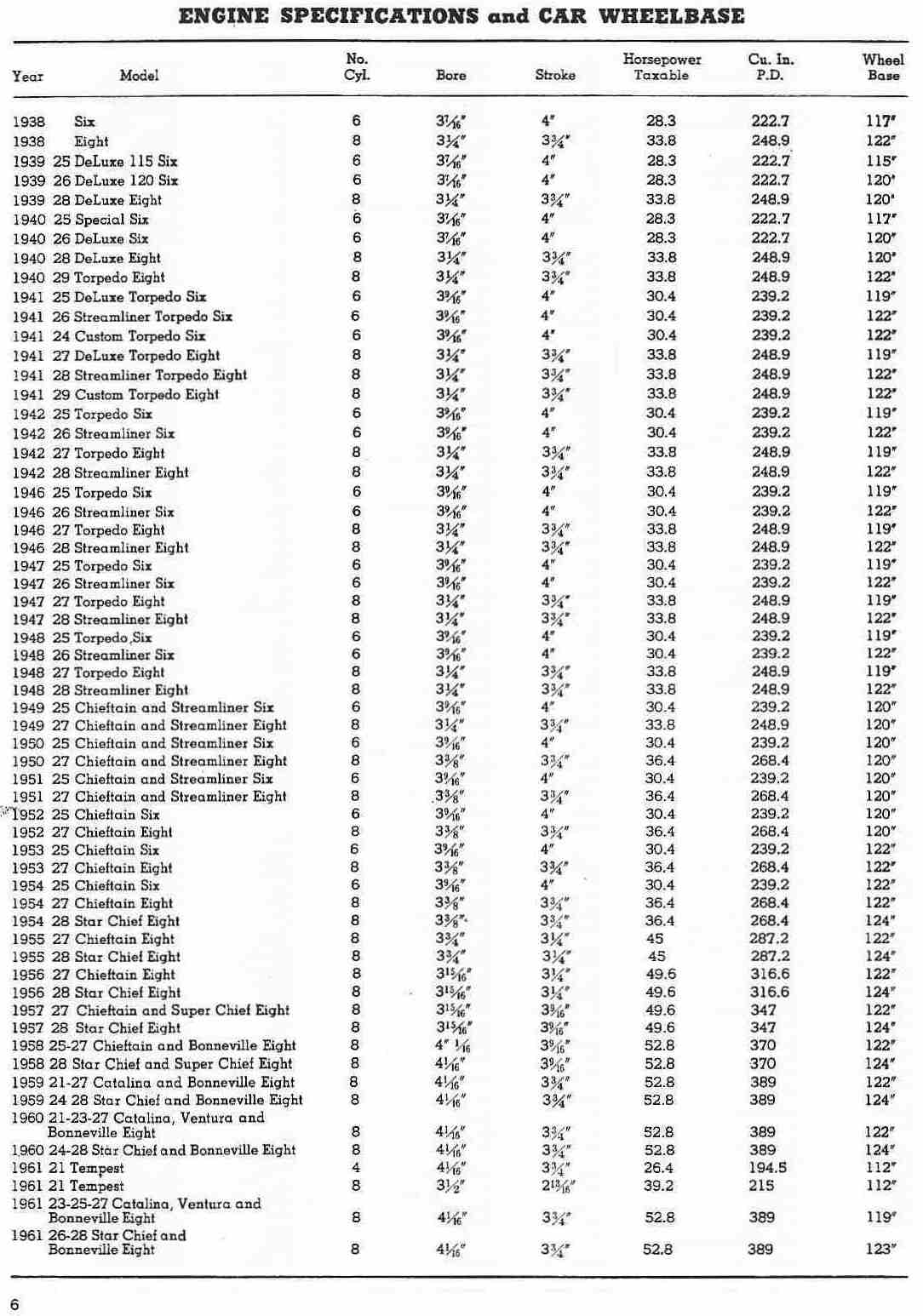

6 Engine Specifications and Car Wheelbase 1938-1961
7-17 Car Model Information 1939-1960
18-20 Assembly Plant Serial Numbers 1941-1960
21-34 Alphabetical Parts Index  (a good place to start looking if you know the part name)
35-40 Accessory Section
41-42 Special Engine and Chassis Parts
43-44 blank
45-46 Illustration Index (a good place to start looking if you DON'T know the part name)


Begin Illustrations and Parts Listings (highlighted)

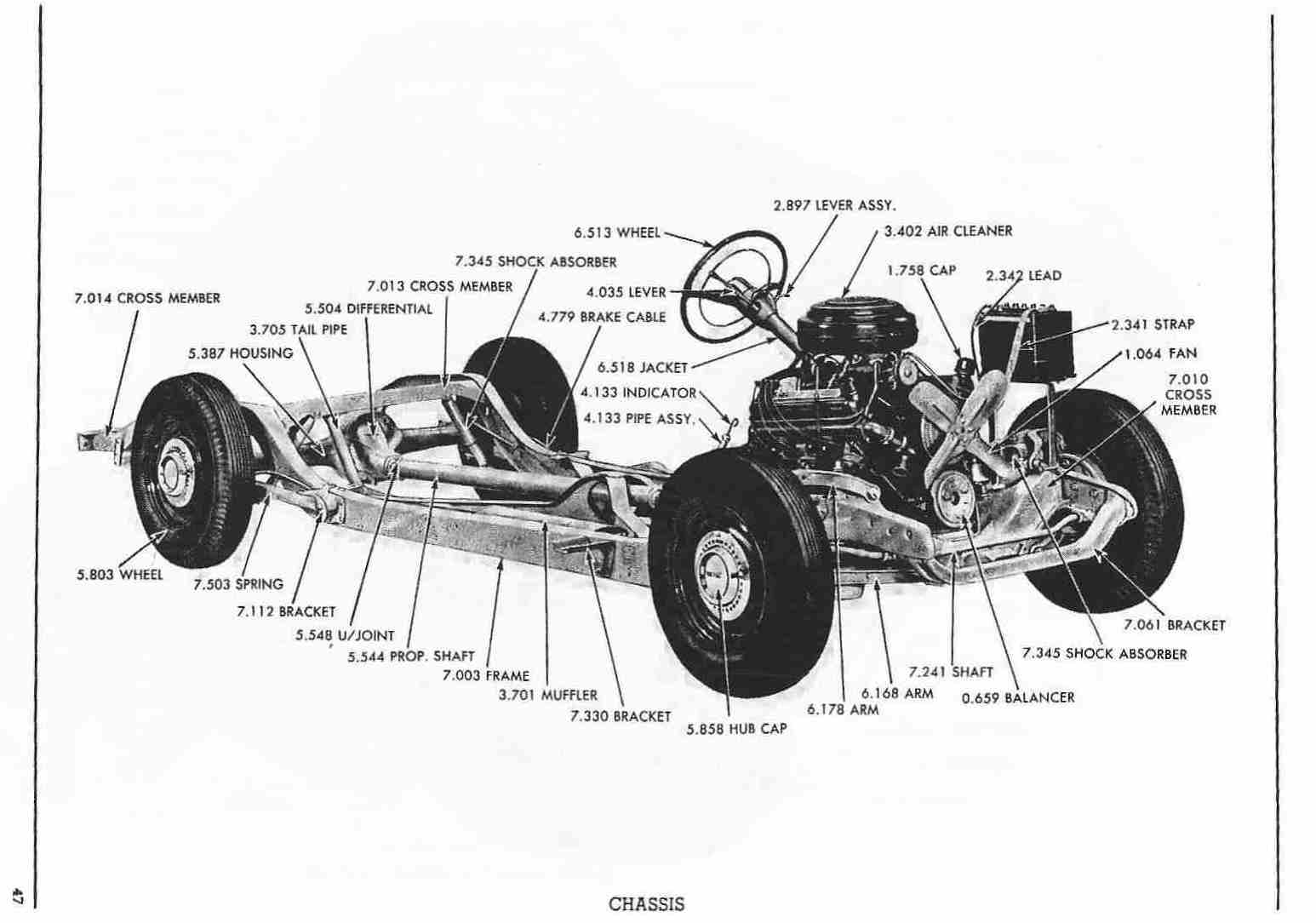

47 Chassis

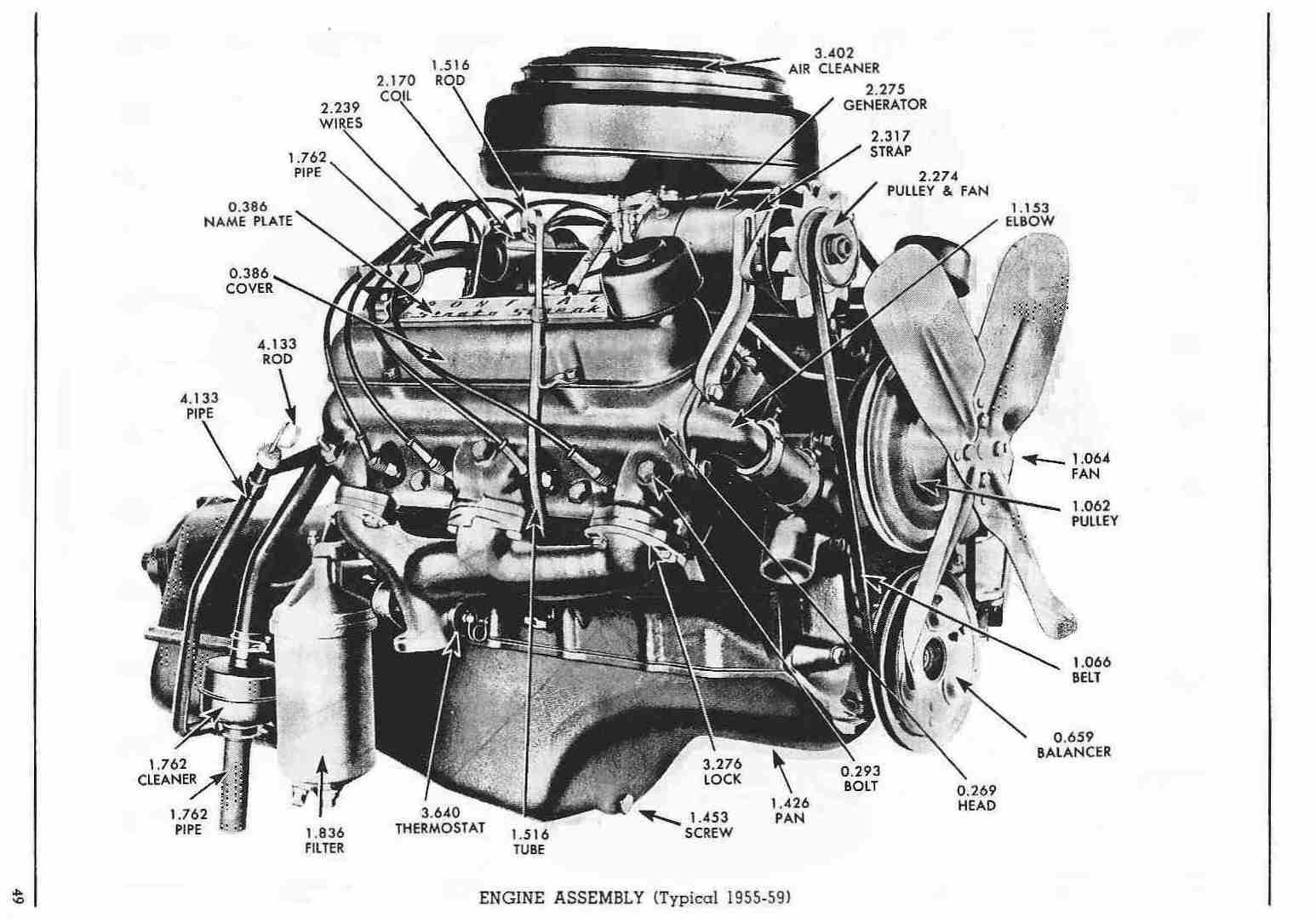

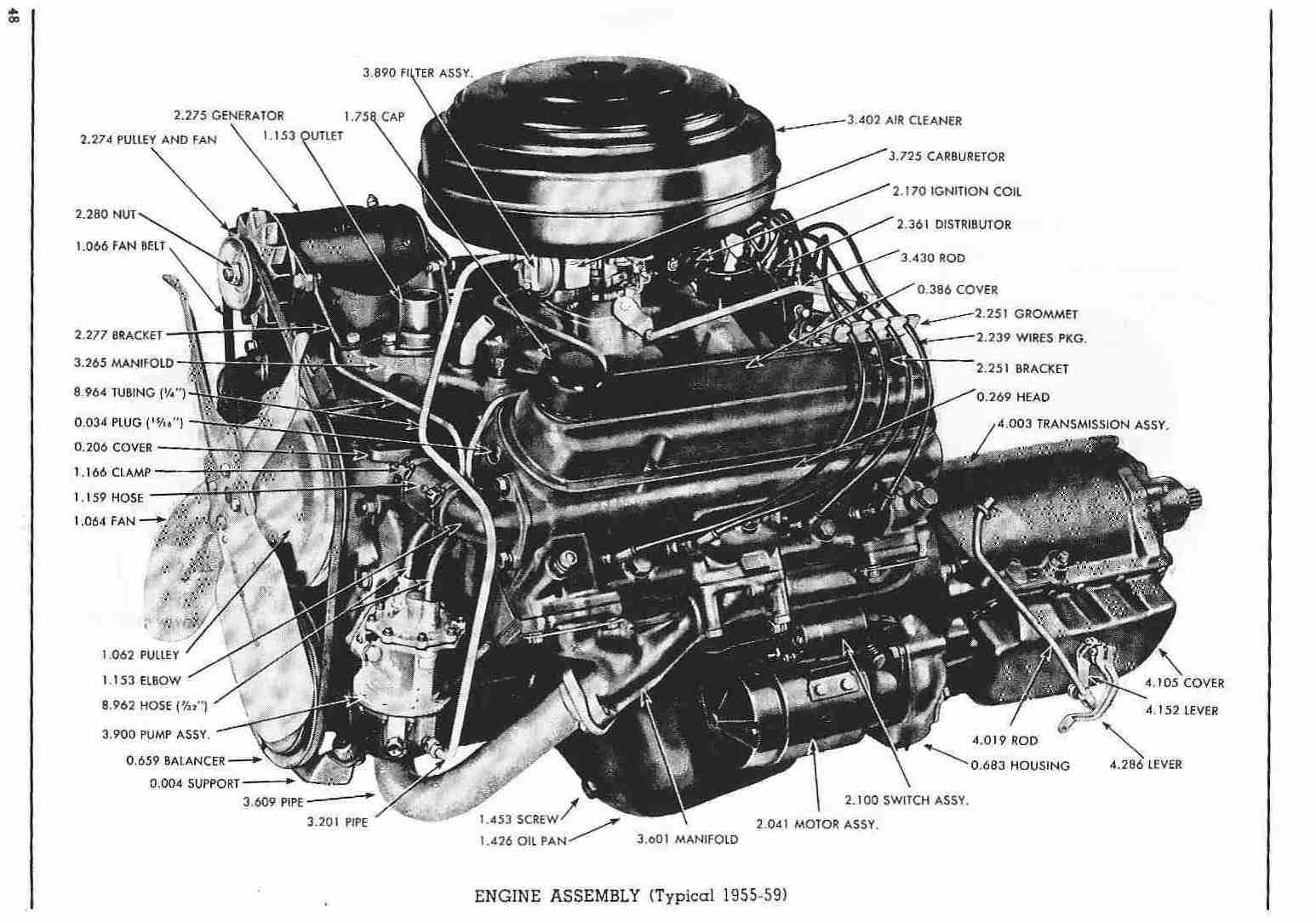

48 Engine Assembly (Typical 1955-1959)
49 Engine Assembly (Typical 1955-1959)

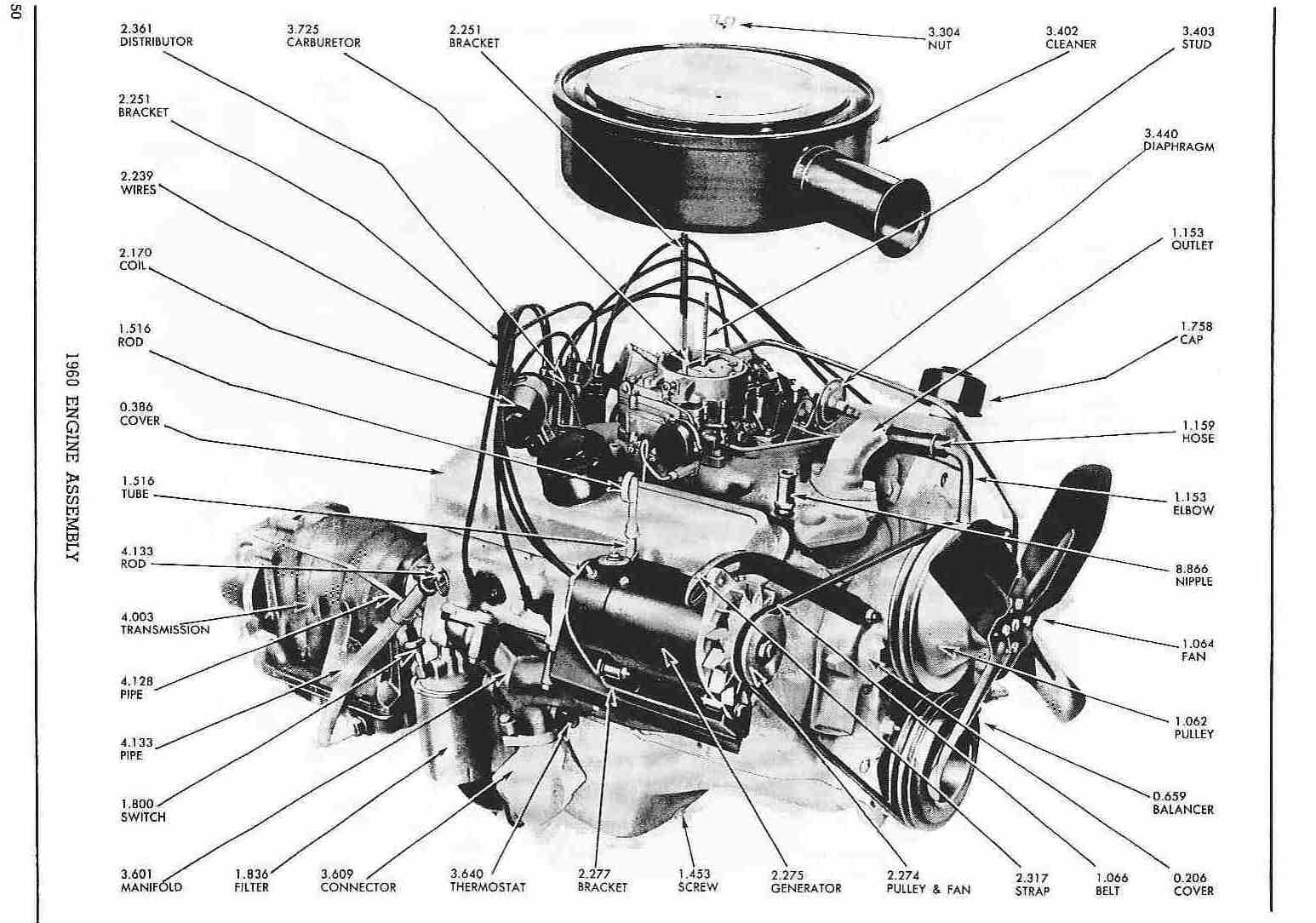

50 1960 Engine Assembly
51 1960 Engine Assembly

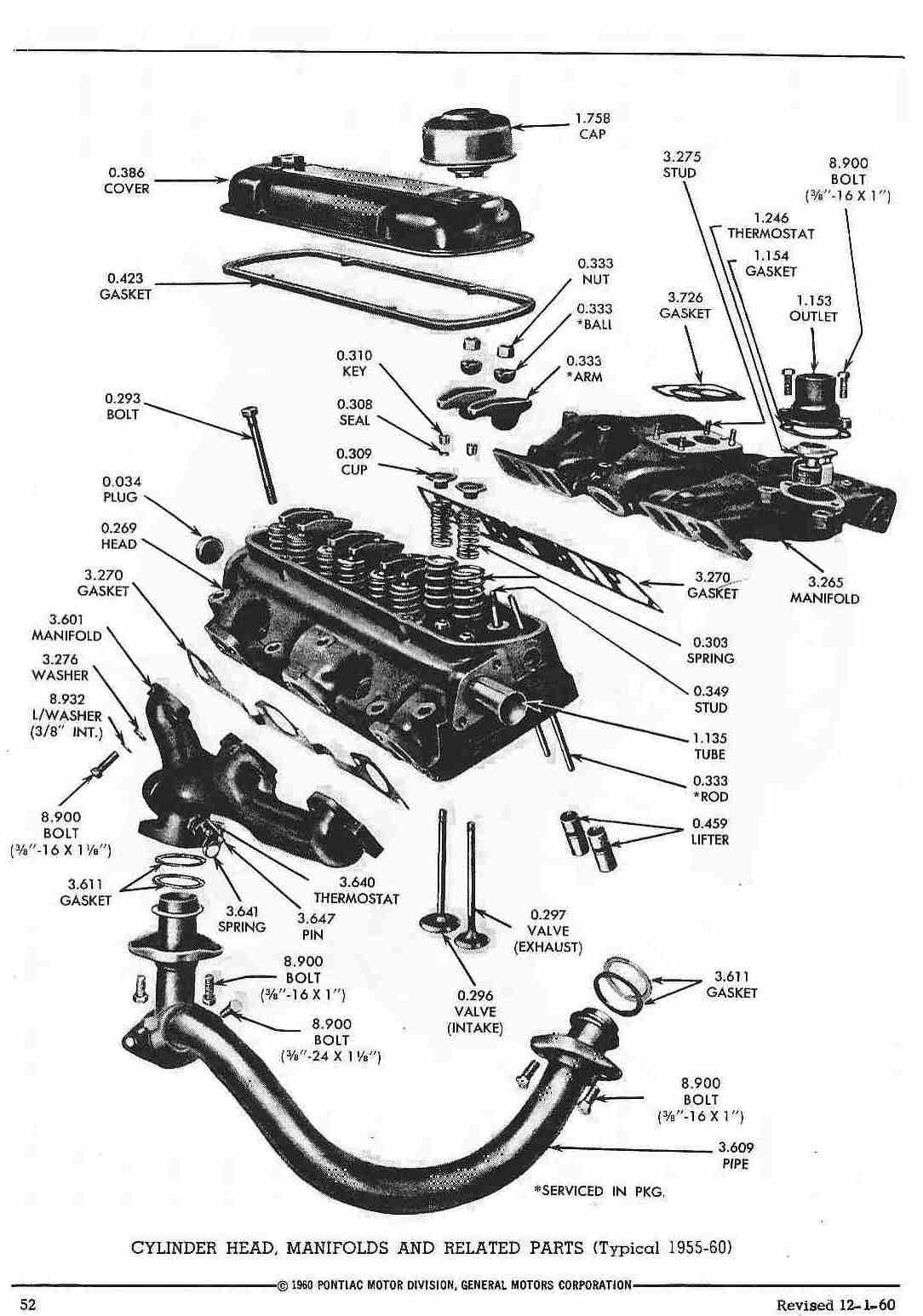

52 Cylinder Head, Manifolds and Related Parts (Typical (1955-60)

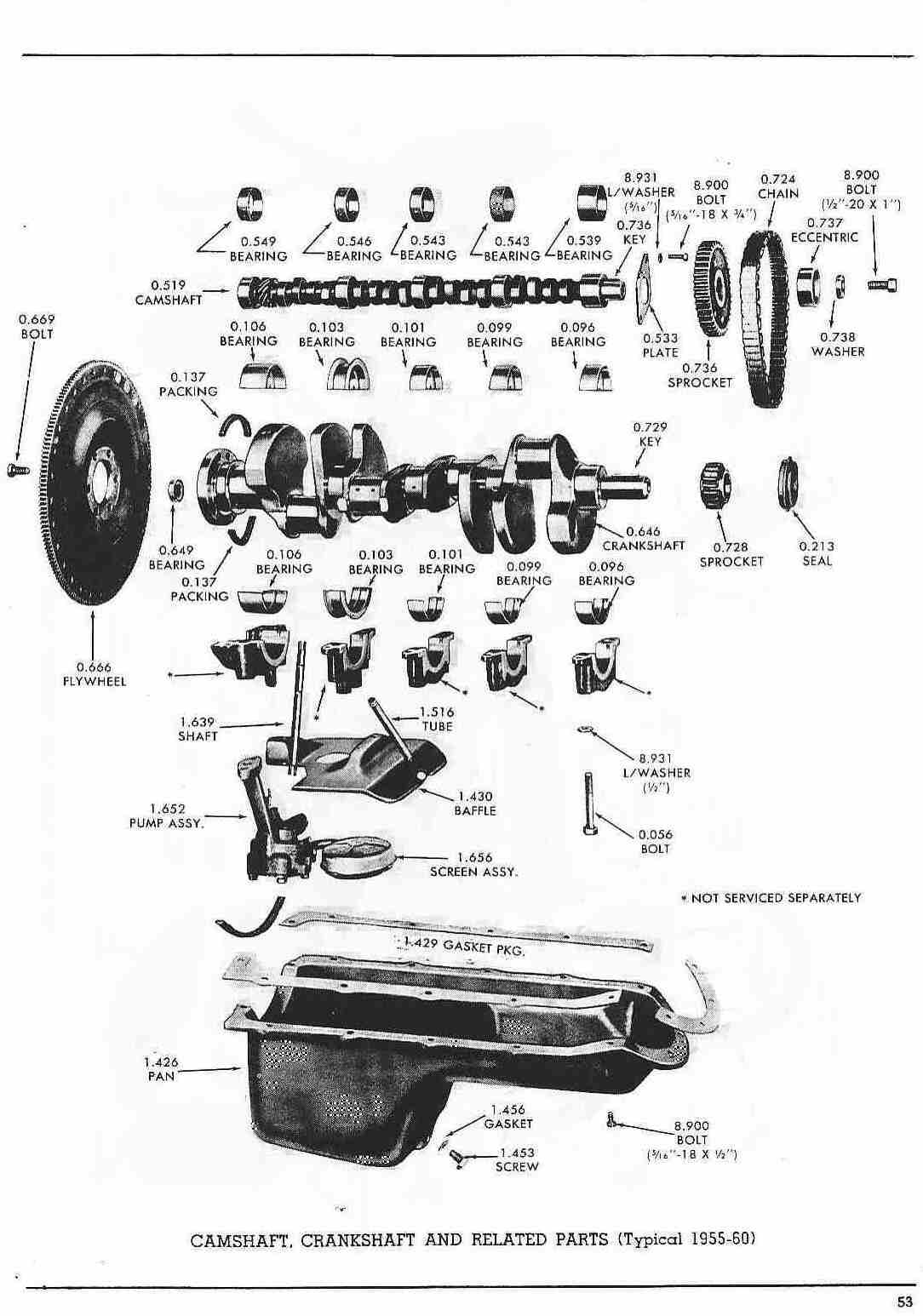

53 Camshaft, Crankshaft and Related Parts (Typical 1955-60)

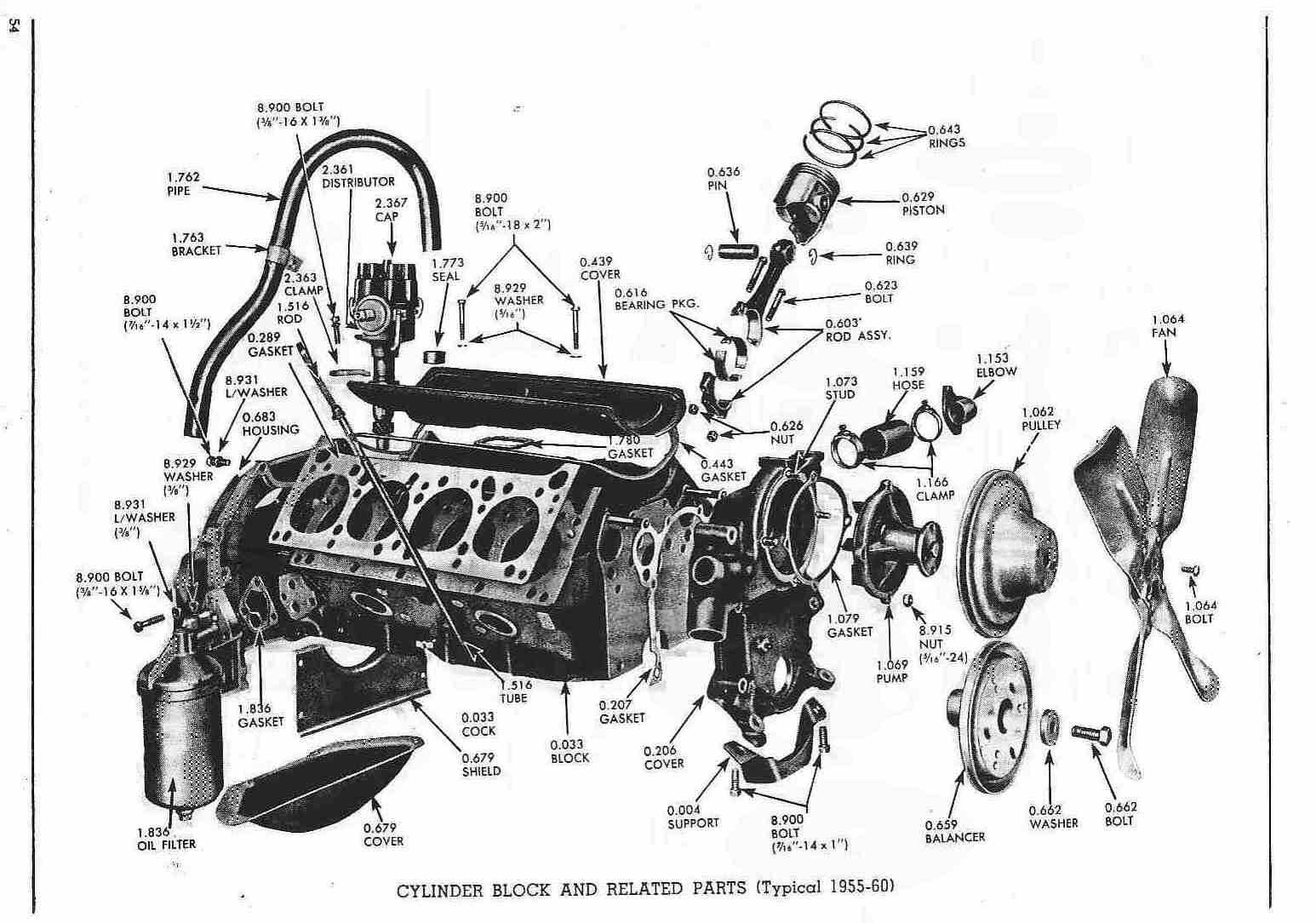

54 Cylinder Block and Related Parts (Typical 1955-60)

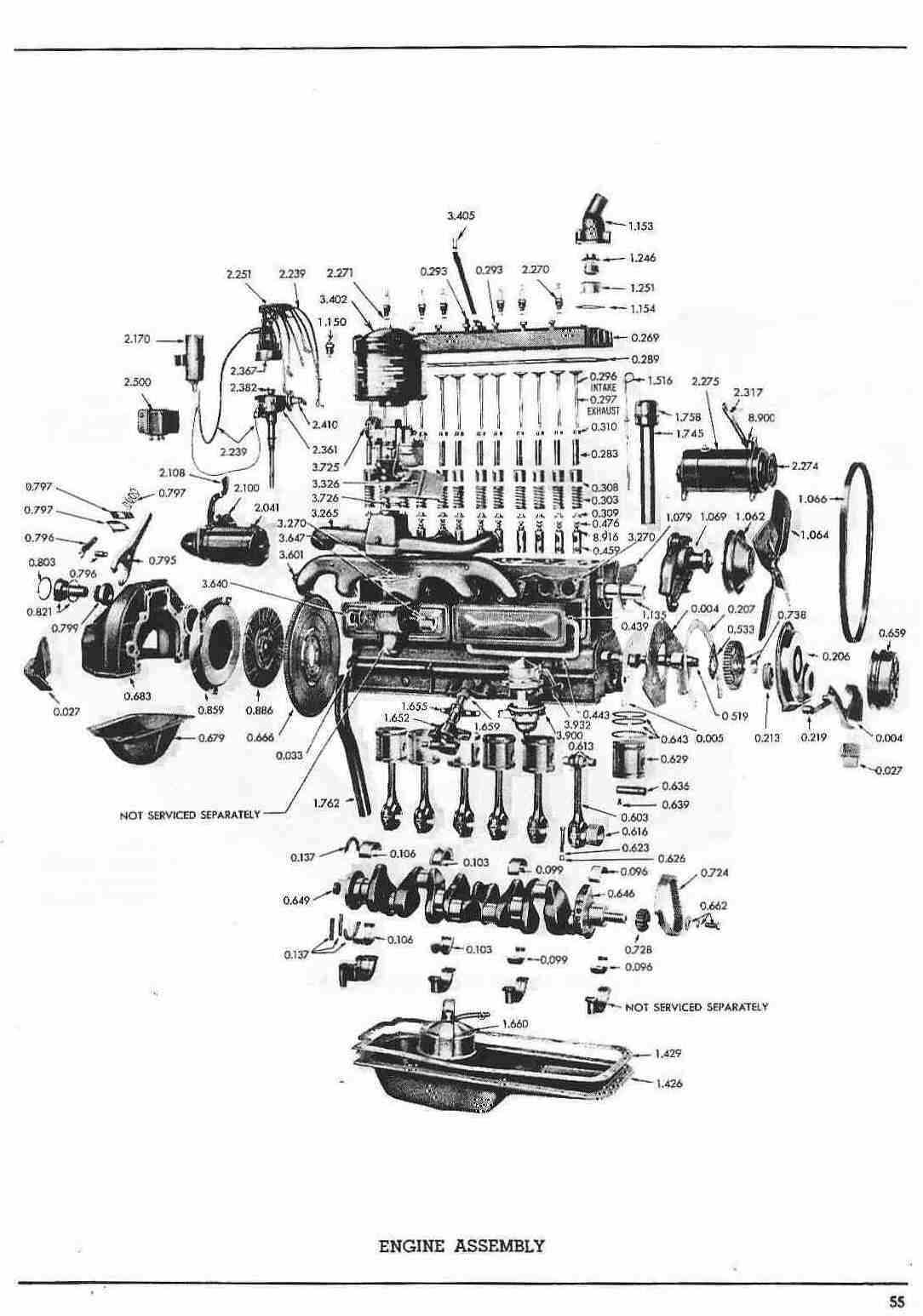

55 Engine Assembly (1954 & earlier flathead)

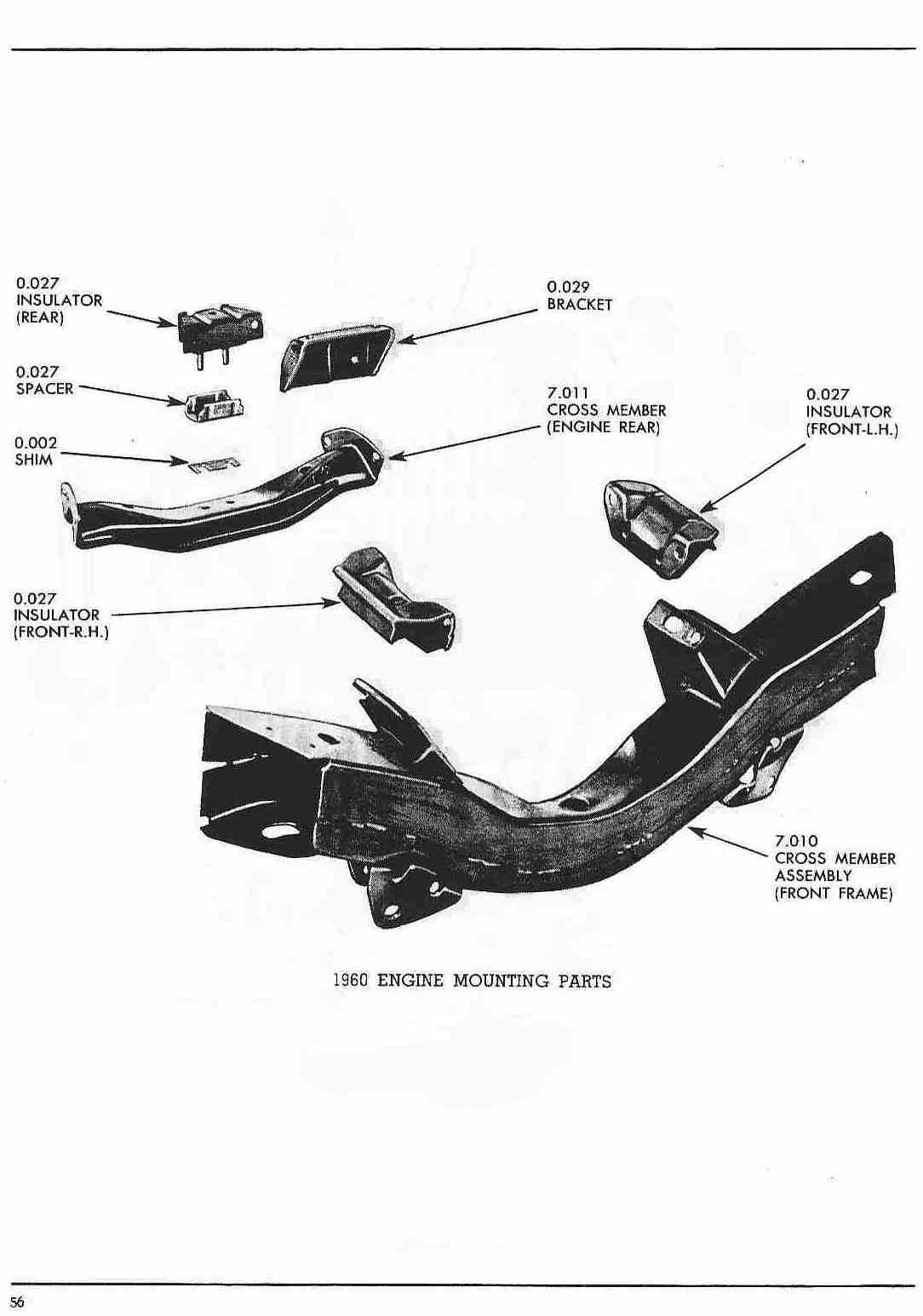

56 1960 Engine Mounting Parts

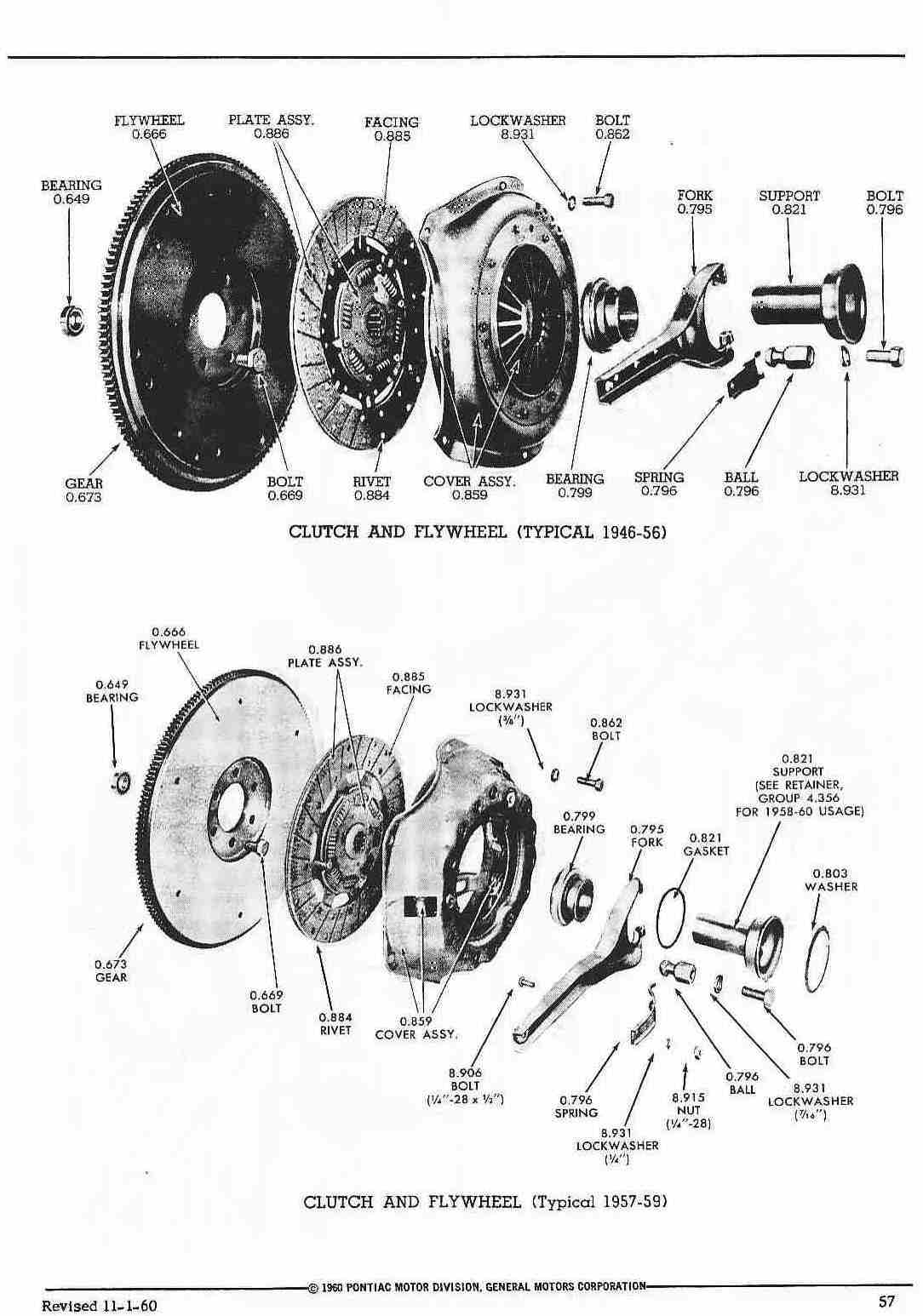

57 Clutch and Flywheel (1946-59)
58 1958 Clutch and Brake Controls

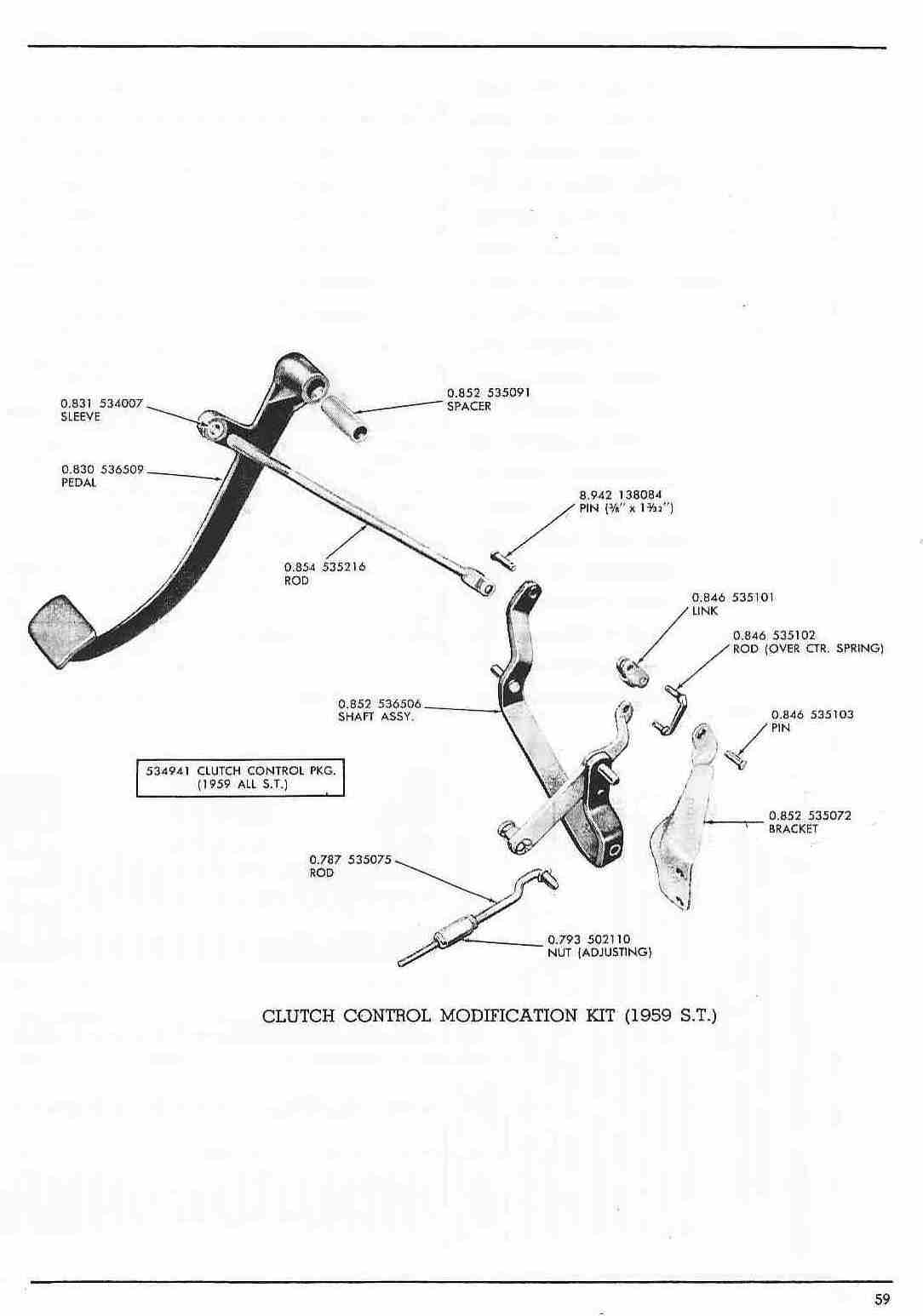

59 Clutch Control Modification Kit (1959 S.T.)
60 Engine Identification Chart (1959)
61 Engine Identification Chart (1960)

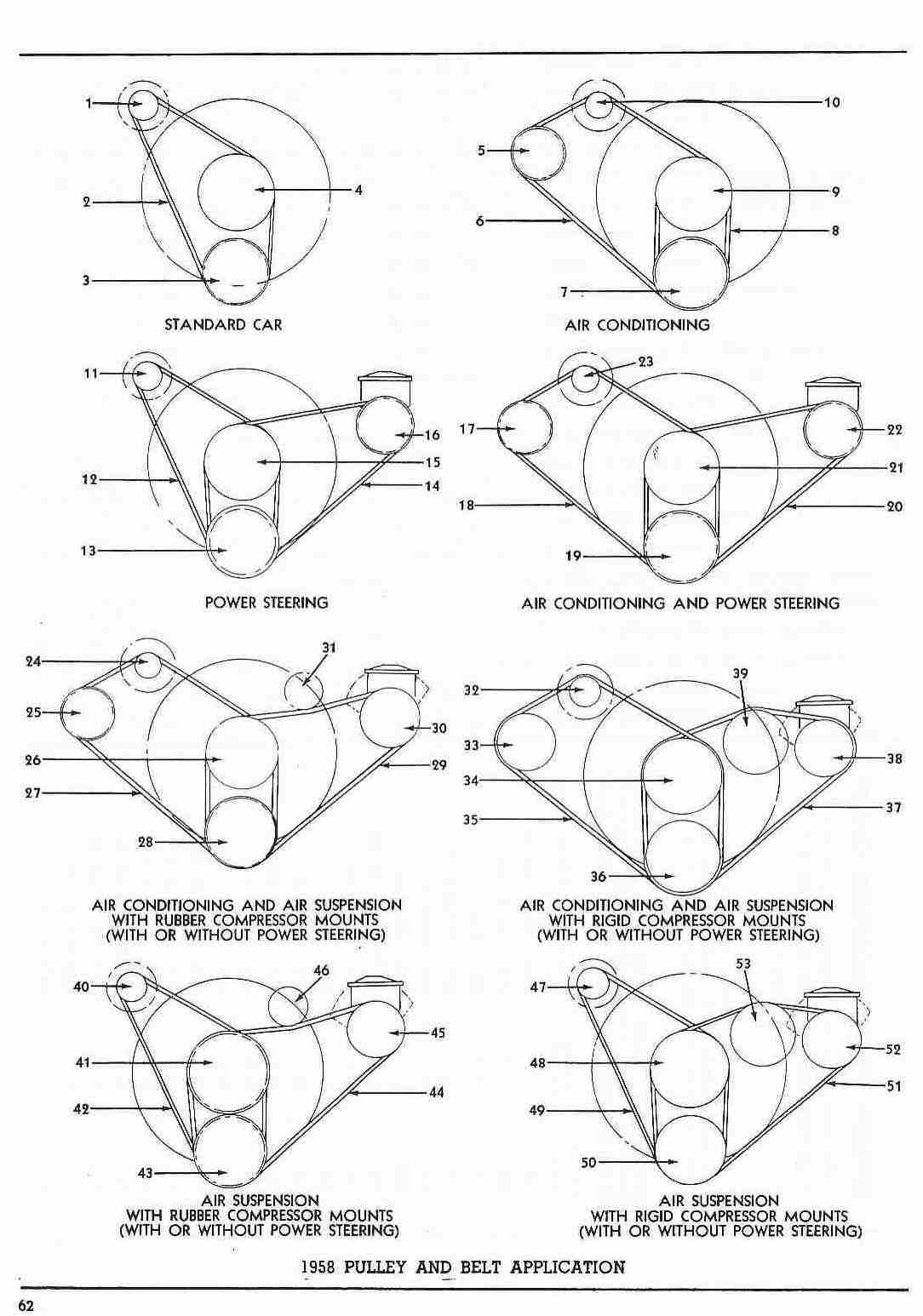

62 1958 Pulley and Belt Application

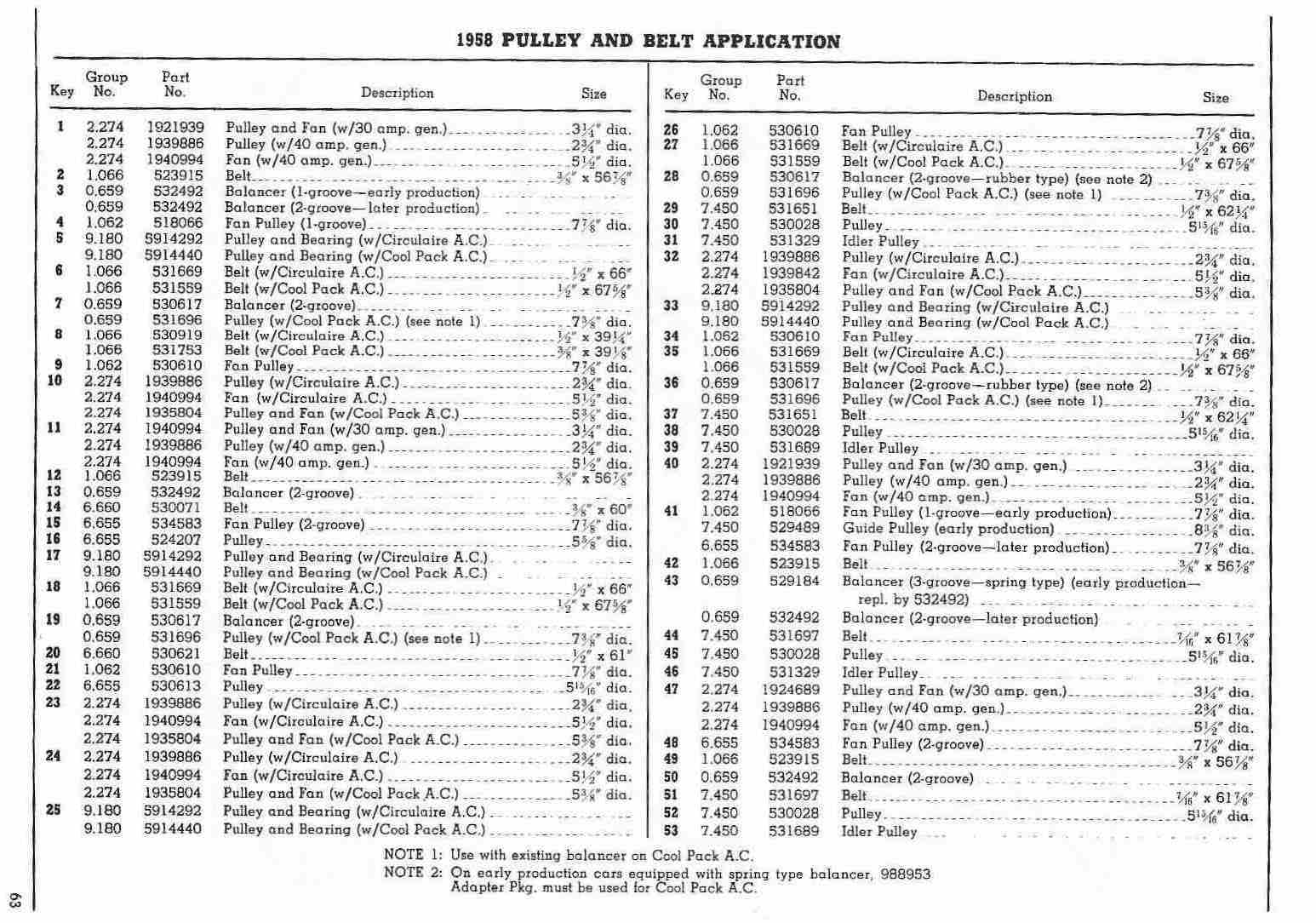

63 1958 Pulley and Belt Application
64 1959 Pulley and Belt Application

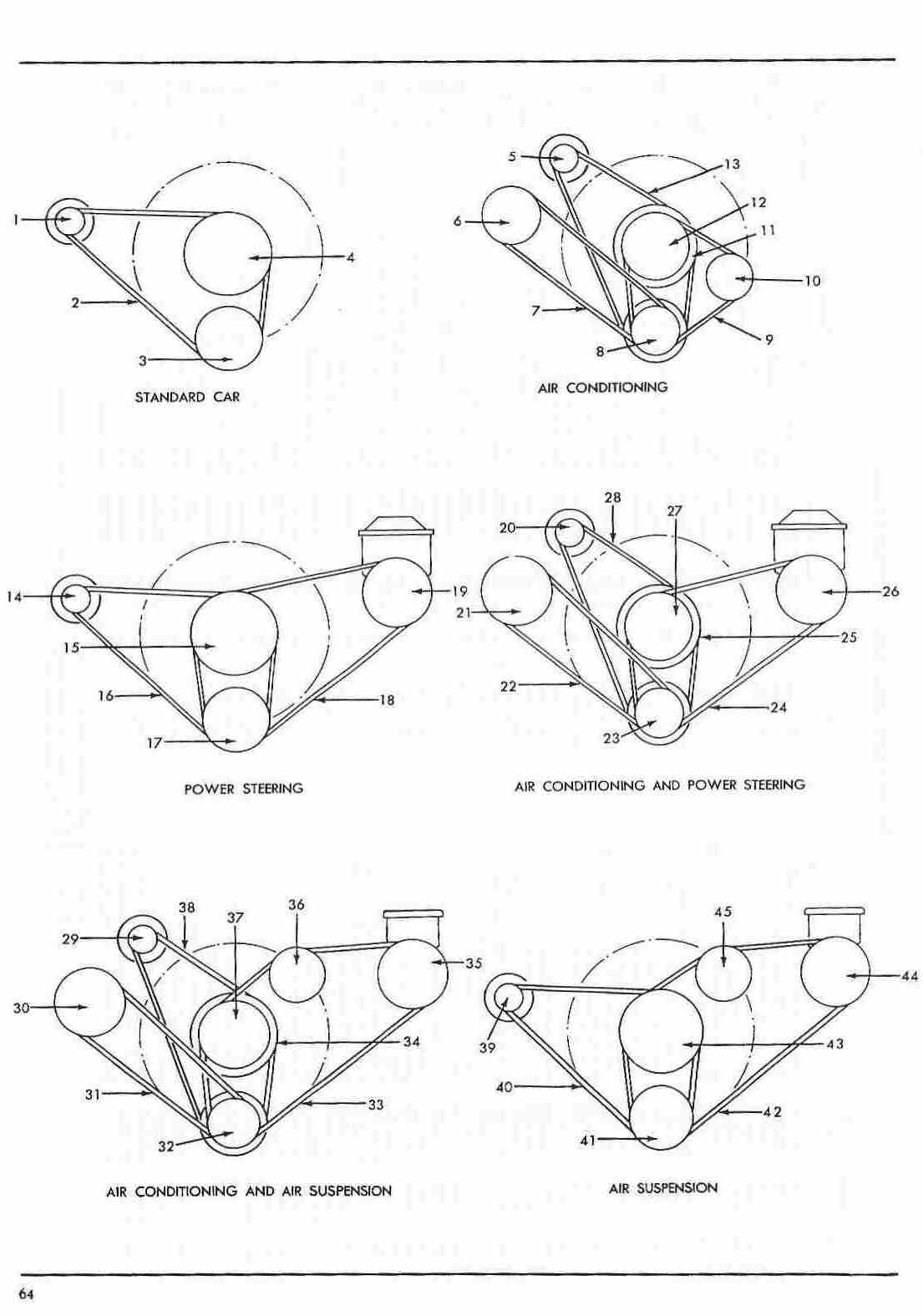

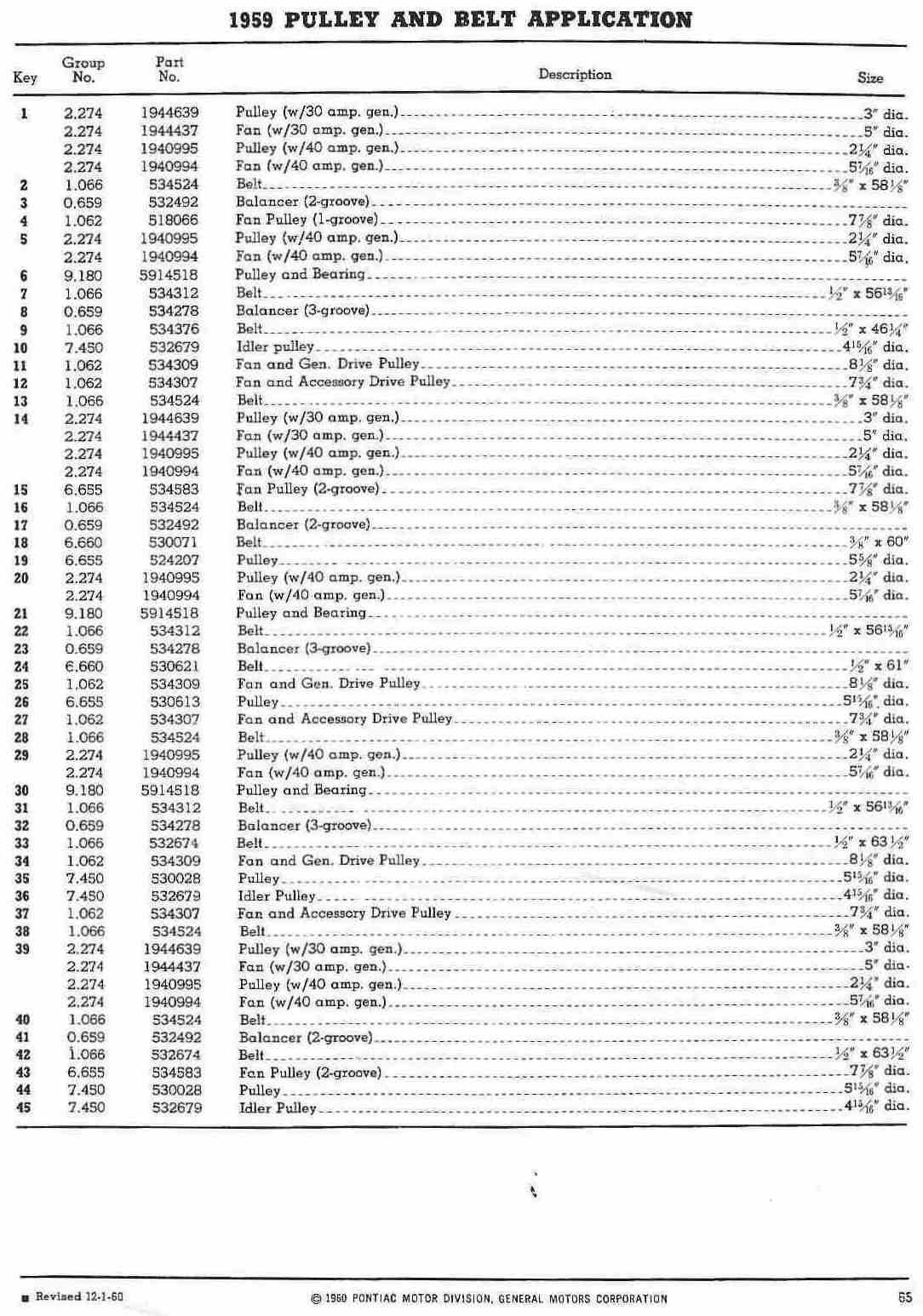

65 1959 Pulley and Belt Application
67-93 parts listing Group 0.xxx   Engine-Clutch

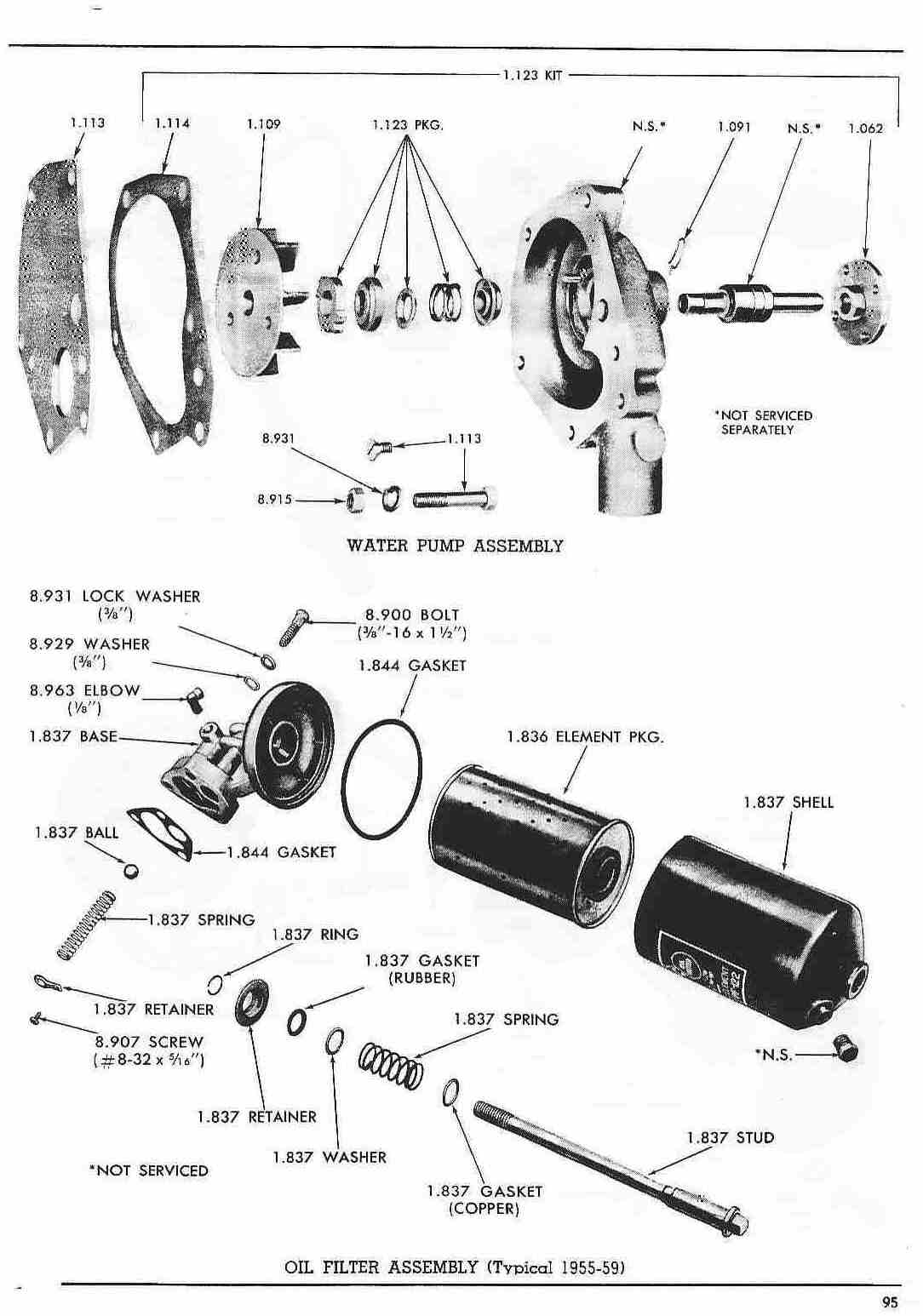

95 Water Pump / Oil Filter Assembly (1955-59)

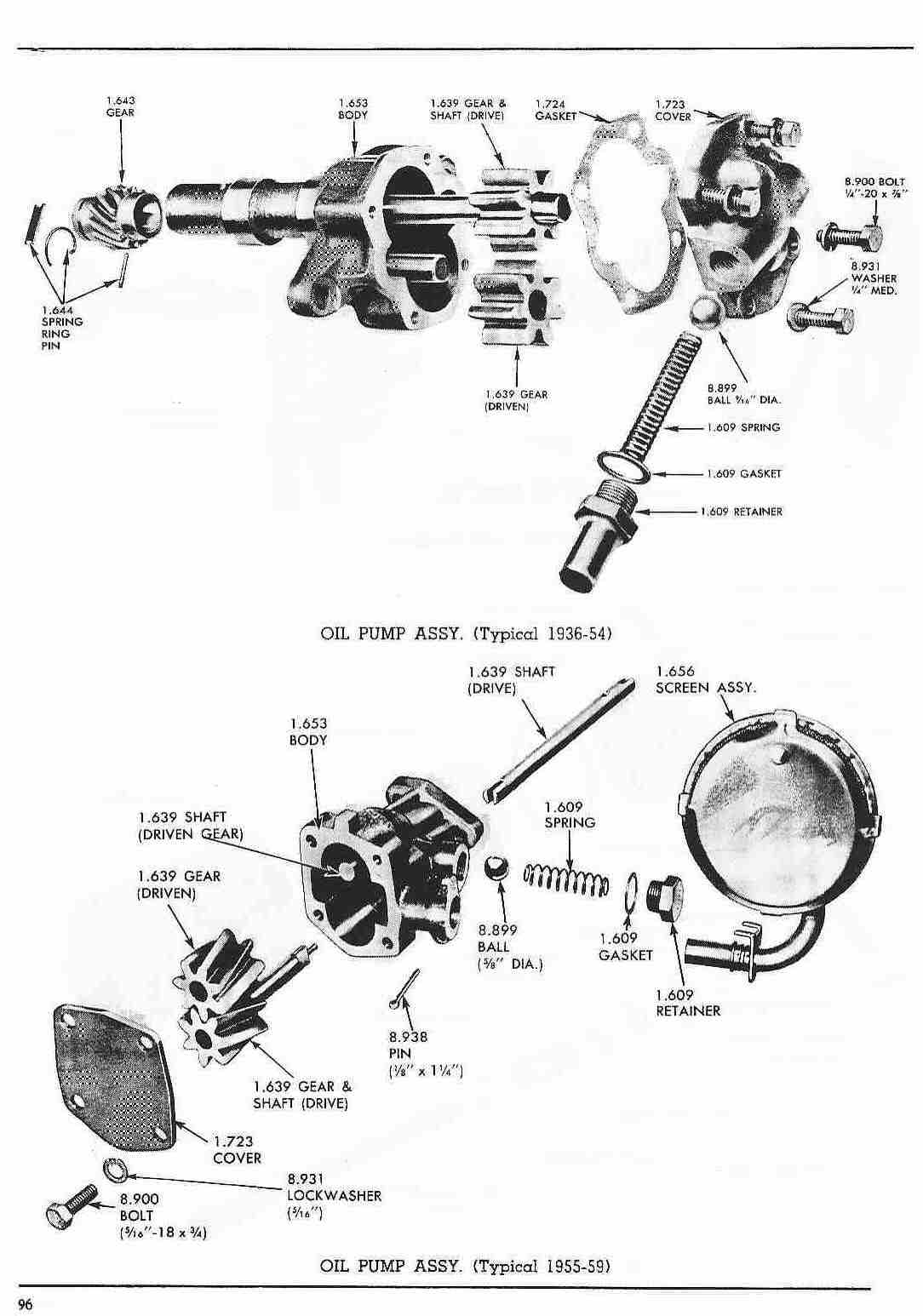

96 Oil Pump Assy. (1936-59)

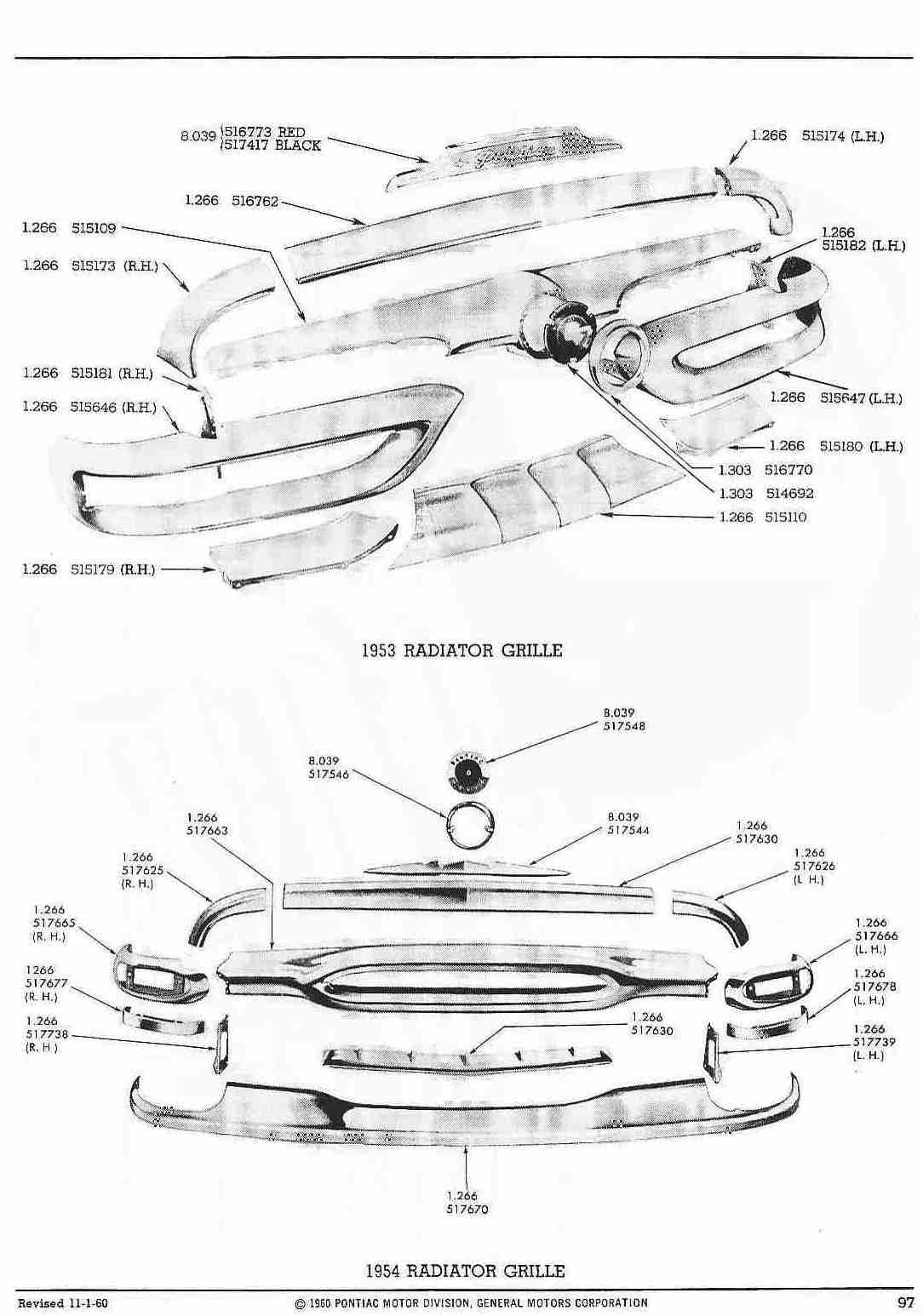

97 1953 / 1954 Radiator Grille

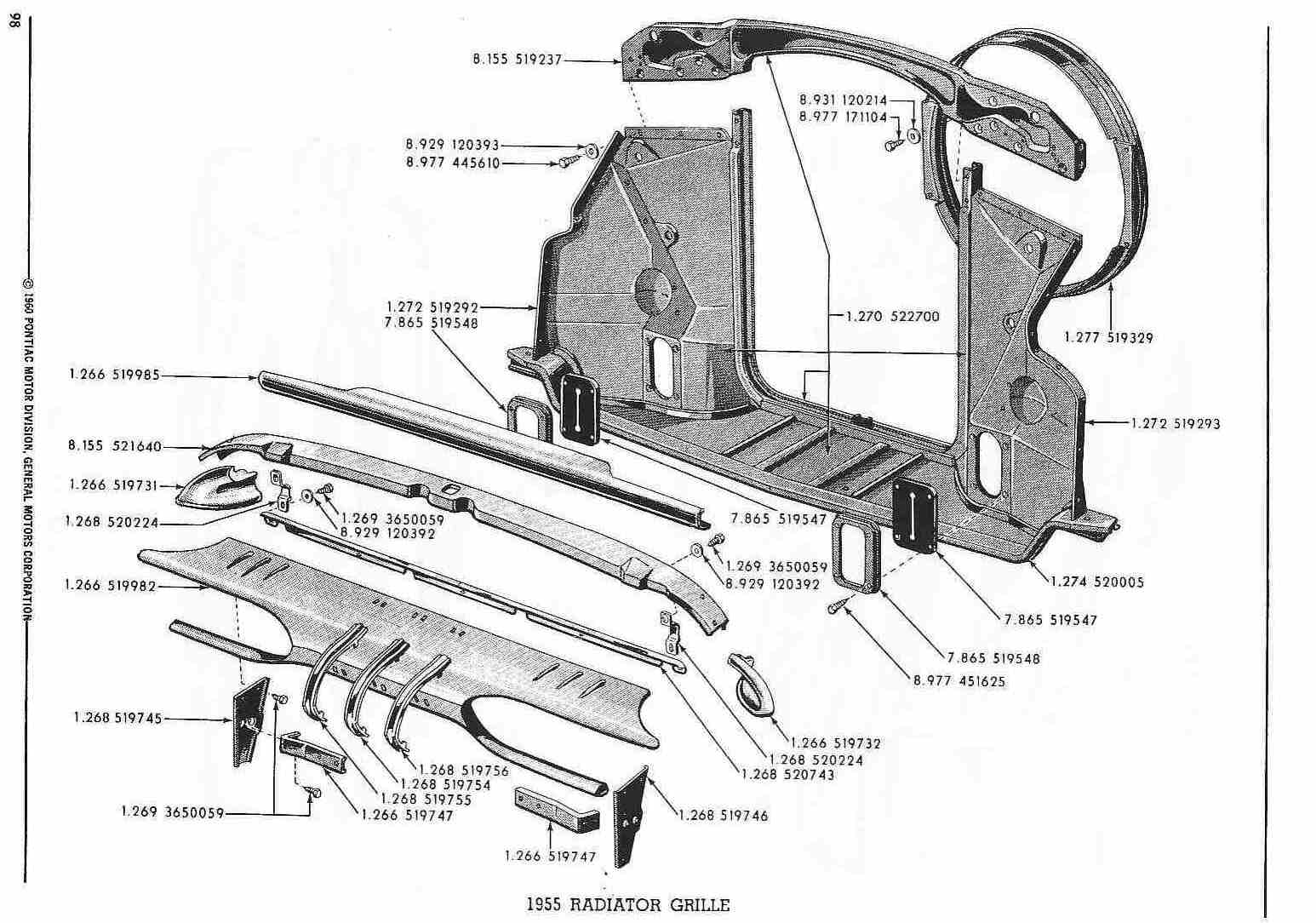

98 1955 Radiator Grille

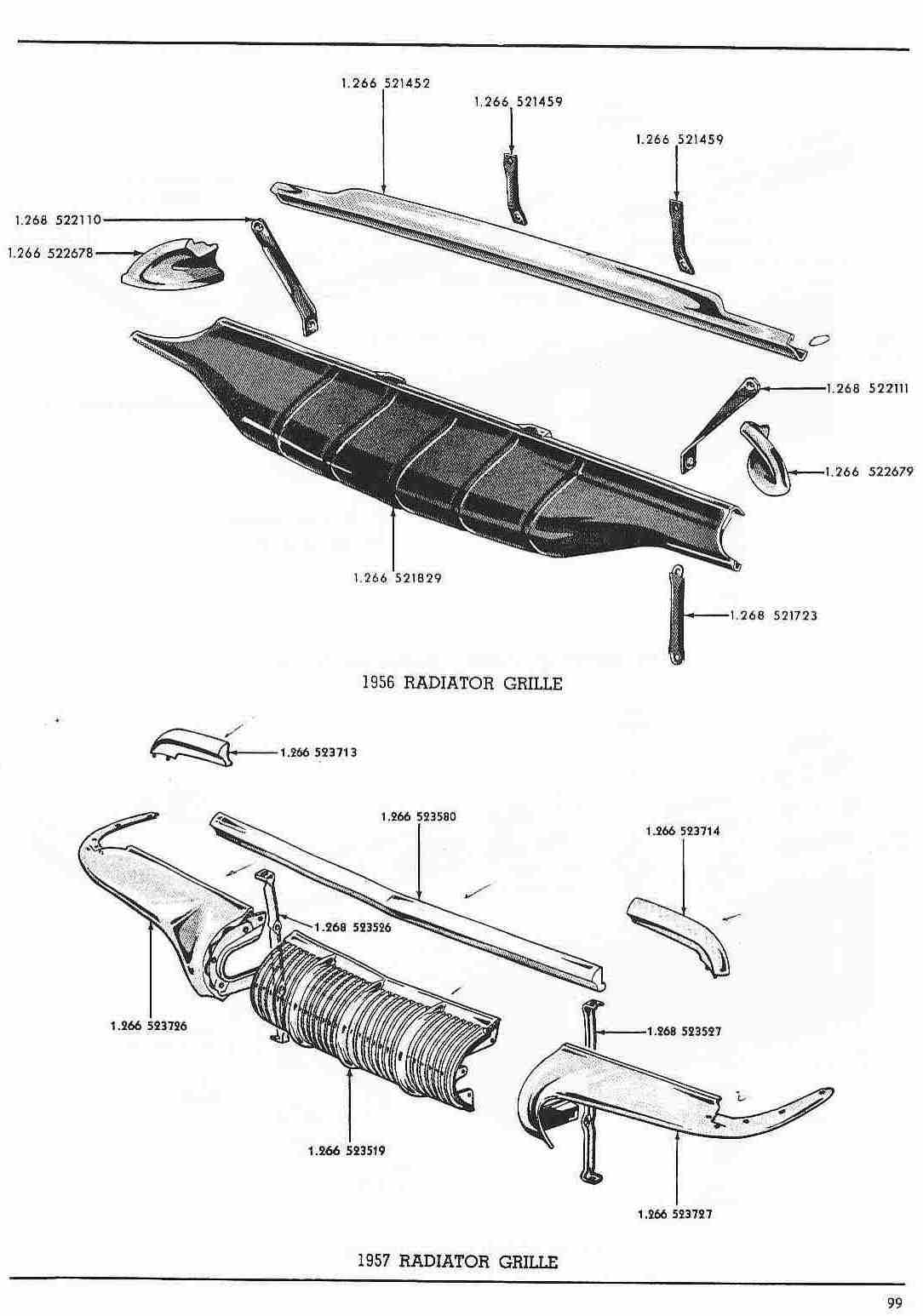

99 1956 /1957 Radiator Grille

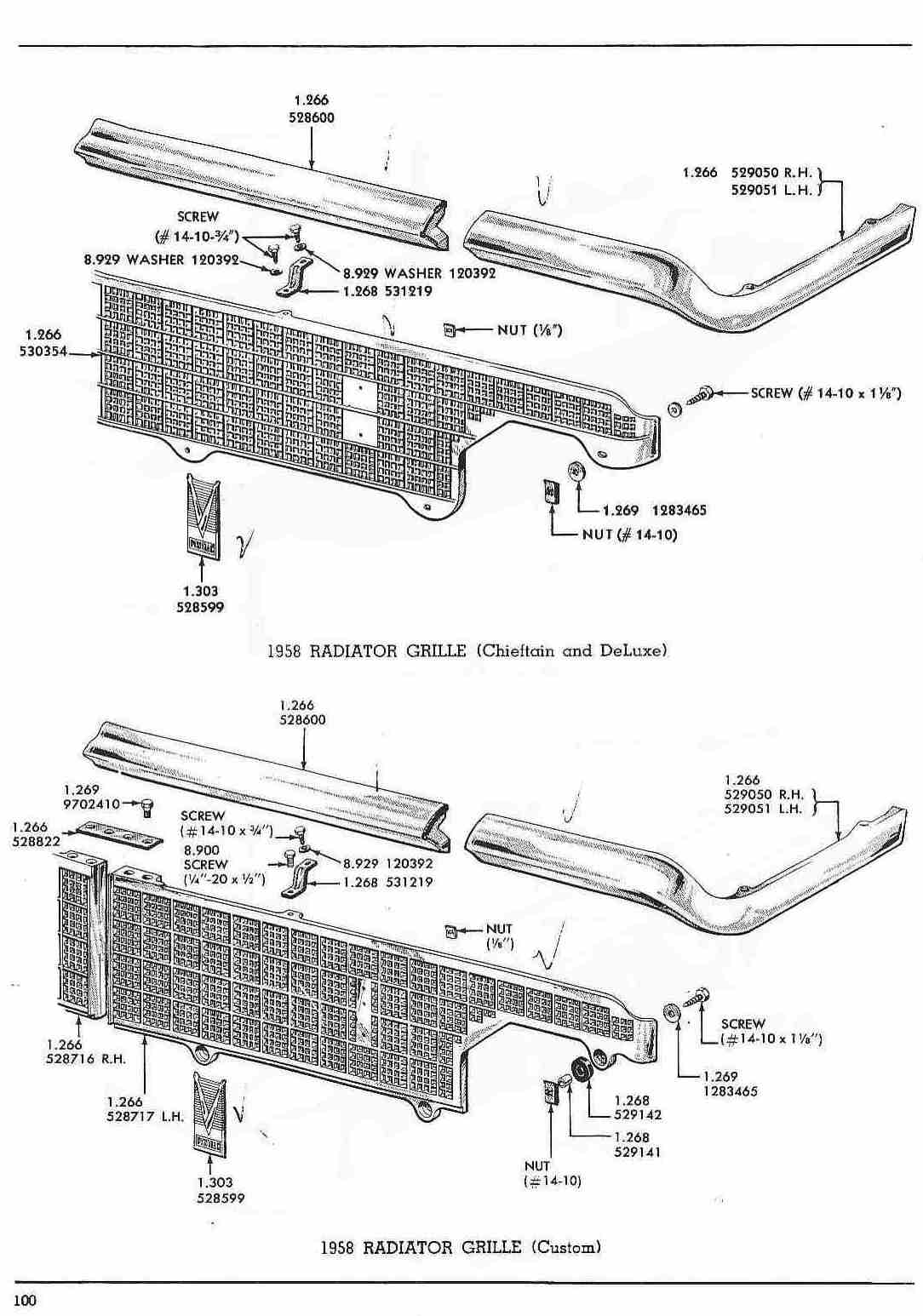

100 1958 Radiator Grille

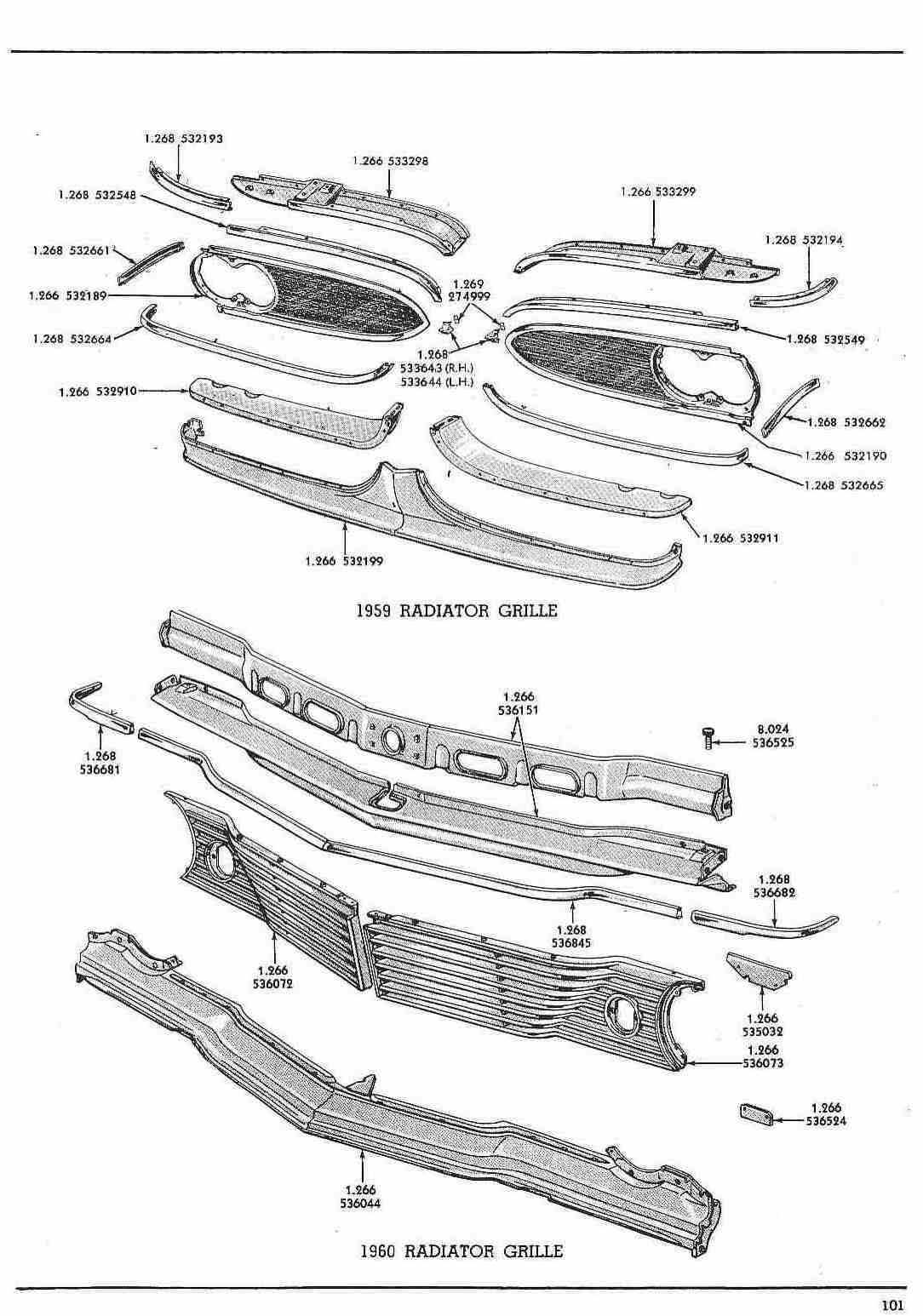

101 1959 / 1960 Radiator Grille
103-122 parts listing Group 1.xxx   Cooling and Oiling

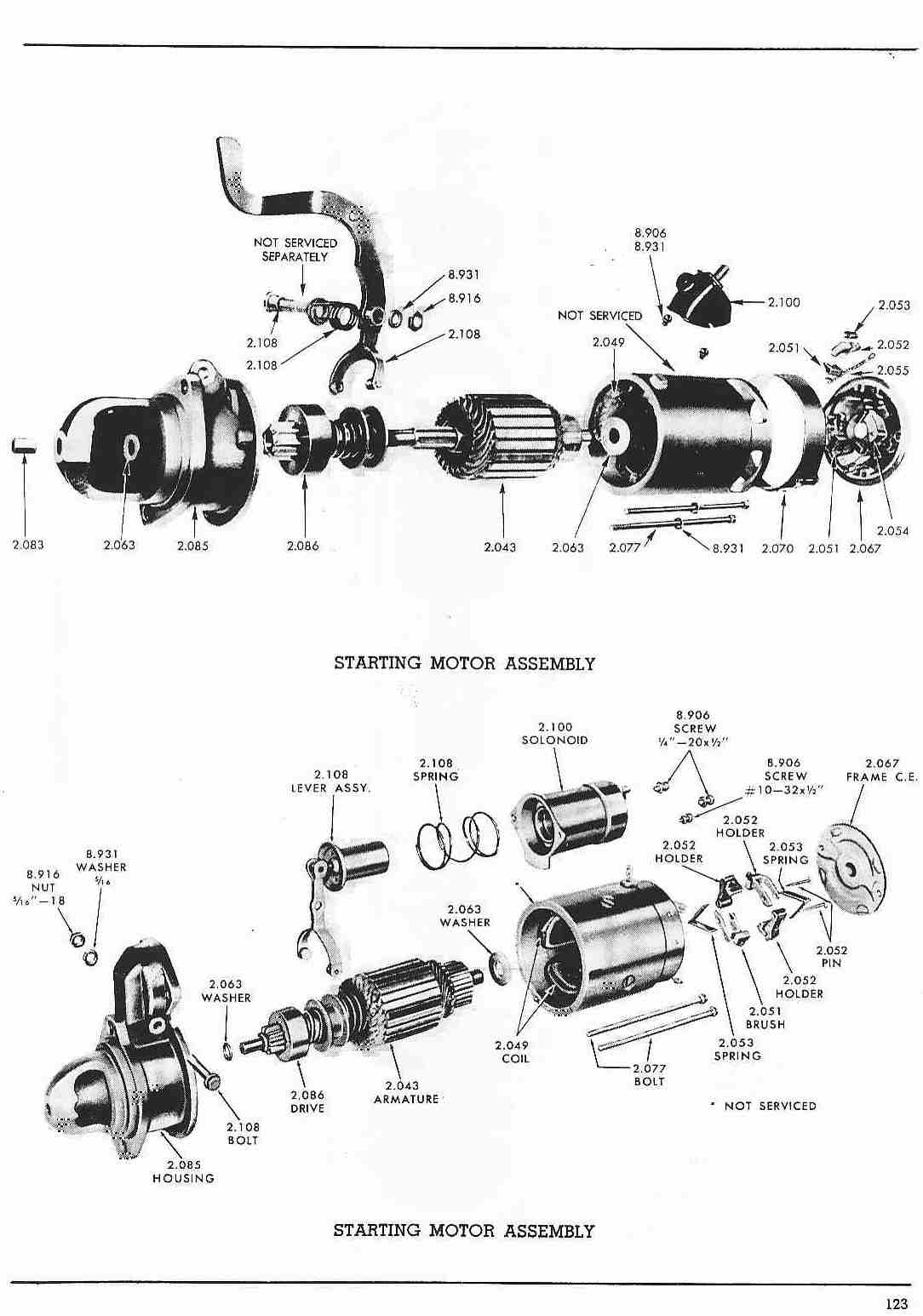

123 Starting Motor Assembly

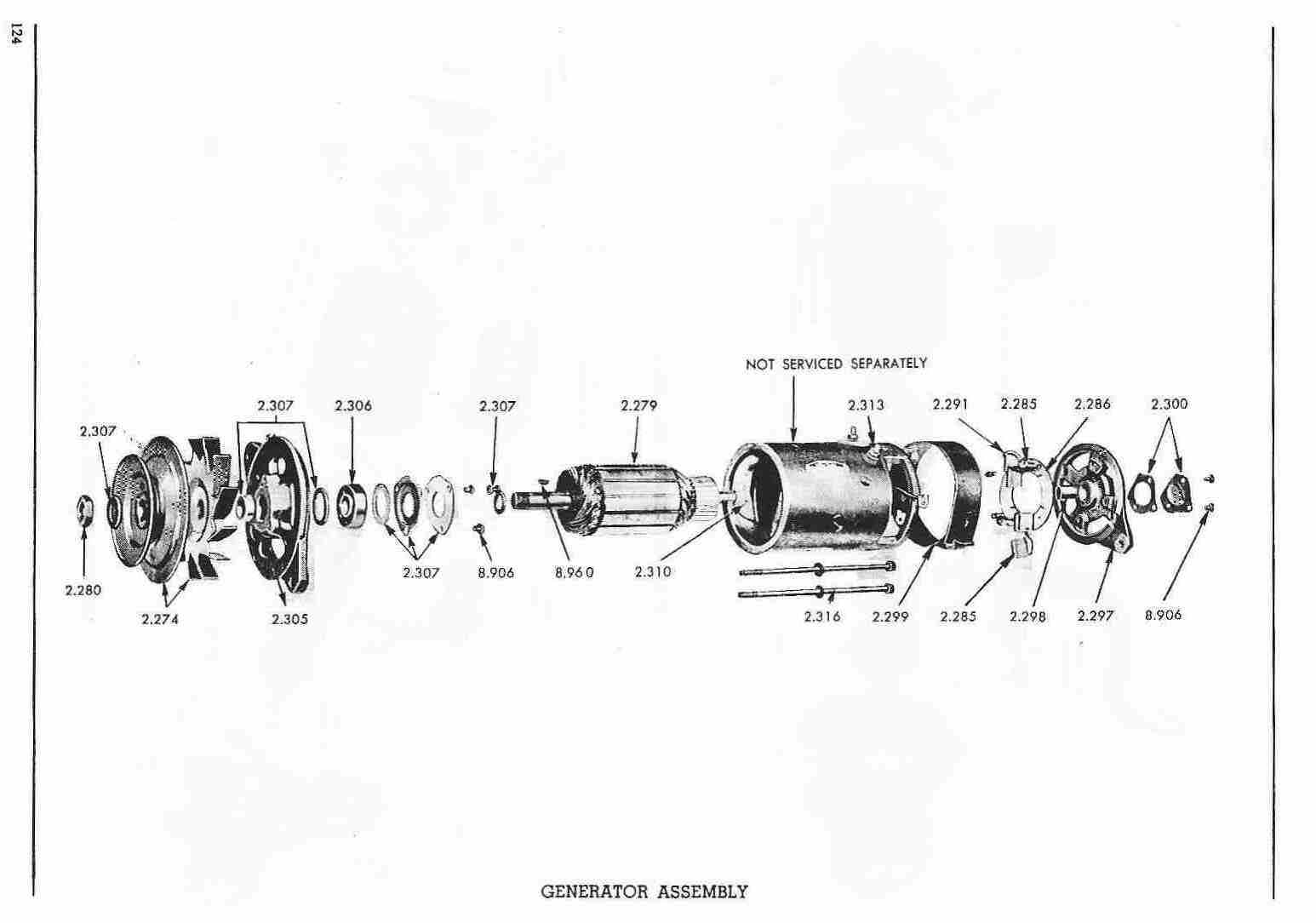

124 Generator Assembly

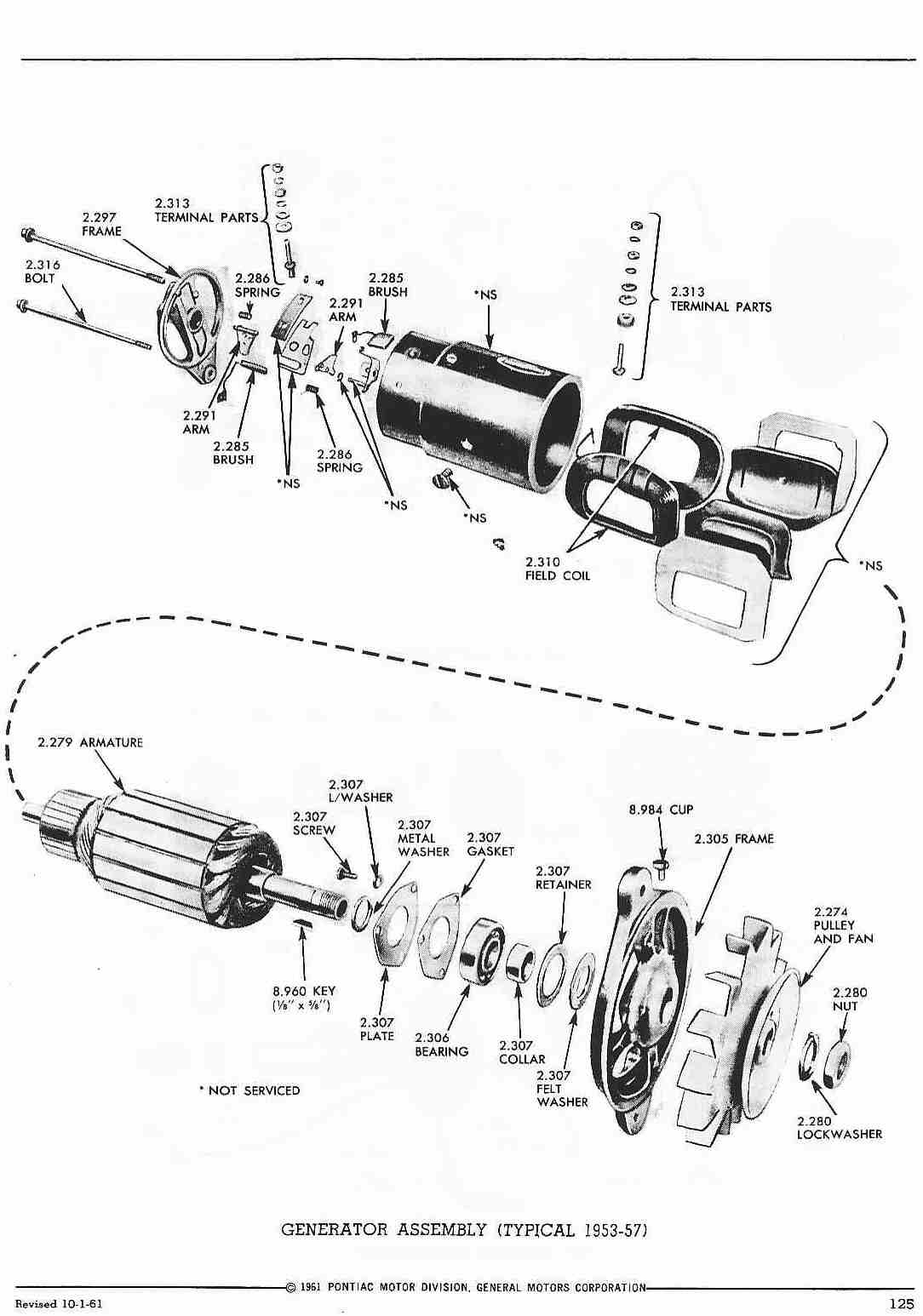

125 Generator Assembly (Typical 1953-57)

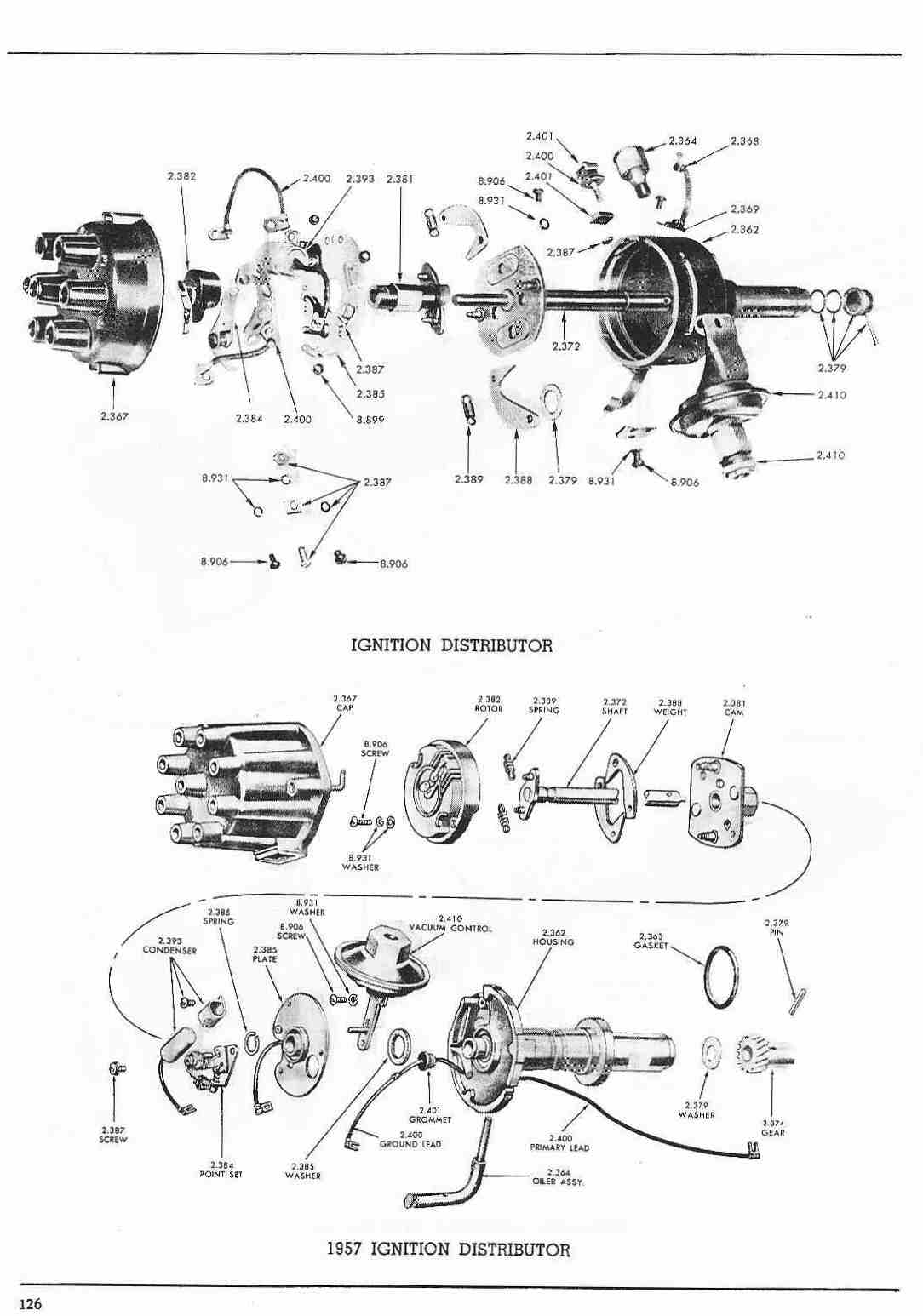

126 Ignition Distributor

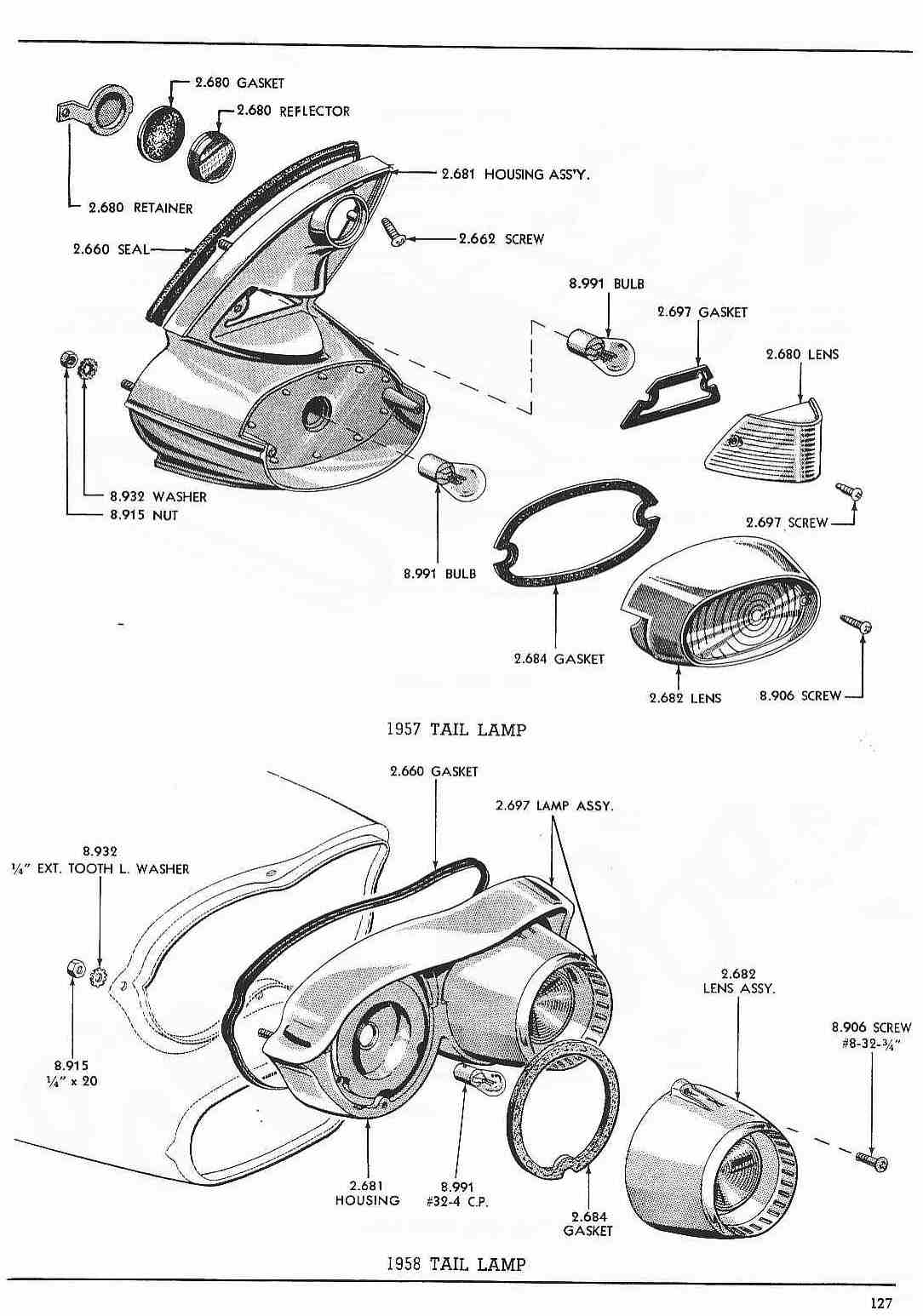

127 1957 / 1958 Tail Lamp

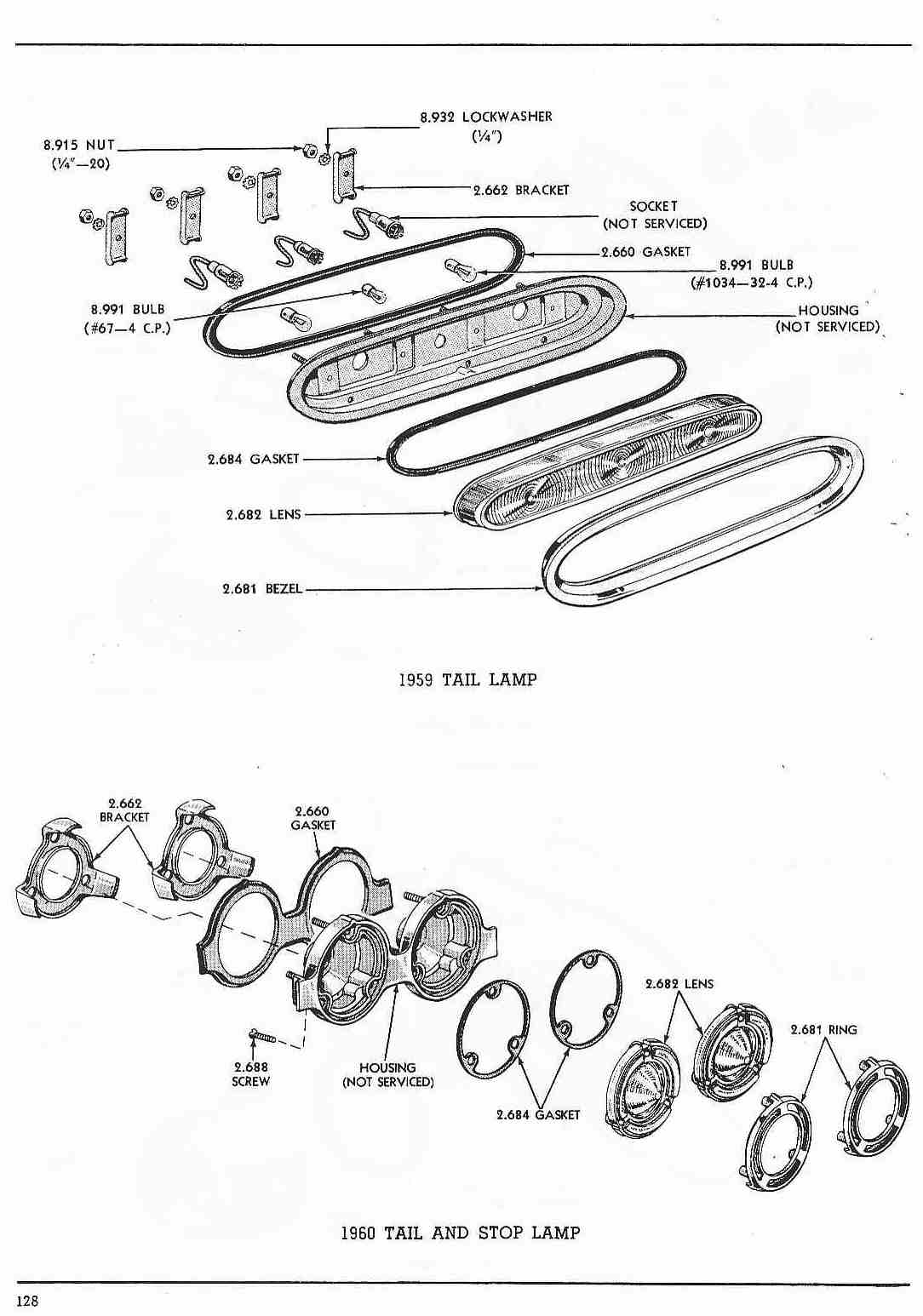

128 1959 / 1960 Tail Lamp

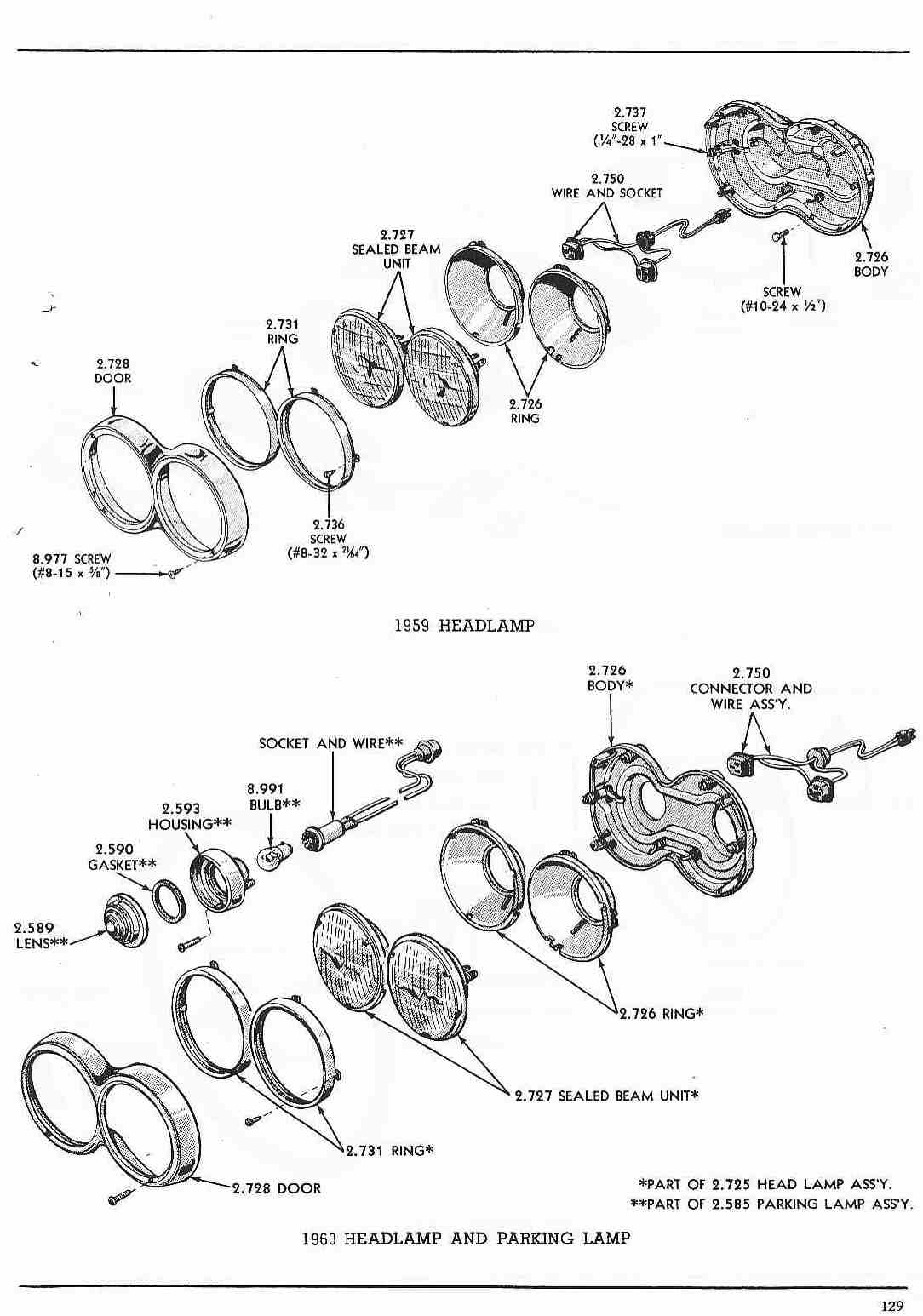

129 1959 Headlamp / 1960 Headlamp and Parking Lamp
130 1960 Back-up Lamp / 1957 Steering Wheel

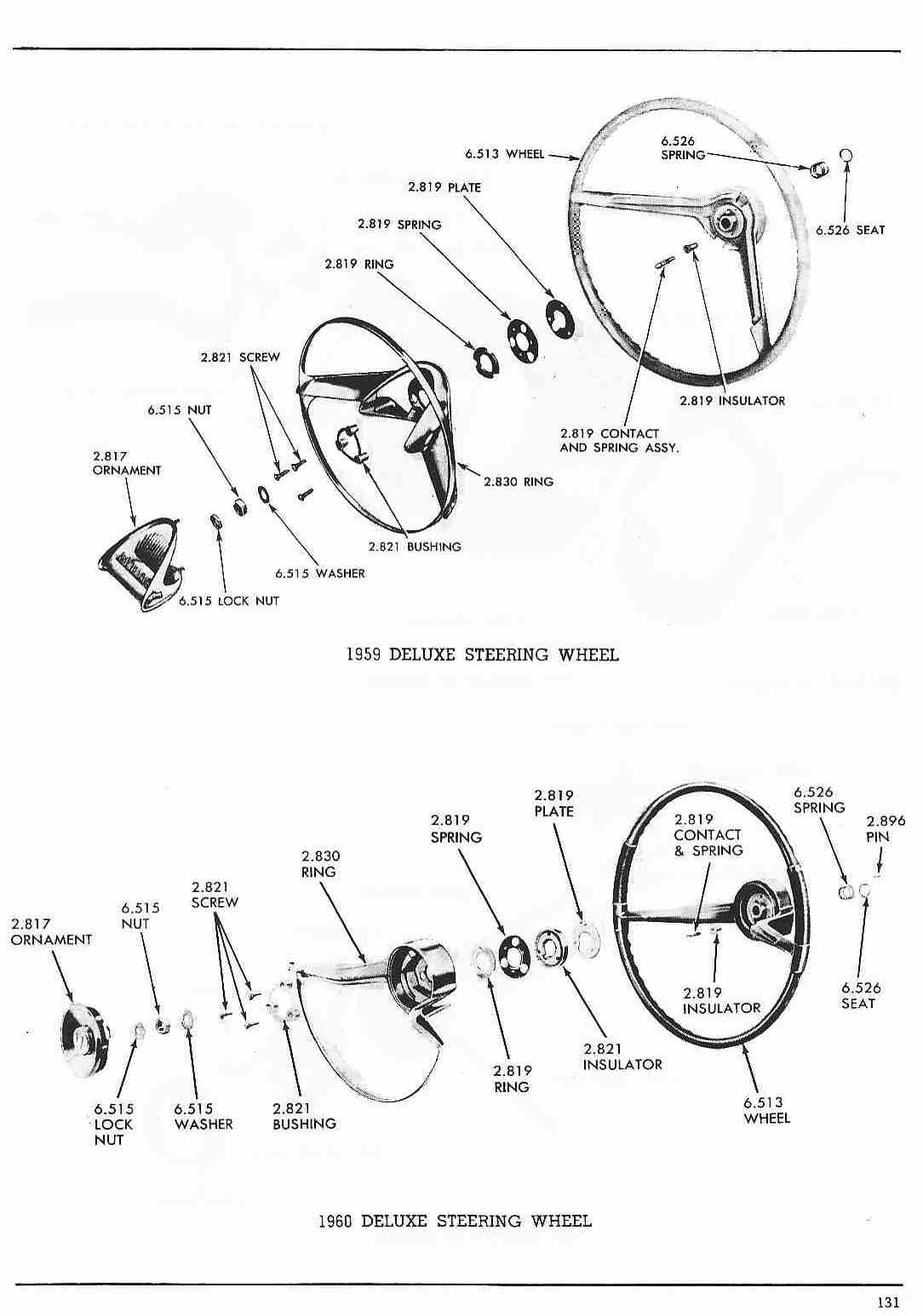

131 1959 / 1960 Deluxe Steering Wheel

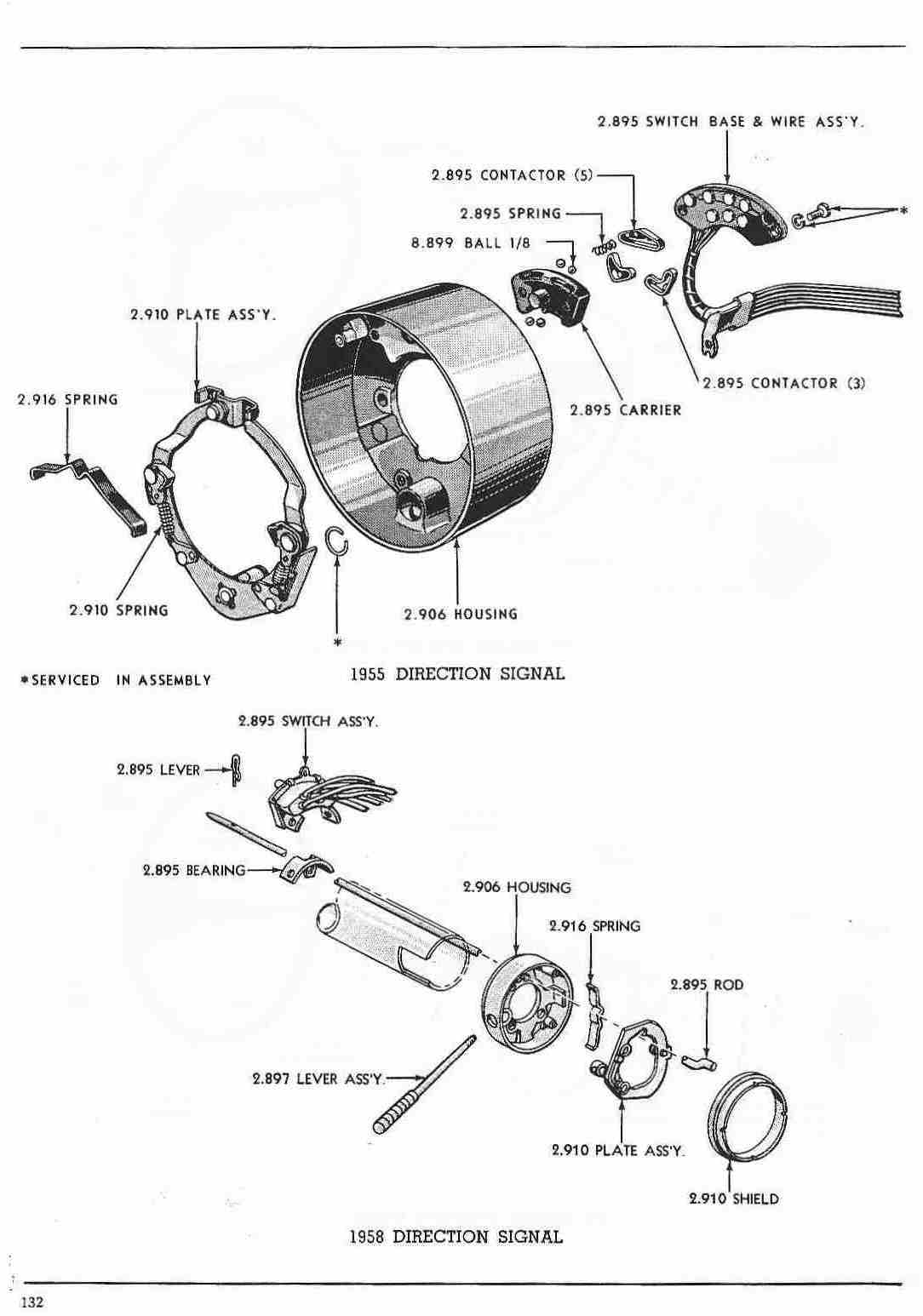

132 1955 / 1958 Directional Signal
133-173 parts listing 2.xxx    Electrical

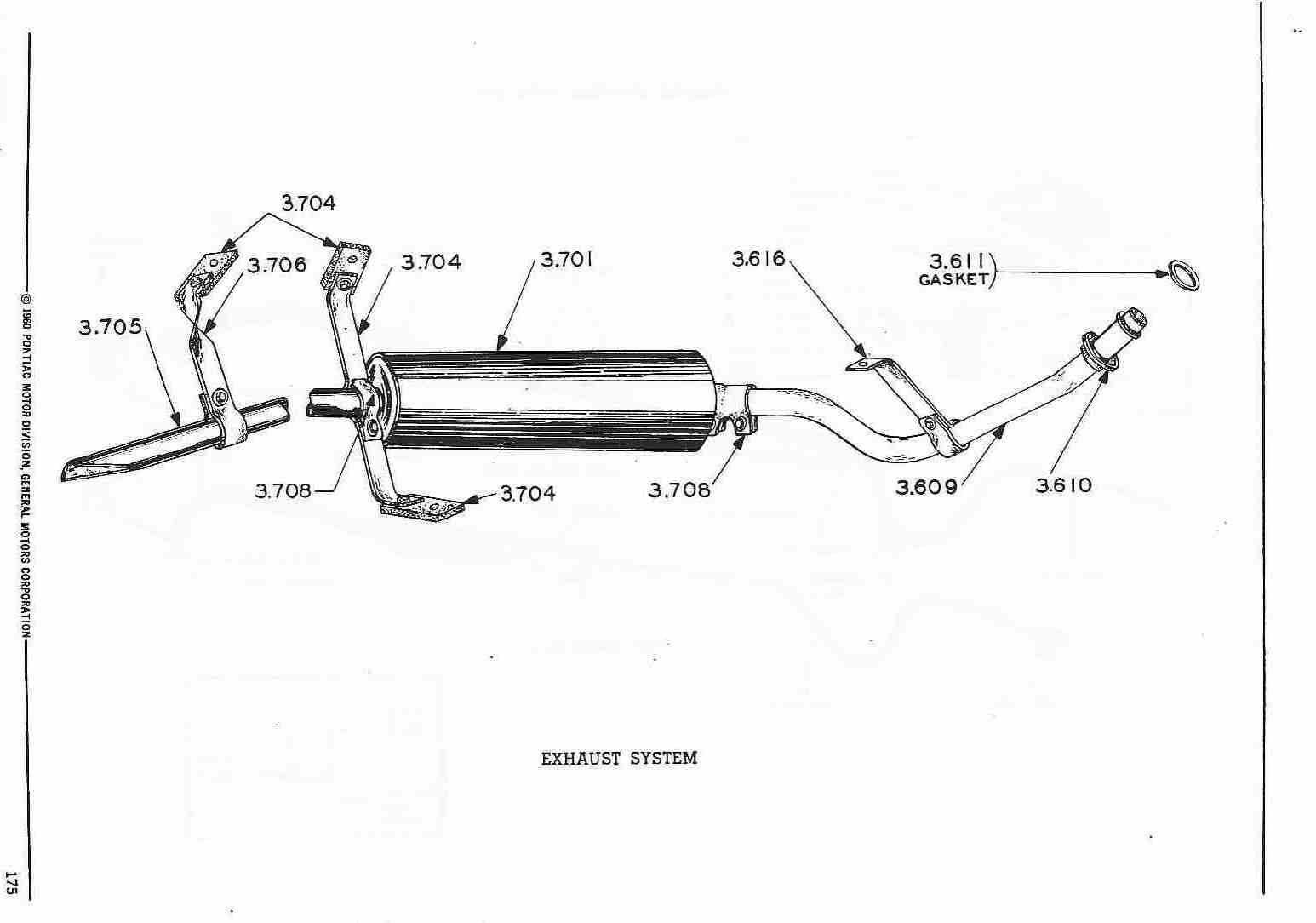

175 Exhaust System

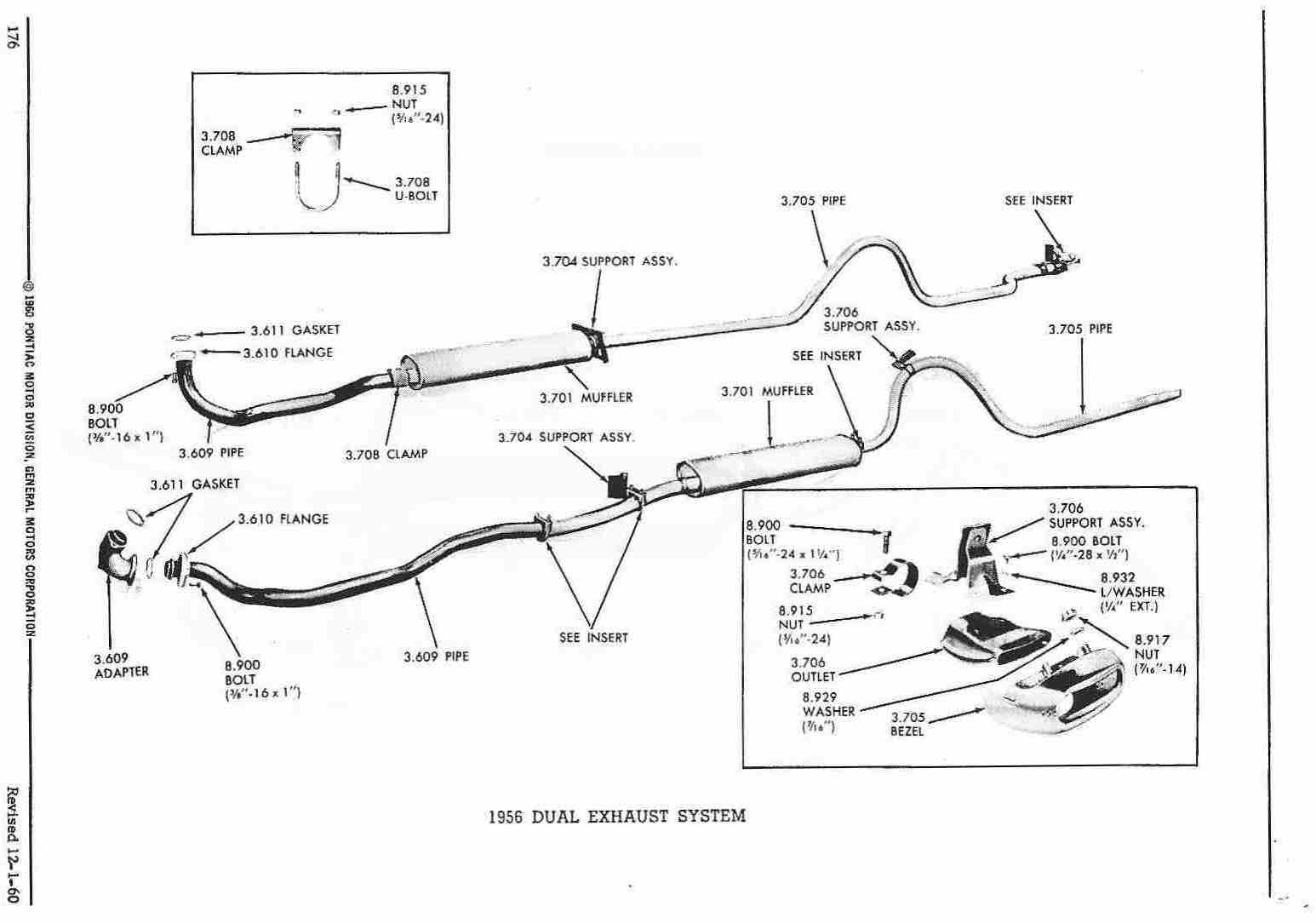

176 1956 Dual Exhaust System

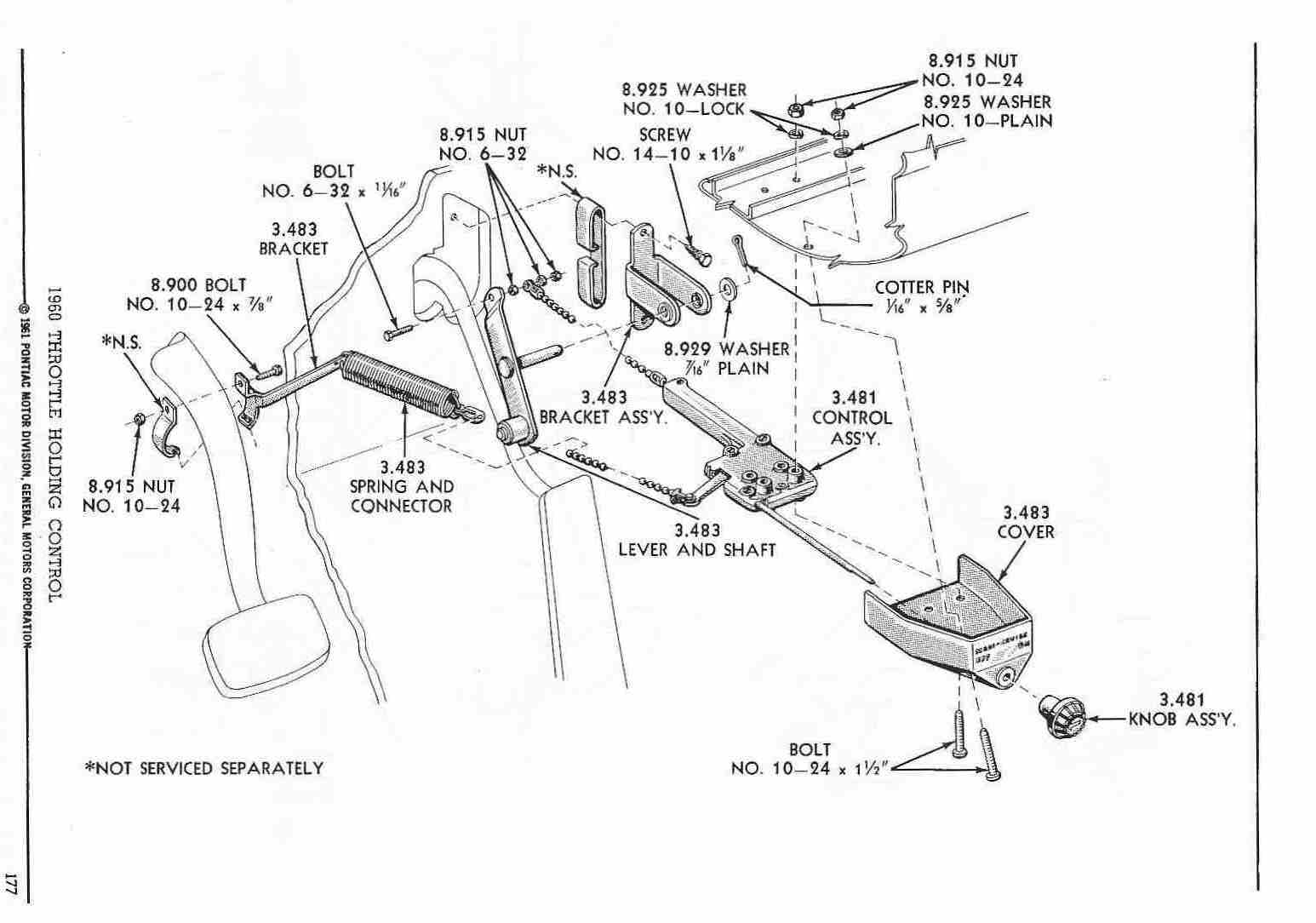

177 1960 Throttle Holding Control

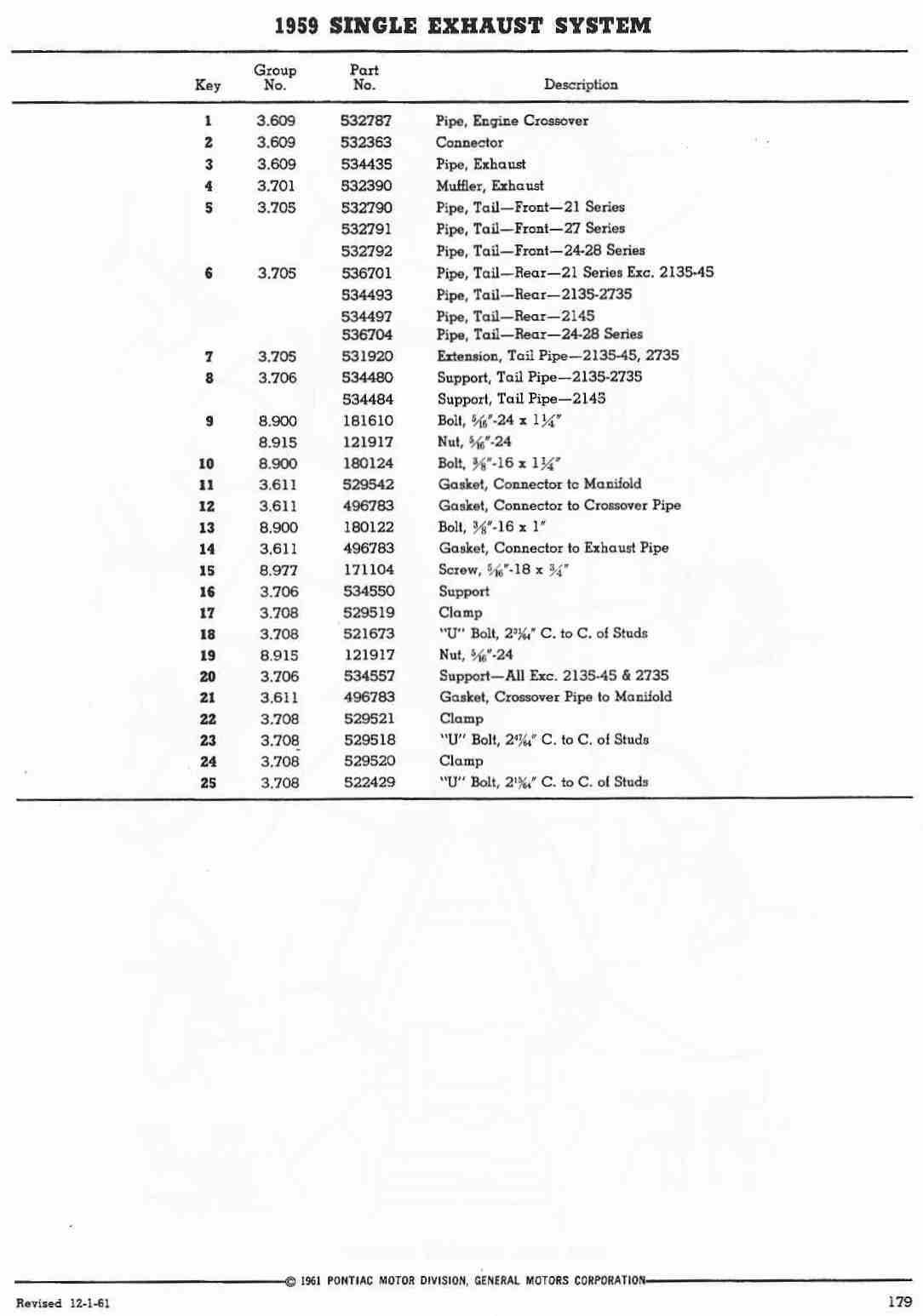

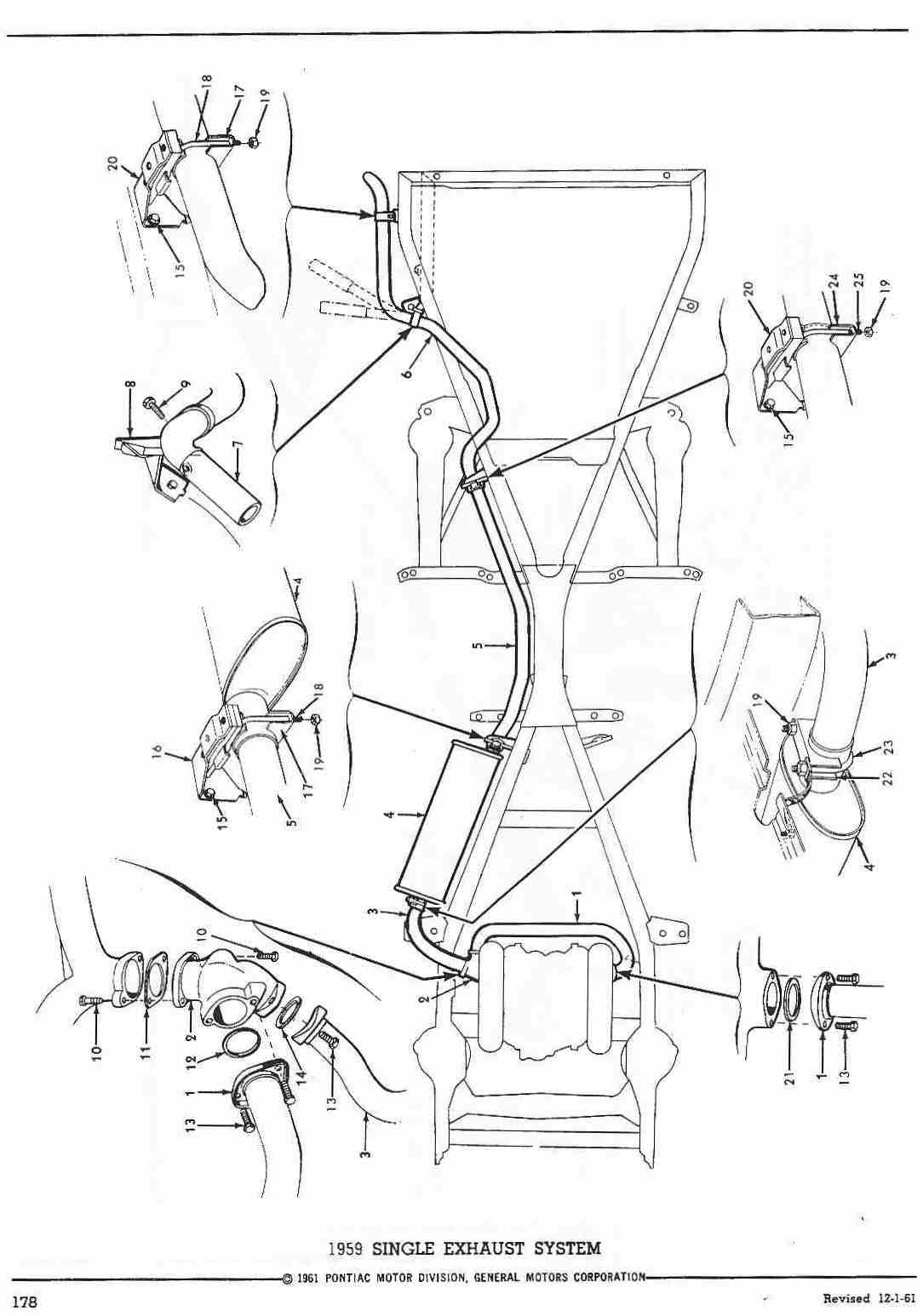

178 1959 Single Exhaust System

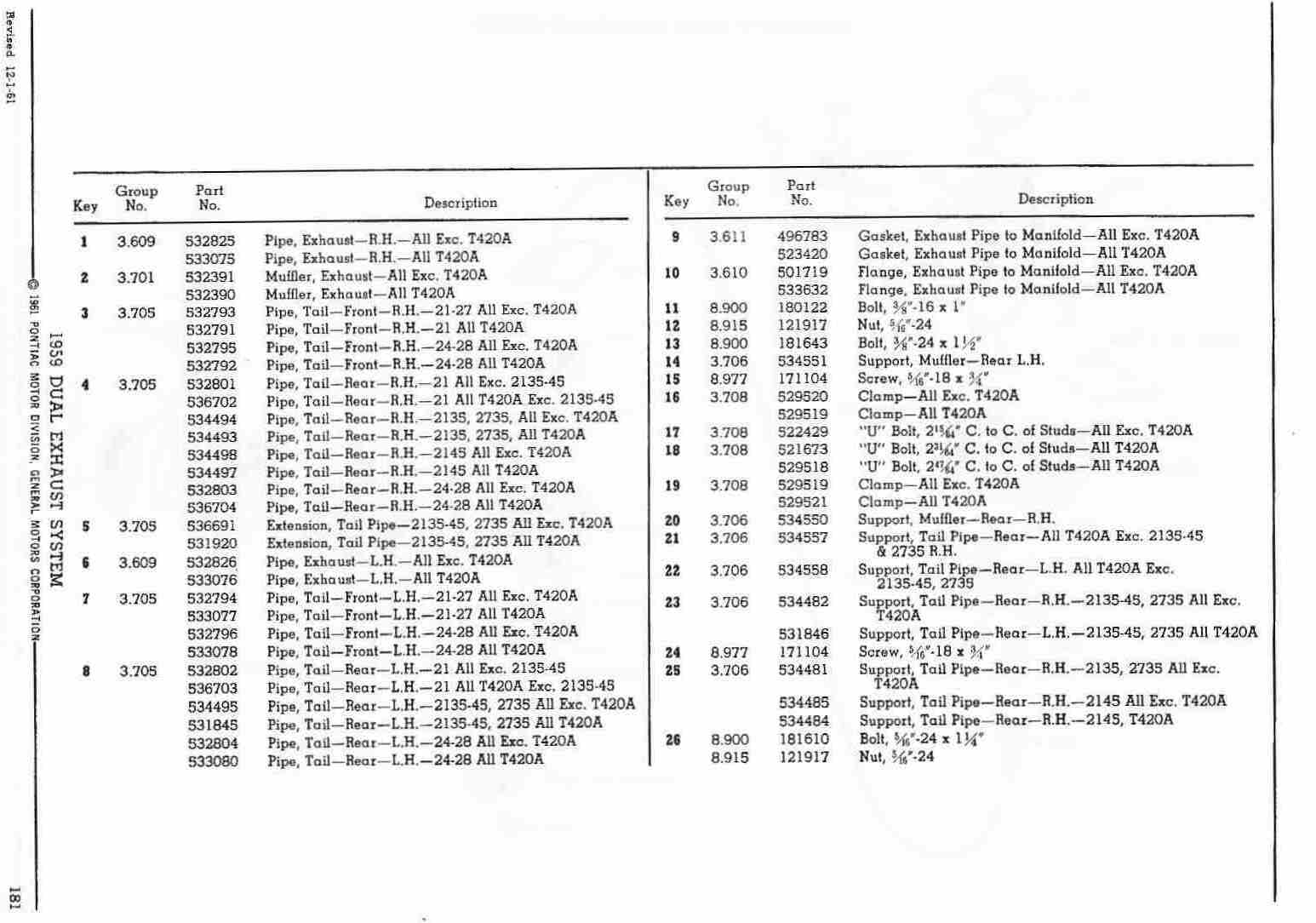

179 1959 Single Exhaust System

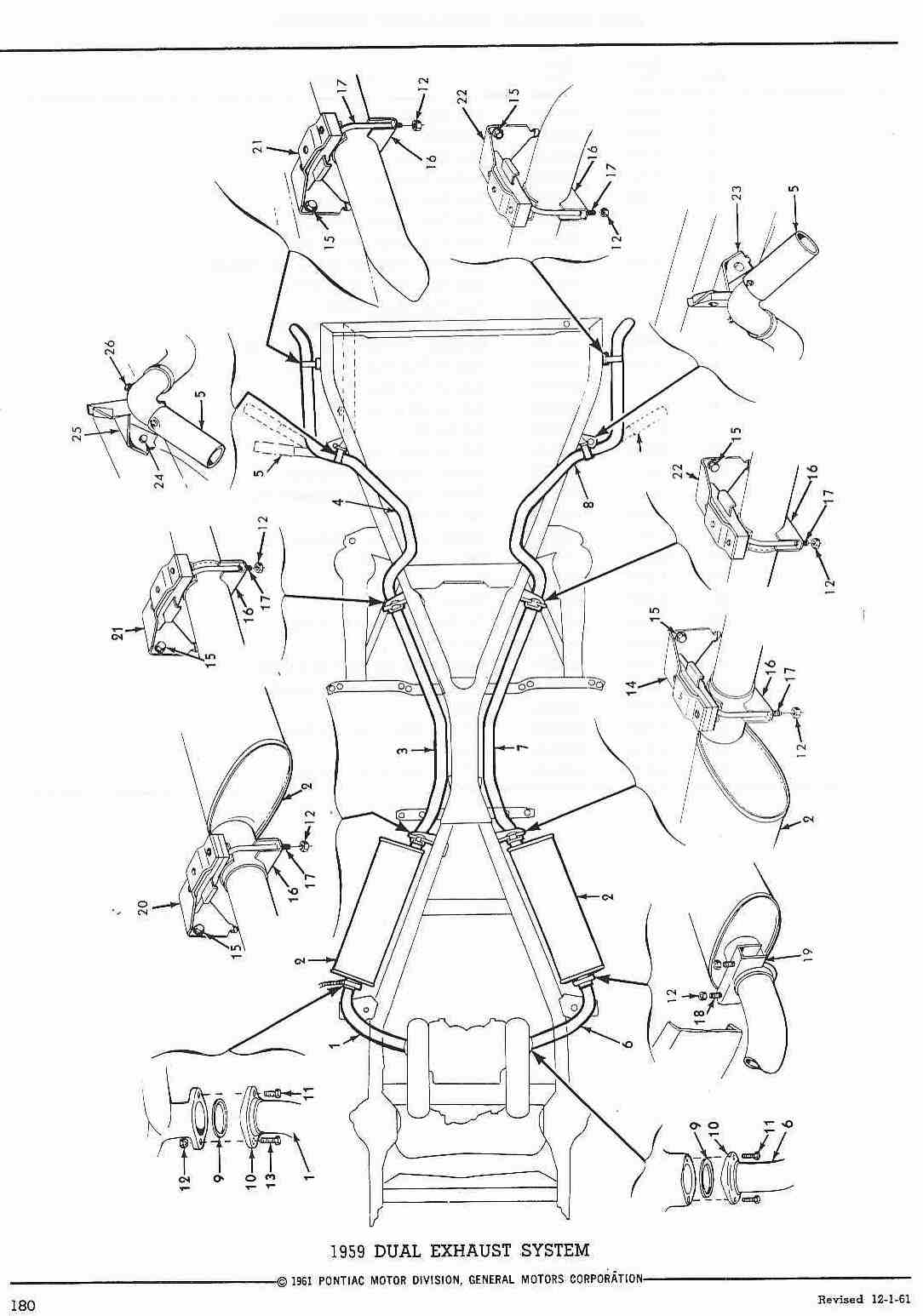

180 1959 Dual Exhaust System
181 1959 Dual Exhaust System

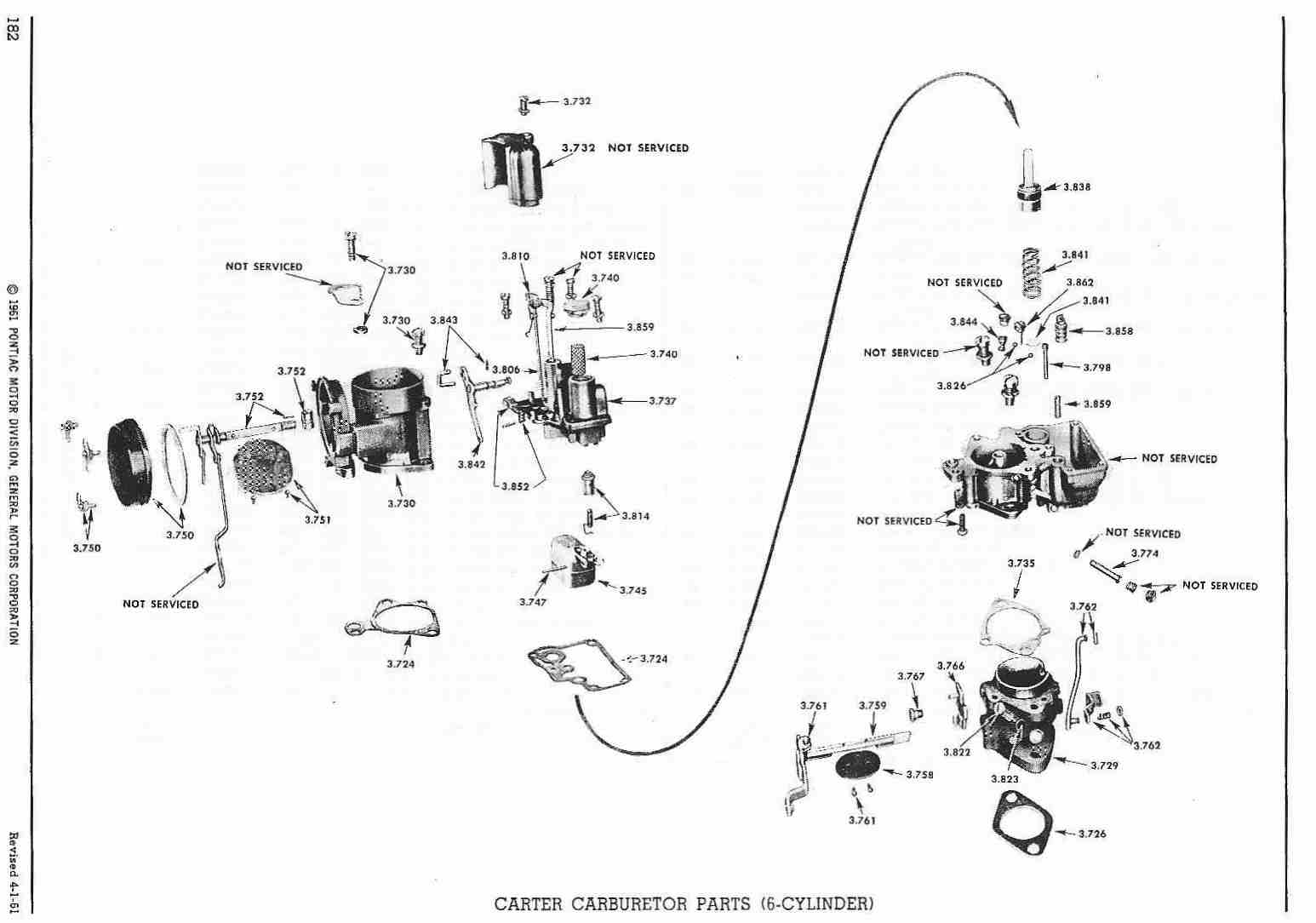

182 Carter Carburetor Parts (6-cylinder)

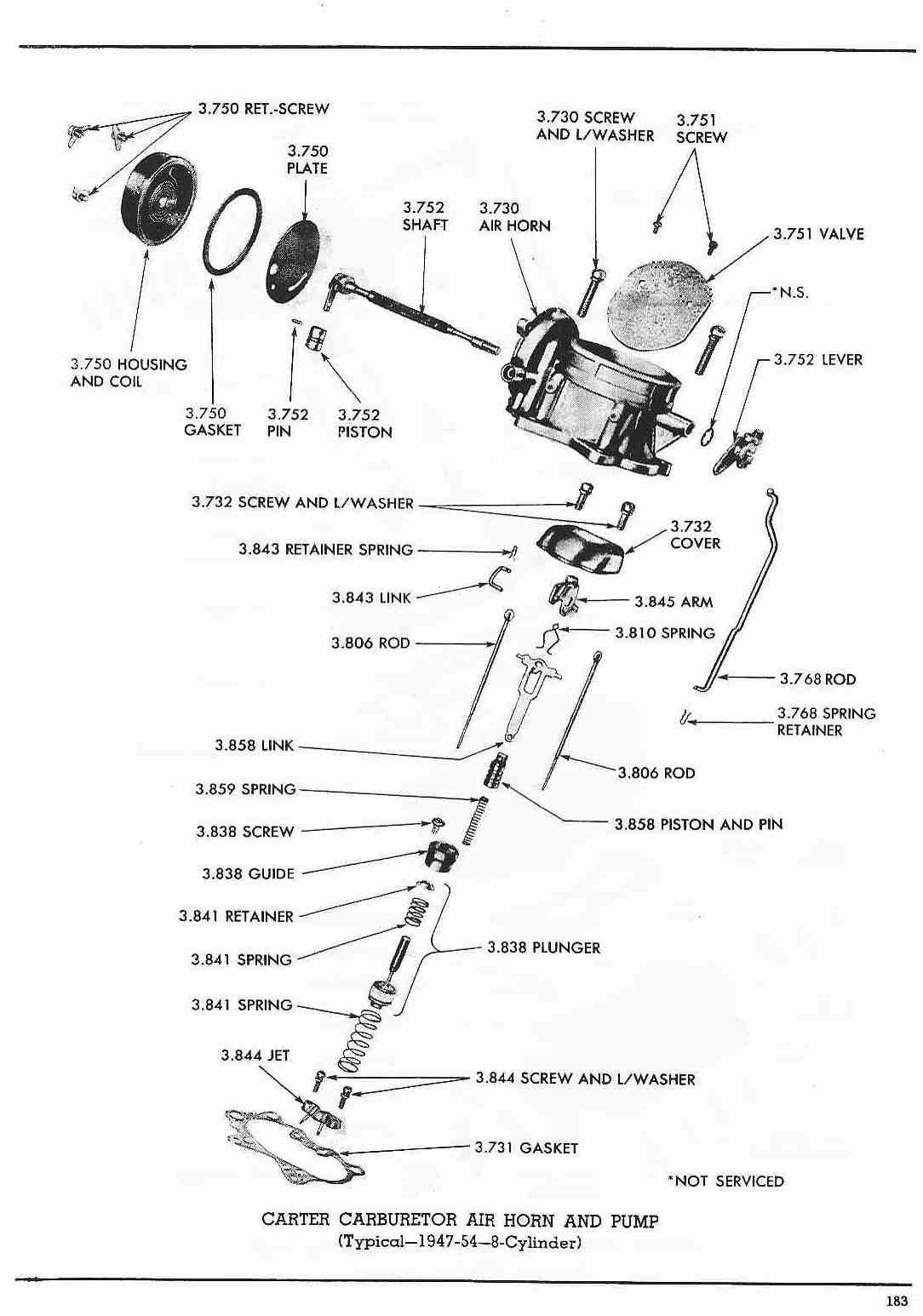

183 Carter Carburetor Air Horn and Pump (Typical 1947-54 8-Cylinder)

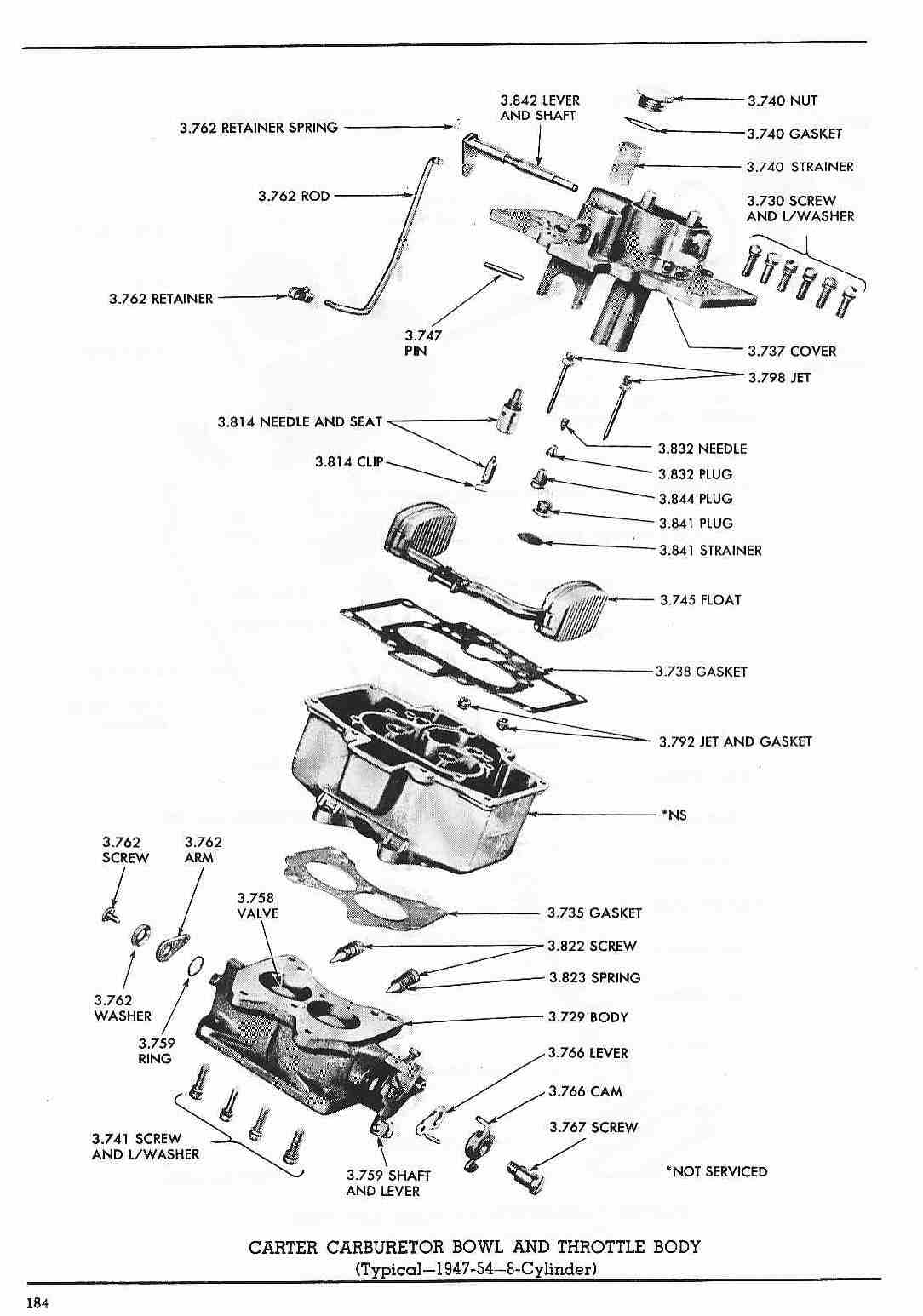

184 Carter Carburetor and Throttle Body (Typical 1947-54 8-Cylinder)

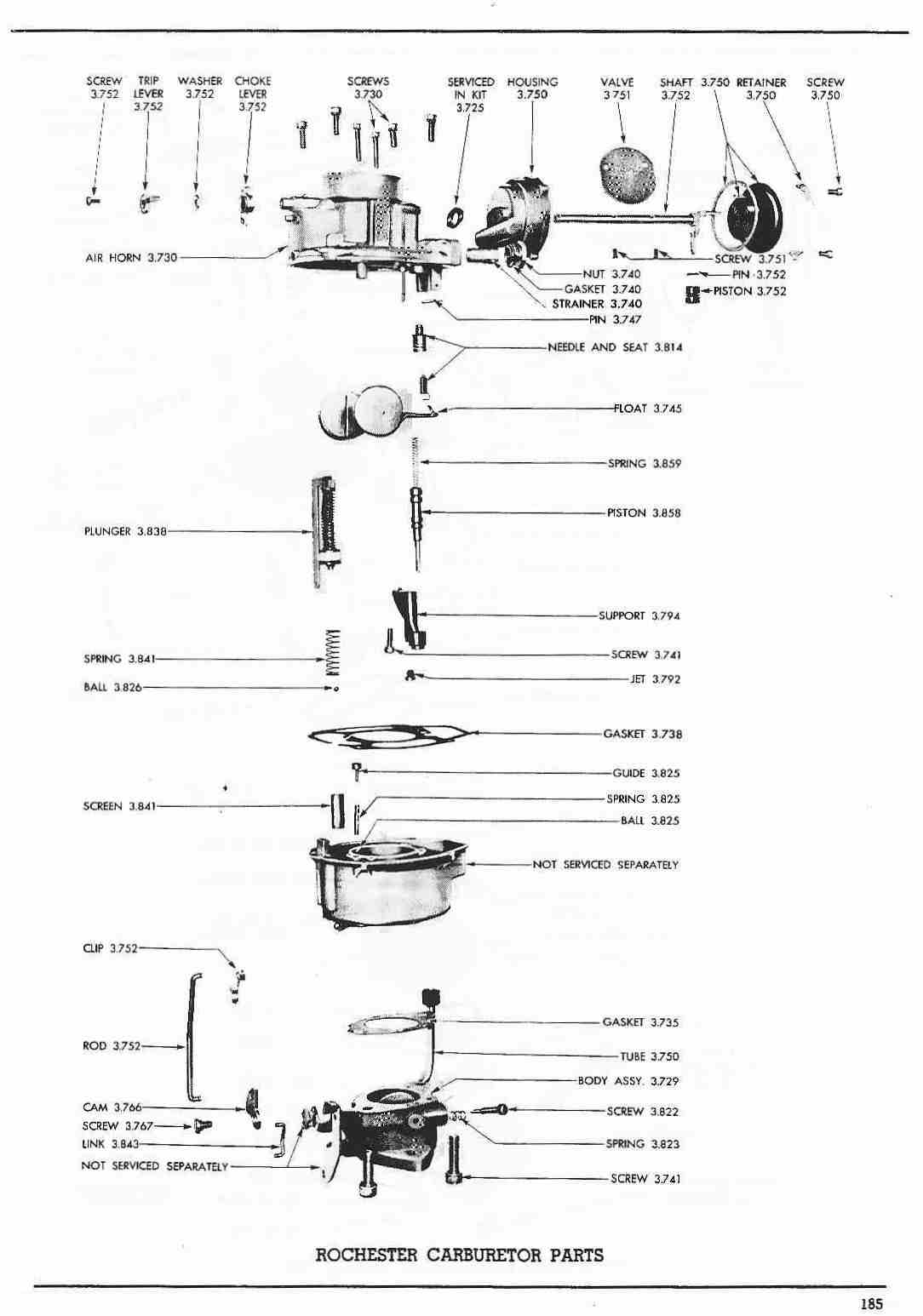

185 Rochester Carburetor Parts (one-barrel)

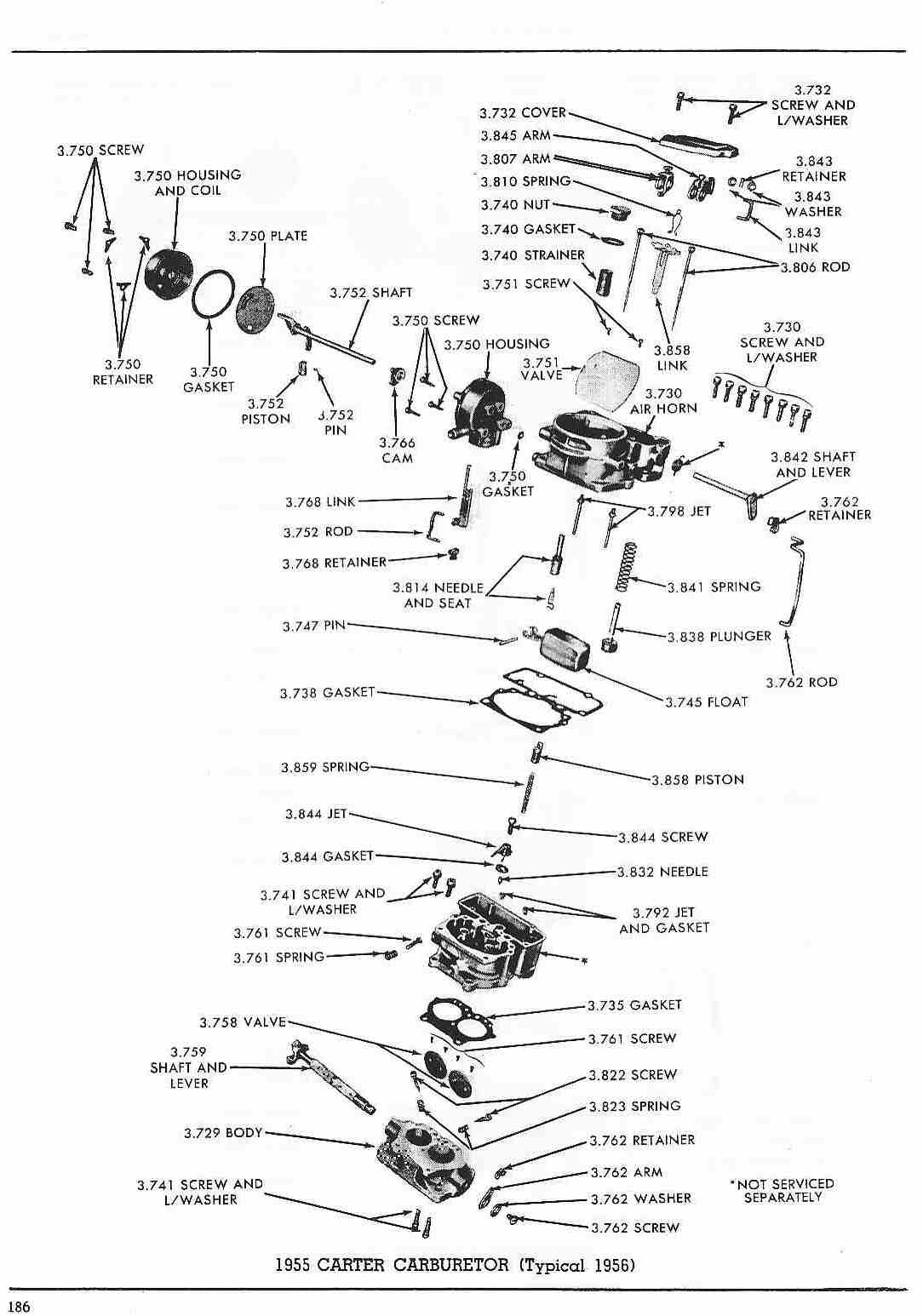

186 1955 Carter Carburetor (Typical 1956 2-barrel)

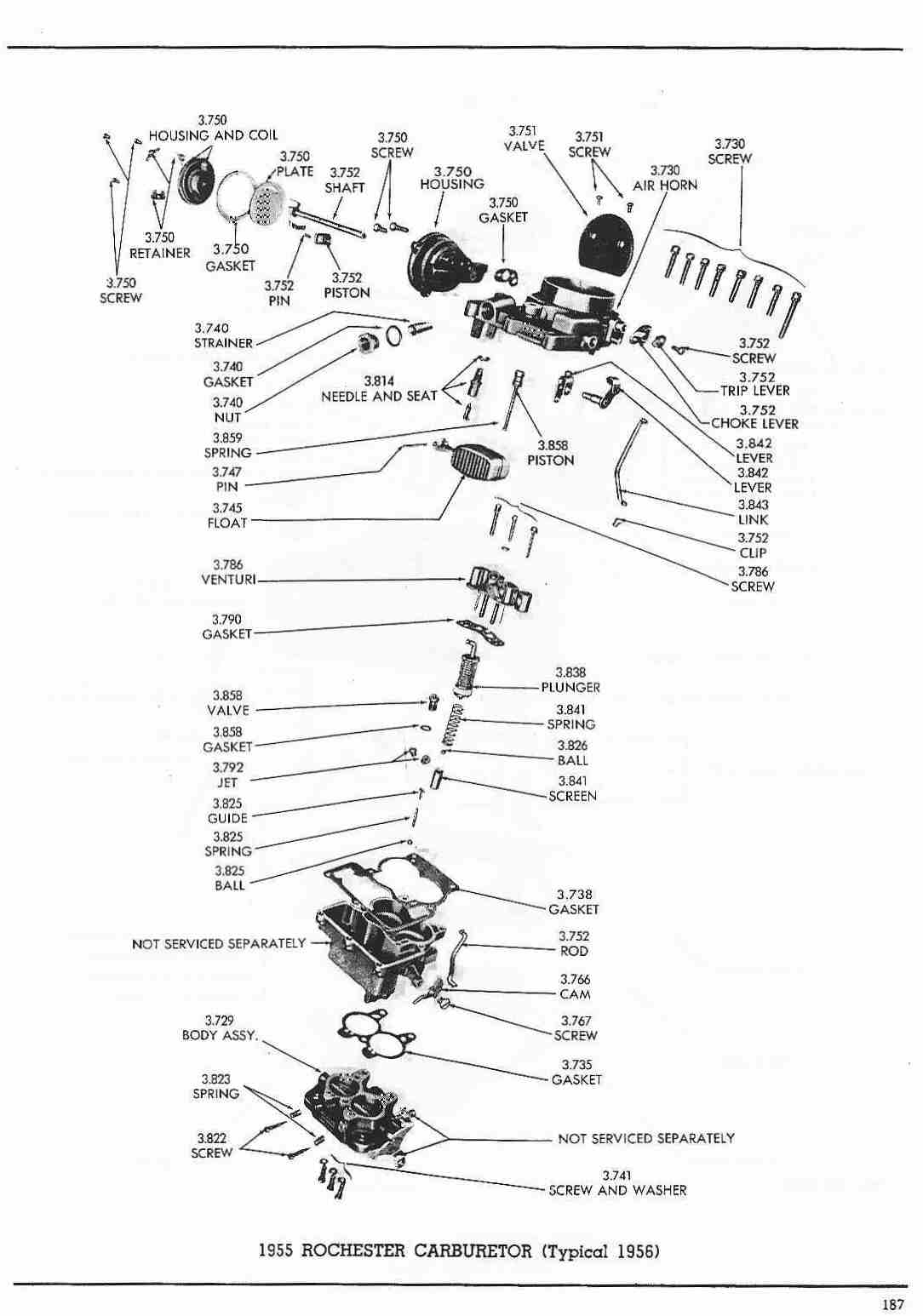

187 1955 Rochester Carburetor (Typical 1956 2-barrel)

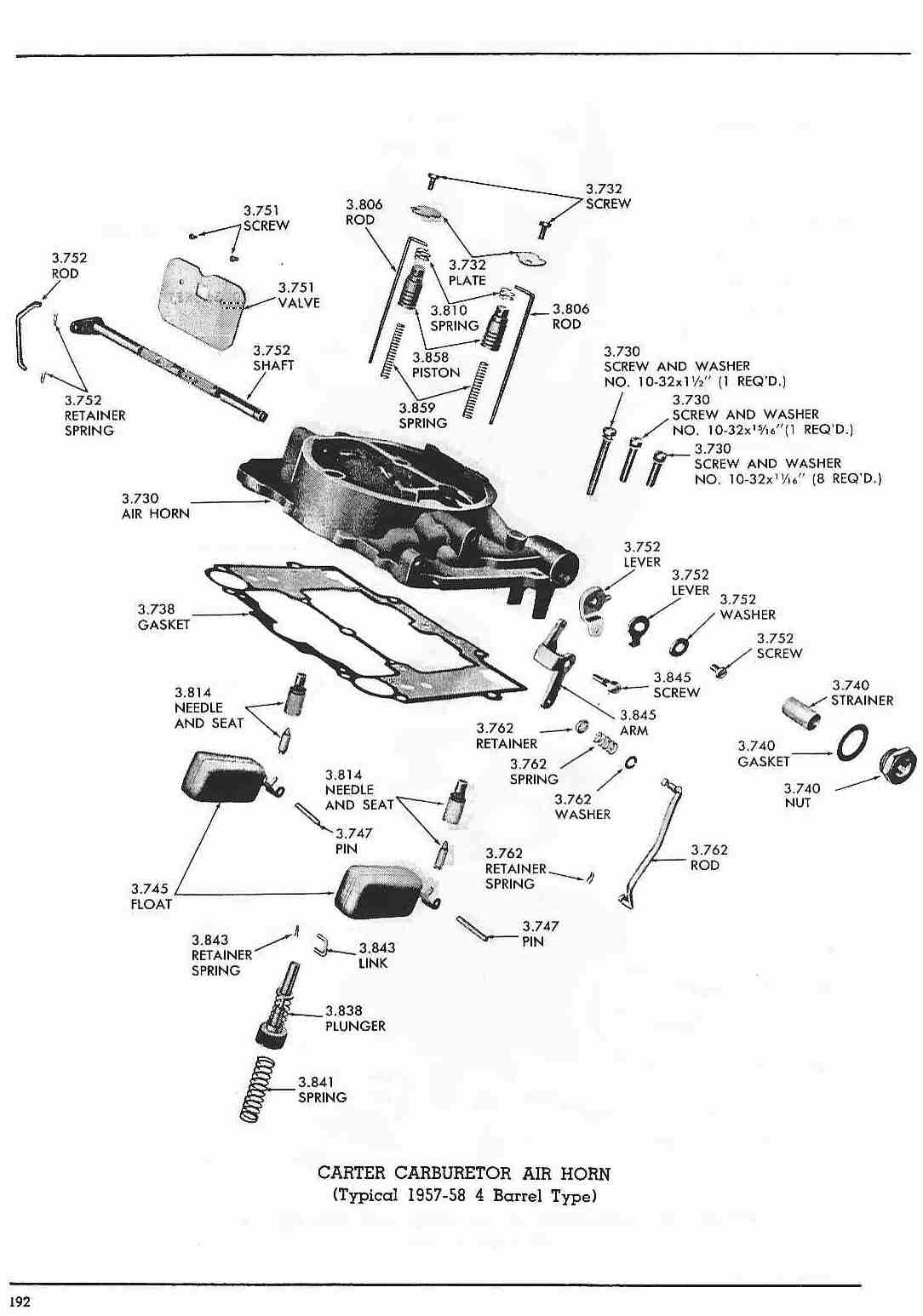

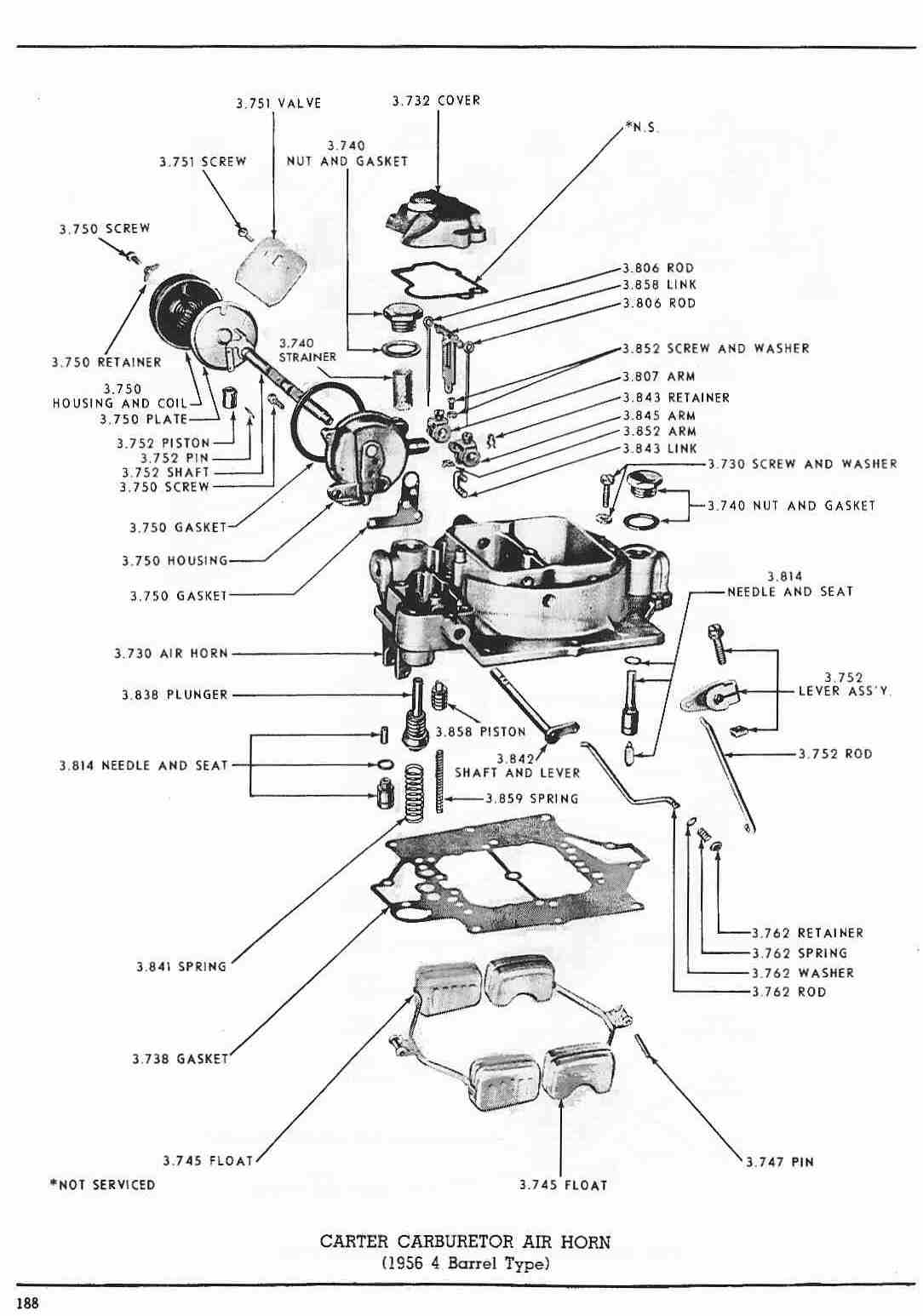

188 Carter Carburetor Air Horn (1956 4 Barrel Type)

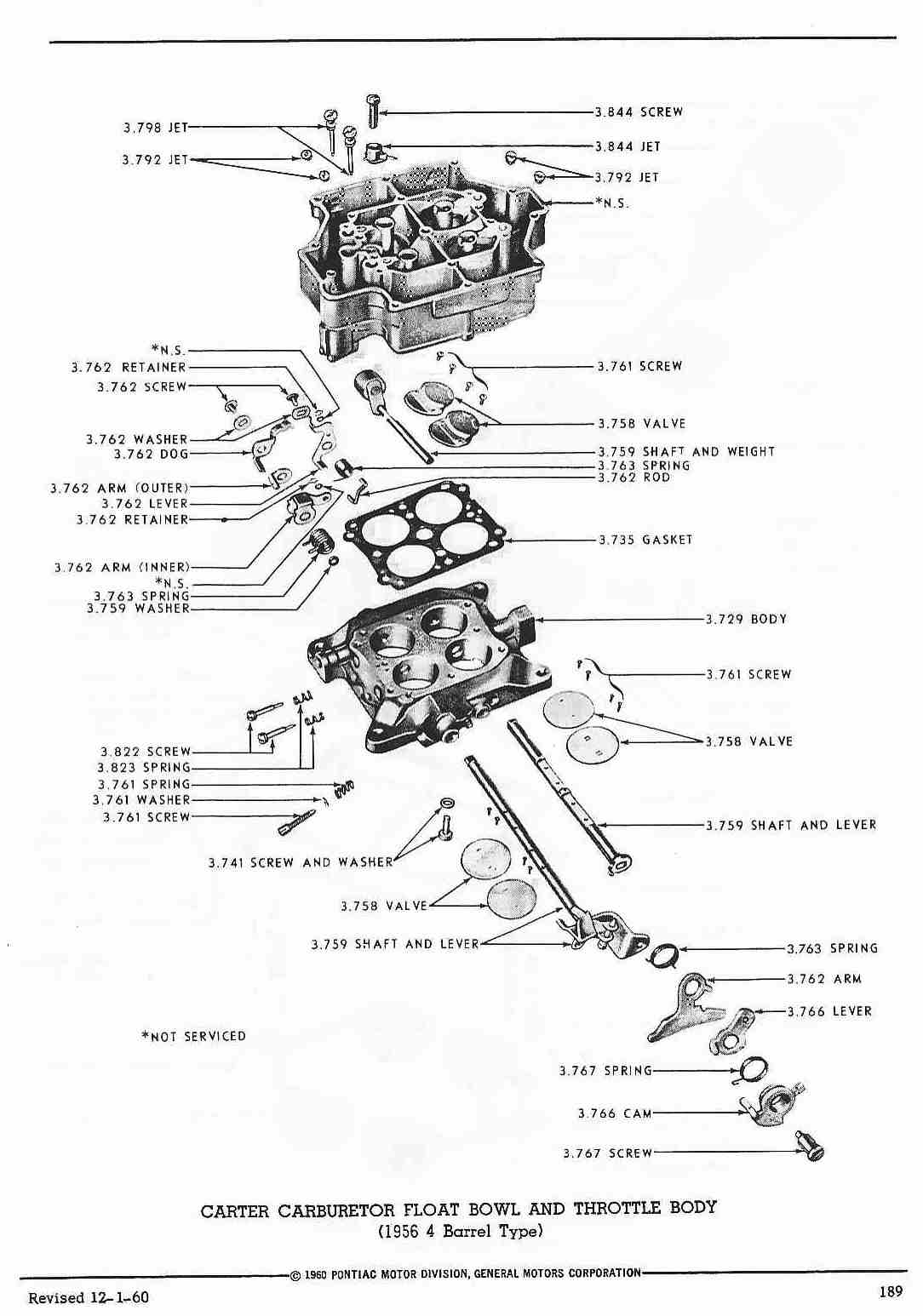

189 Carter Carburetor Float Bowl and Throttle Body (1956 4 Barrel Type)

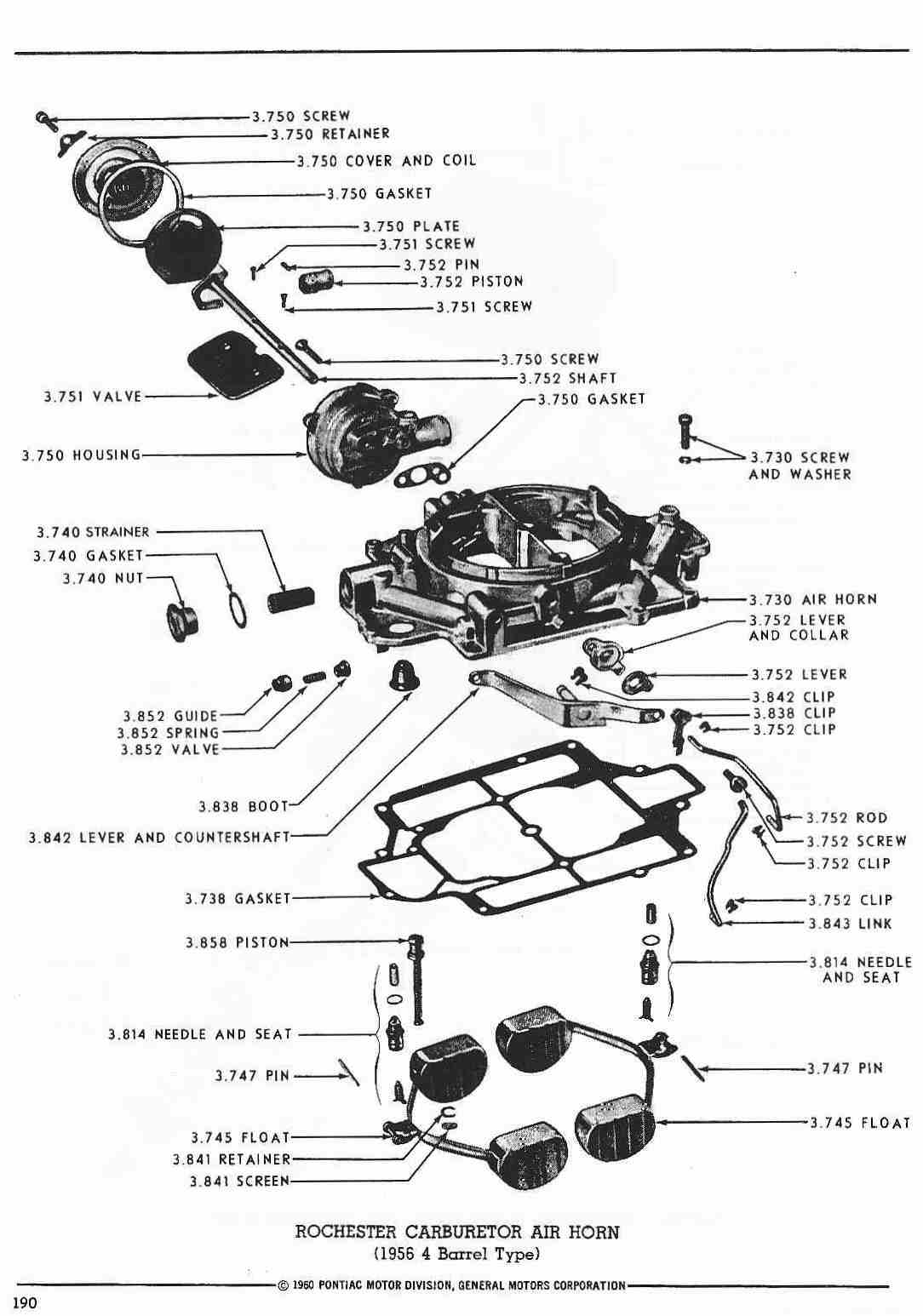

190 Rochester Carburetor Air Horn (1956 4 Barrel Type)

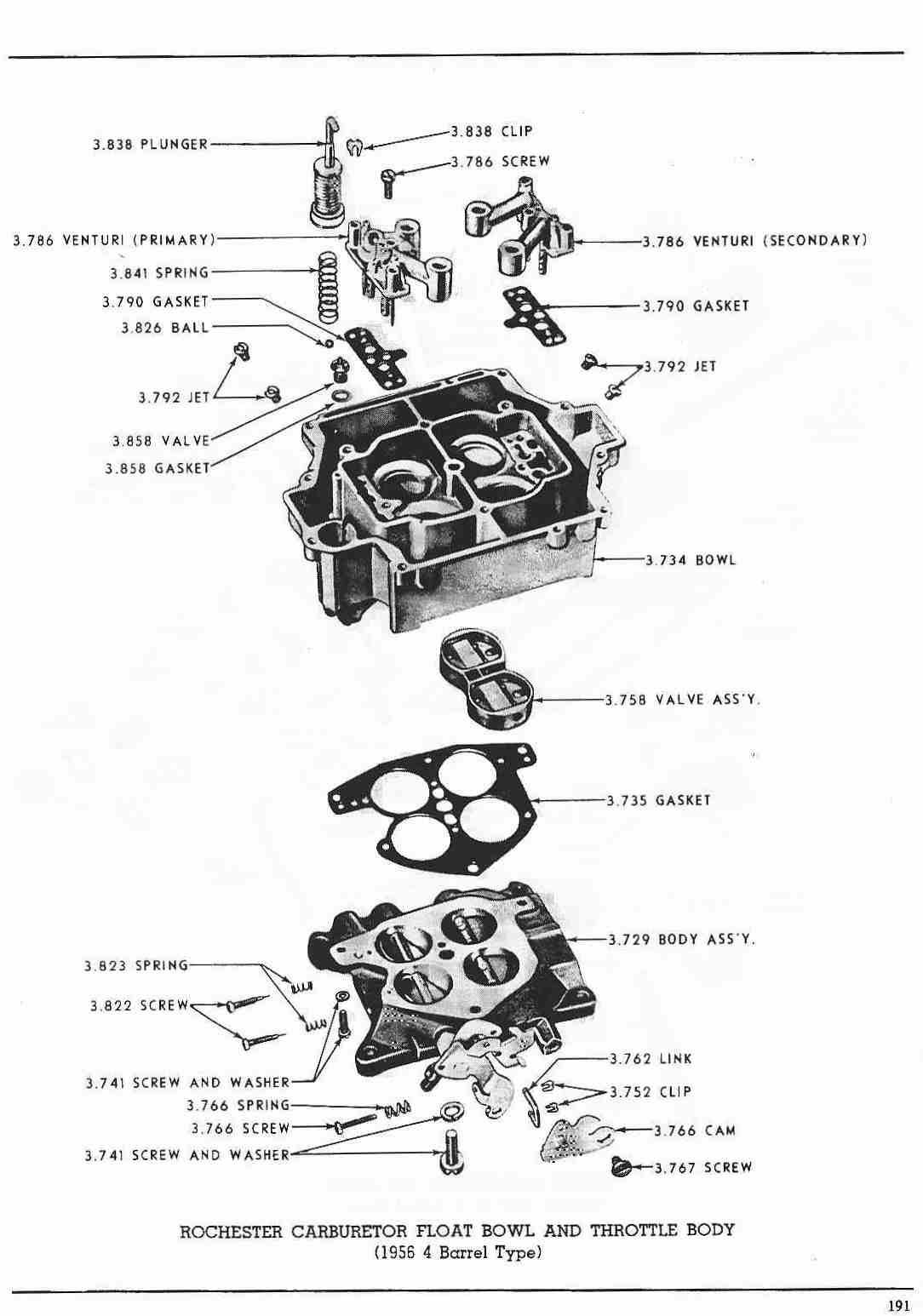

191 Rochester Carburetor Float Bowl and Throttle Body (1956 4 Barrel Type)
192 Carter Carburetor Air Horn (1957-58 4 Barrel Type)

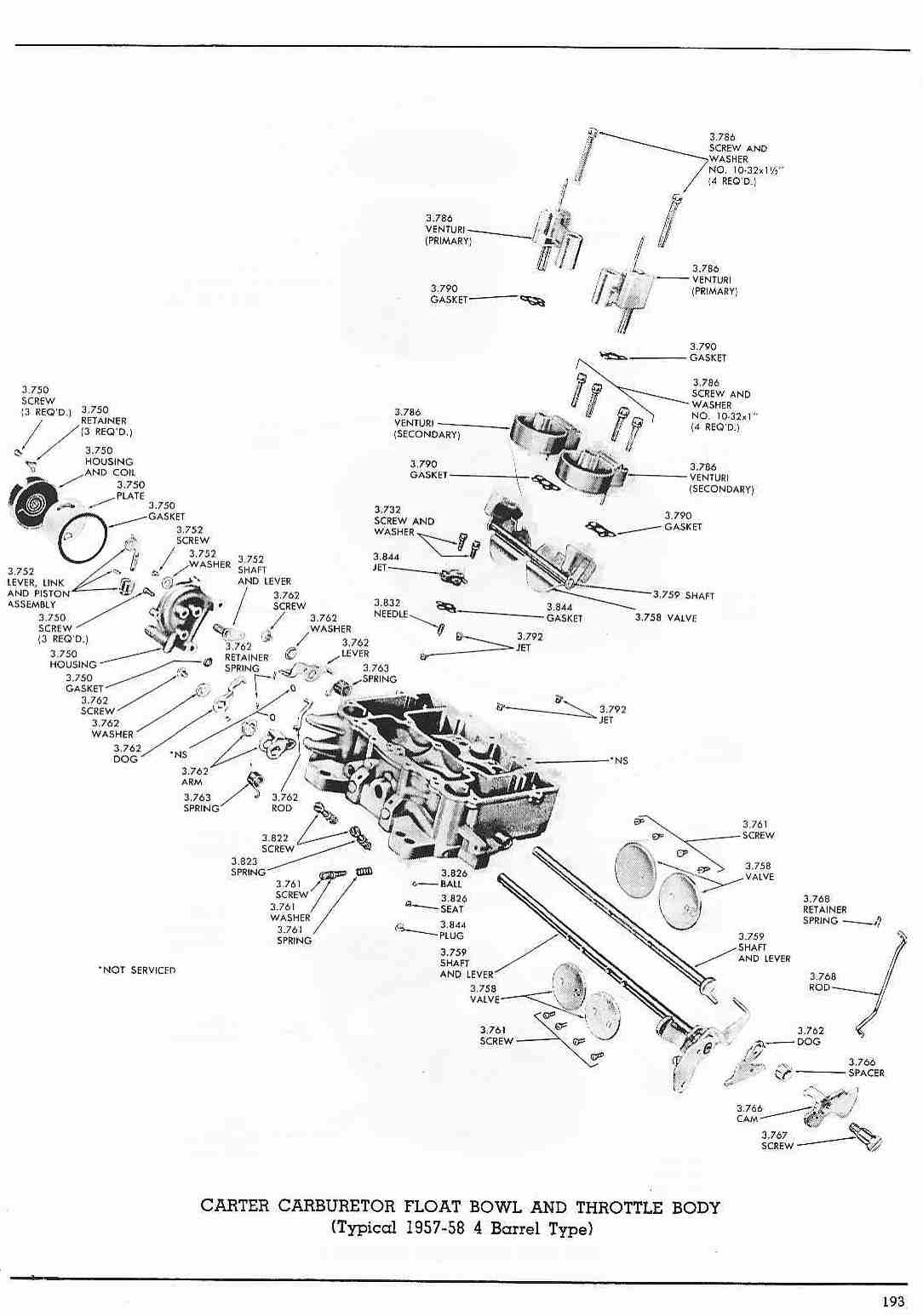

193 Carter Carburetor Float Bowl and Throttle Body (1957-58 4 Barrel Type)

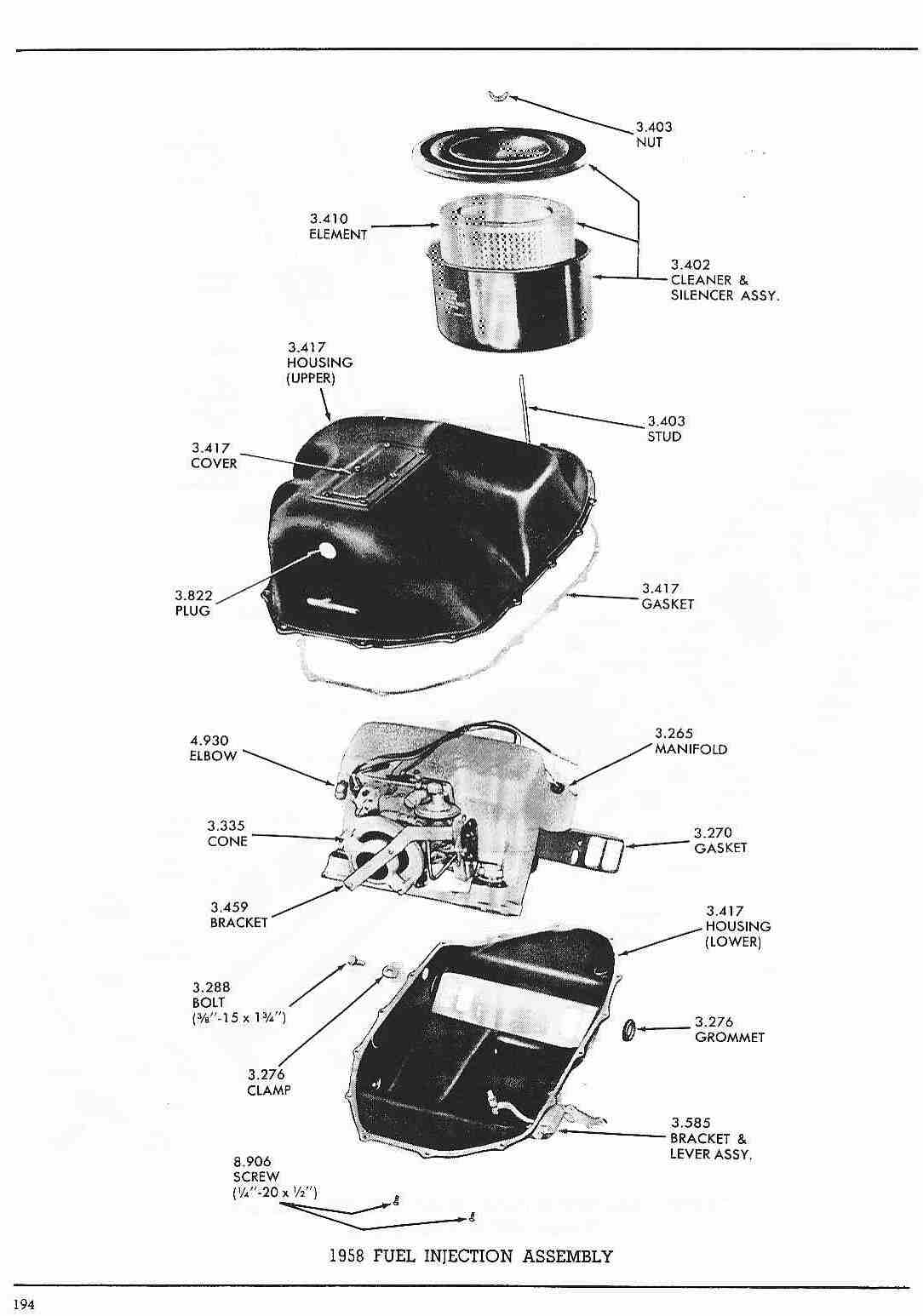

194 1958 Fuel Injection Assembly

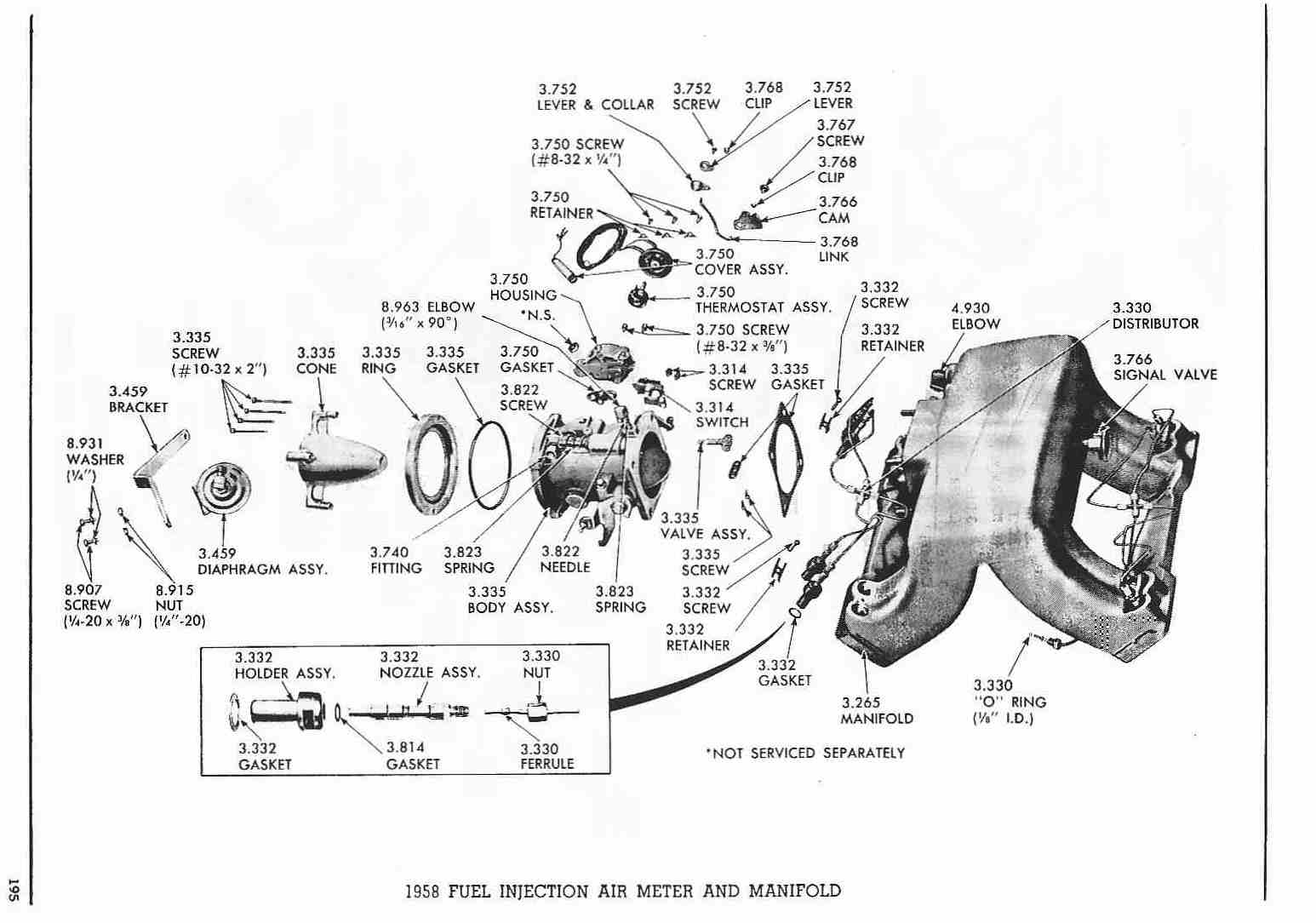

195 1958 Fuel Injection Air Meter and Manifold

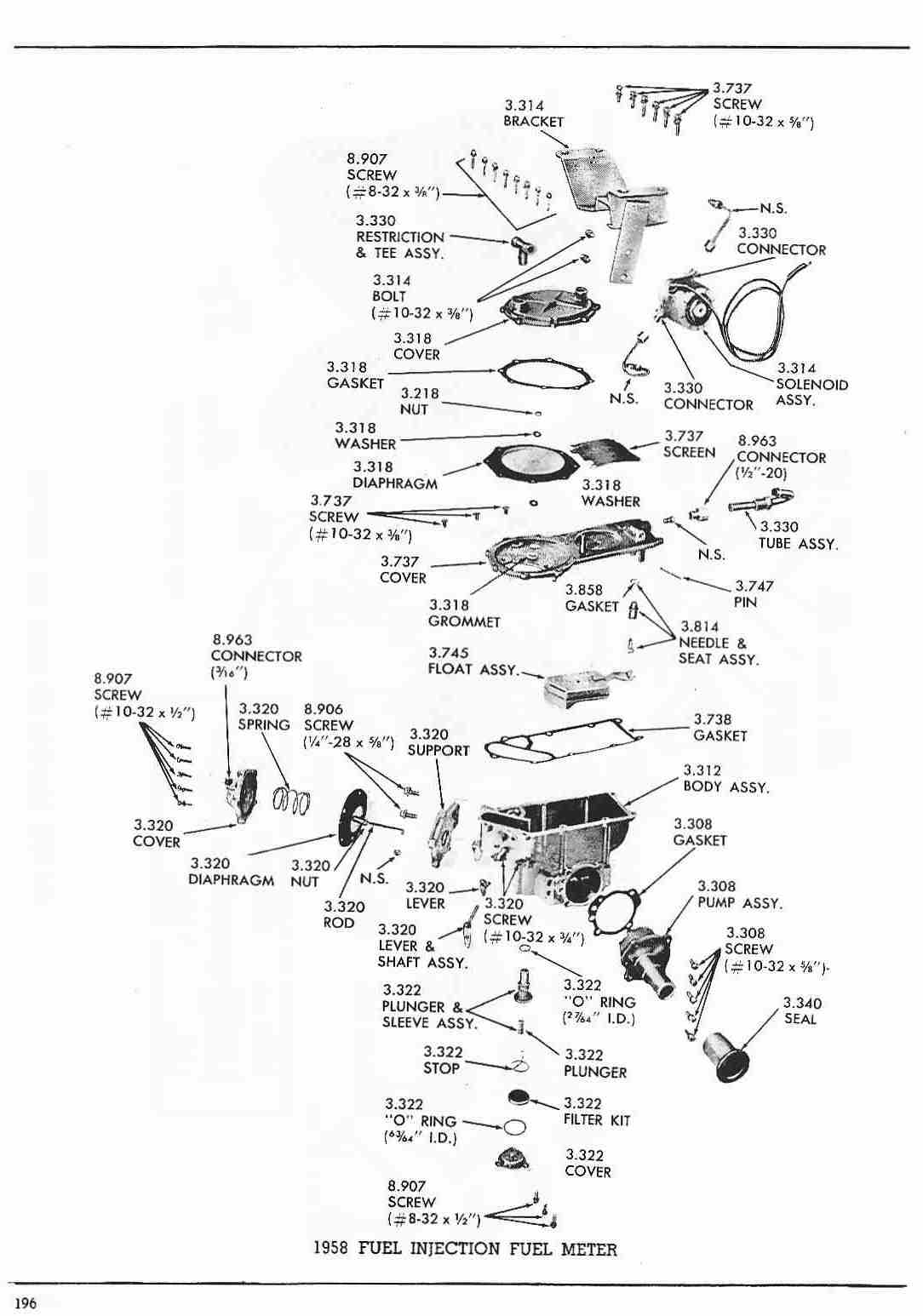

196 1958 Fuel Injection Fuel Meter

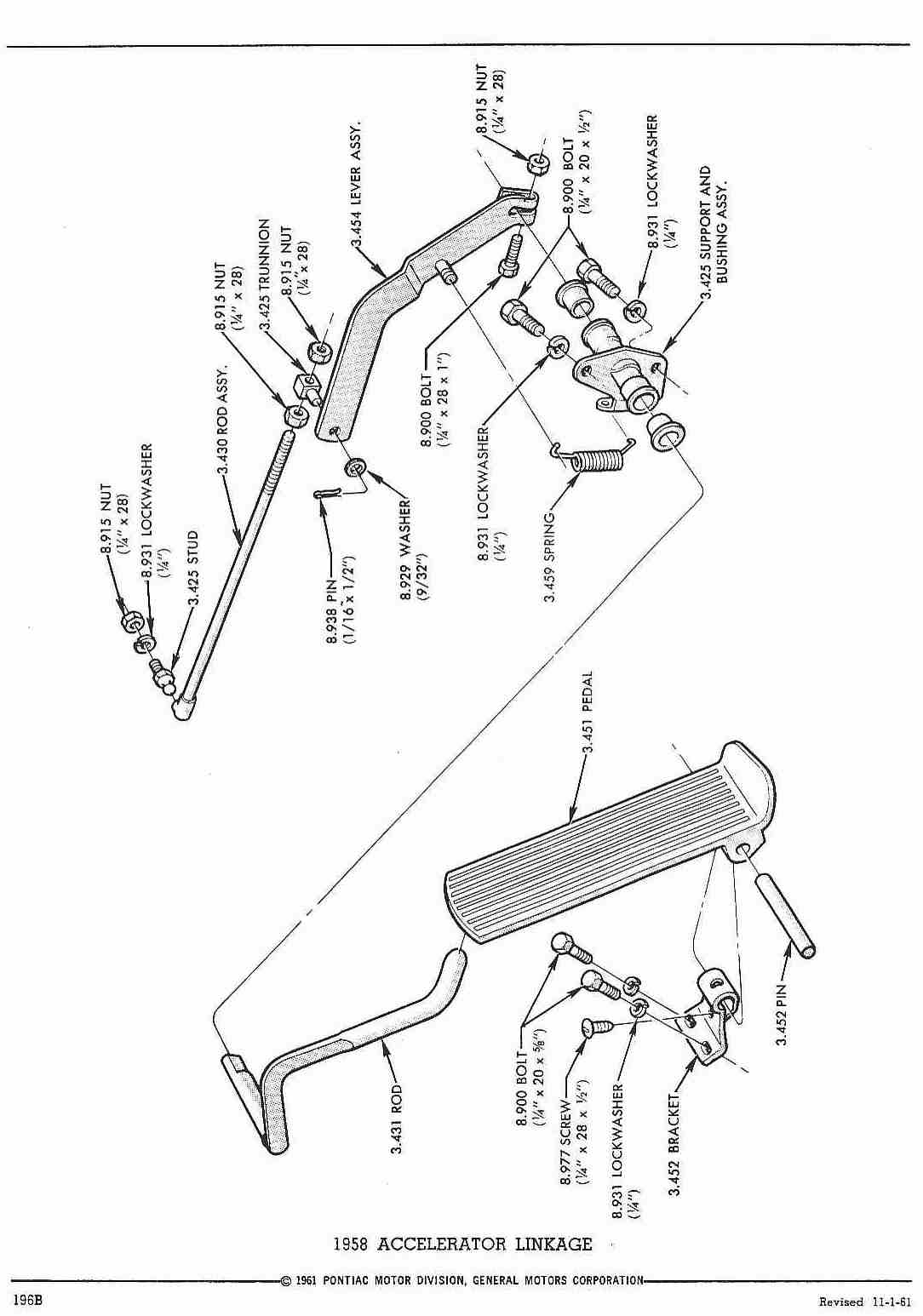

196B 1958 Accelerator Linkage

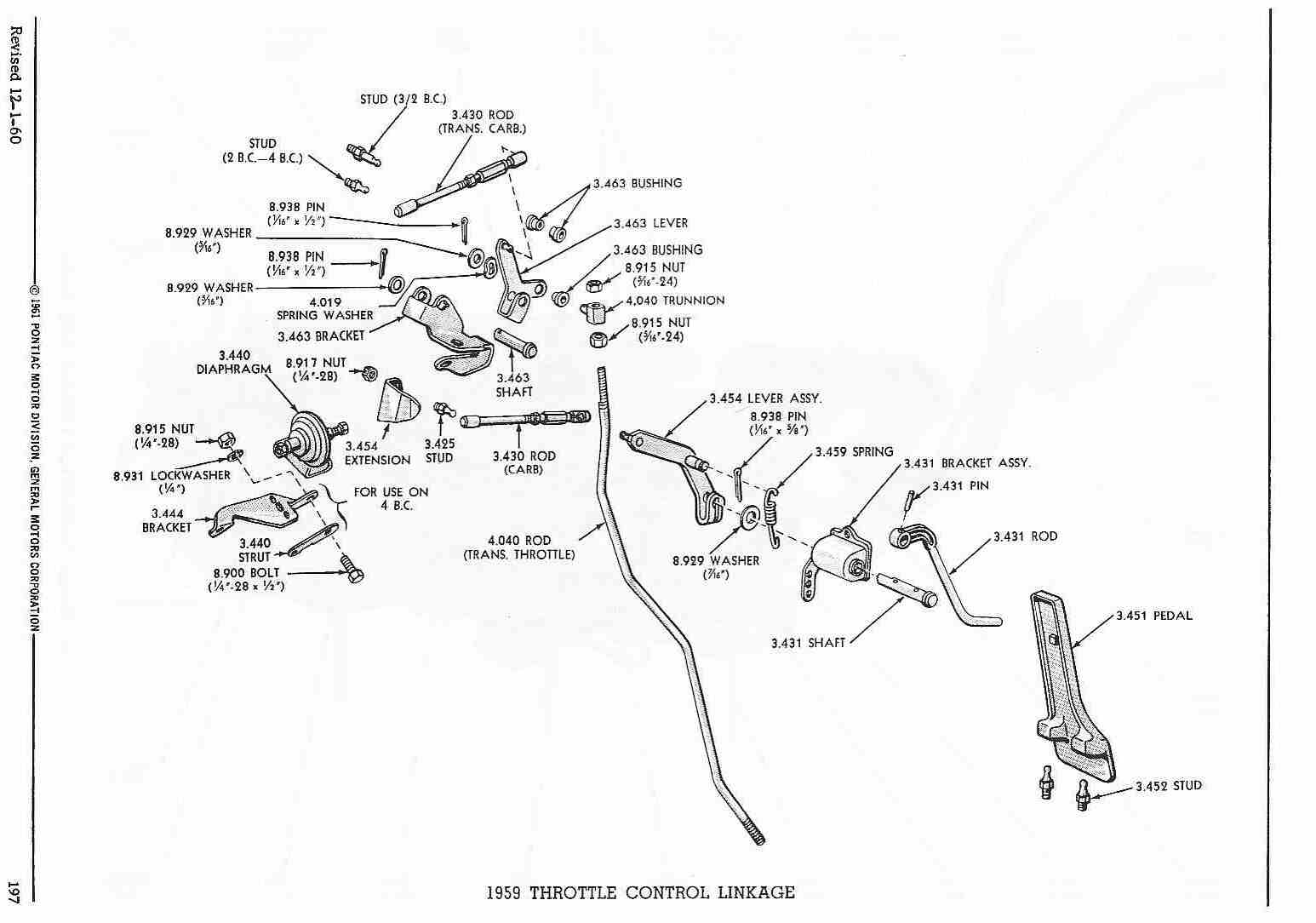

197 1959 Throttle Control Linkage

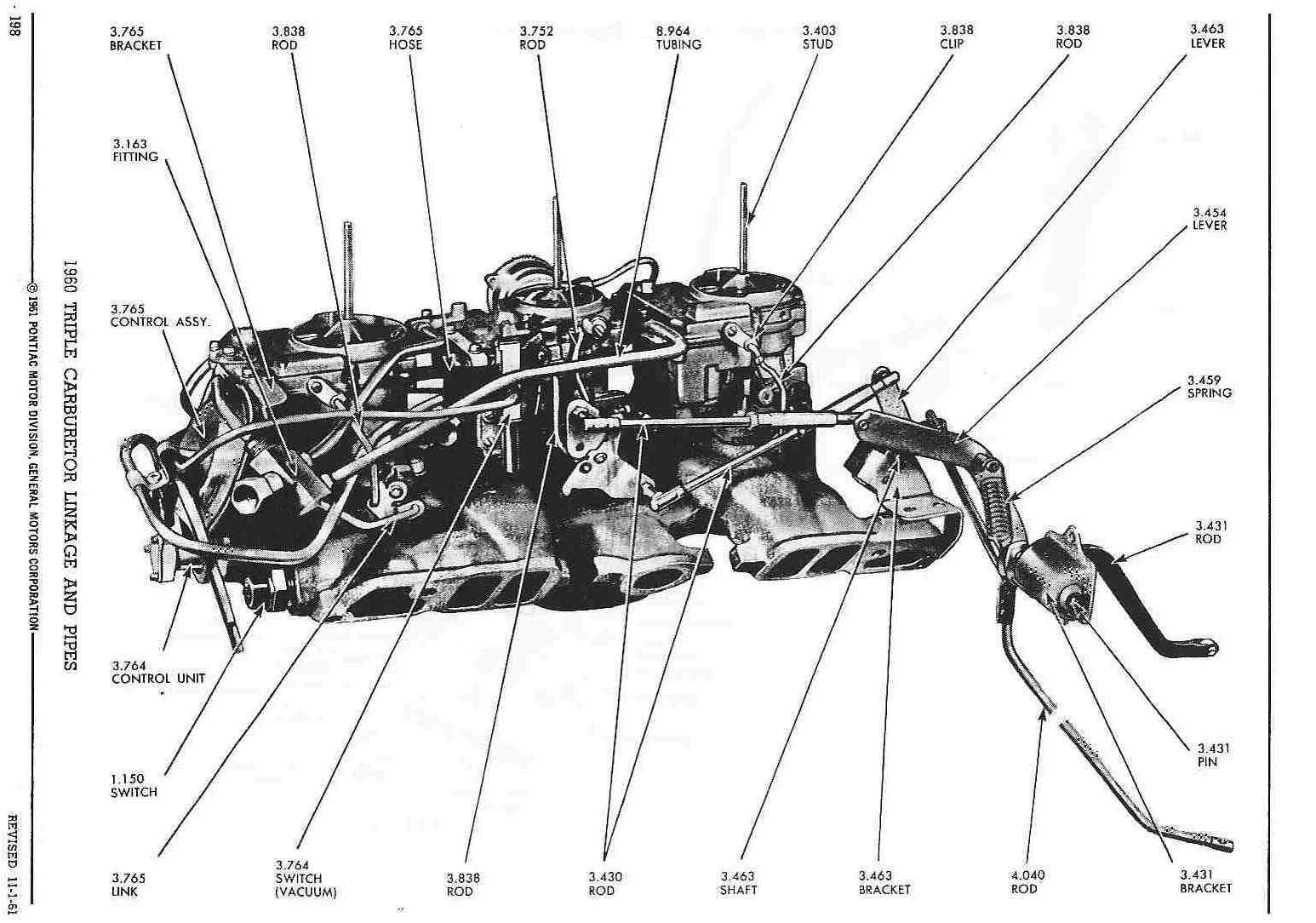

198 1960 Triple Carburetor Linkage and Pipes

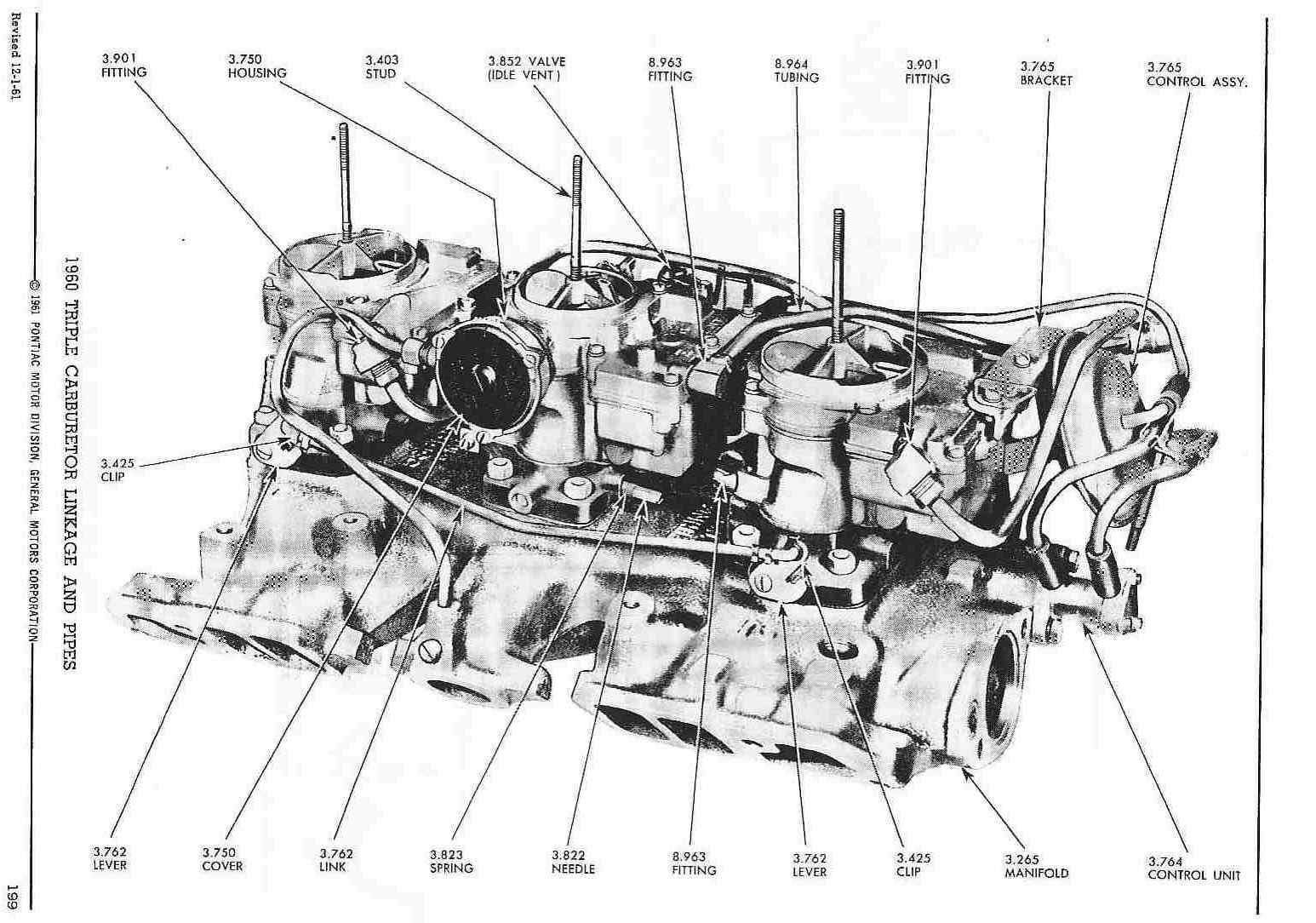

199 1960 Triple Carburetor Linkage and Pipes

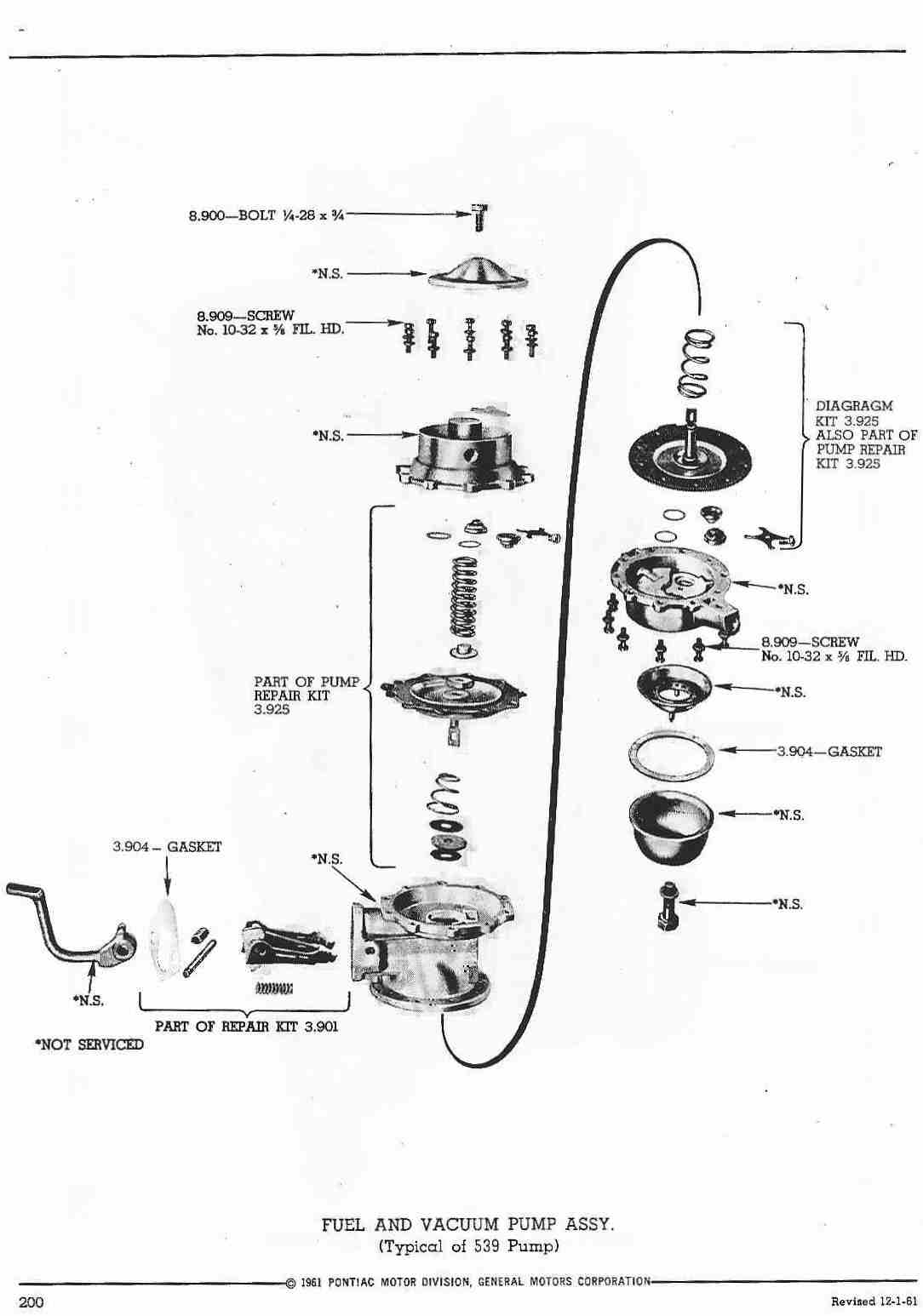

200 Fuel and Vacuum Pump Assy. (Typical of 539 Pump)

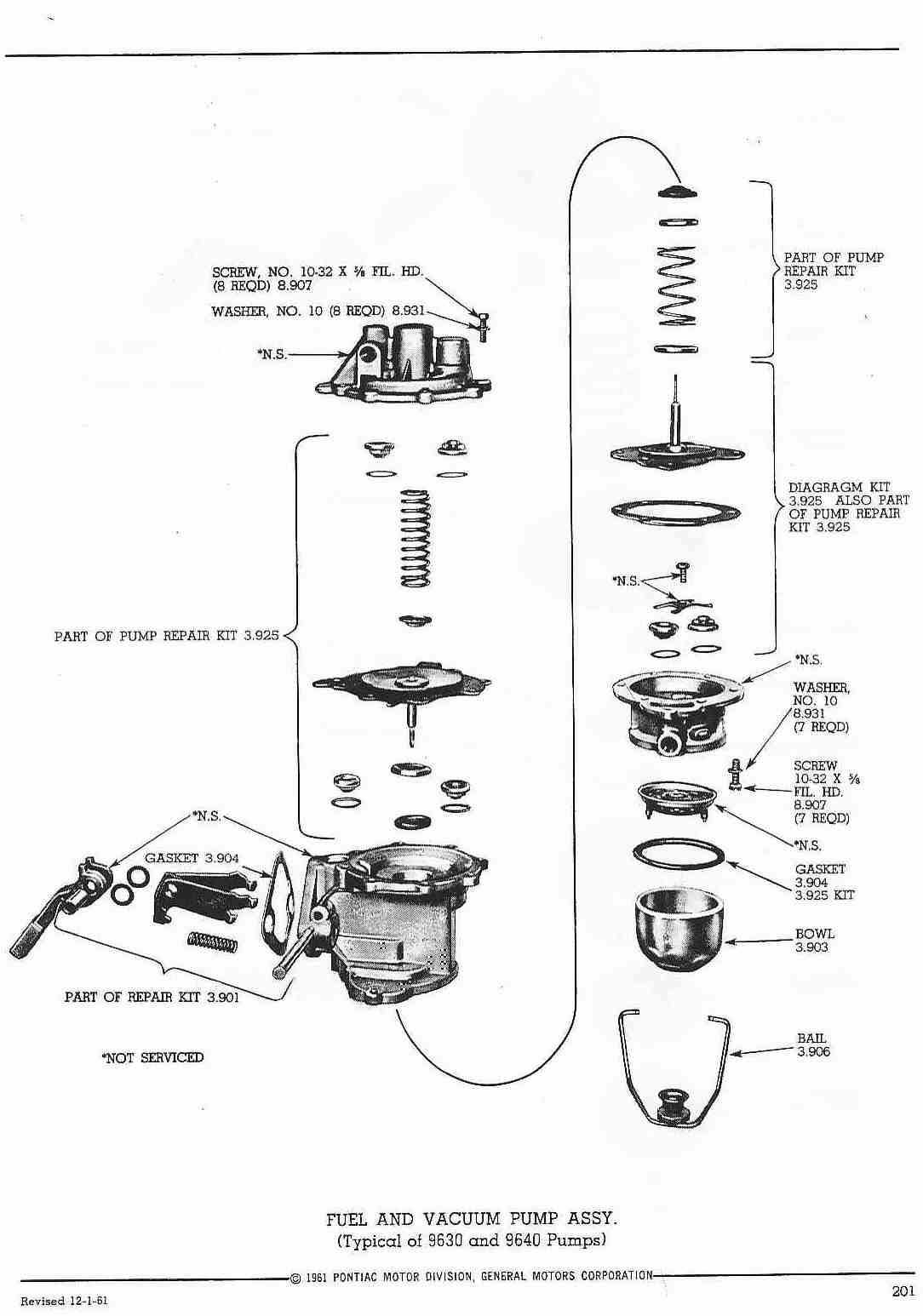

201 Fuel and Vacuum Pump Assy. (Typical of 9630 and 9640 Pumps)
202 Fuel Pump Assy. (Type 4480)
203-259 parts listing 3.xxx   Fuel, Carburetion, Manifolds
261 Transmission Assembly -- Synchro Mesh

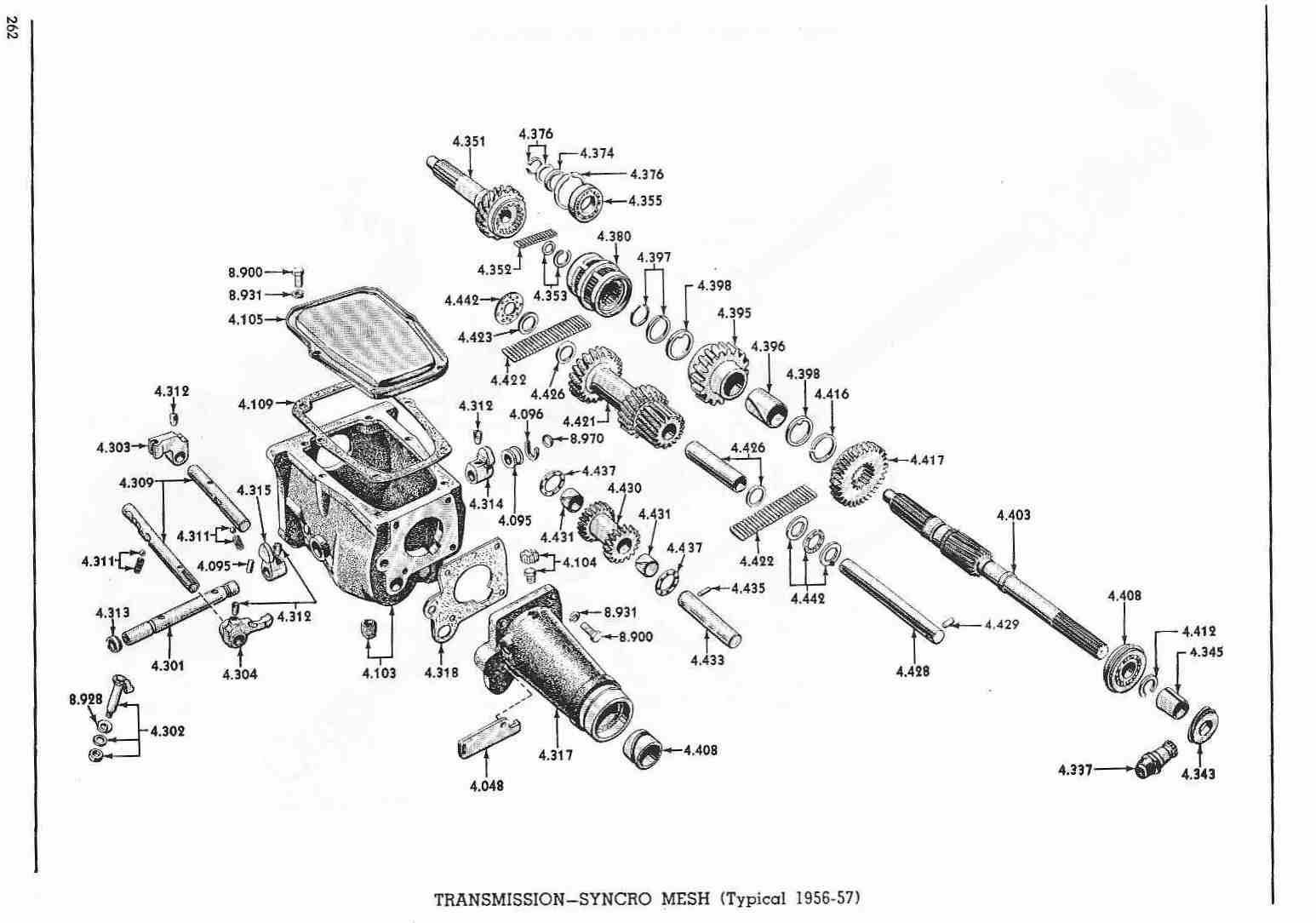

262 Transmission  -- Synchro Mesh (Typical 1956-57)

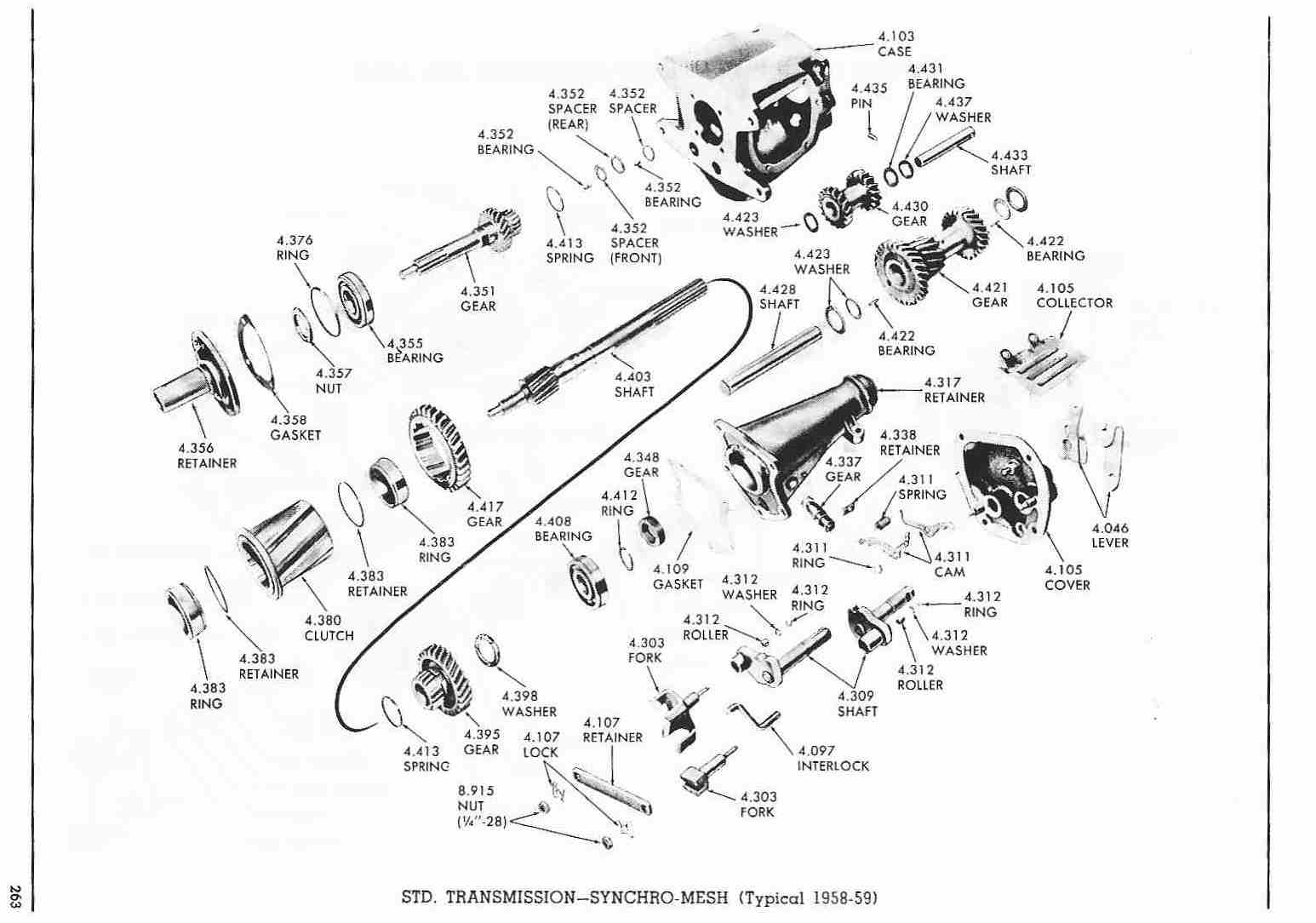

263 Std. Transmission -- Synchro Mesh (Typical 1958-59)

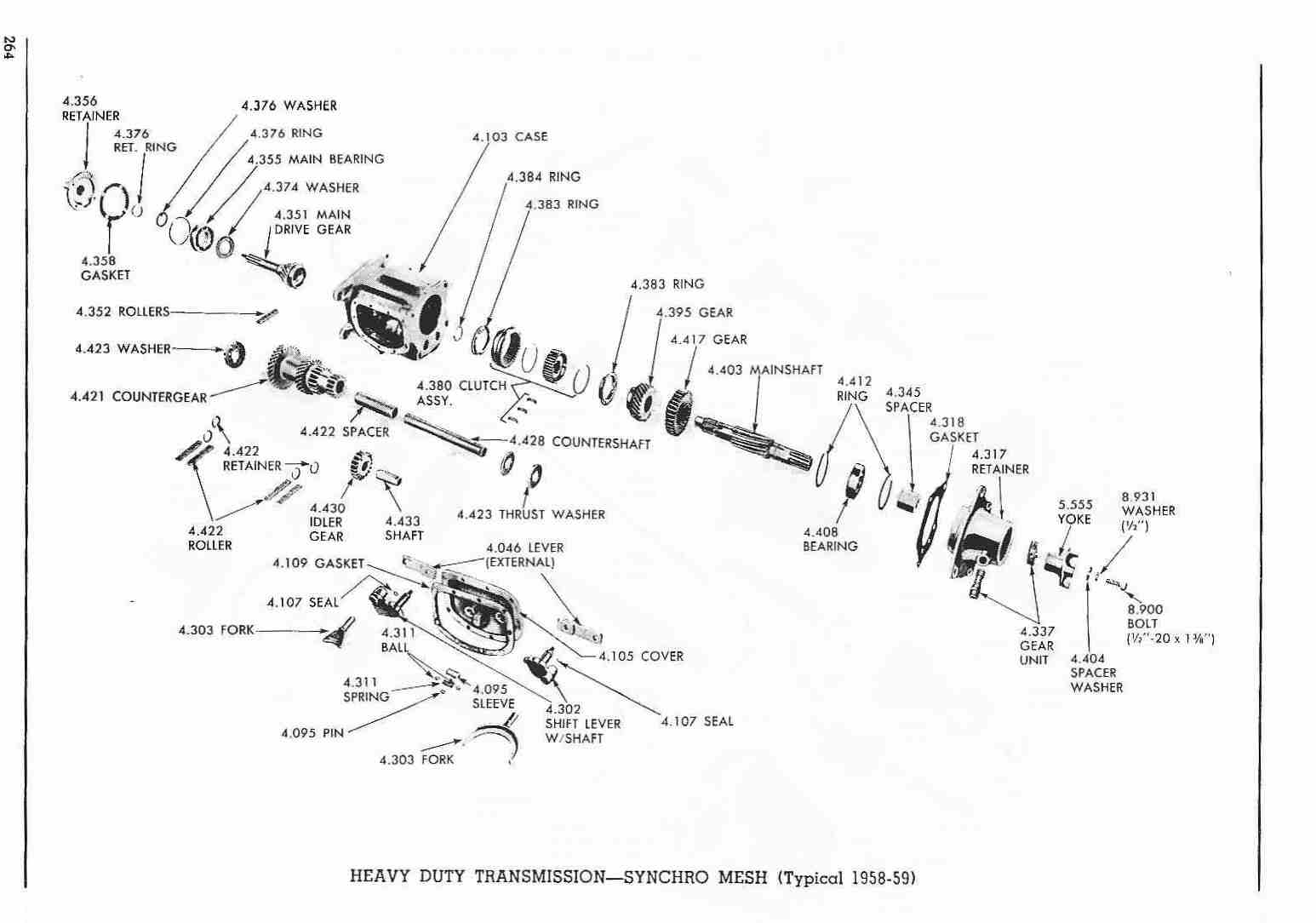

264 Heavy Duty Transmission -- Synchro Mesh (Typical (1958-59)

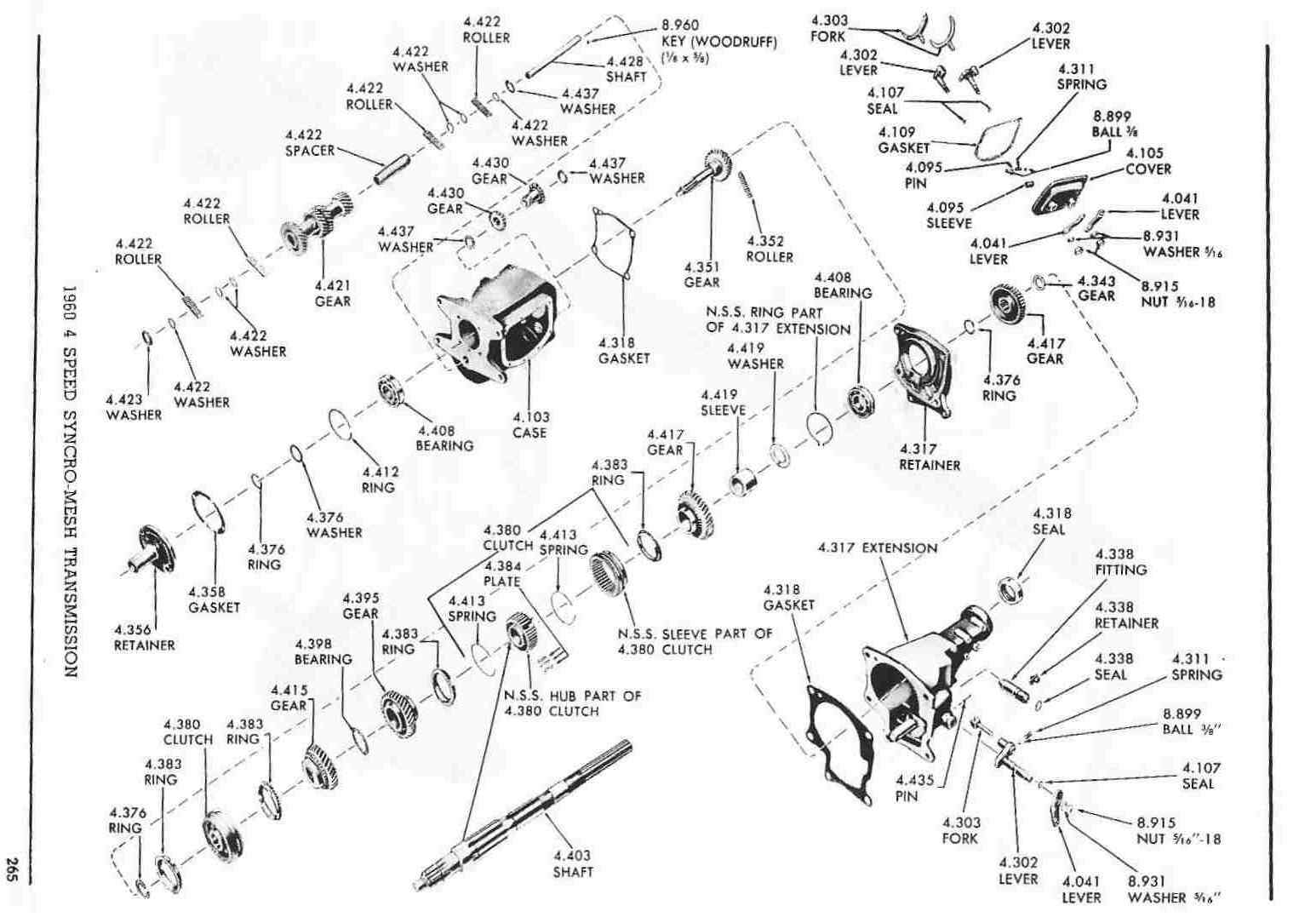

265 1960 4 Speed Synchro Mesh Transmission

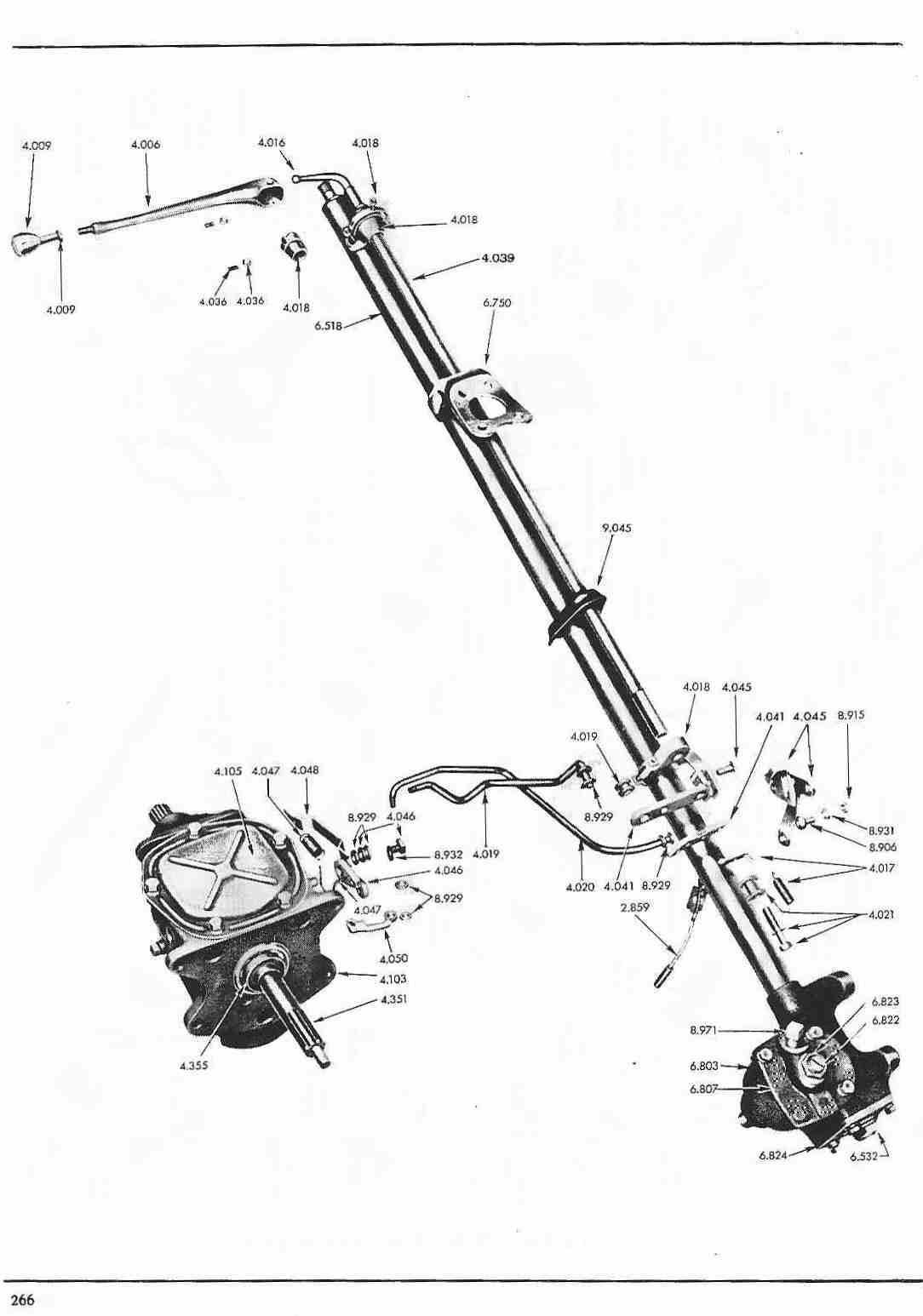

266 Steering Column and Transmission (Early)

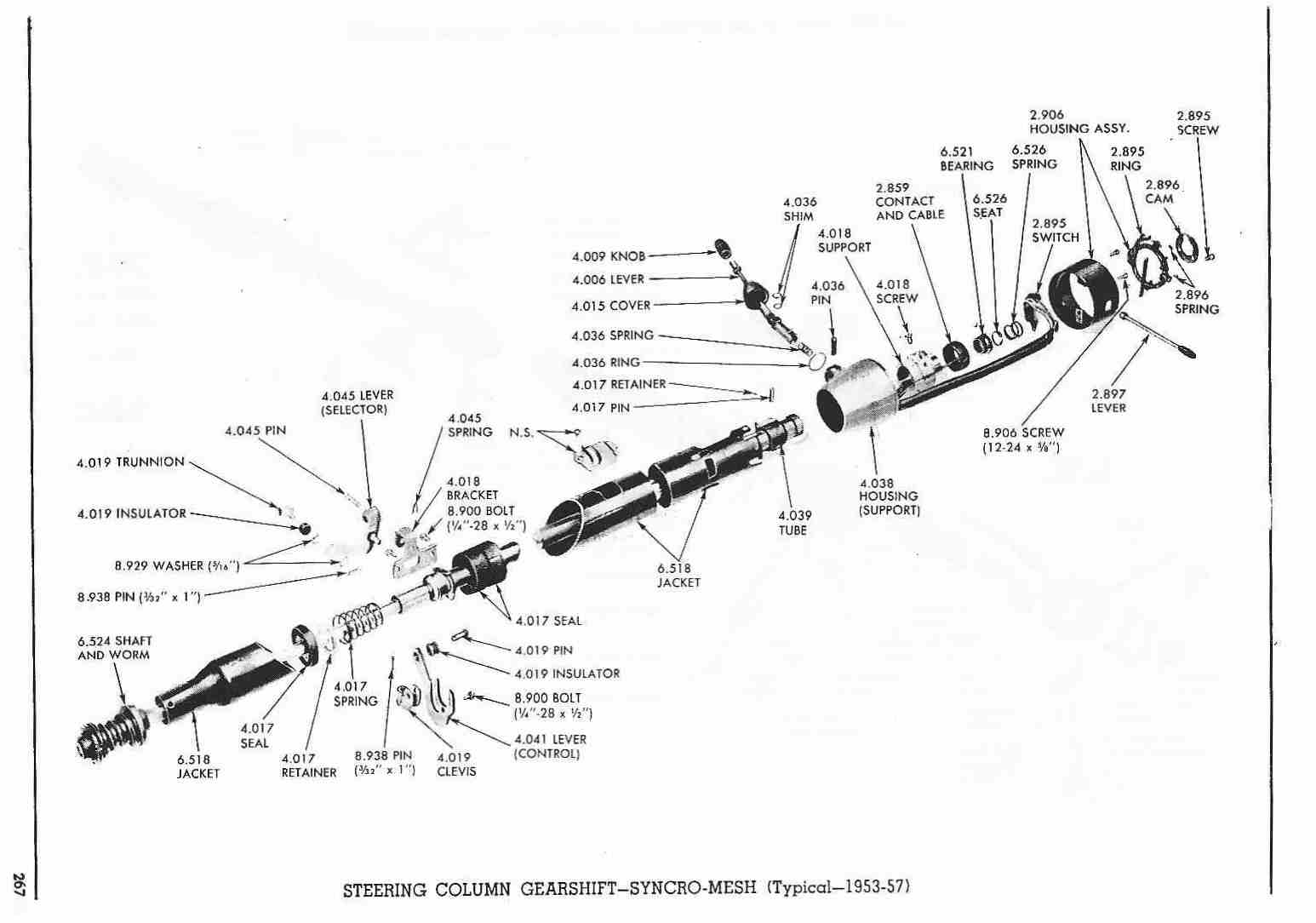

267 Steering Column Gearshift -- Synchro Mesh (Typical 1953-57)

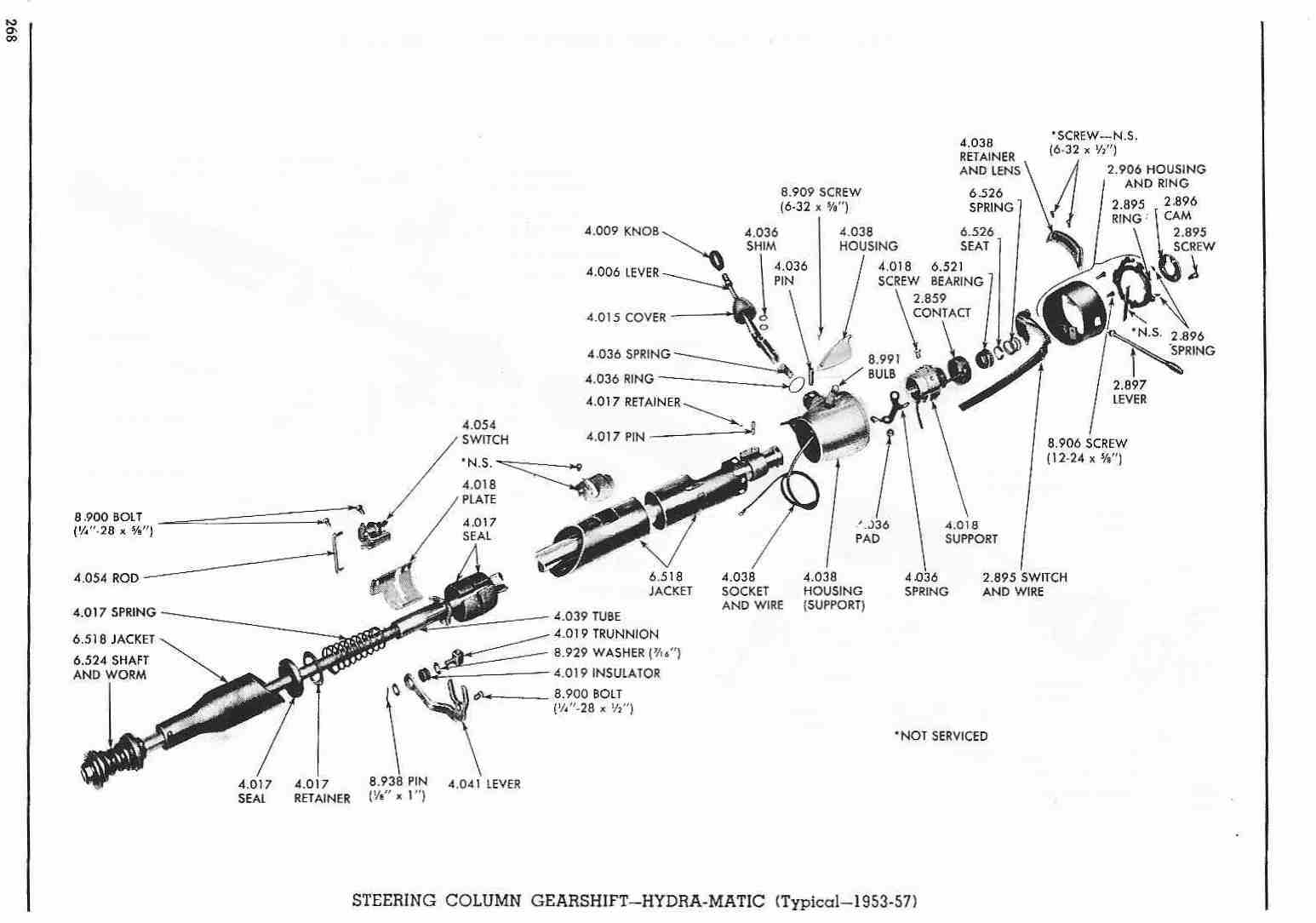

268 Steering Column Gearshift -- Hydra-Matic (Typical 1953-57)

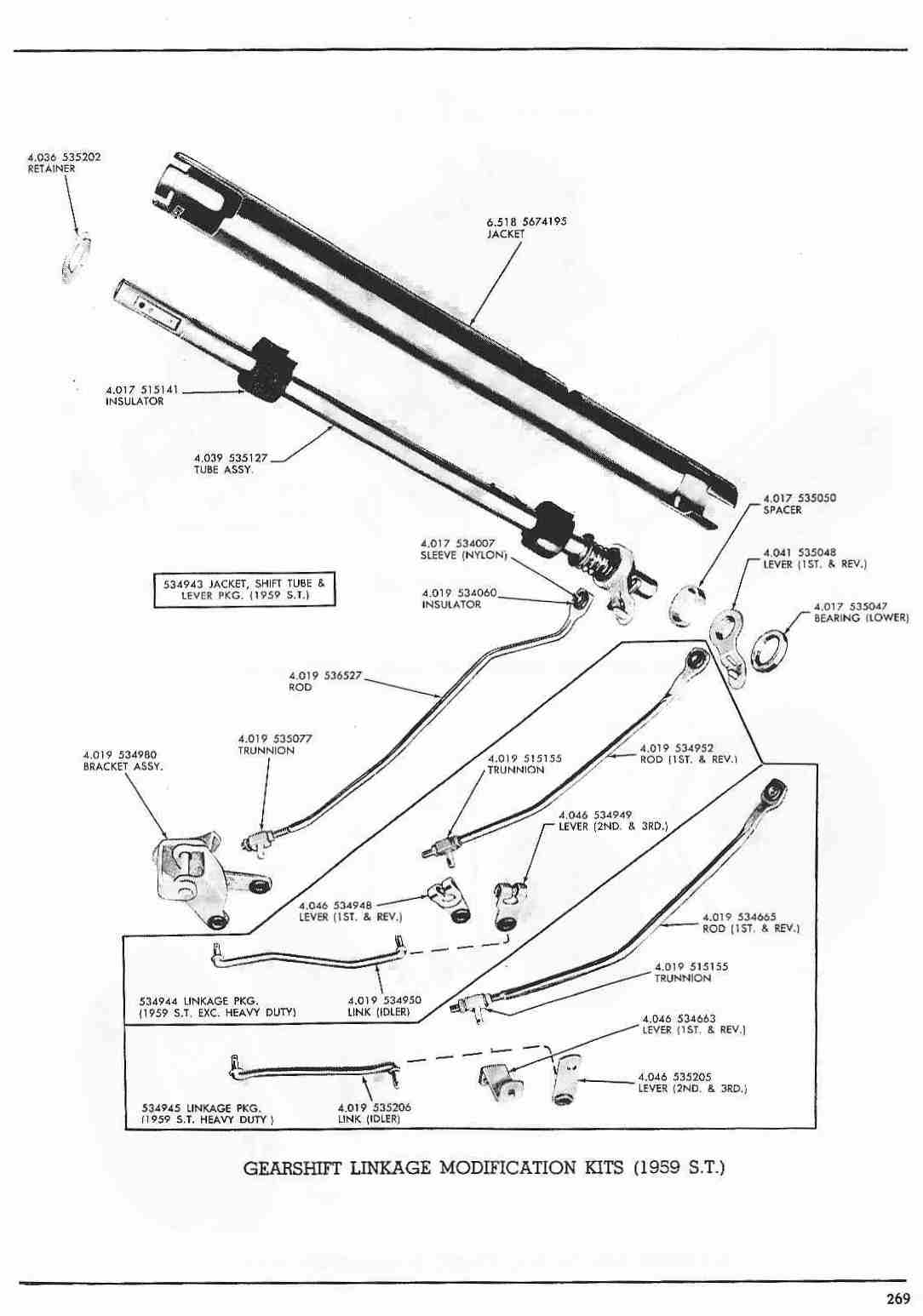

269 Gearshift Linkage Modification Kits (1959 S.T.)

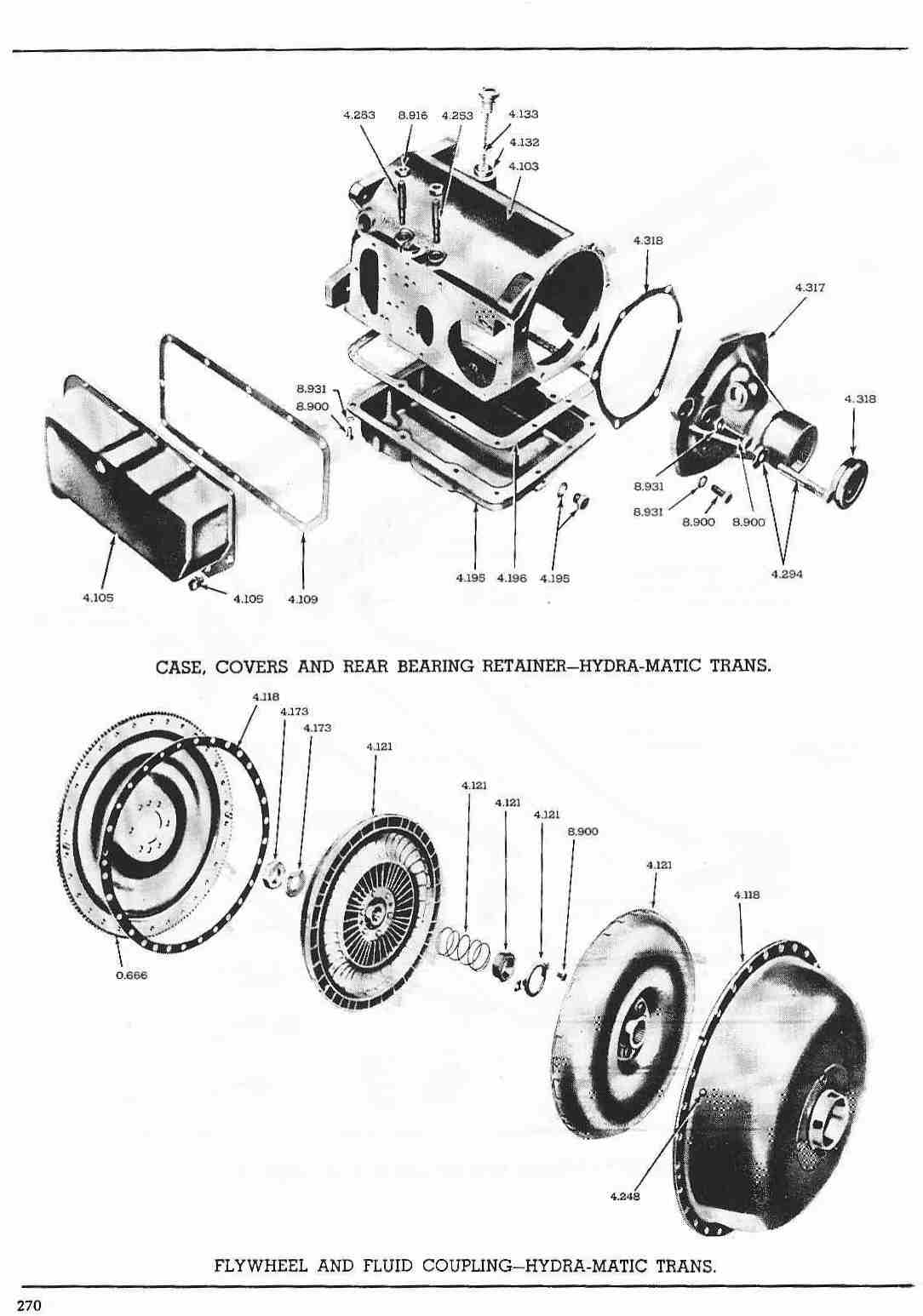

270 Case, Cover, Rear Bearing, Flywheel, Fluid Coupling -- Hydra-Matic Trans.

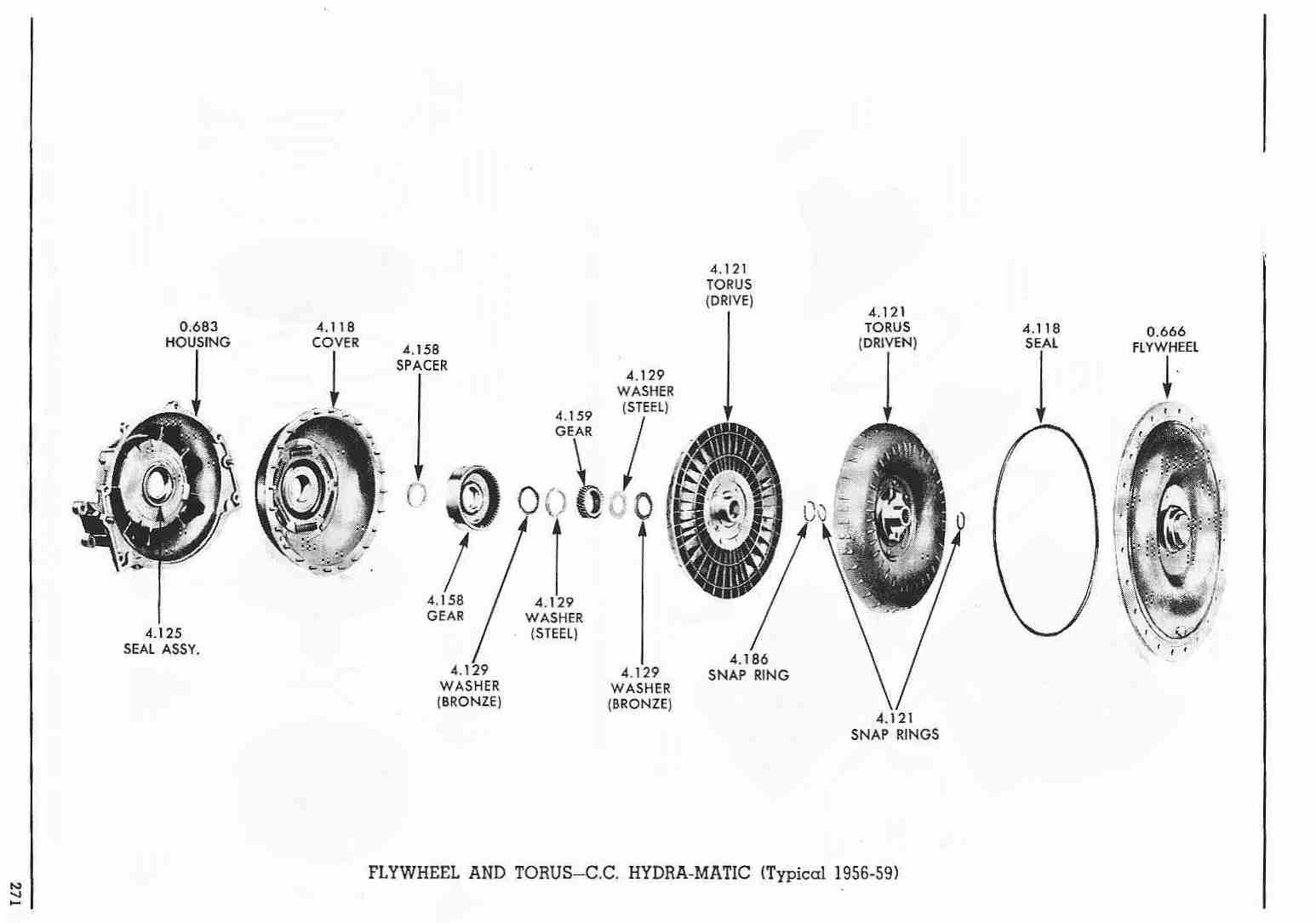

271 Flywheel and Torus - C.C. Hydra-Matic (Typical 1956-59)

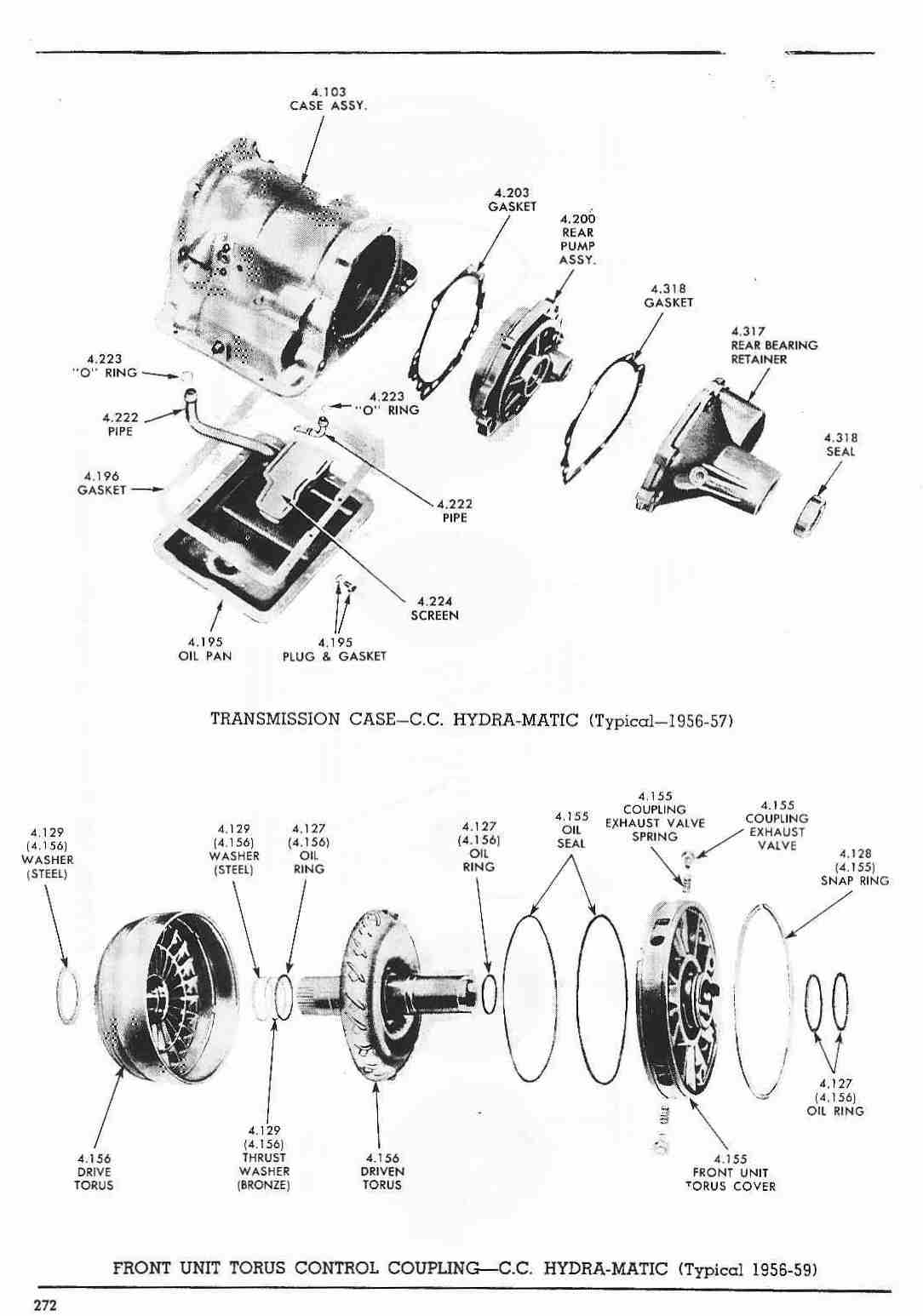

272 Transmission Case / Front Unit Torus Control Coupling - C.C. Hydra-Matic (1956-59)

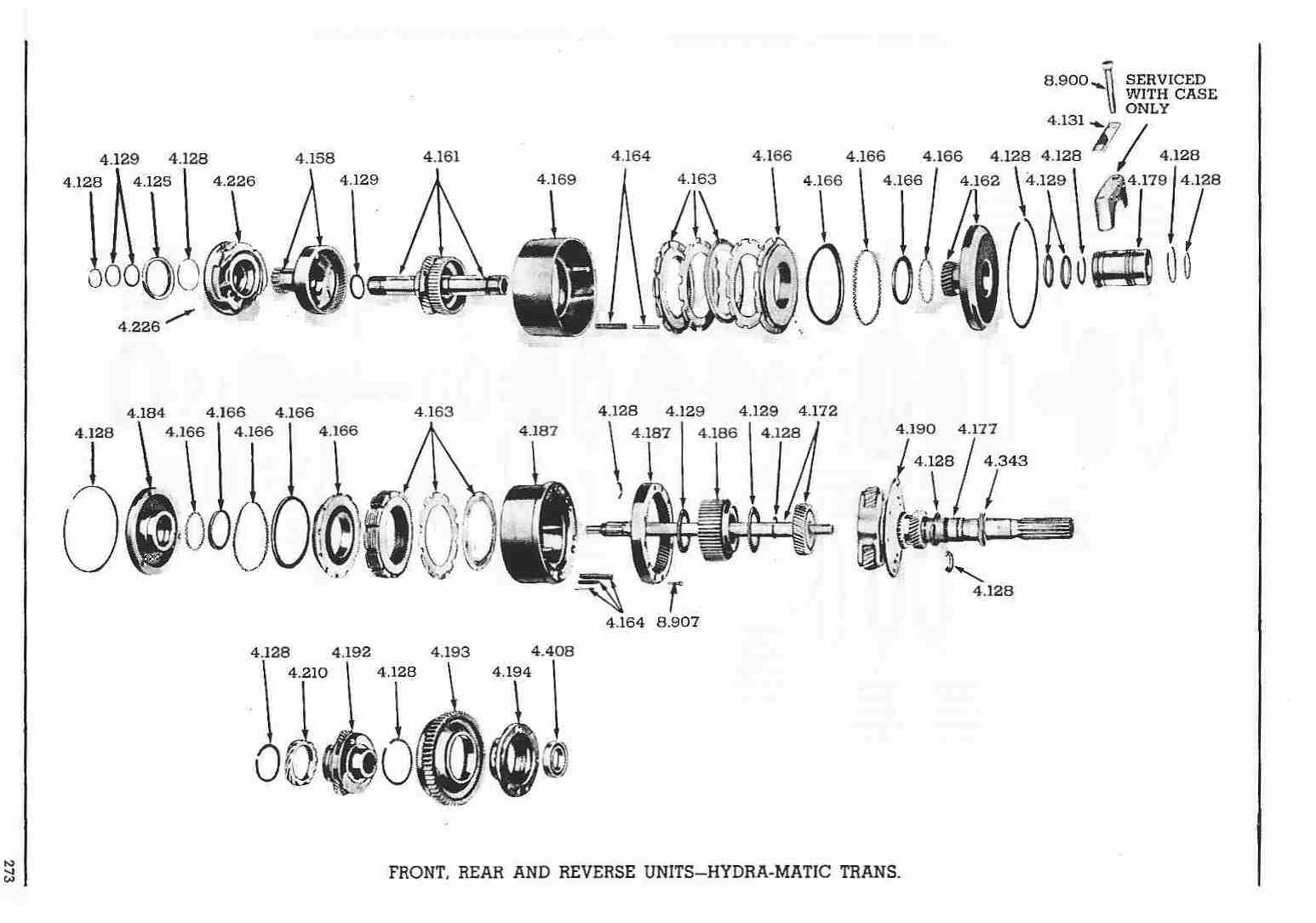

273 Front, Rear and Reverse Units - Hydra-Matic Trans.

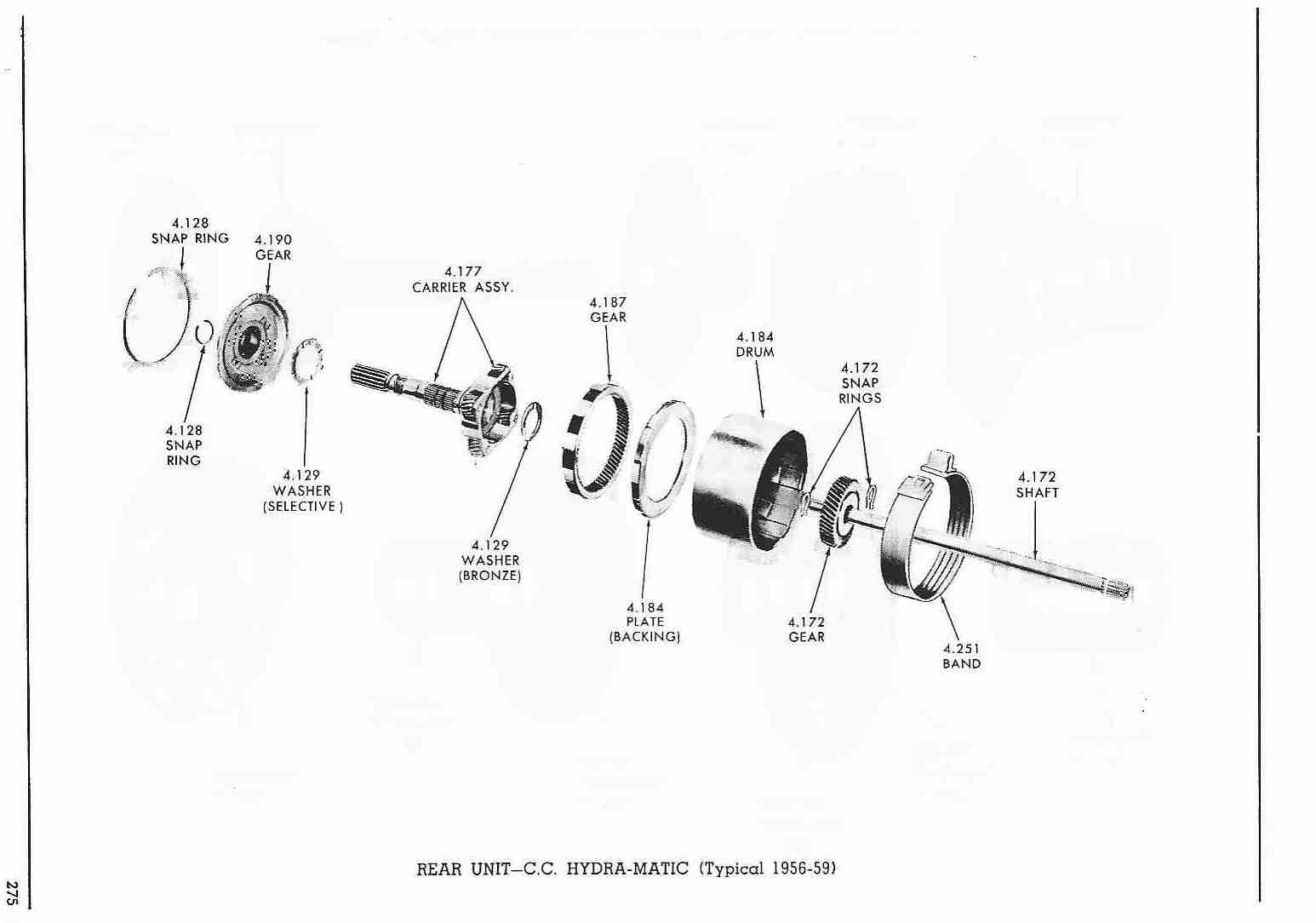

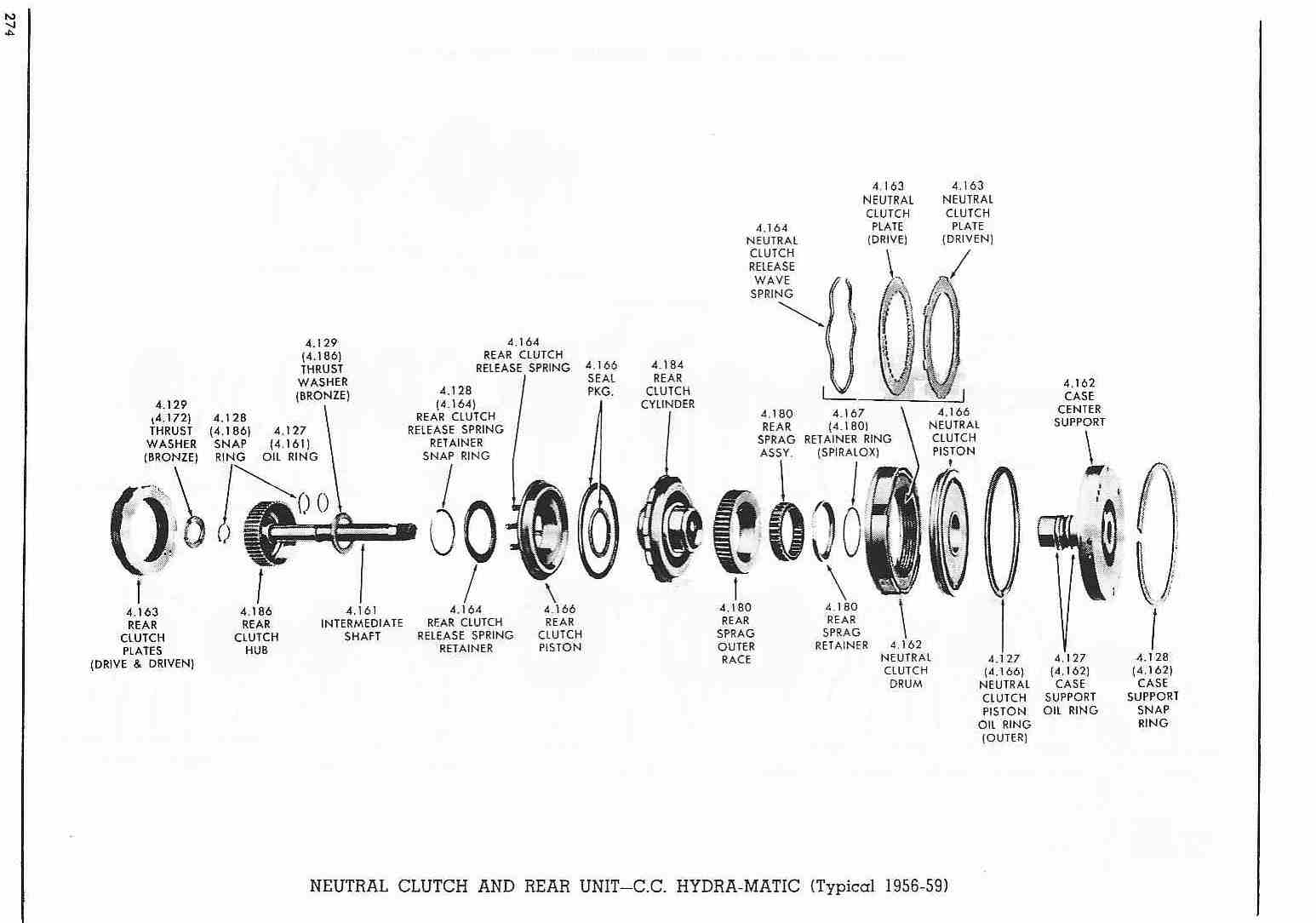

274 Neutral Clutch and Rear Unit - C.C. Hydra-Matic (Typical 1956-59)
275 Rear Unit - C.C. Hydra-Matic (Typical 1956-59)

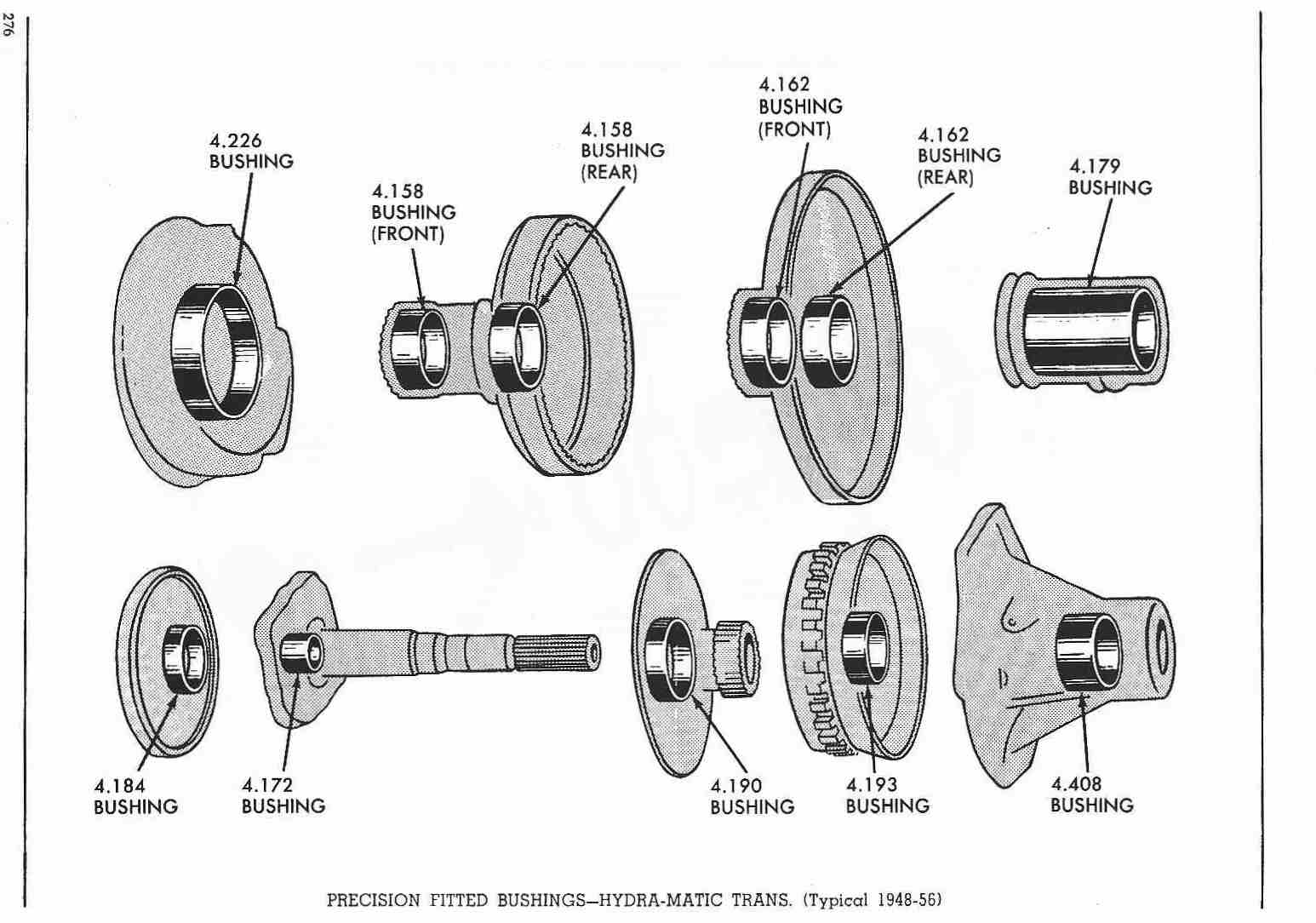

276 Precision Fitted Bushings - Hydra-Matic Trans. (Typical 1948-56)

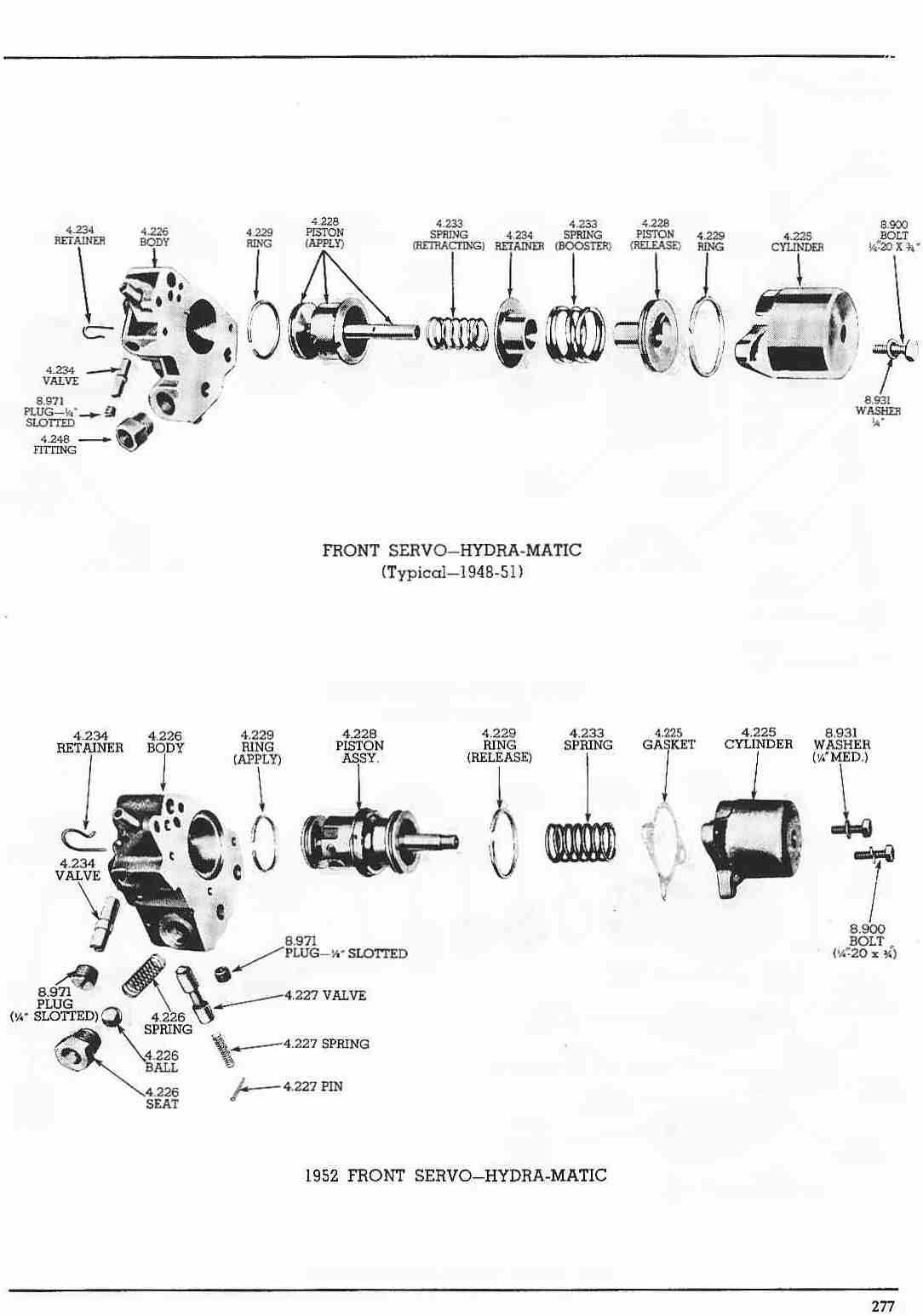

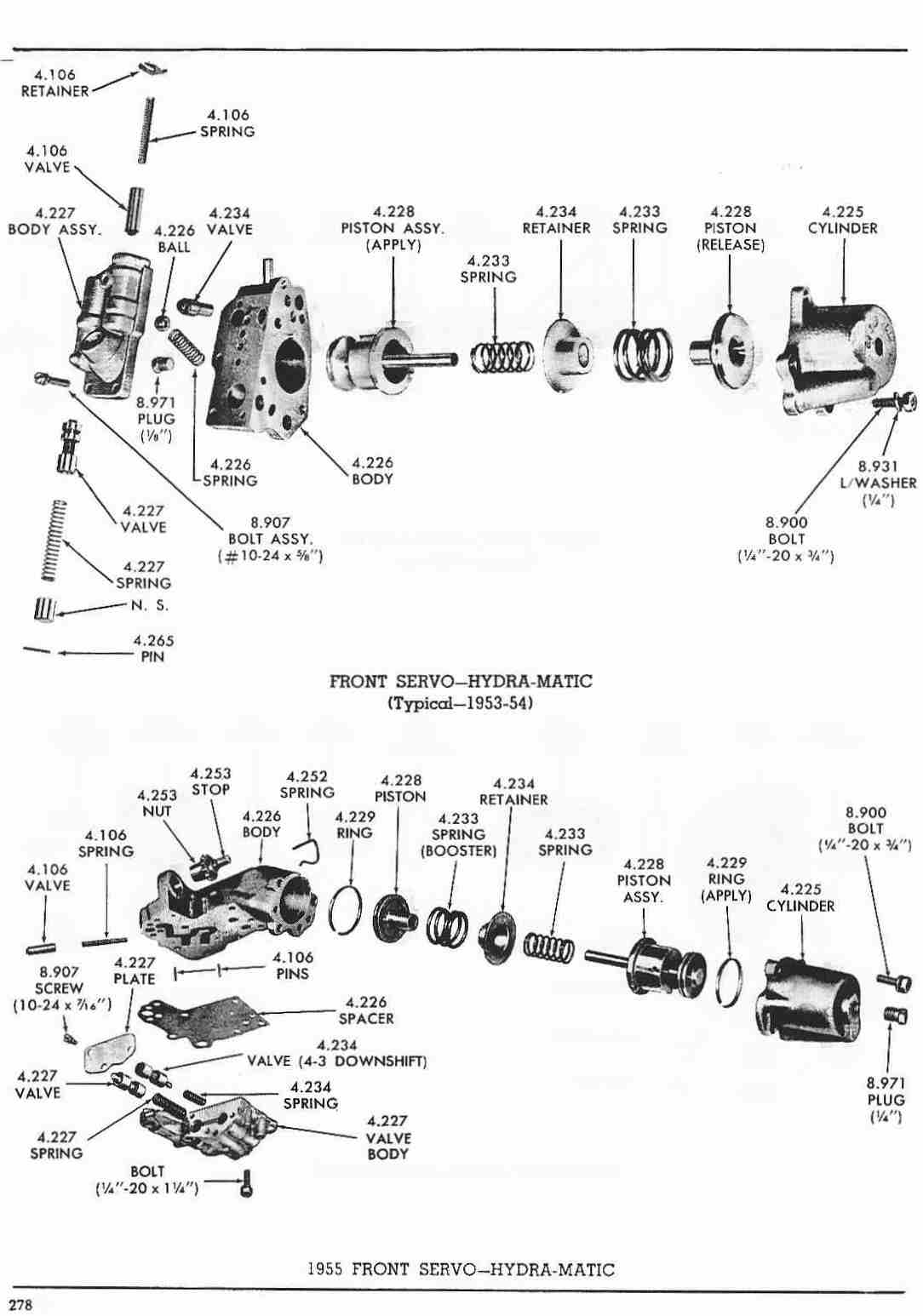

277 1948-52 Front Servo - Hydra-Matic
278 1953-55 Front Servo - Hydra-Matic

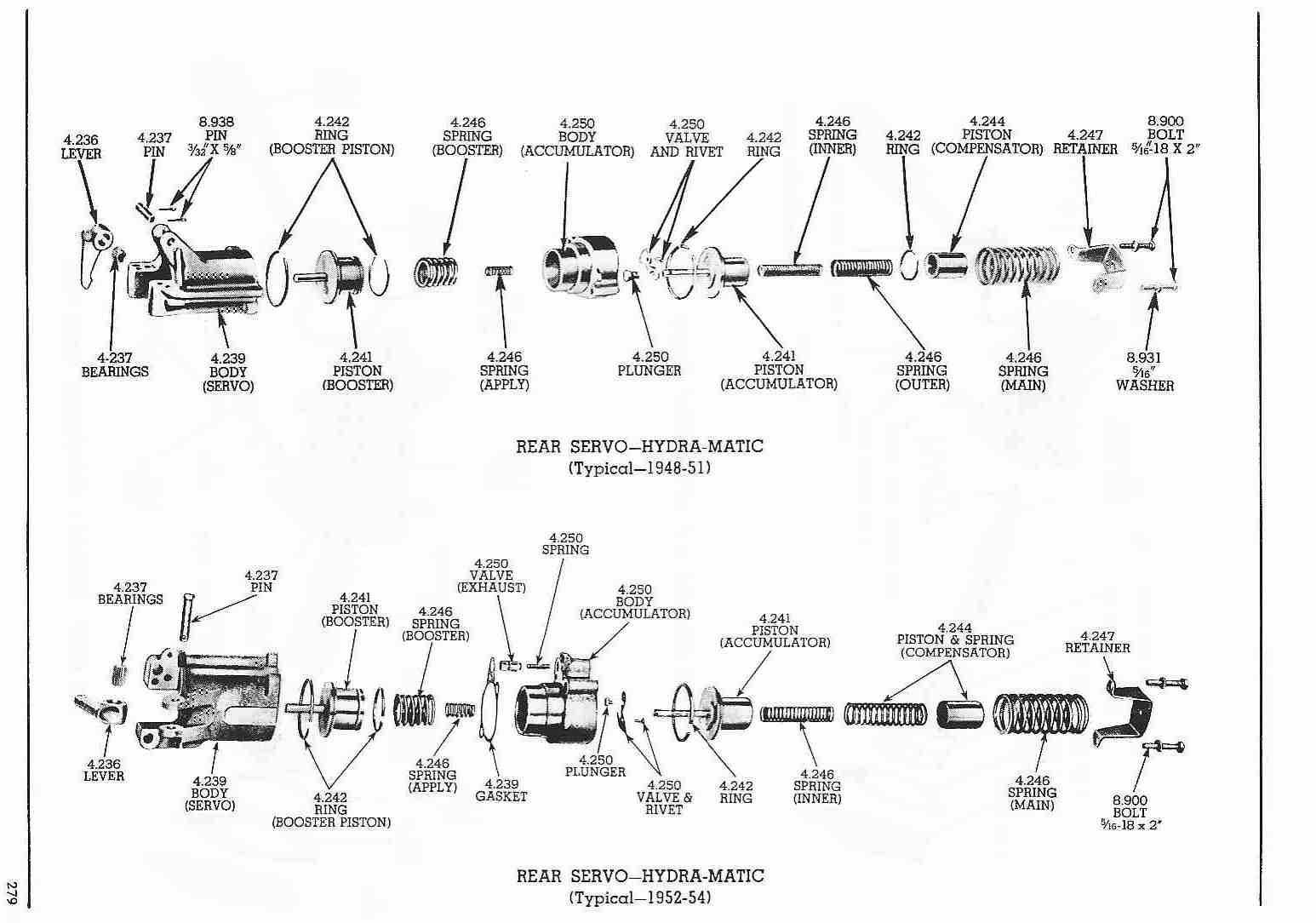

279 Rear Servo - Hydra-Matic (1948-54)

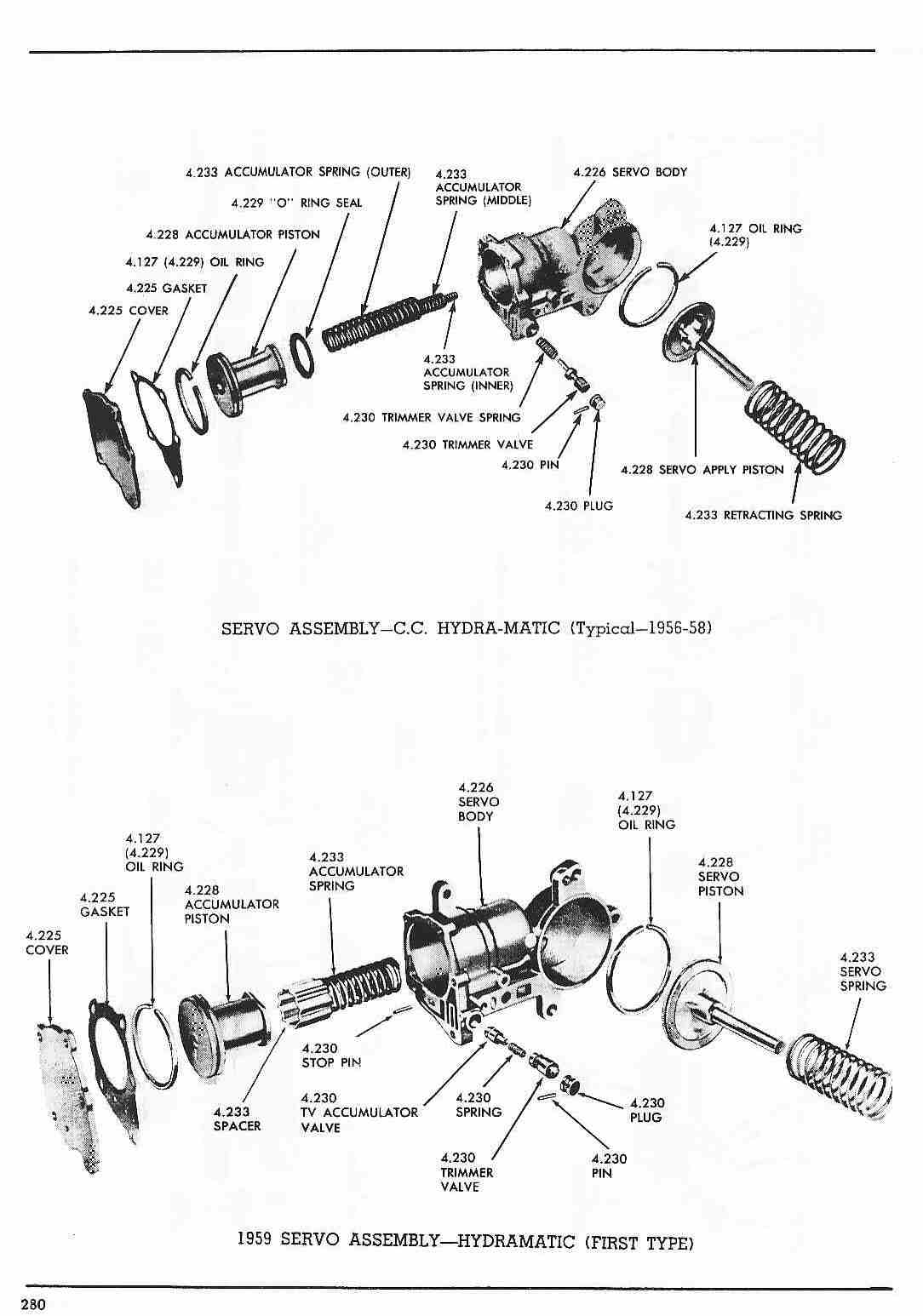

280 Servo Assembly  - C.C. Hydra-Matic (Typical 1956-59)

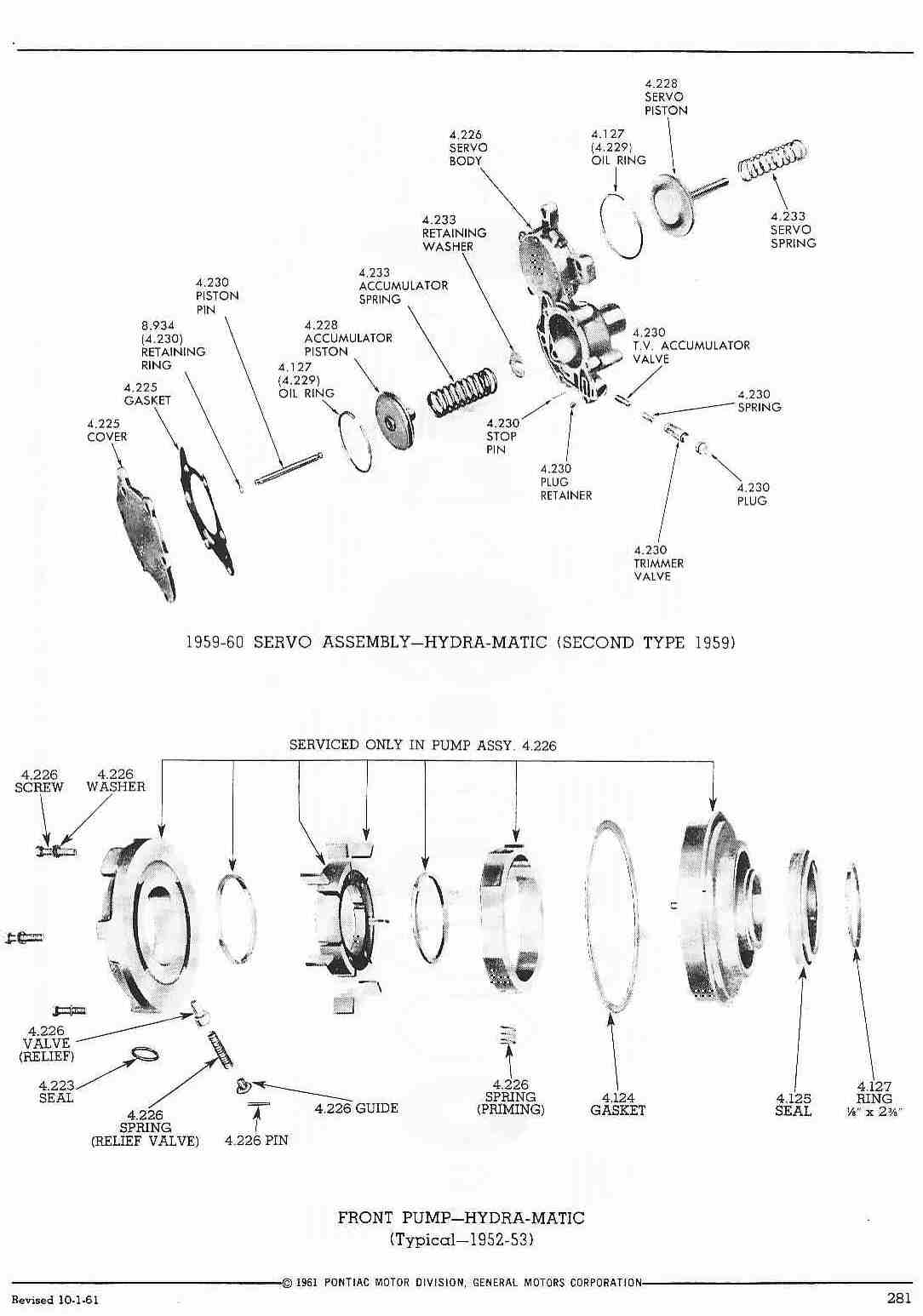

281 1959-60 Servo Assembly / Front Pump (Typical 1952-53)

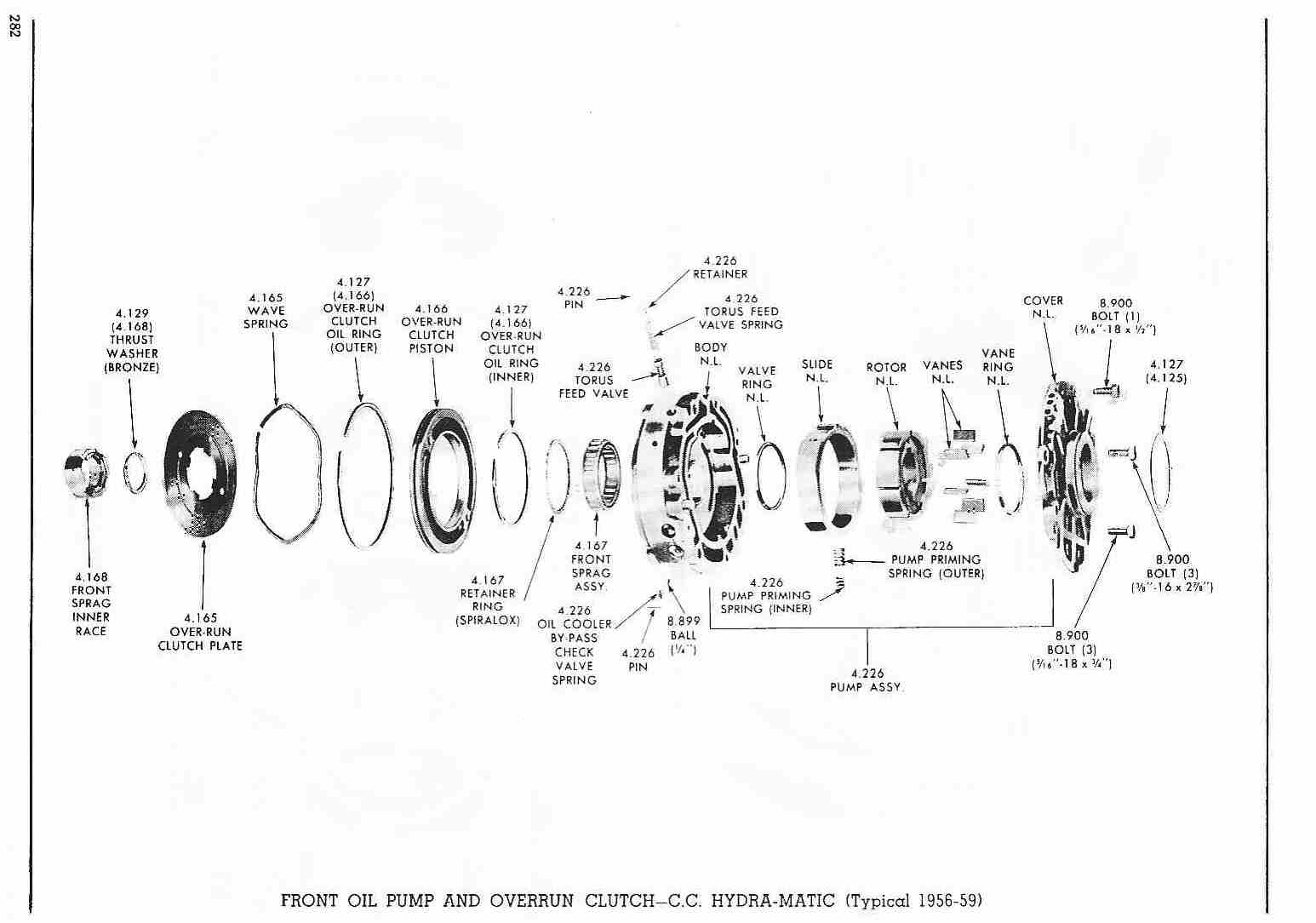

282 Front Oil Pump and Overrun Clutch - C.C. Hydra-Matic (Typical 1956-59)

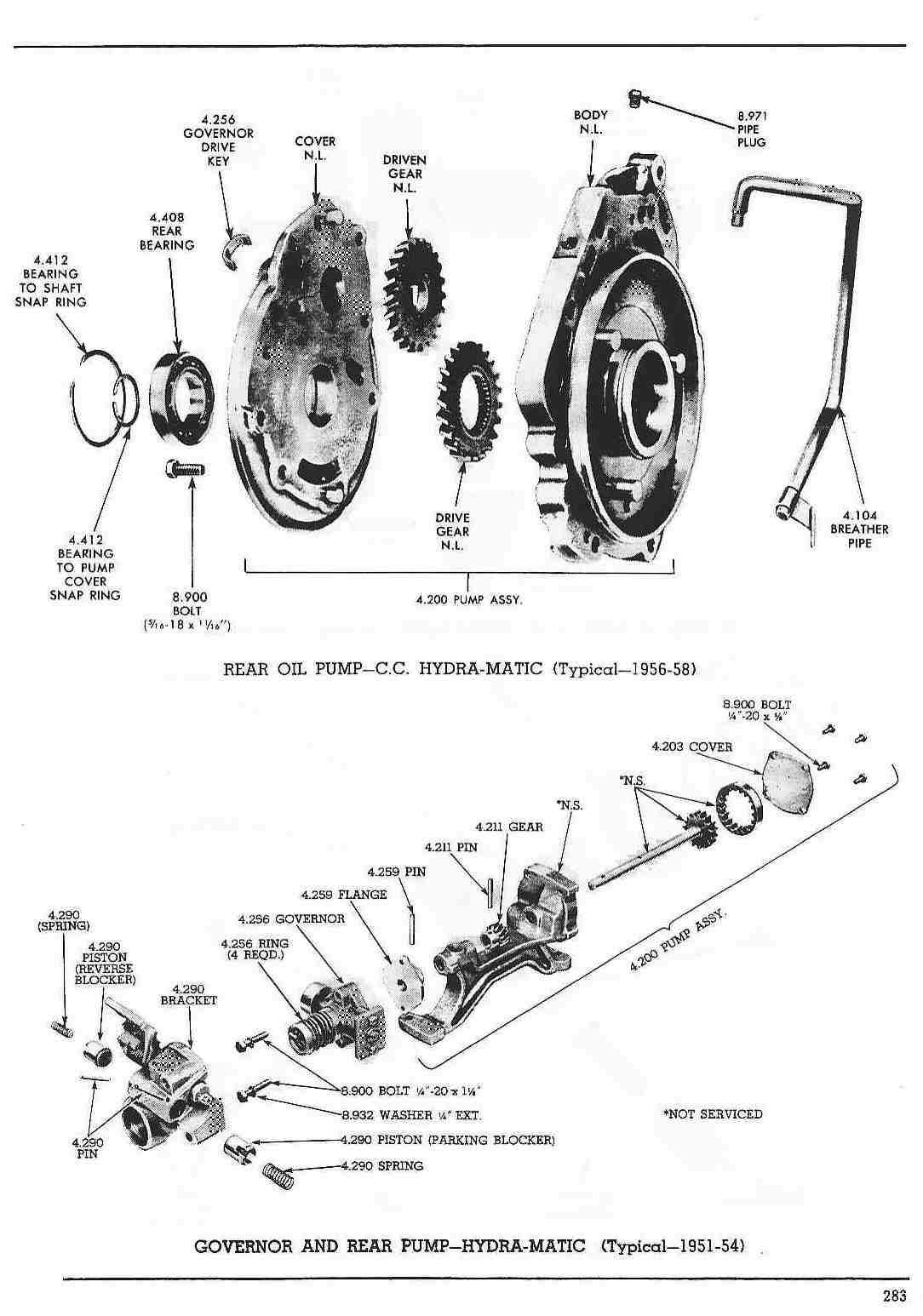

283 Rear Oil Pump  (Typical 1956-59) / Governor and Rear Pump - Hydra-Matic (1951-54)

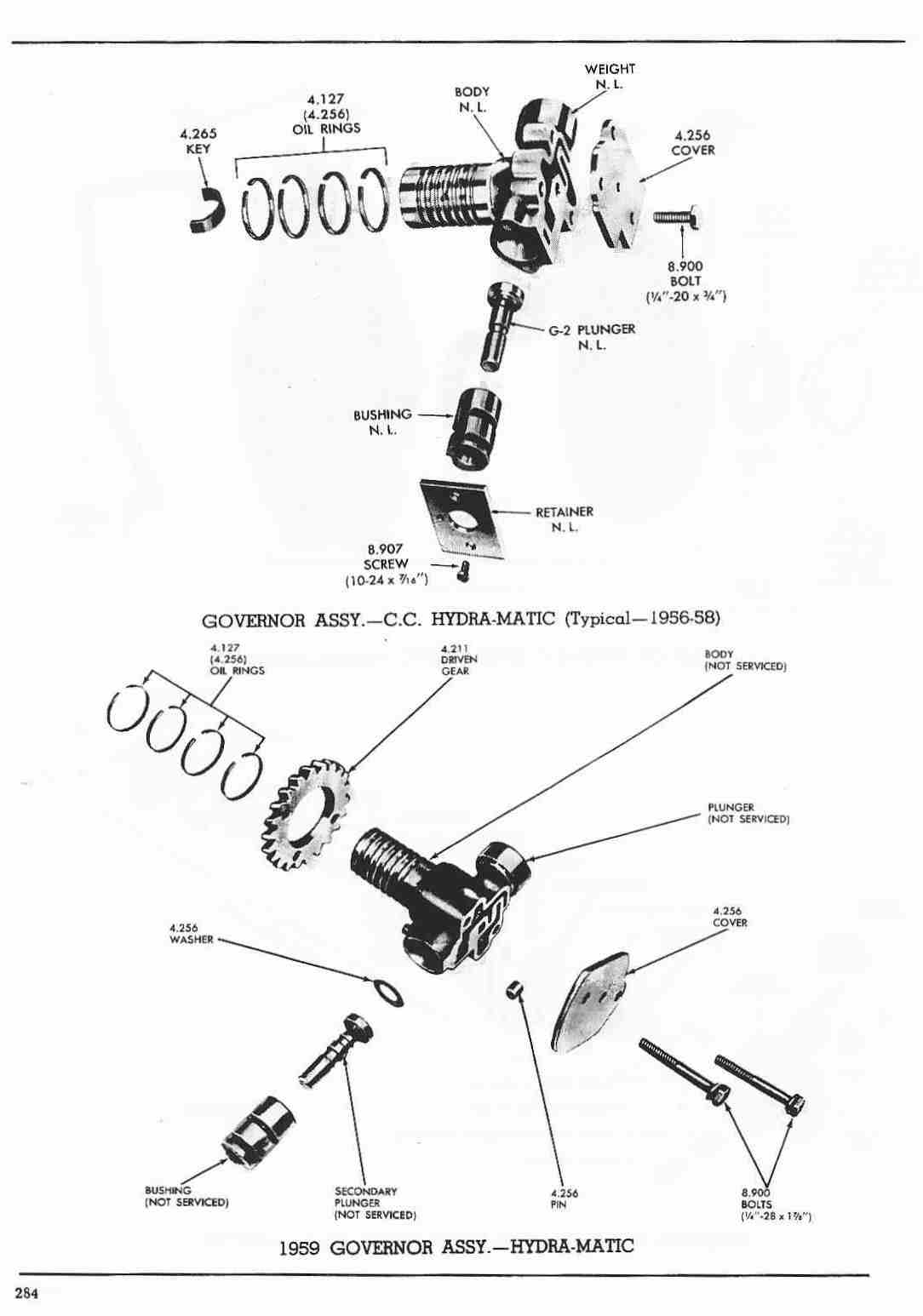

284 Governor Assy. - C.C. Hydra-Matic (1956-59)

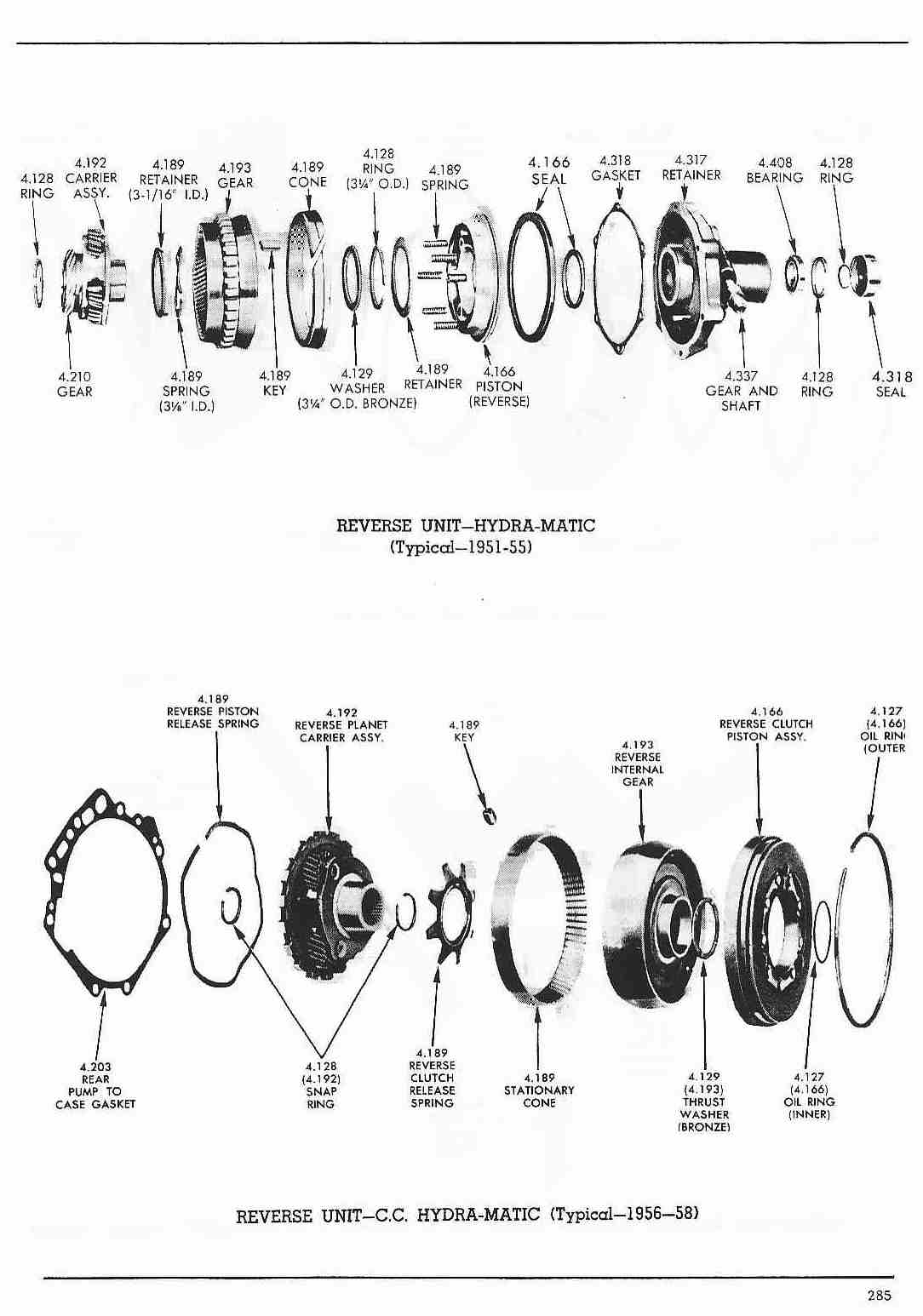

285 Reverse Unit - Hydra-Matic (1951-58)

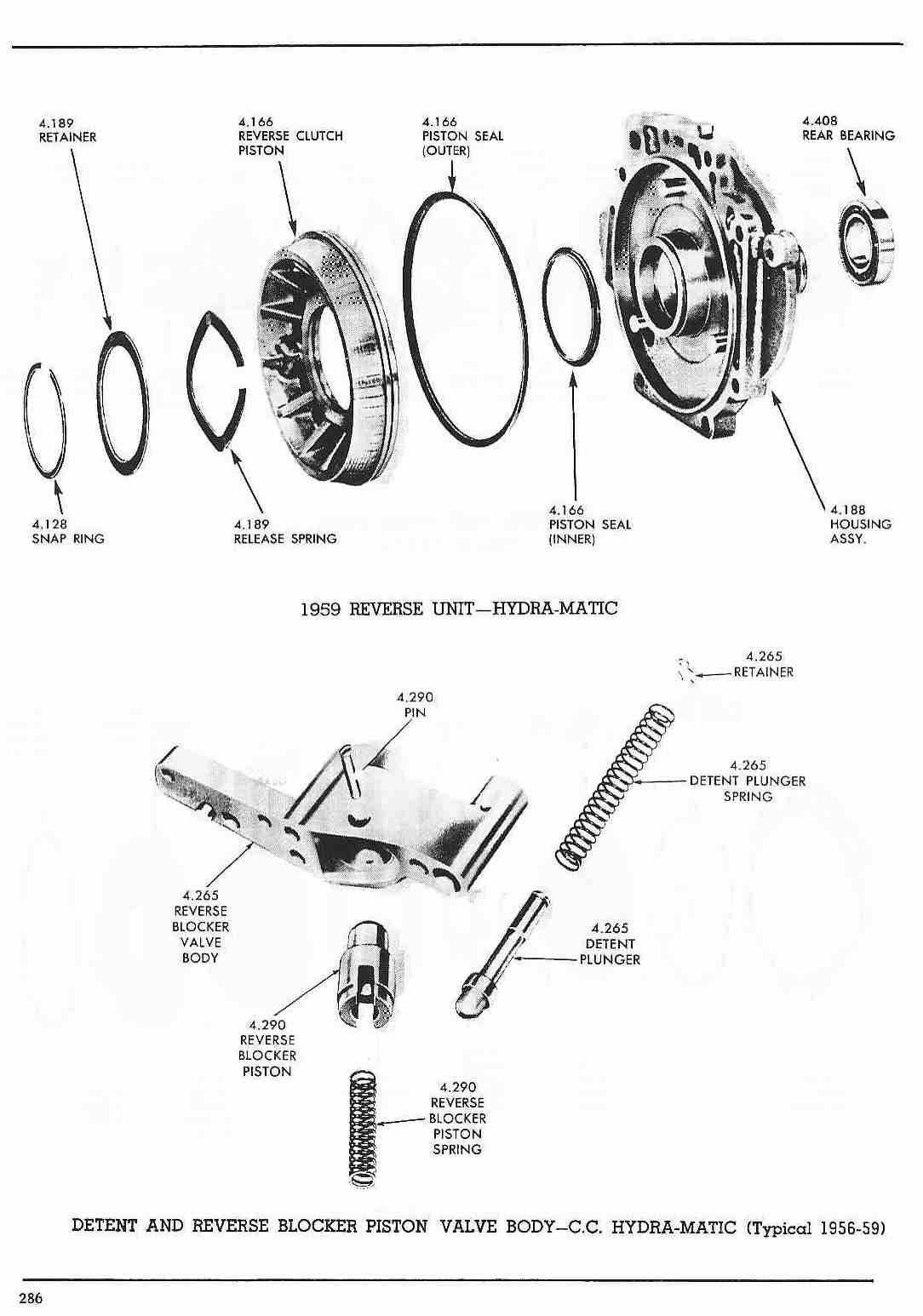

286 Reverse Unit  - Hydra-Matic (1956-59)

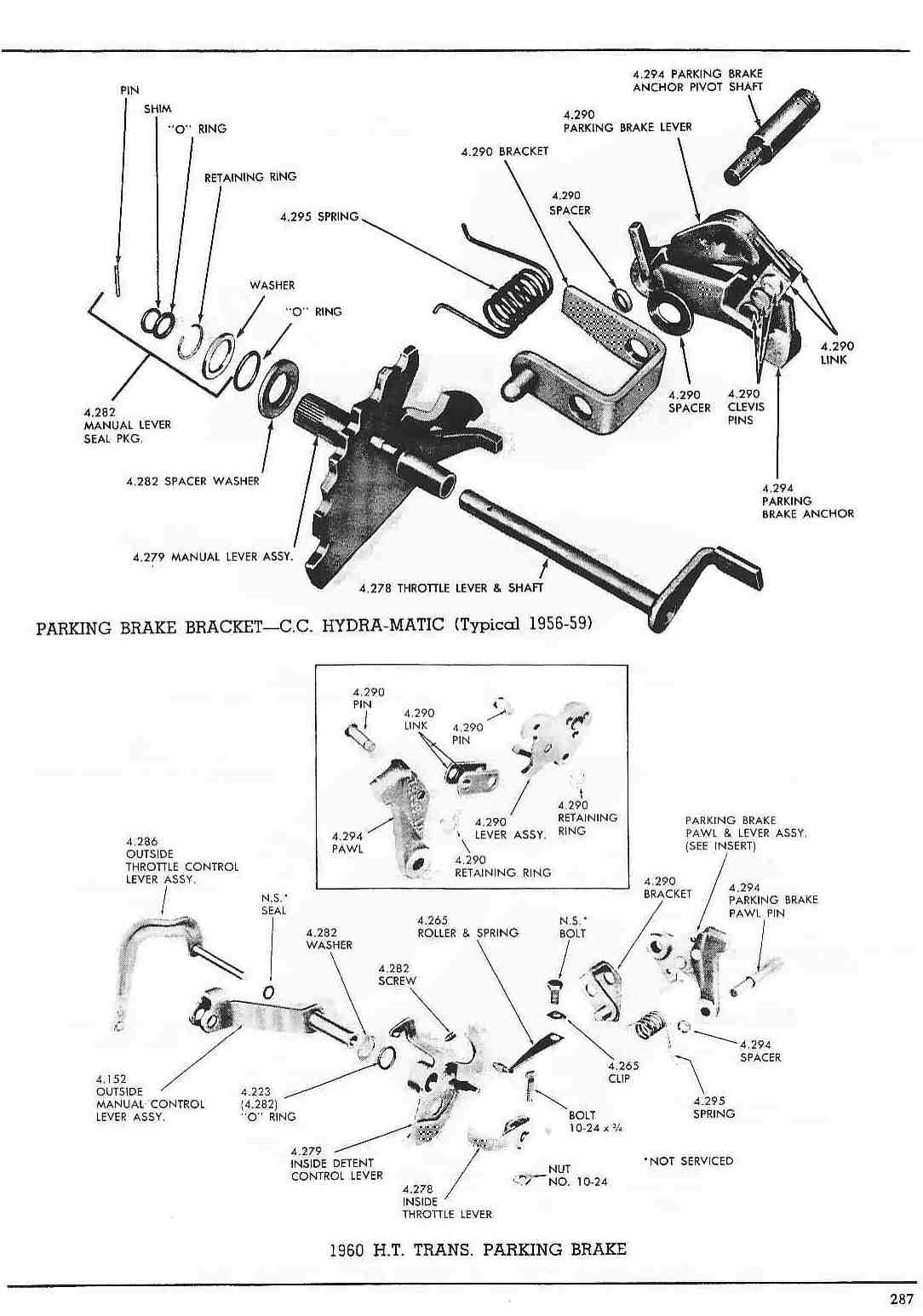

287 Trans Parking Brake Bracket - C.C. Hydra-Matic (1956-60)

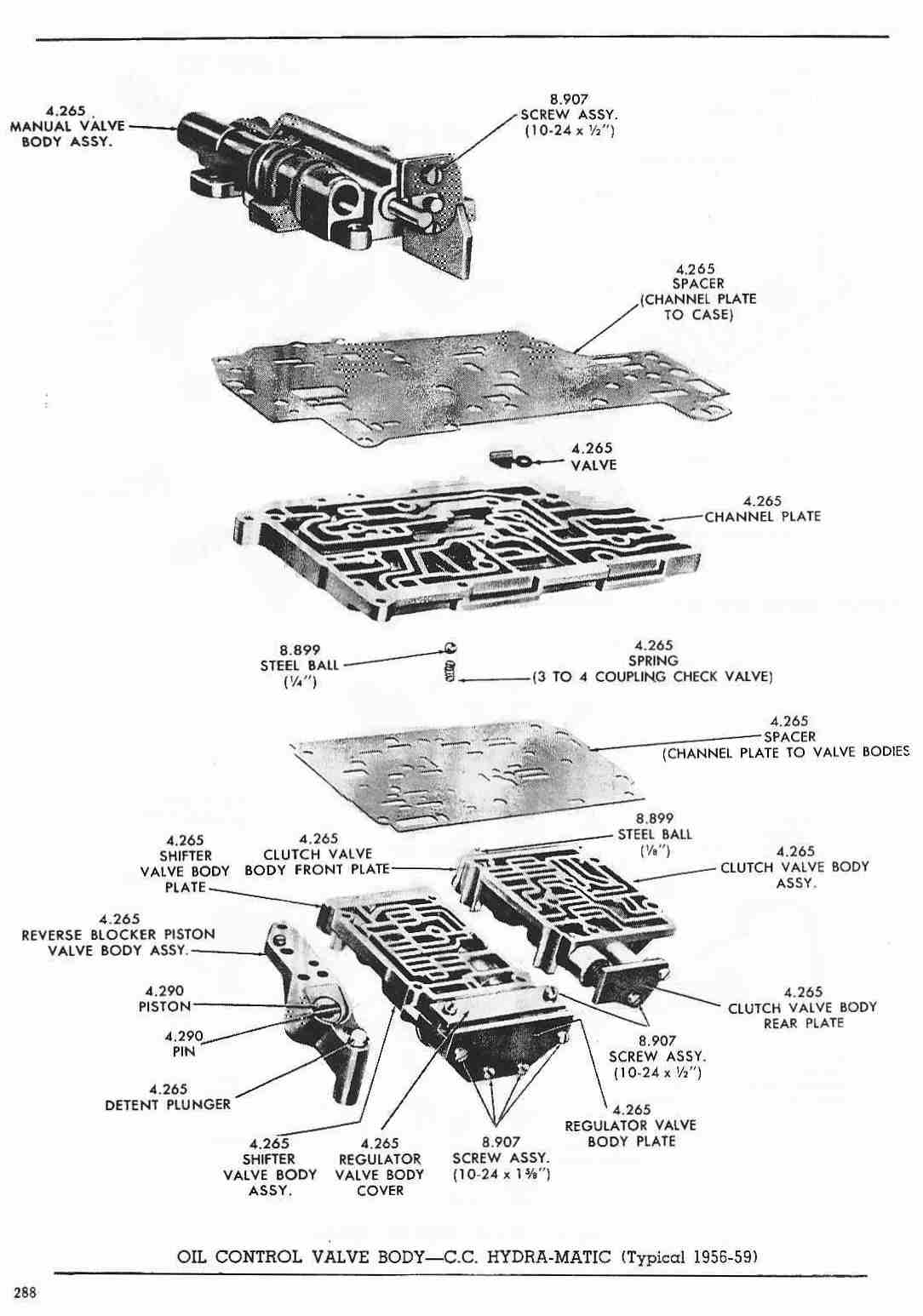

288 Oil Control Valve Body - C.C. Hydra-Matic (1956-59)

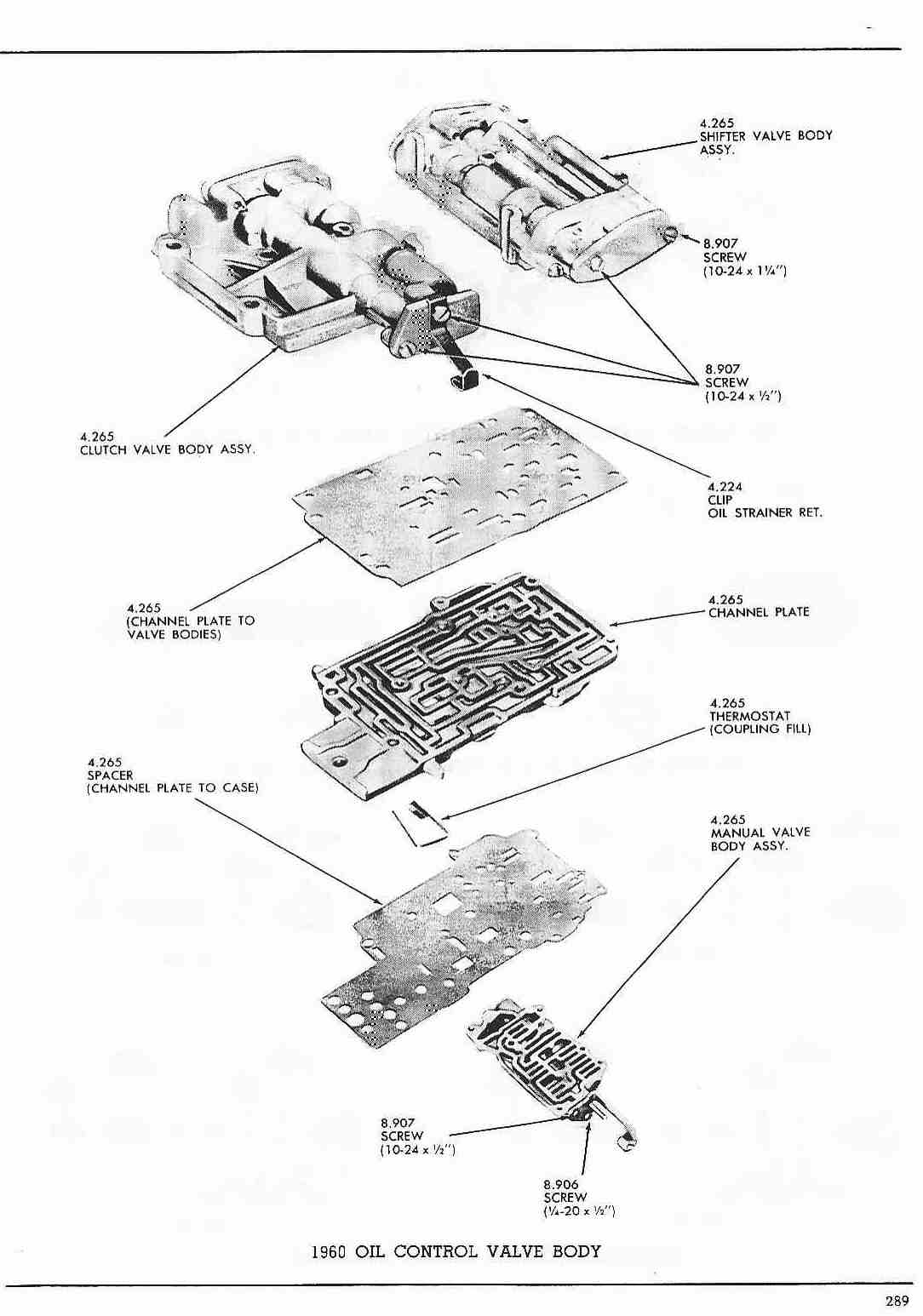

289 1960 Oil Control Valve Body

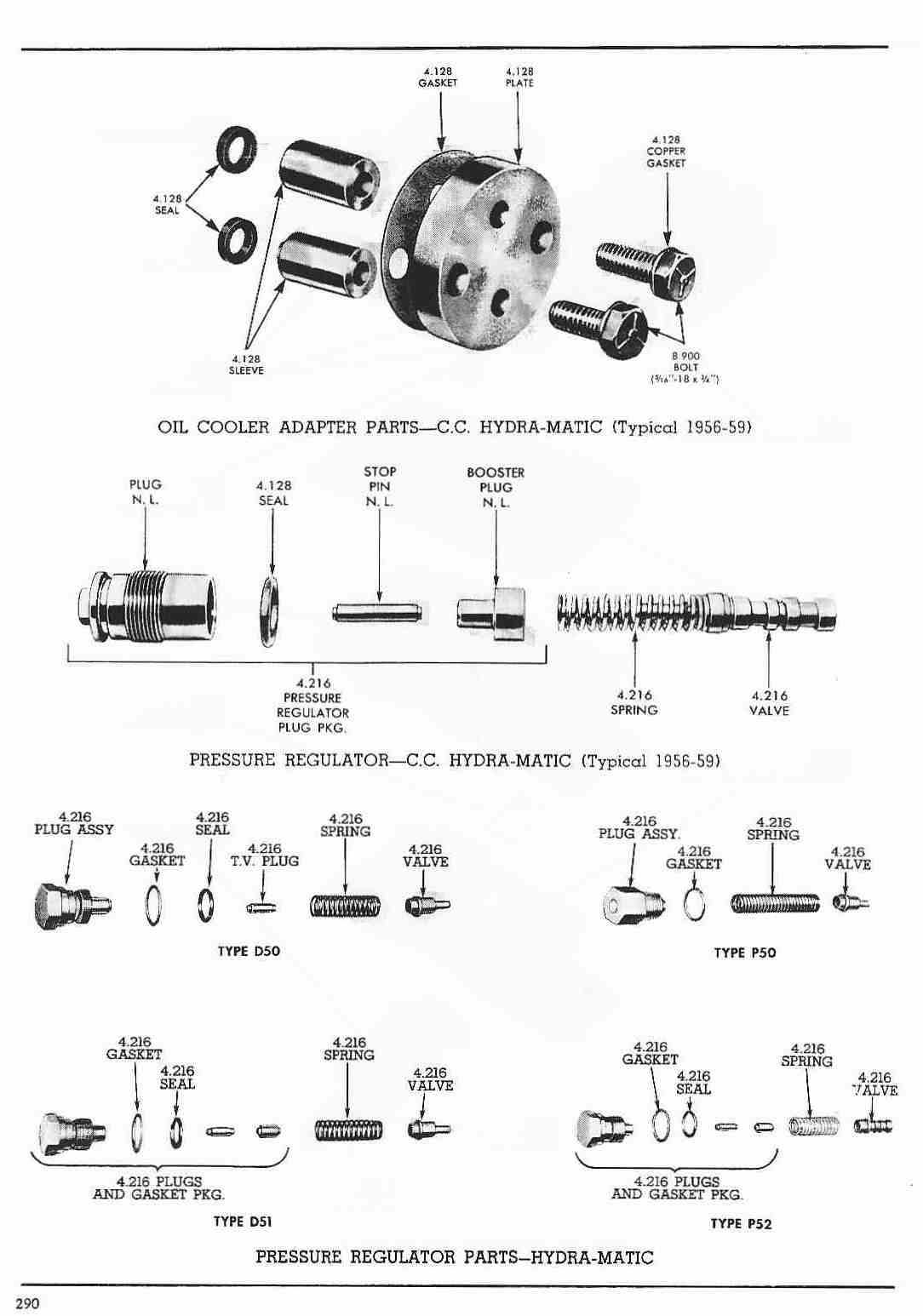

290 Oil Cooler Adaptor (1956-59) / Pressure Regulator Hydra-Matic

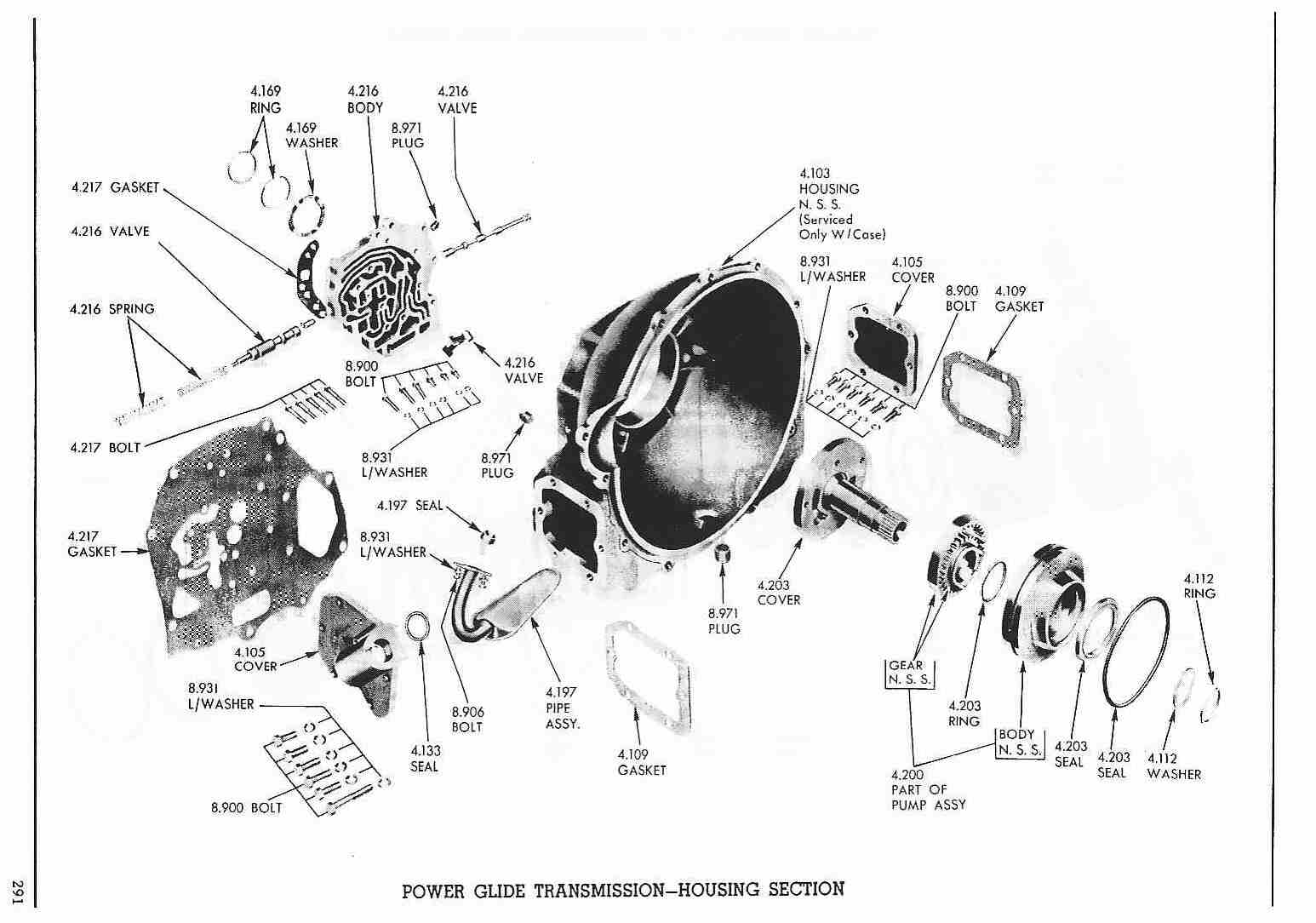

291 Power Glide Transmission Housing Section

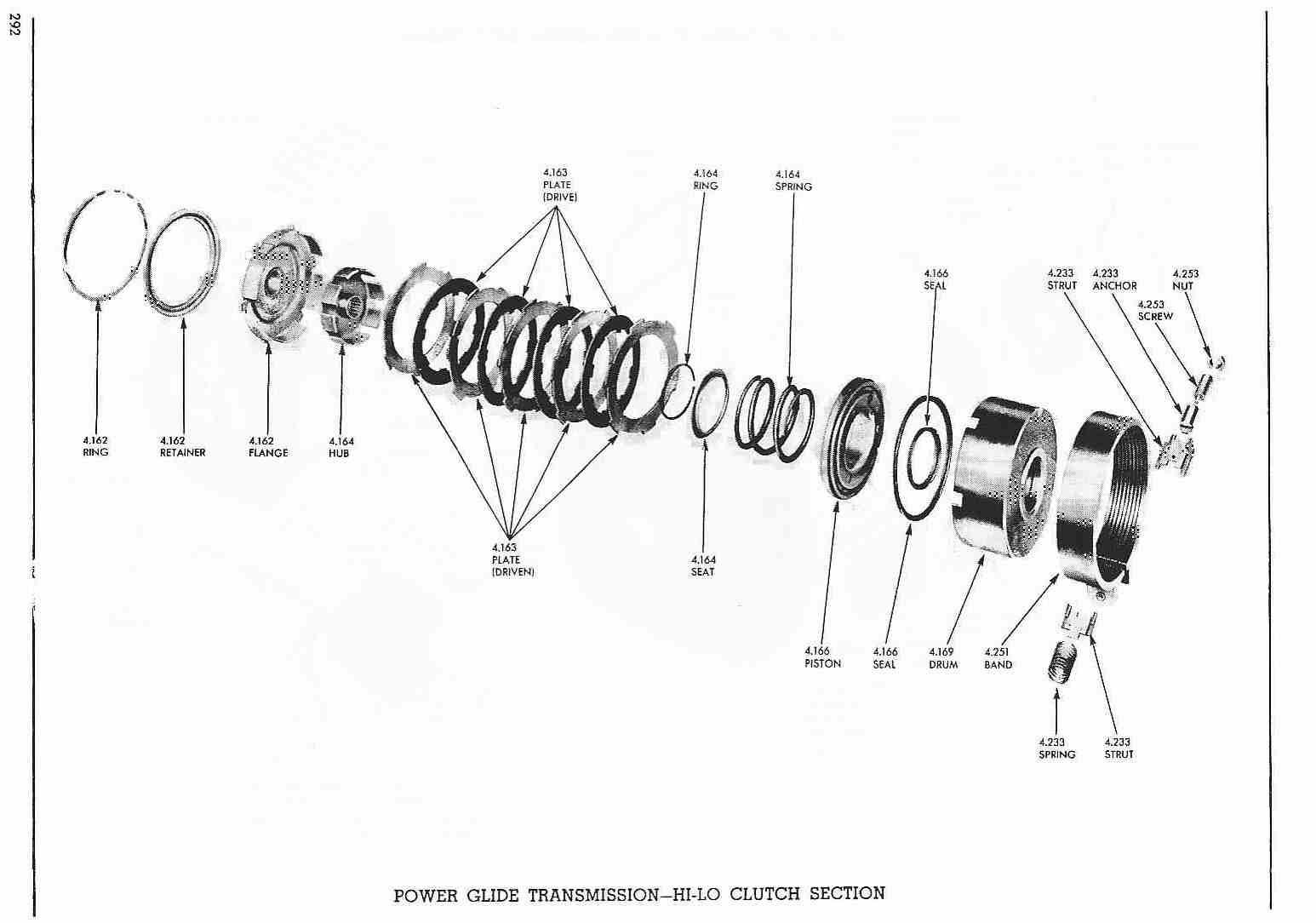

292 Power Glide Transmission Hi-Lo Clutch Section

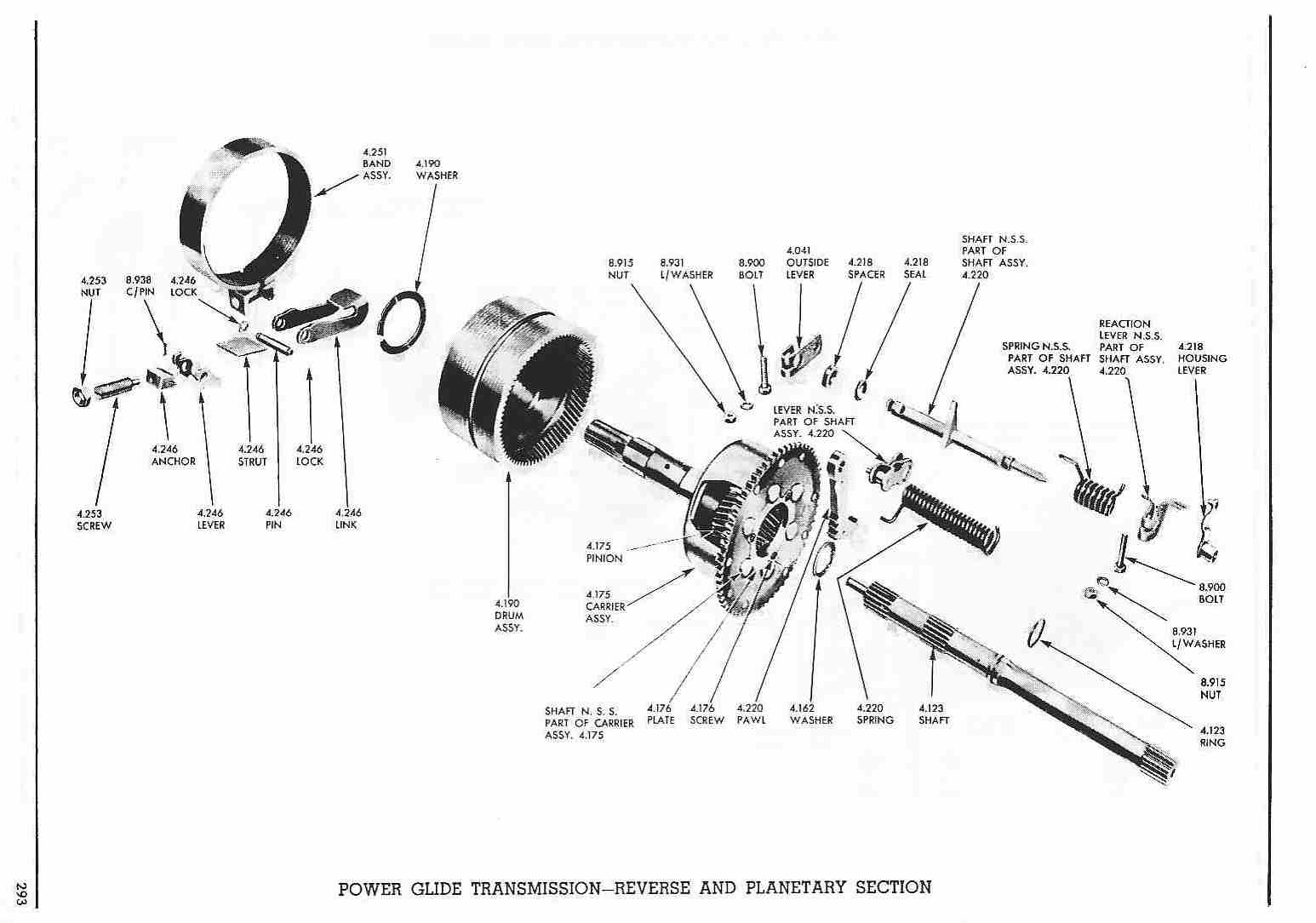

293 Power Glide Transmission Reverse and Planetary Section

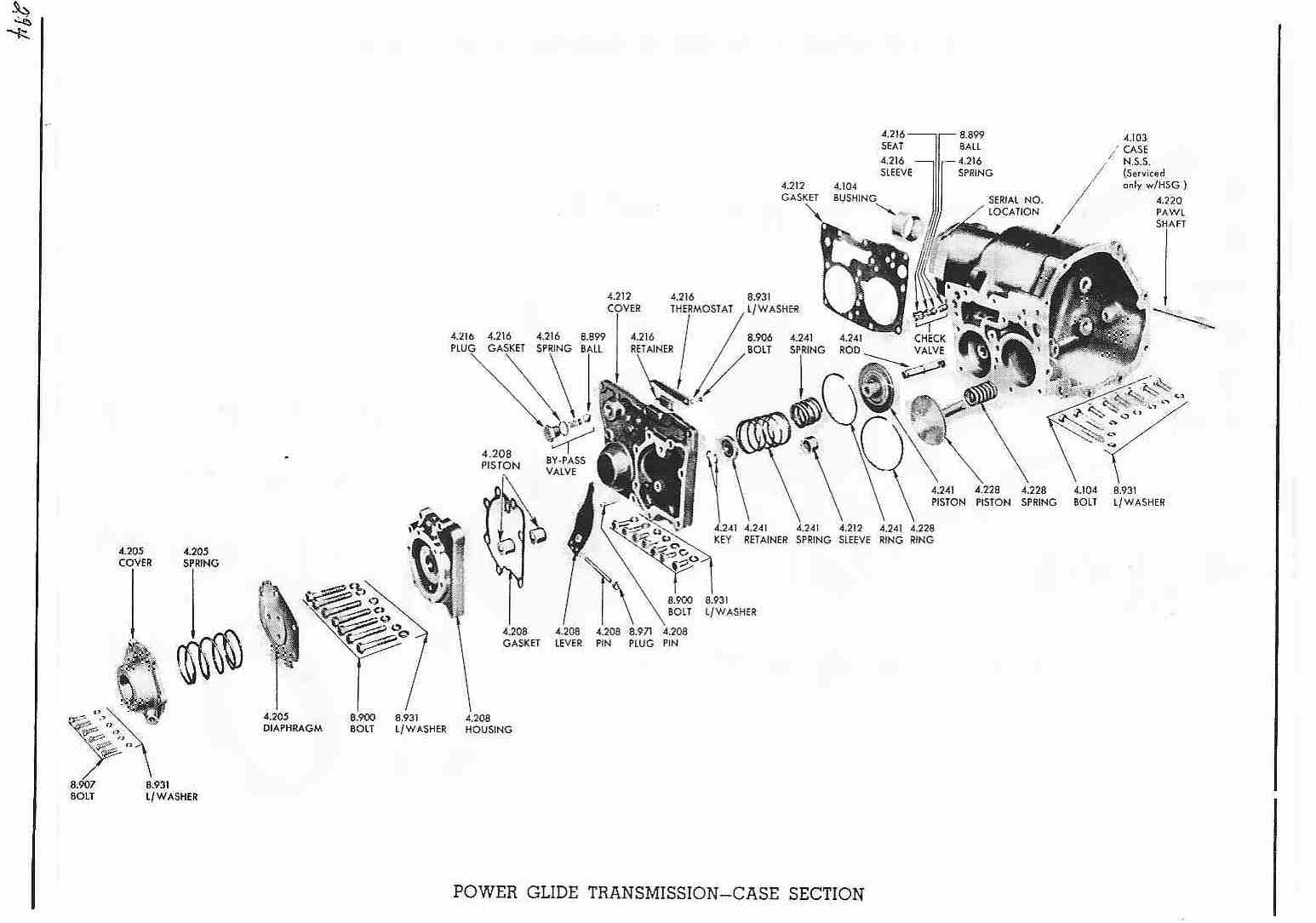

294 Power Glide Transmission - Case Section

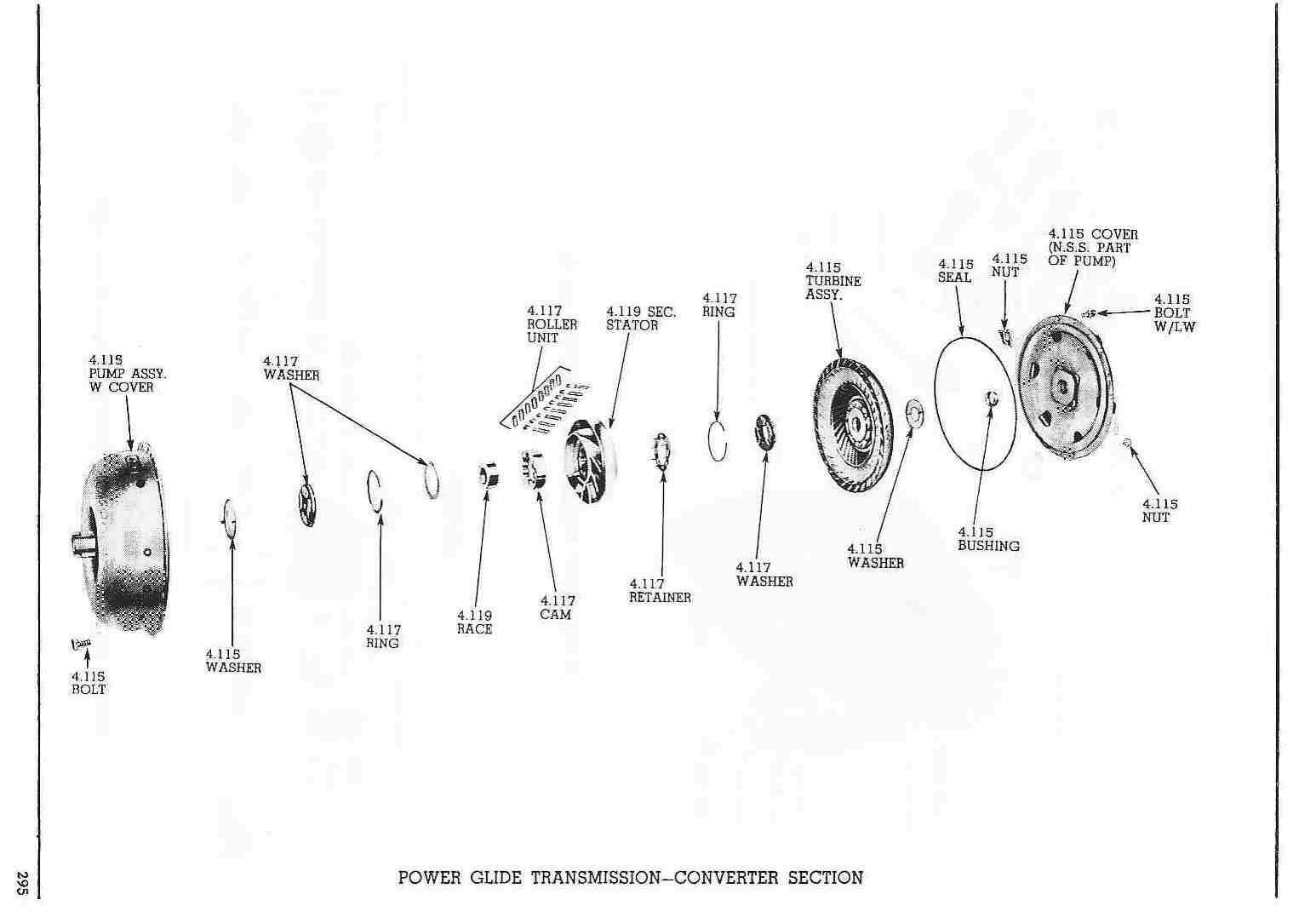

295 Power Glide Transmission - Converter Section

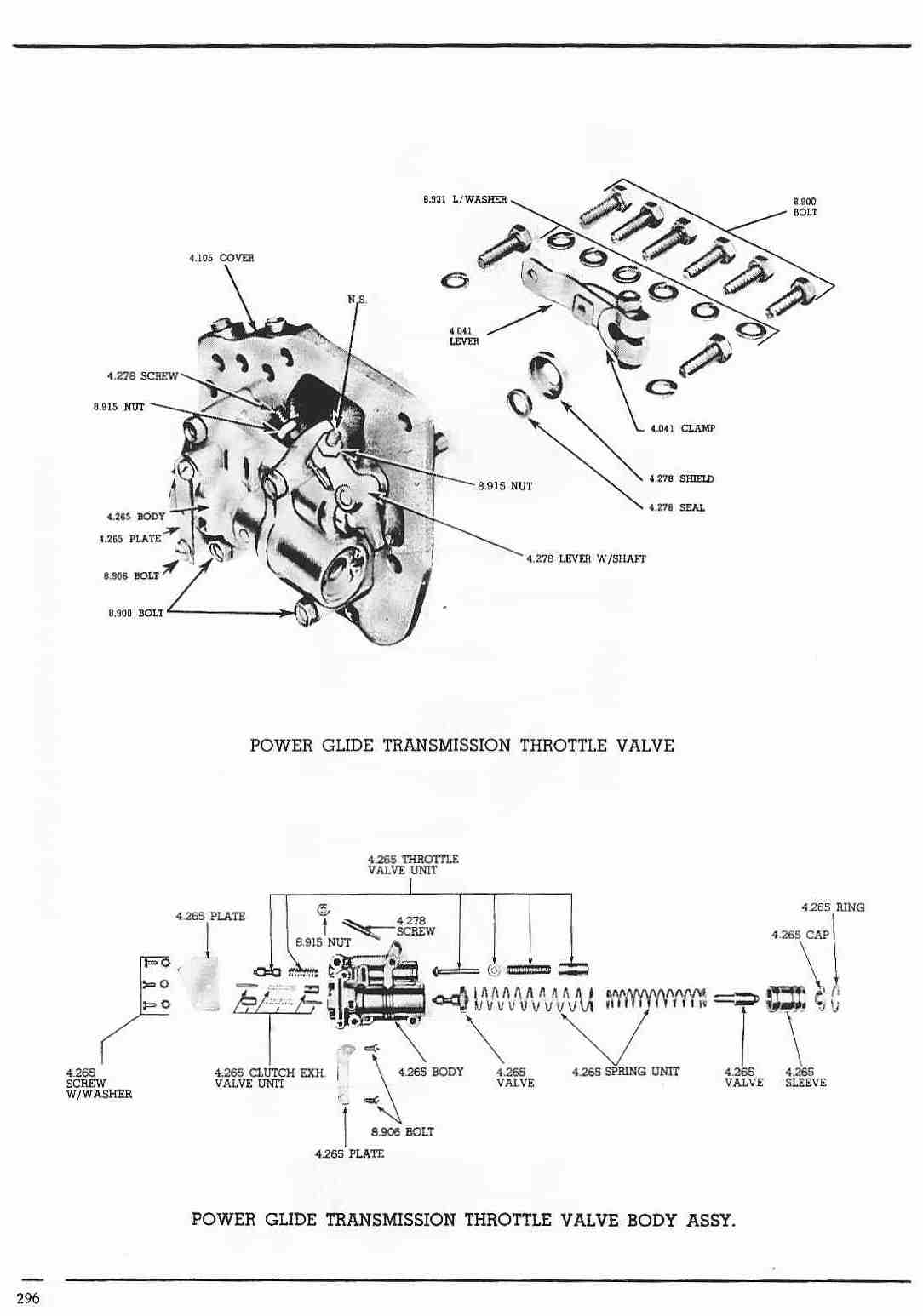

296 Power Glide Transmission Throttle Valve / Throttle Valve Body Assy

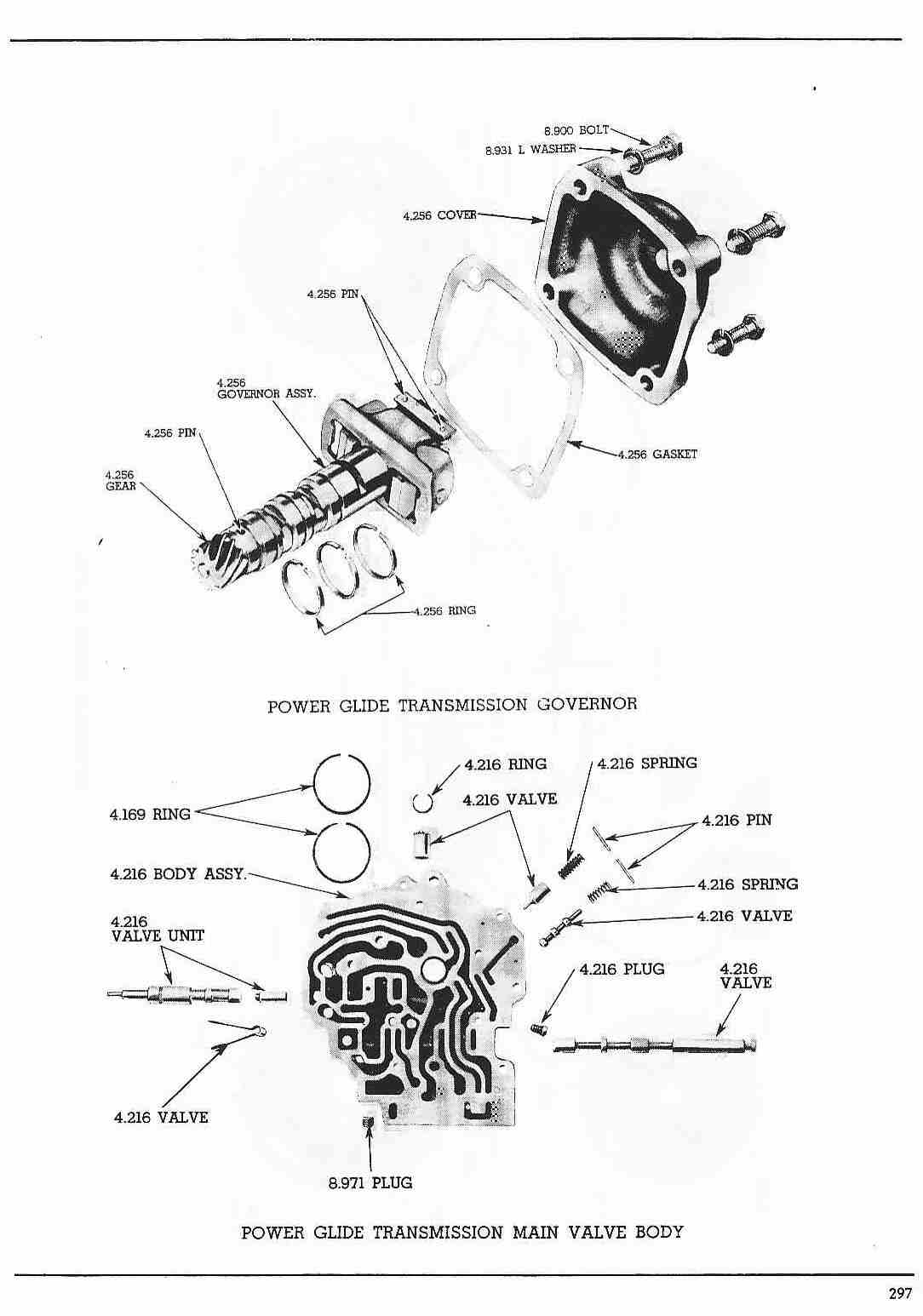

297 Power Glide Transmission Governor / Main Valve Body

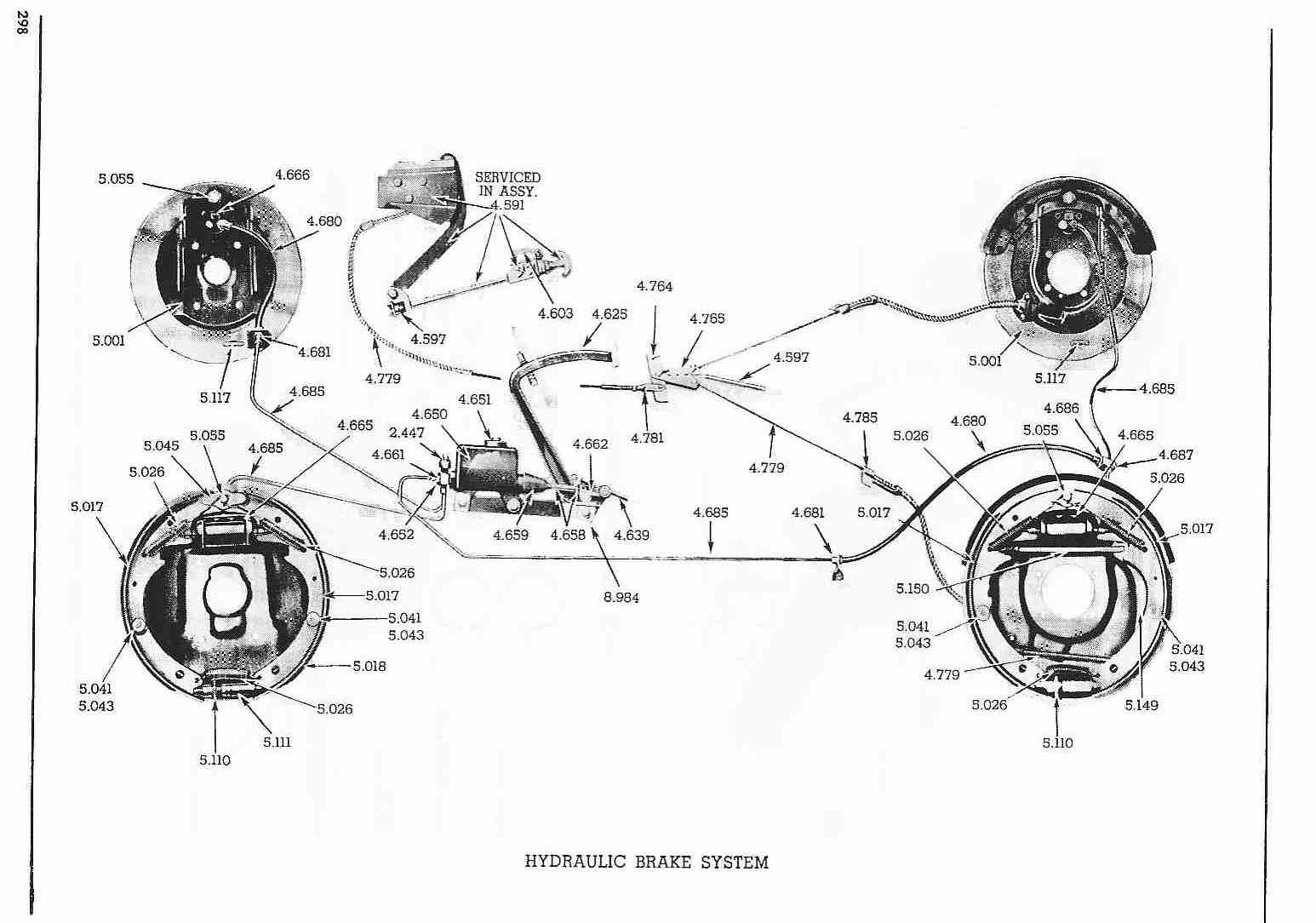

298 Hydraulic Brake System

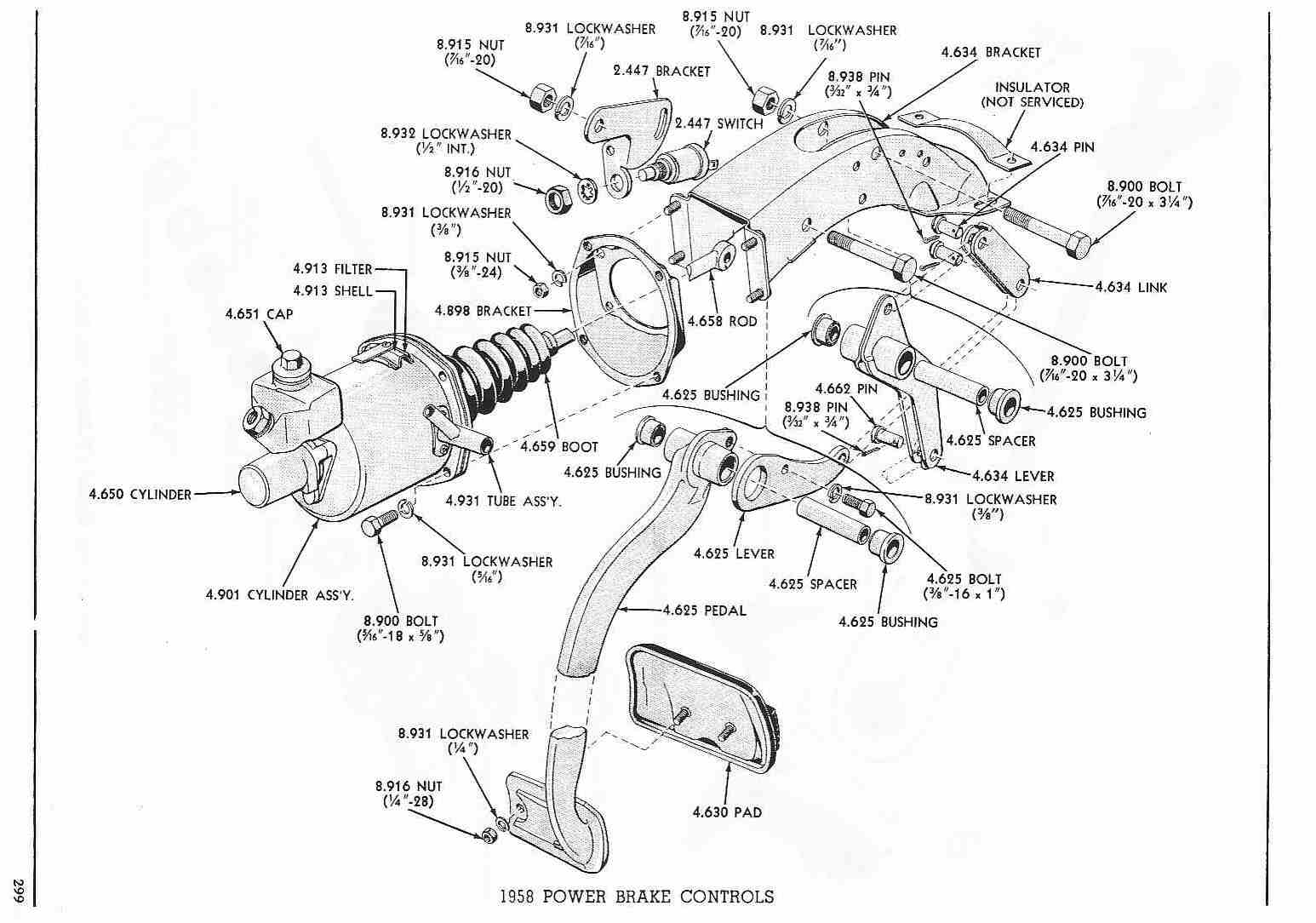

299 1958 Power Brake Controls

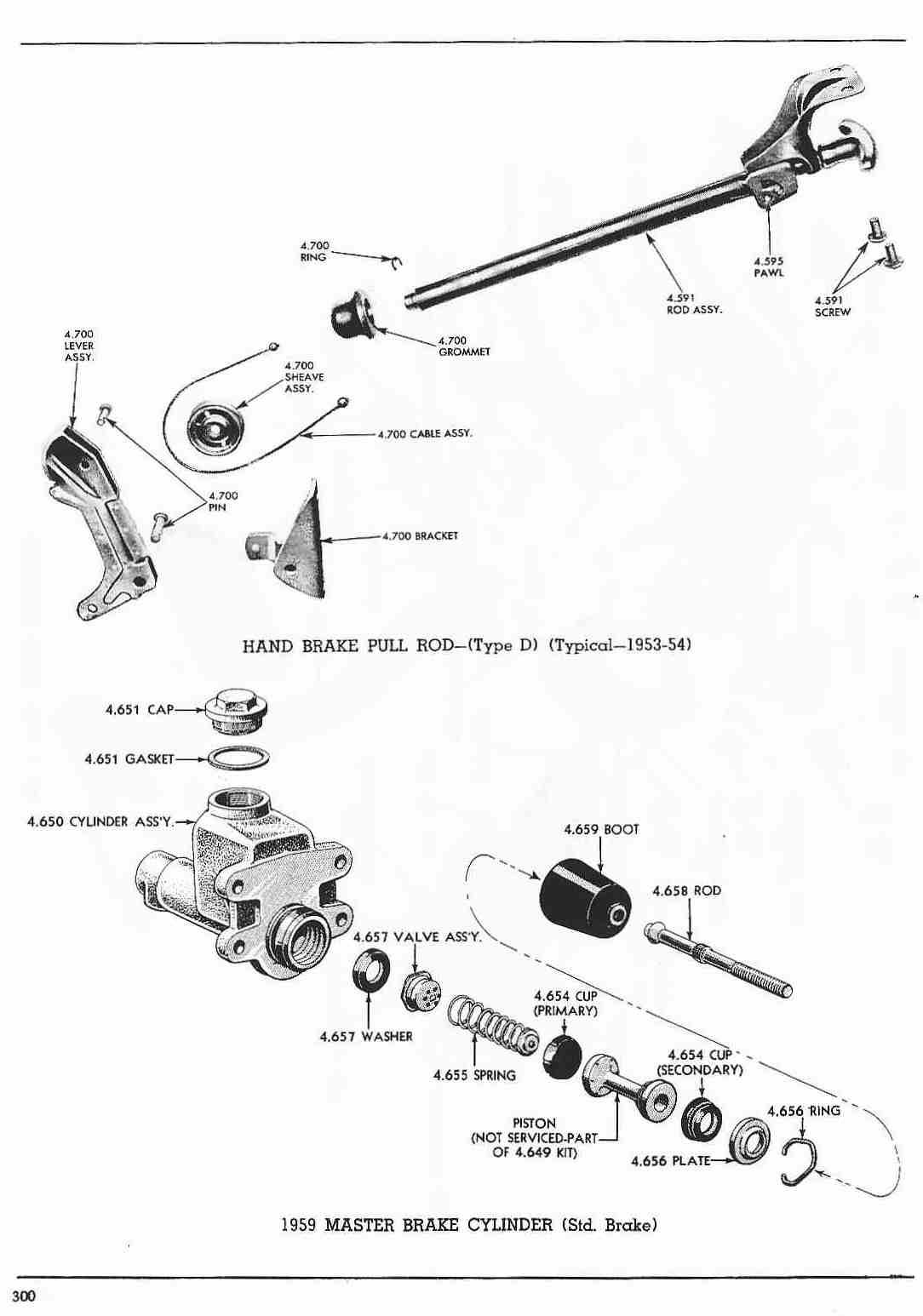

300 1959 Master Brake Cylinder (Std. Brake)

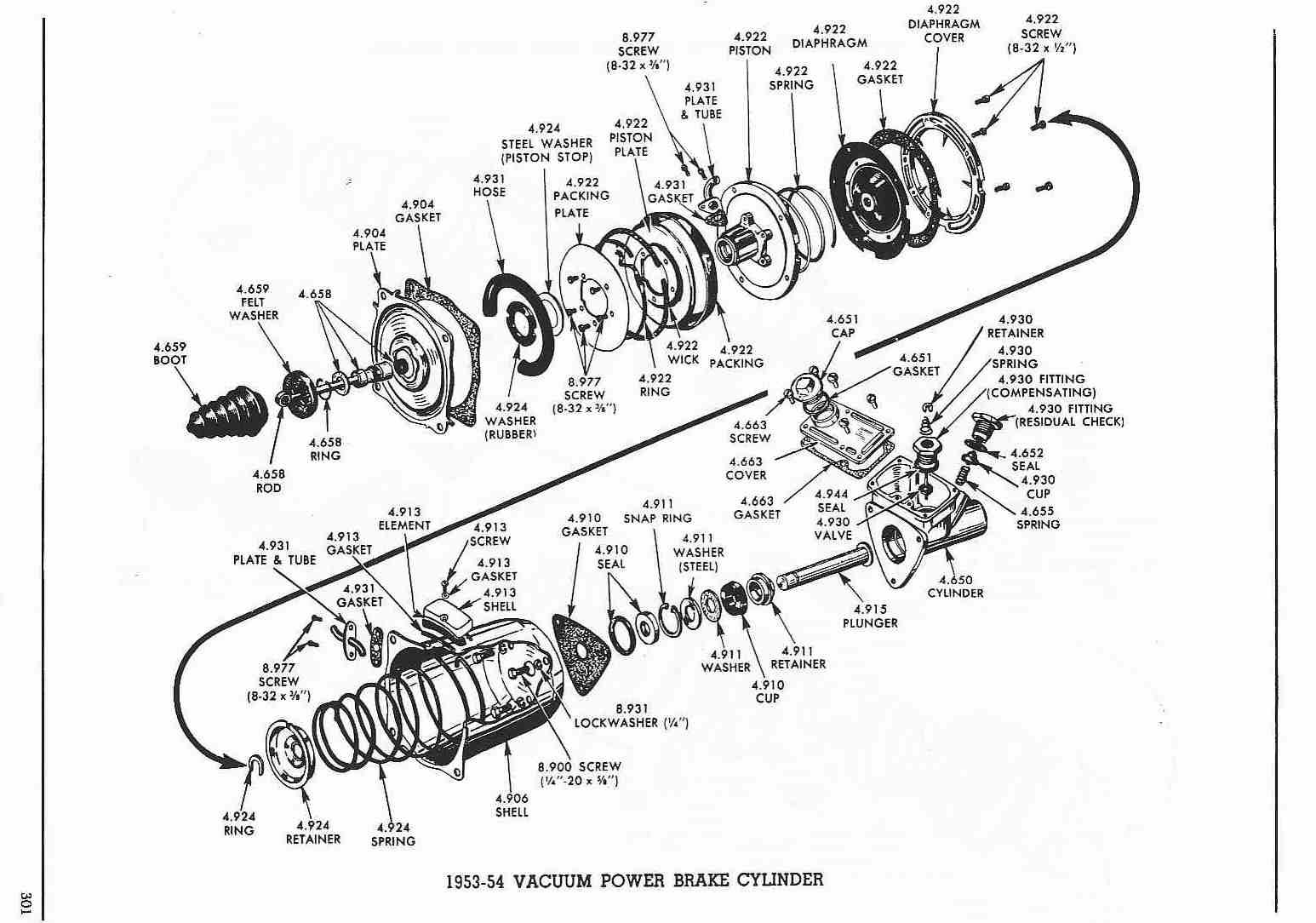

301 1953-54 Vacuum Power Brake Cylinder

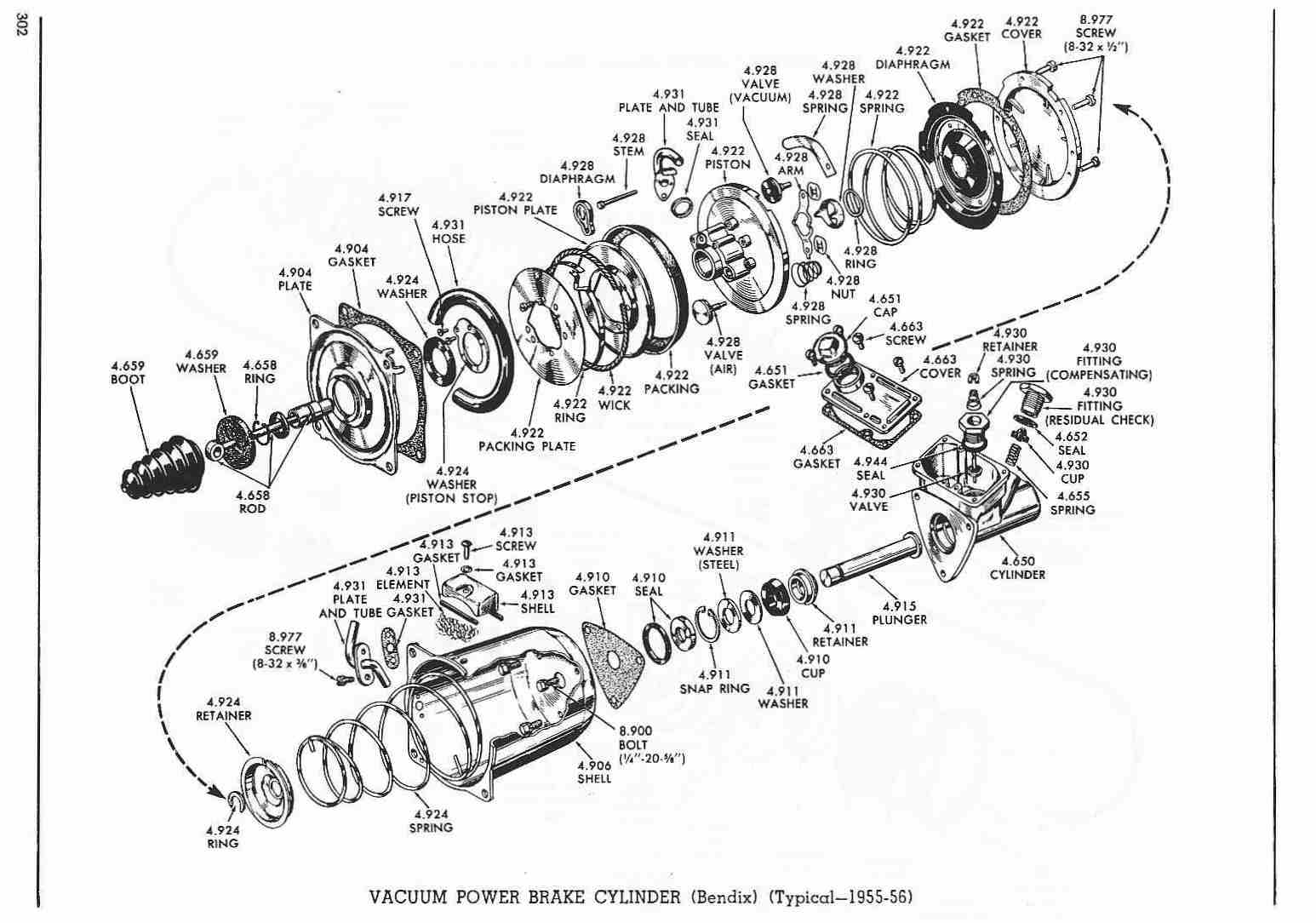

302 Vacuum Power Brake Cylinder (Bendix) (Typical 1955-56)

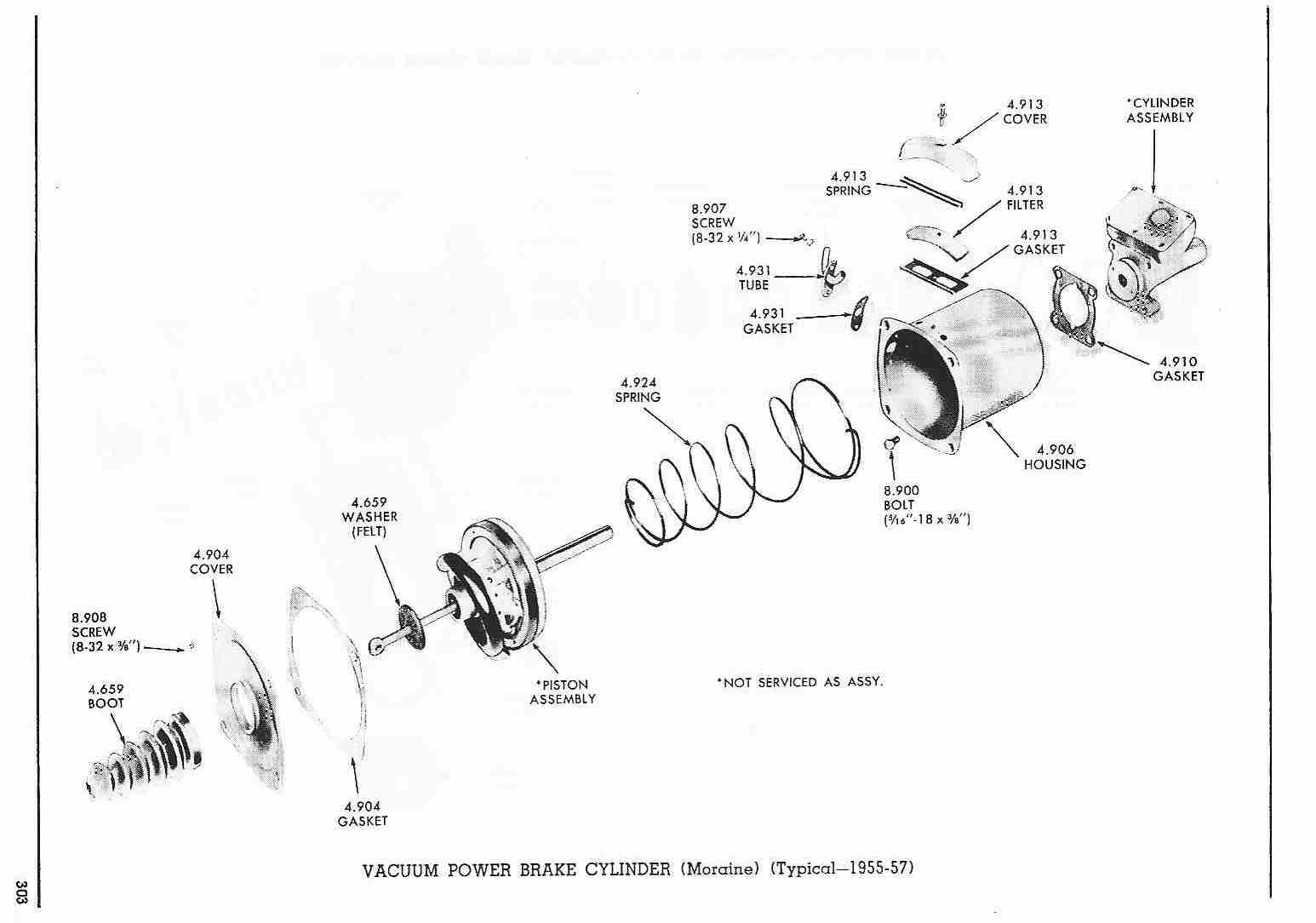

303 Vacuum Power Brake Cylinder (Moraine) ( Typical 1955-57)

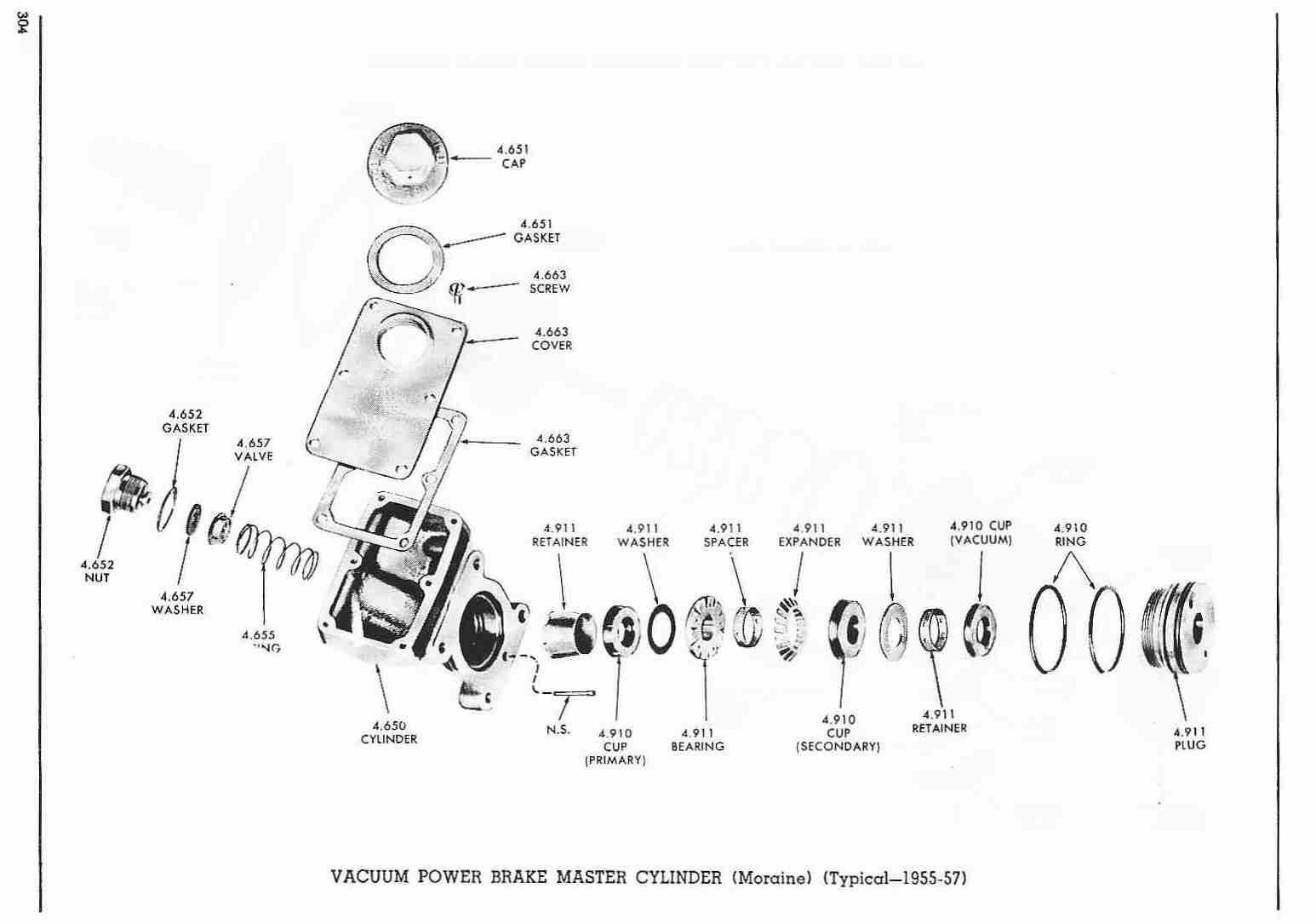

304 Vacuum Power Brake Master Cylinder (Moraine) (Typical 1955-57)

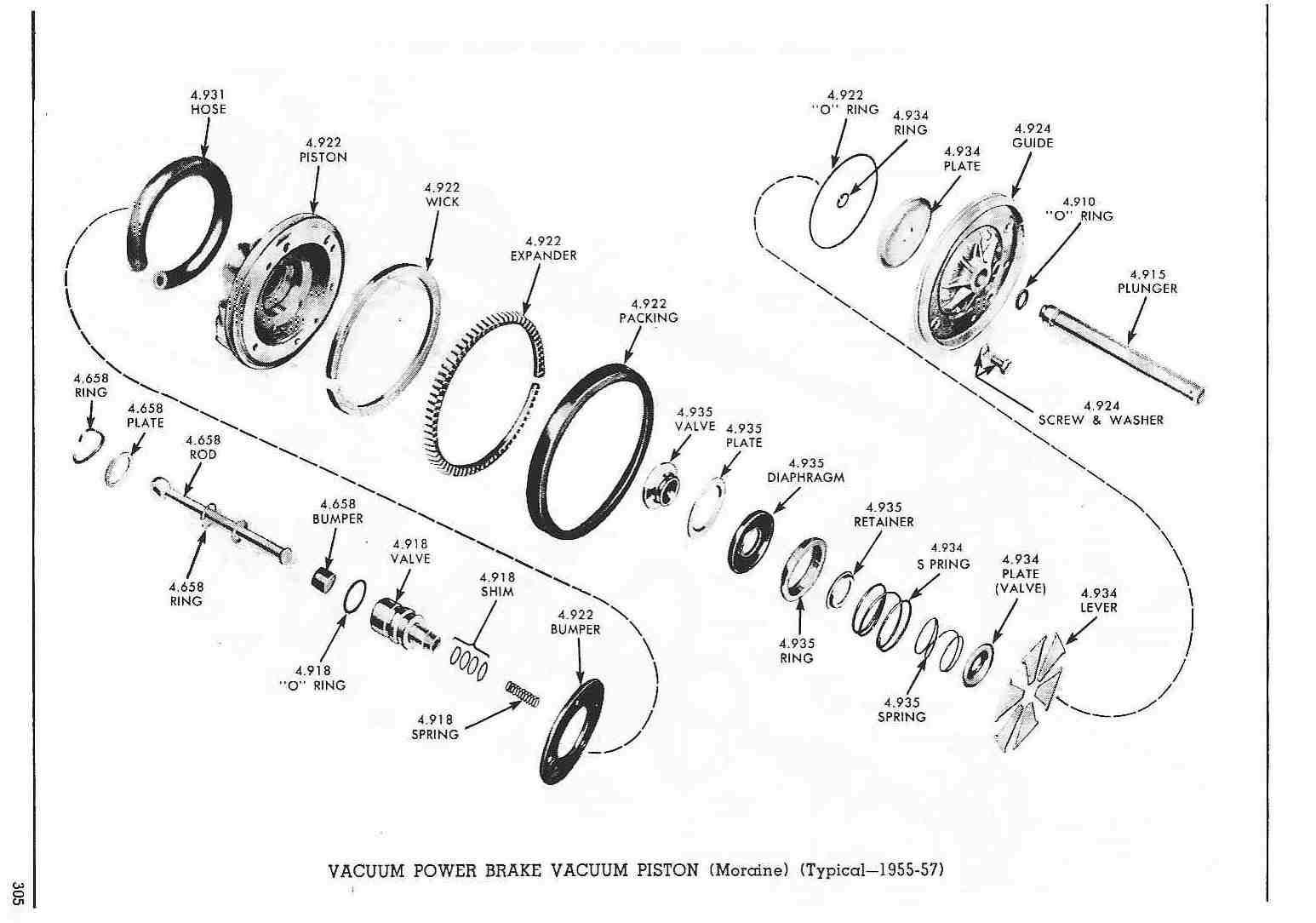

305 Vacuum Power Brake Vacuum Piston (Moraine) (Typical 1955-57)

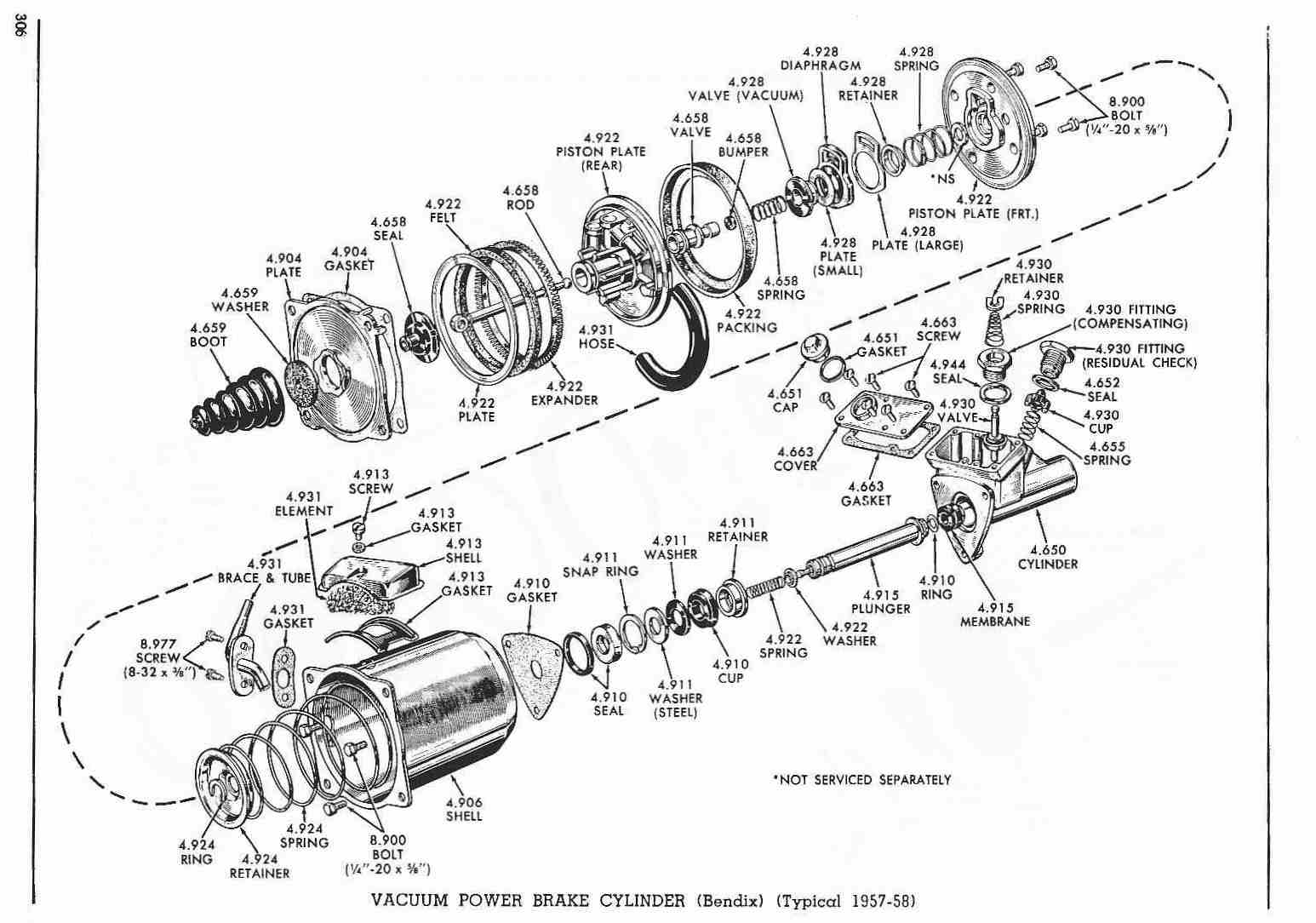

306 Vacuum Power Brake Cylinder (Bendix) ( Typical 1957-58)

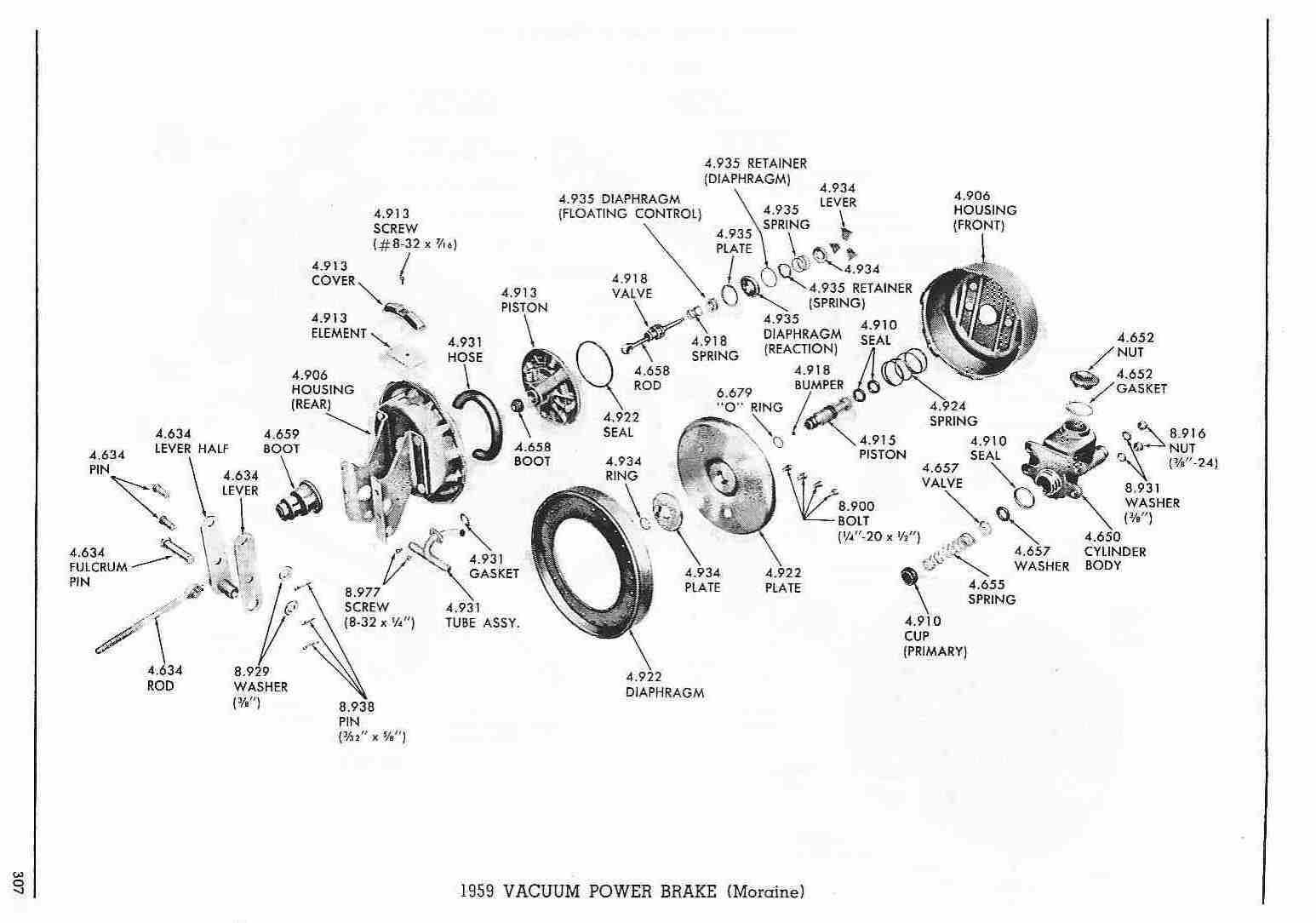

307 1959 Vacuum Power Brake (Moraine)

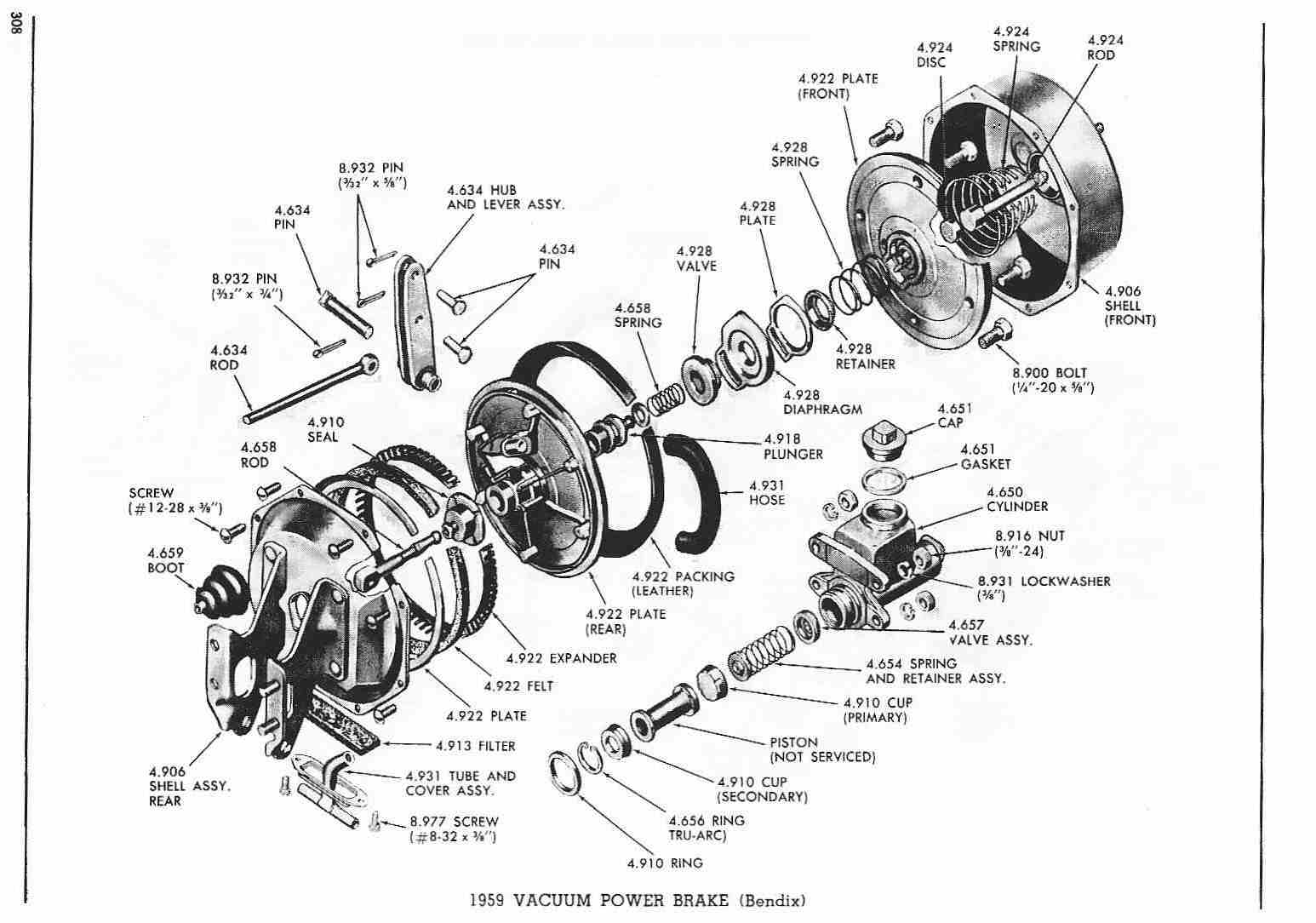

308 1959 Vacuum Power Brake (Bendix)
309-382 parts listing 4.xxx   Transmission and Brakes

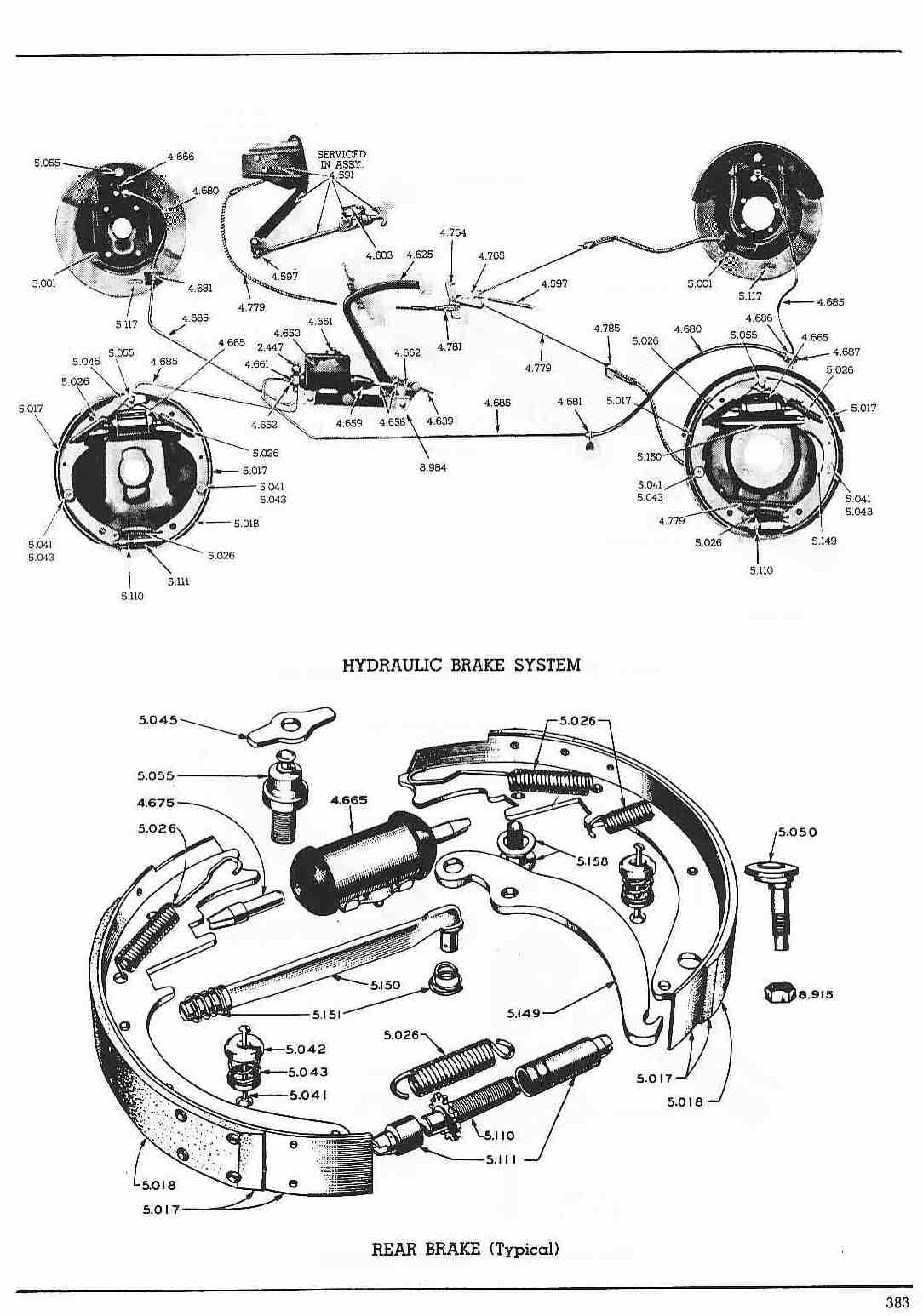

383 Hydraulic Brake System / Rear Brake (Typical)

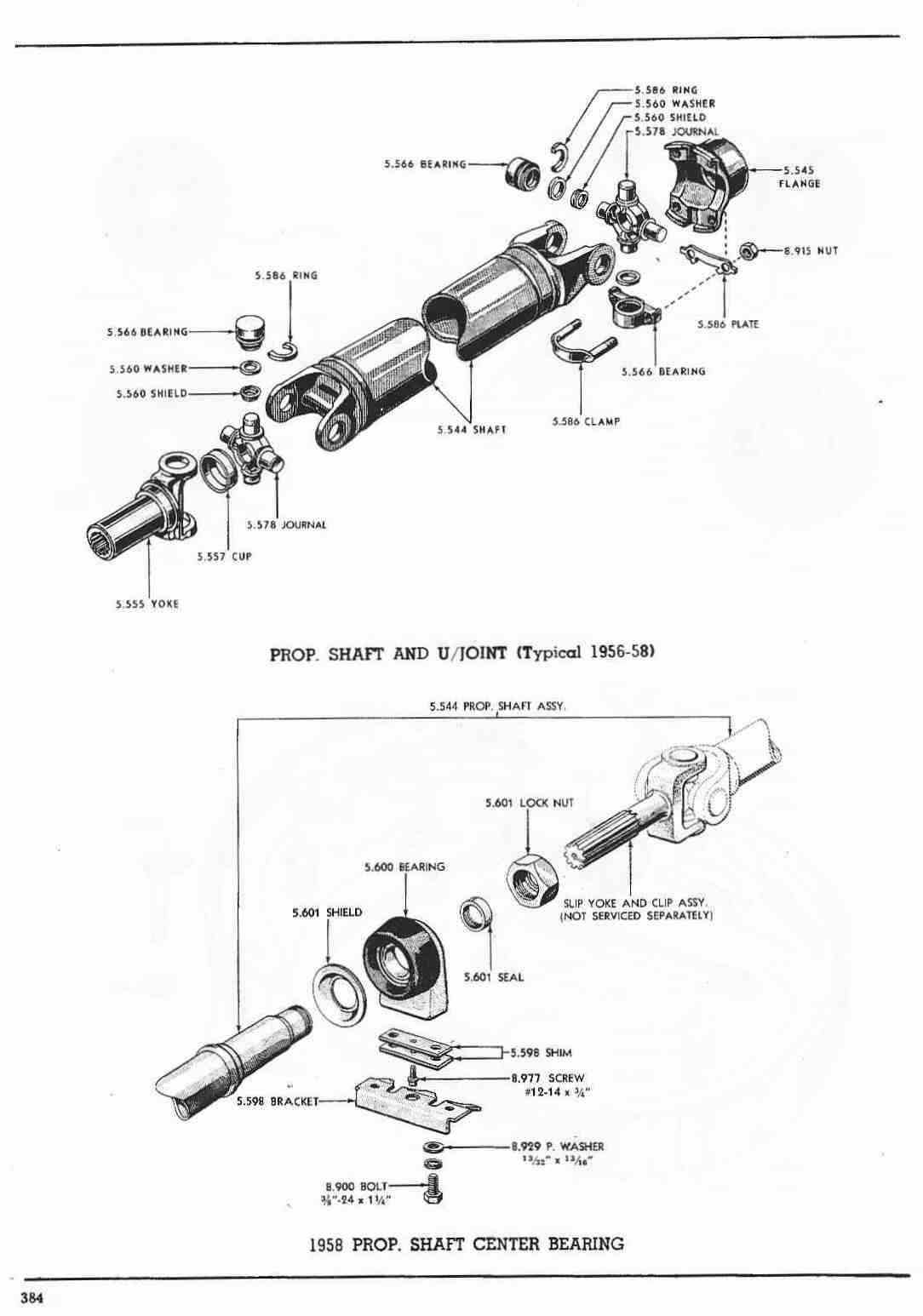

384 Prop. Shaft and U/Joint (Typical 1956-58) / 1958 Prop. Shaft Center Bearing

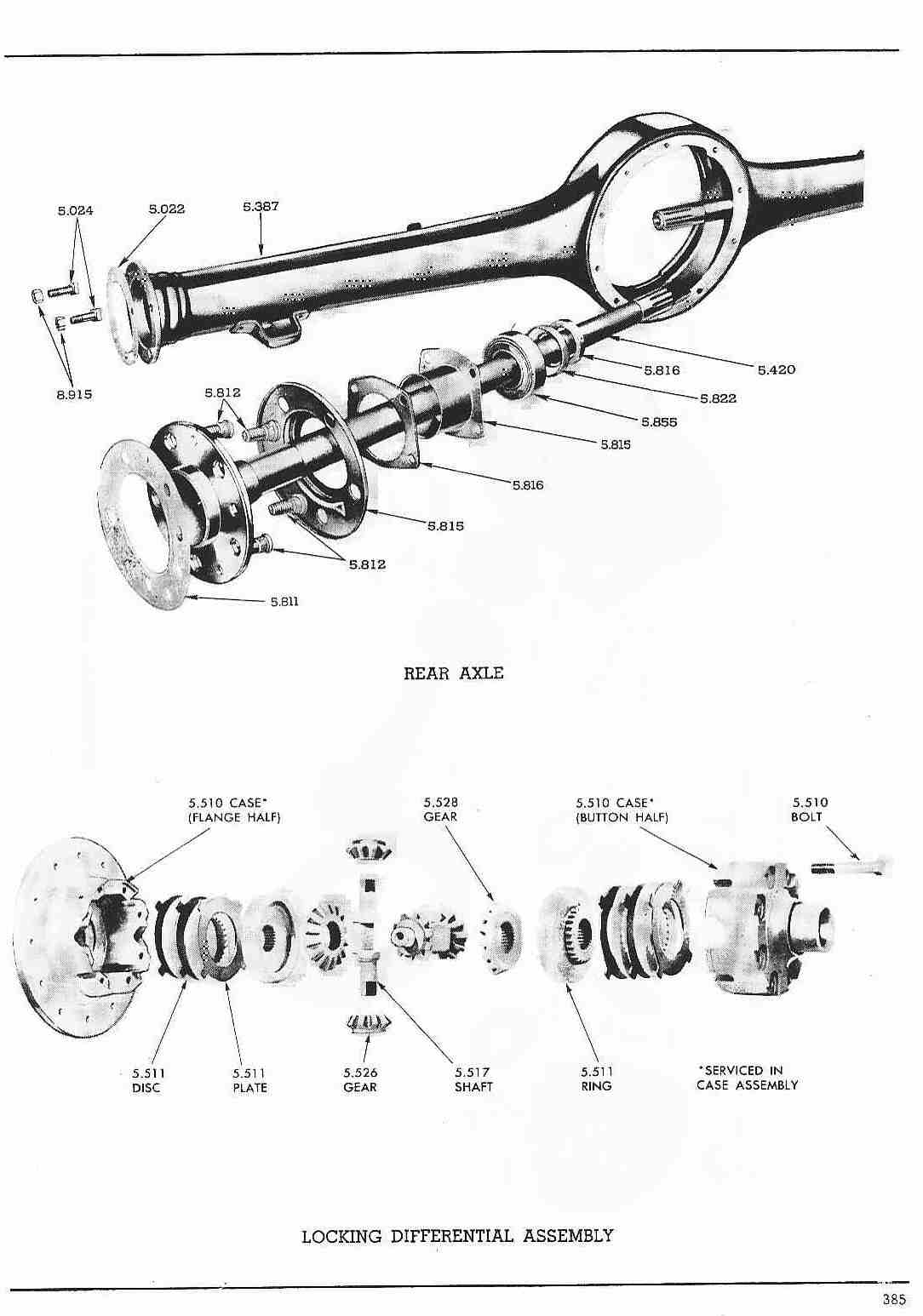

385 Rear Axle / Locking Differential Assembly

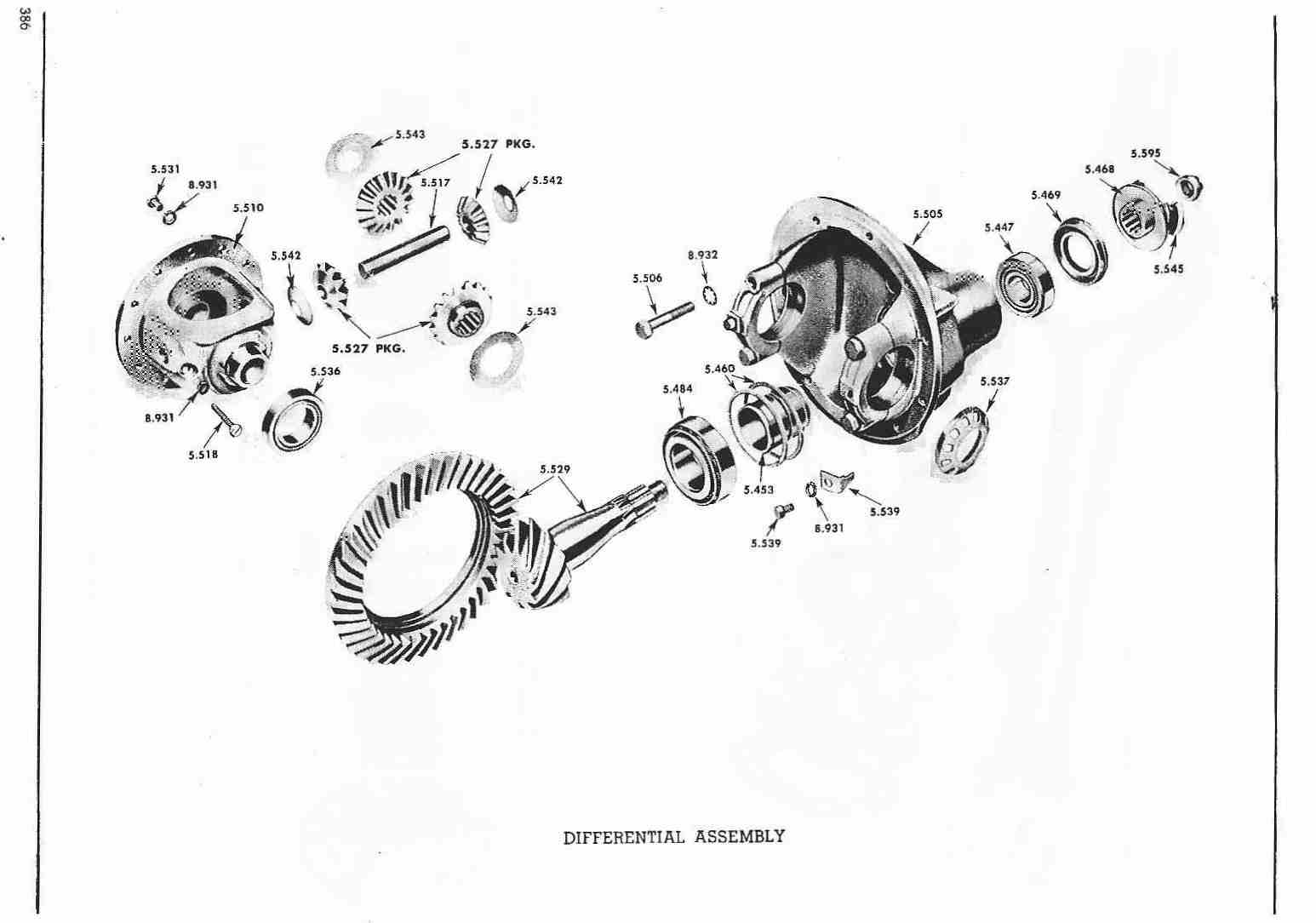

386 Differential Assembly
387 1958 Rear Suspension
389-404 parts listing 5.xxx   Rear Axle and Brakes

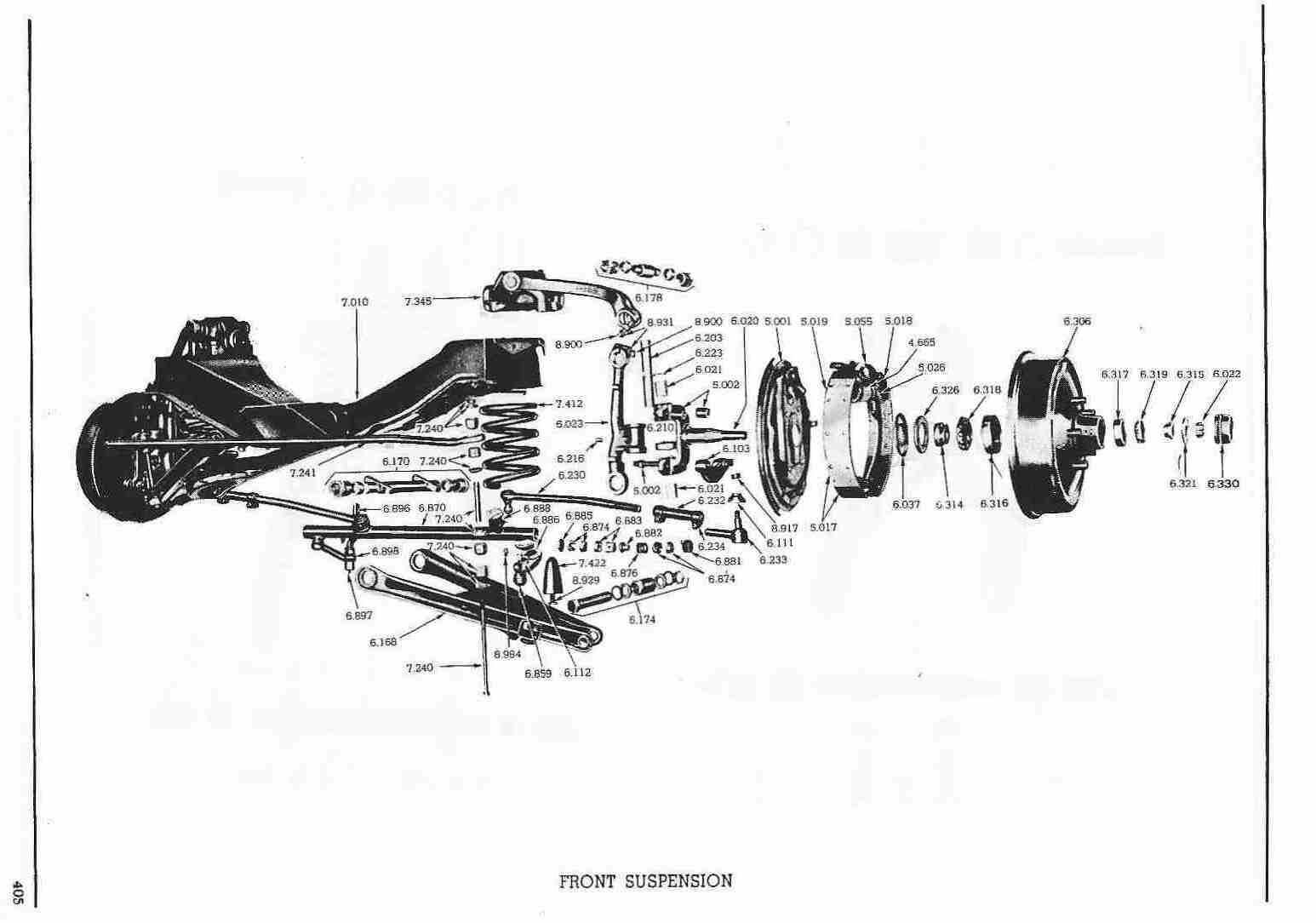

405 Front Suspension

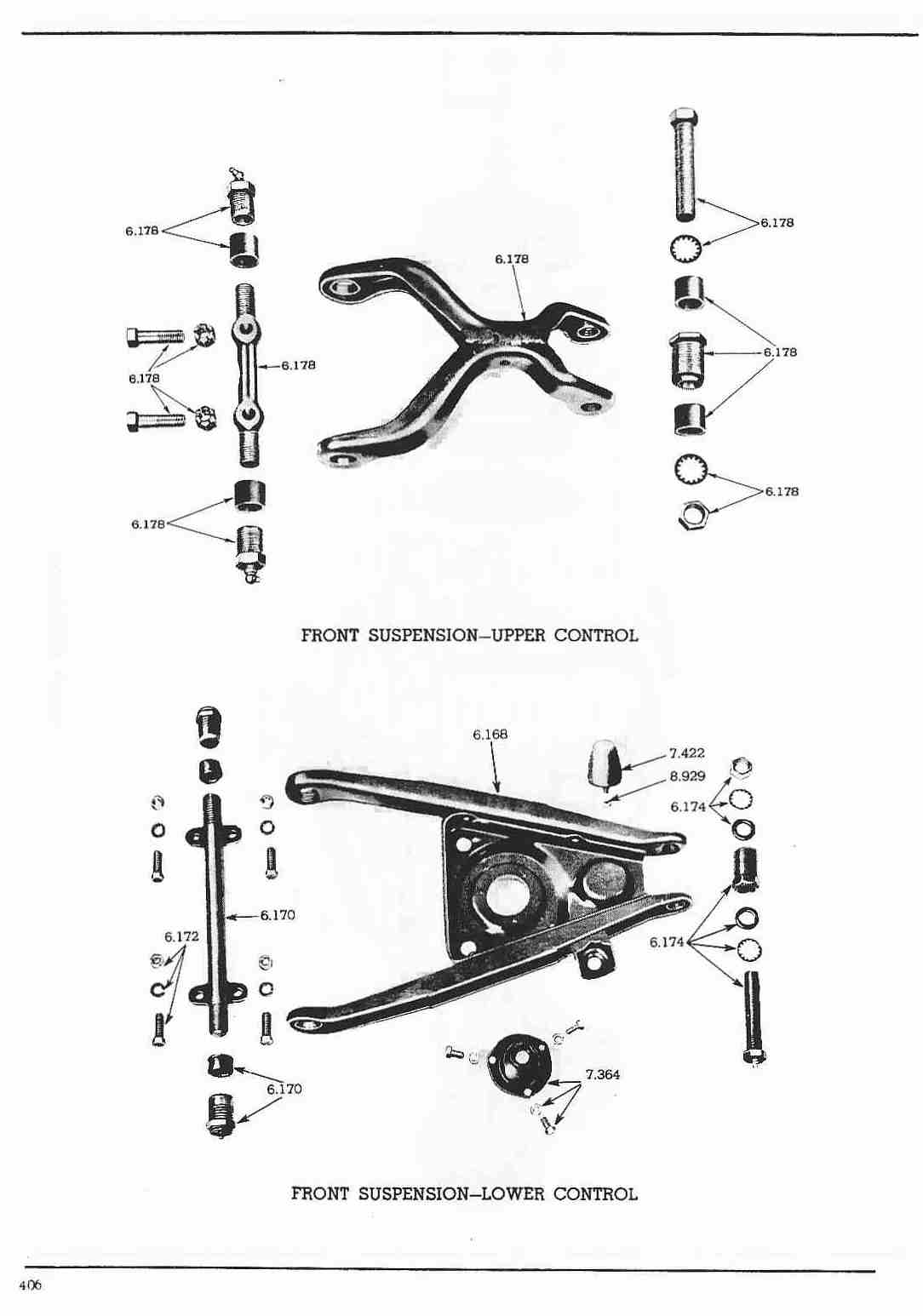

406 Front Suspension Control Arms

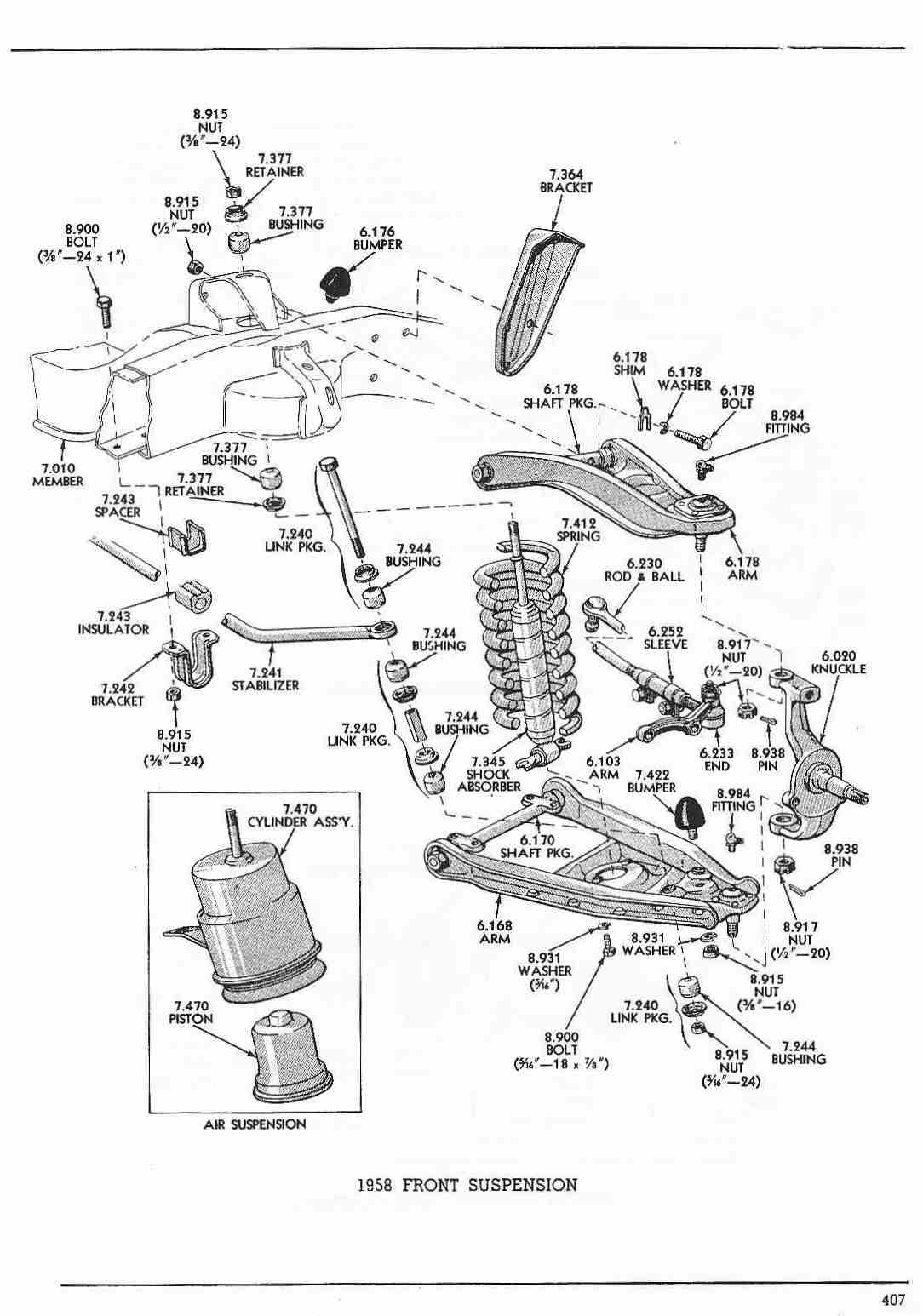

407 1958 Front Suspension

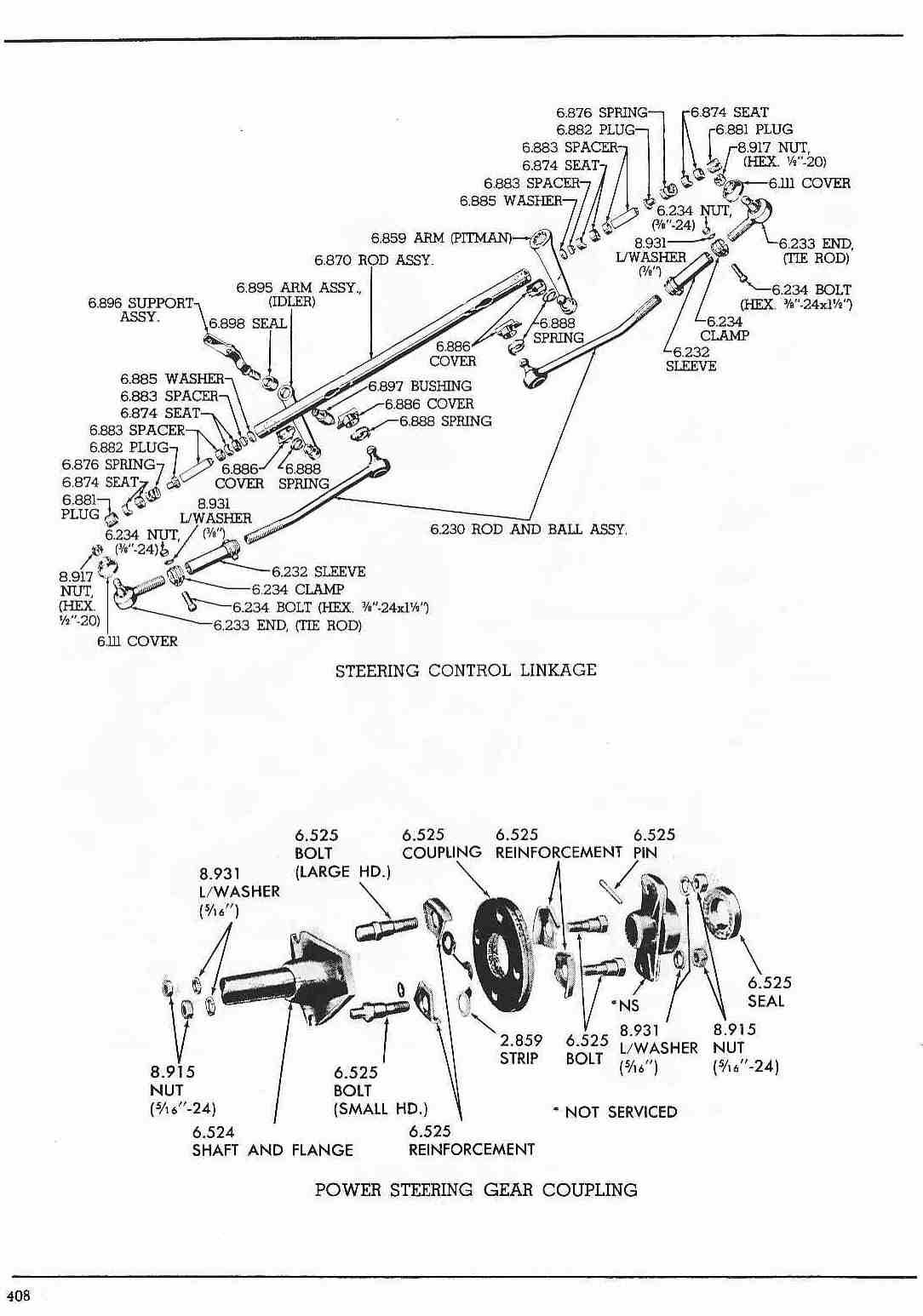

408 Steering Control Linkage / Power Steering Gear Coupling

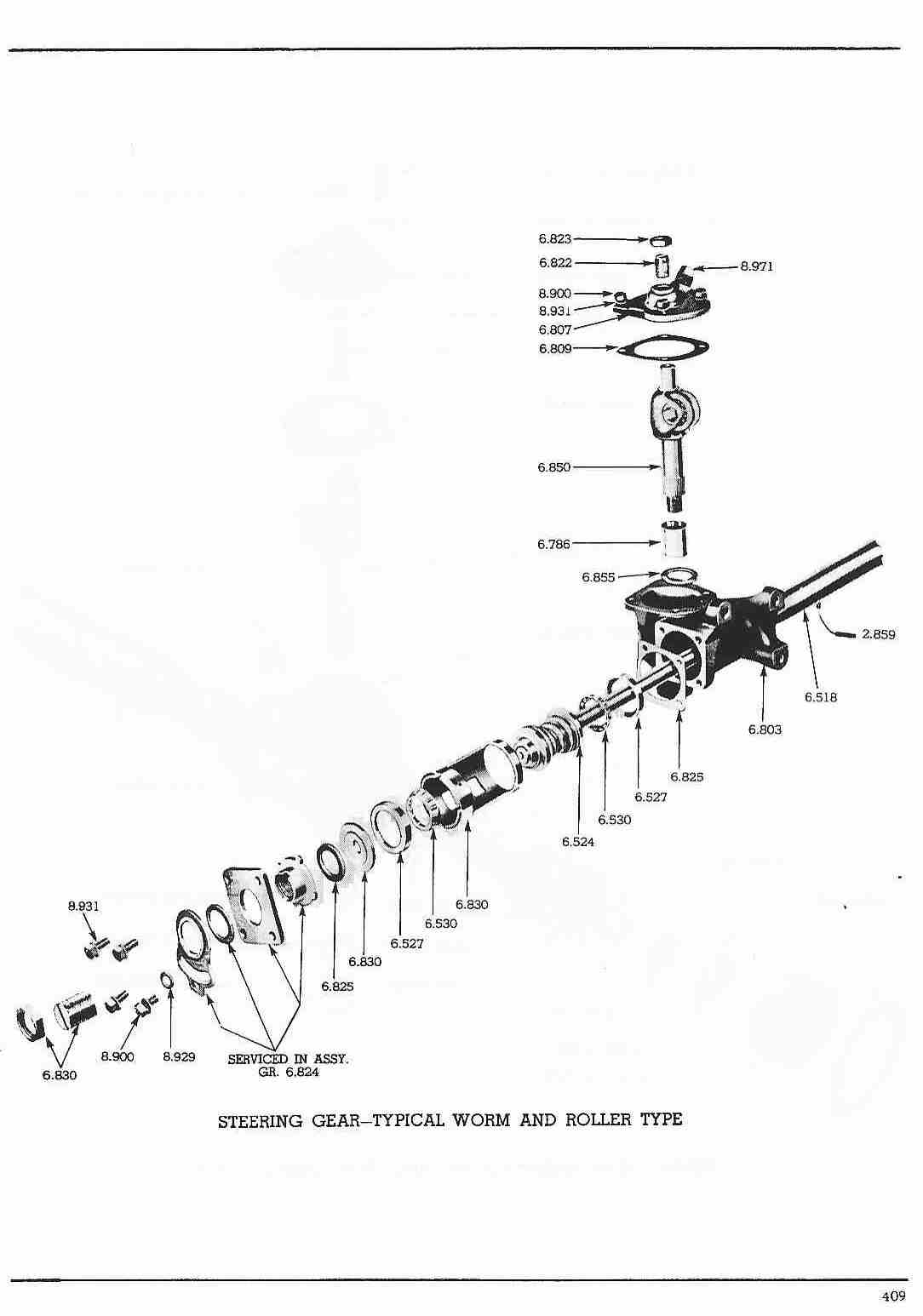

409 Steering Gear -- Typical Worm and Roller Type

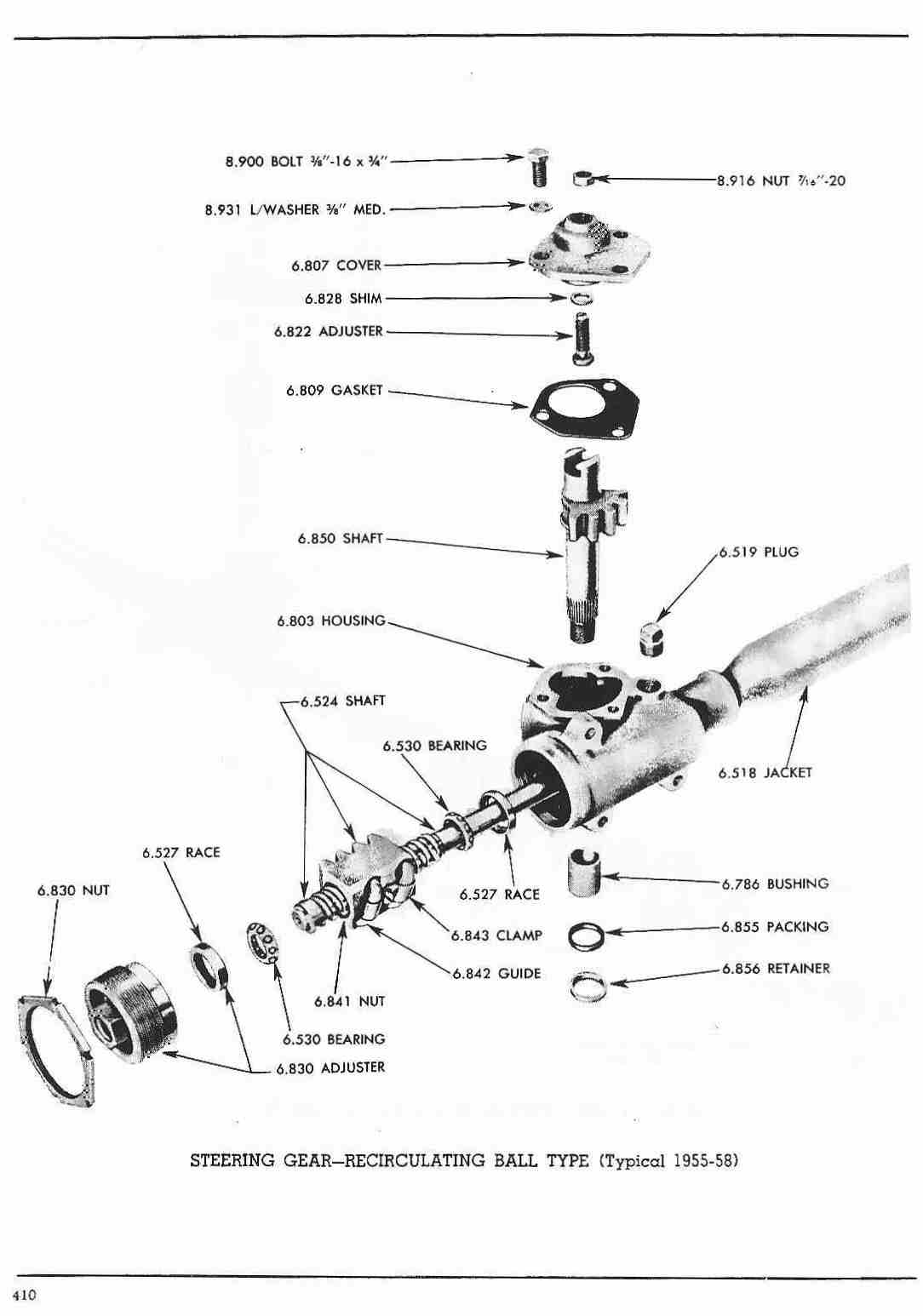

410 Steering Gear -- Recirculating Ball Type (Typical 1955-58)
411 Power Steering Gear (Typical 1953-55)

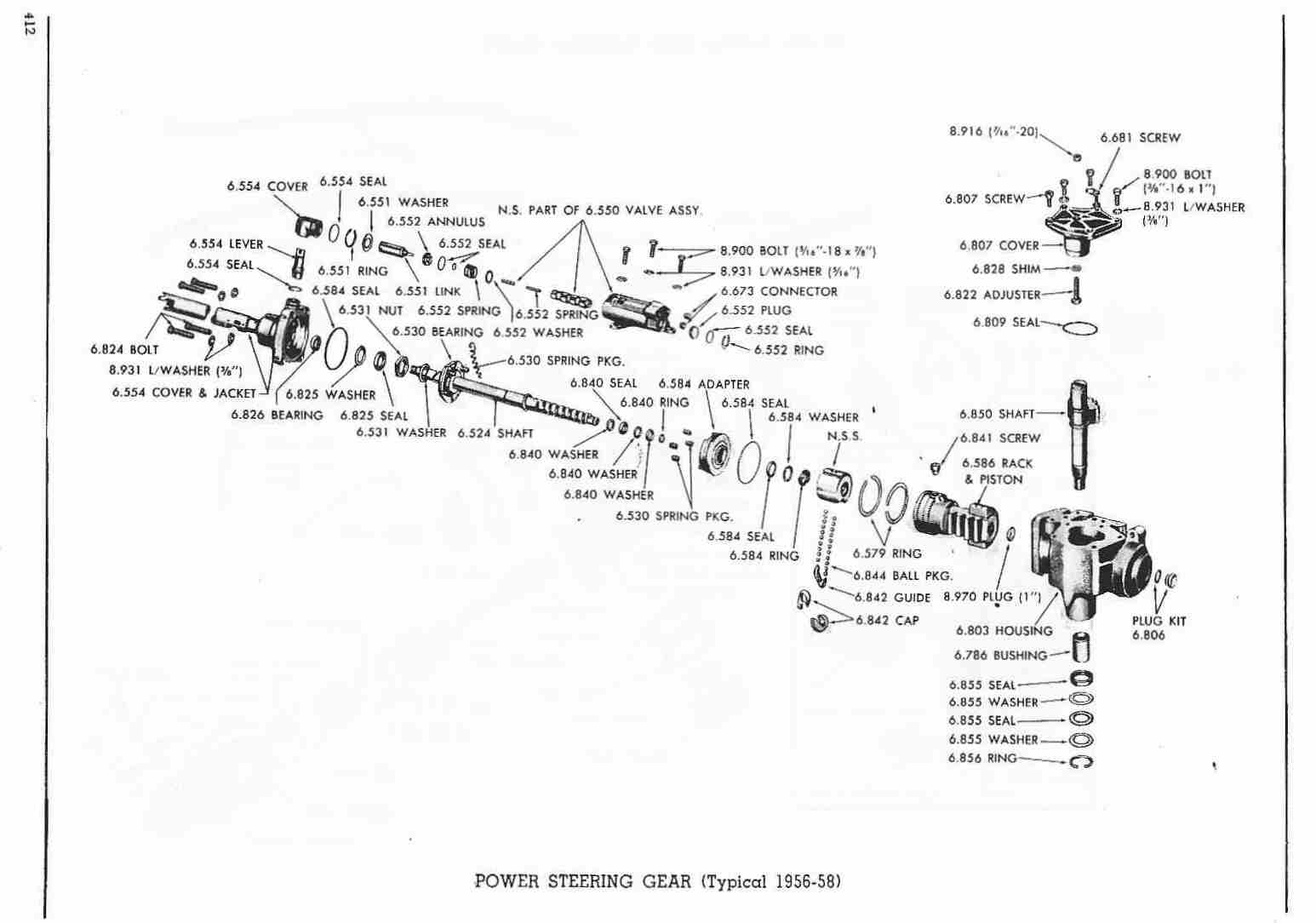

412 Power Steering Gear (Typical 1956-58)

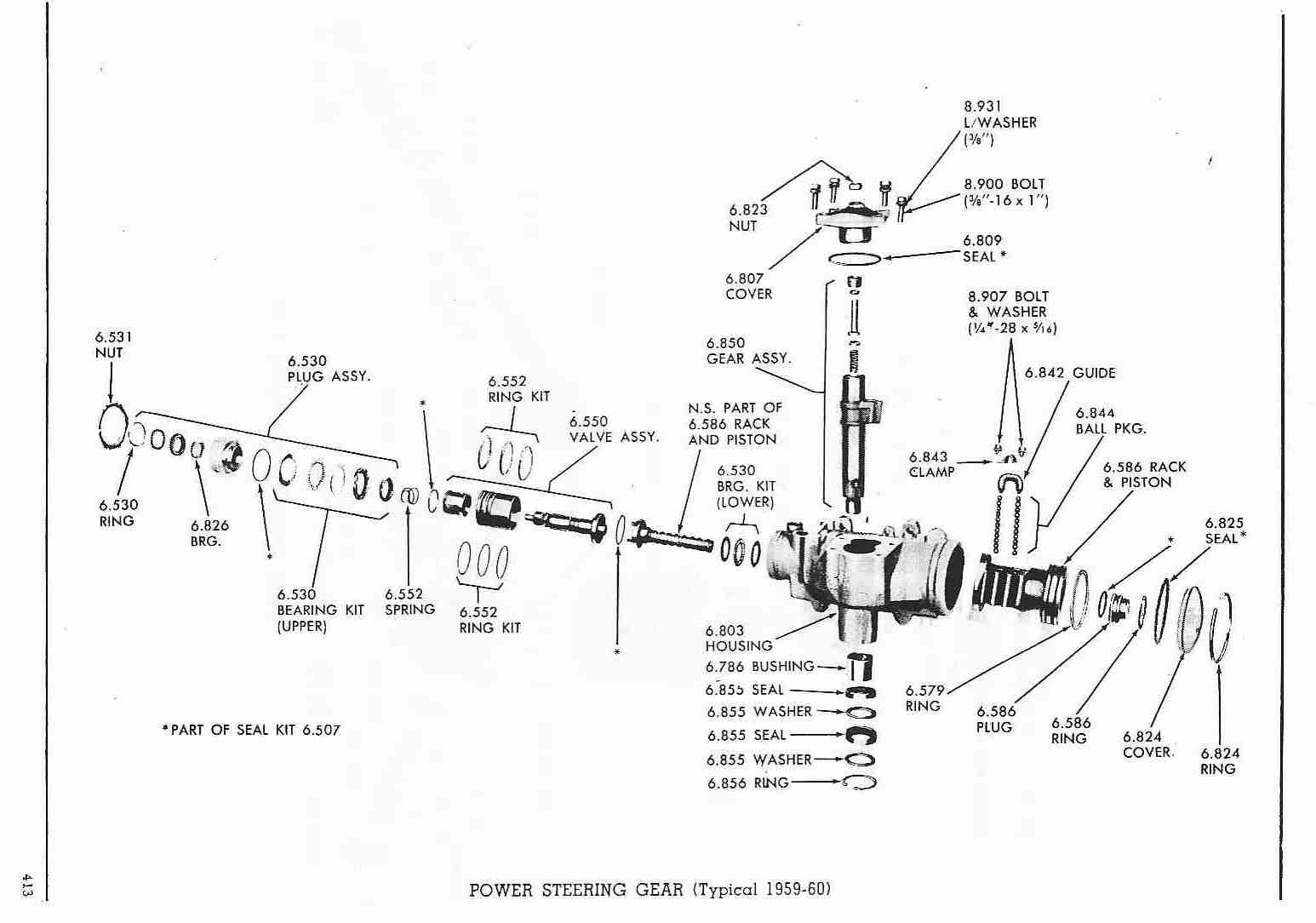

413 Power Steering Gear (Typical 1959-60)

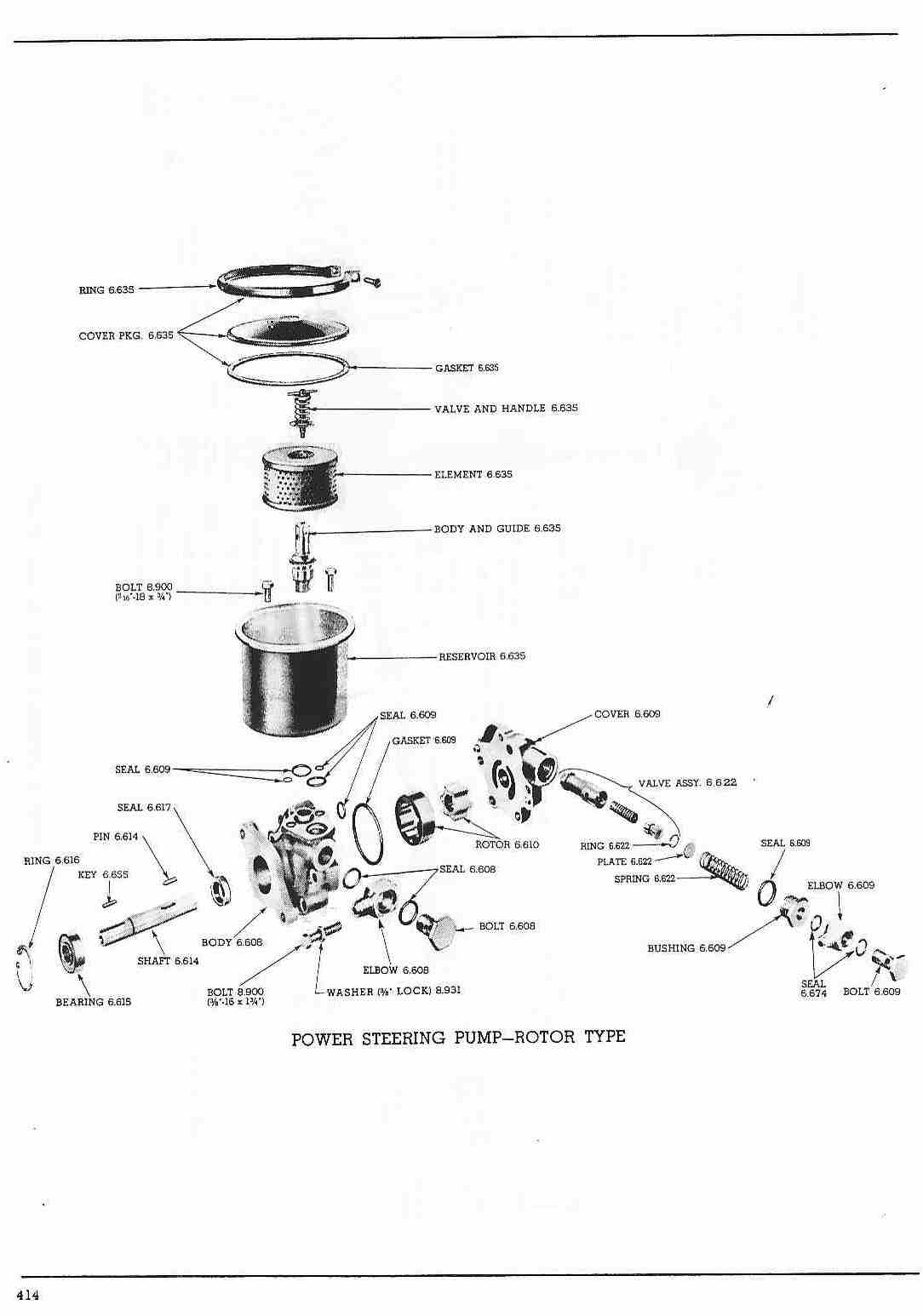

414 Power Steering Pump -- Rotor Type

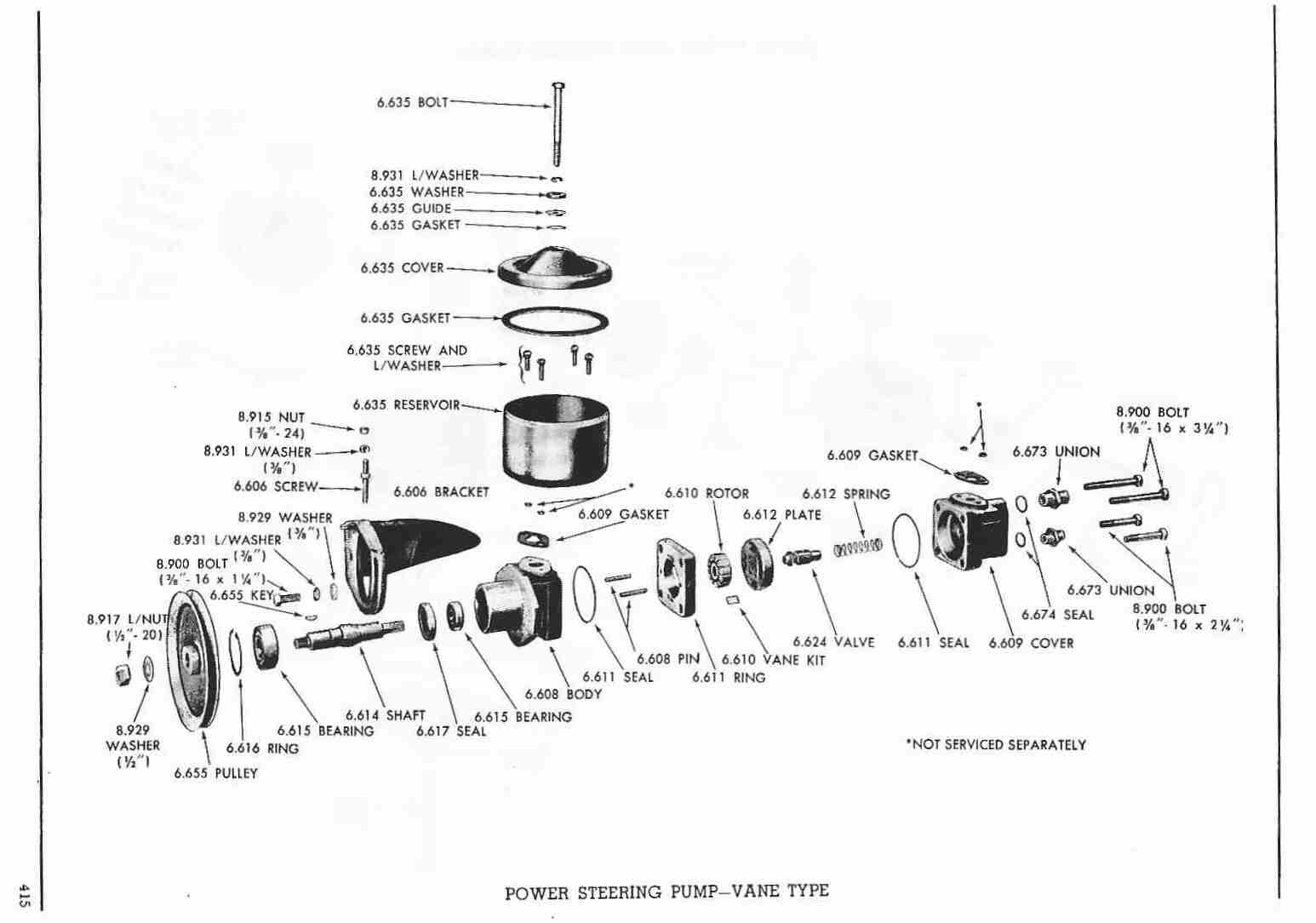

415 Power Steering Pump -- Vane Type

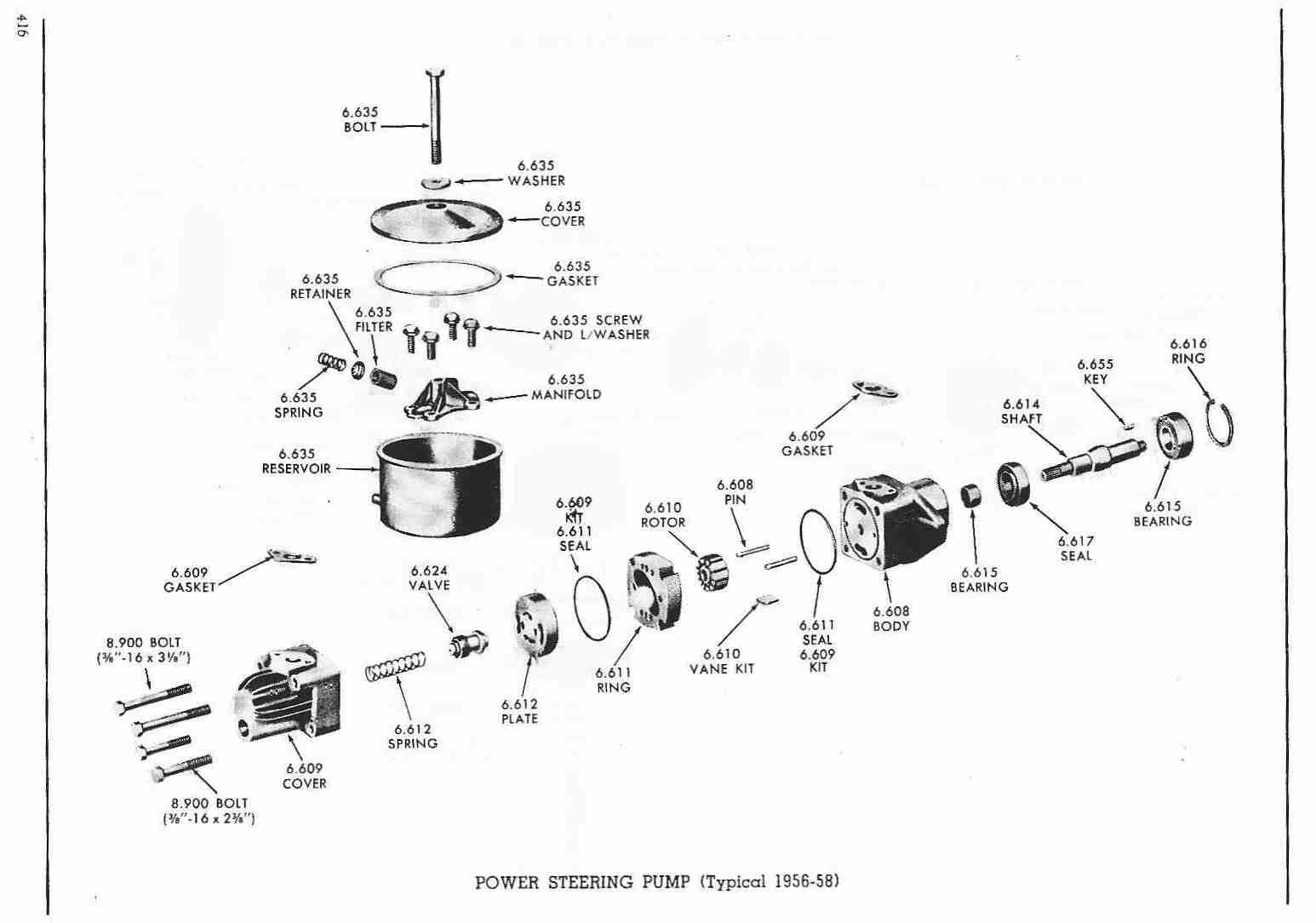

416 Power Steering Pump (Typical 1956-58)

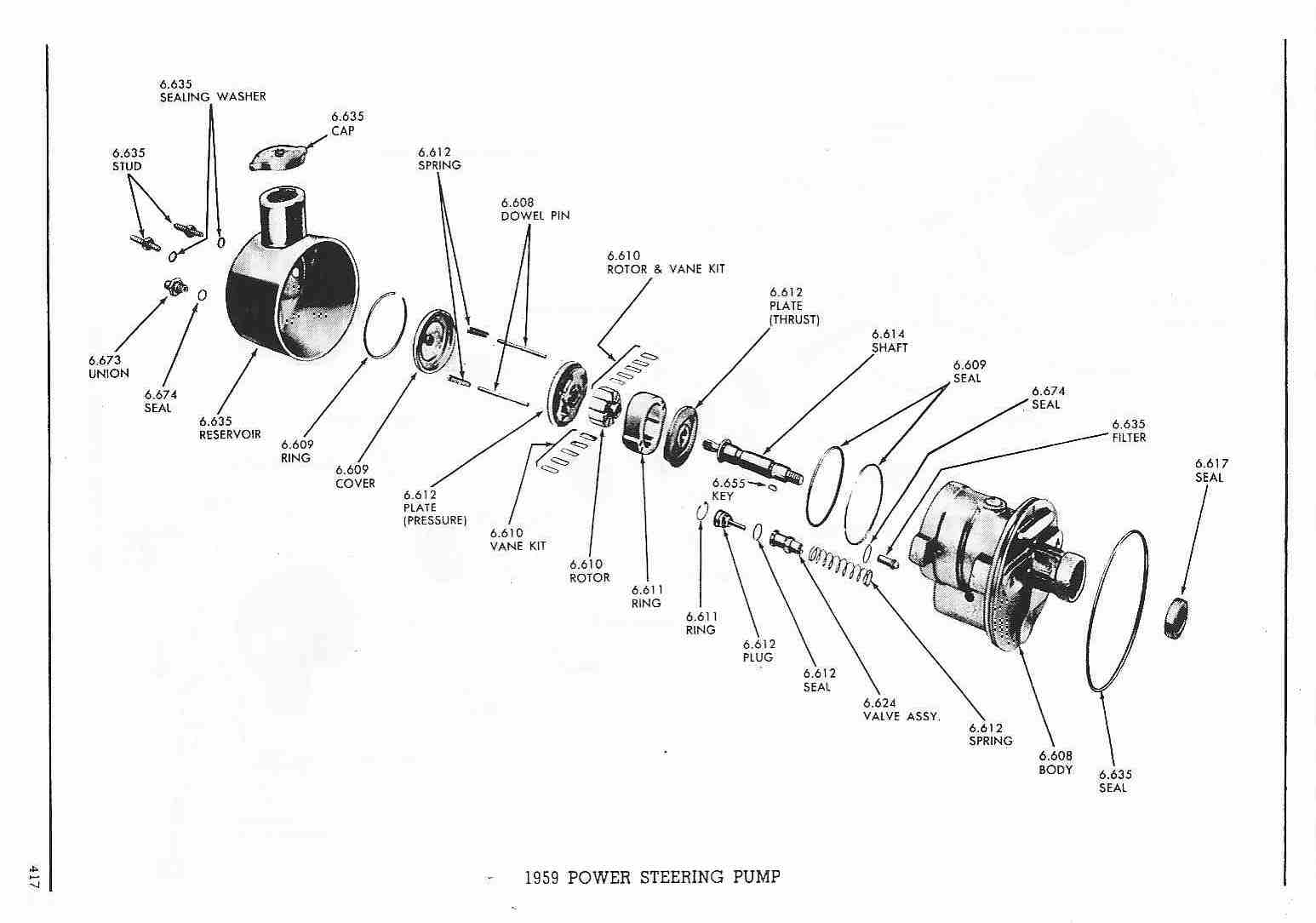

417 1959 Power Steering Pump

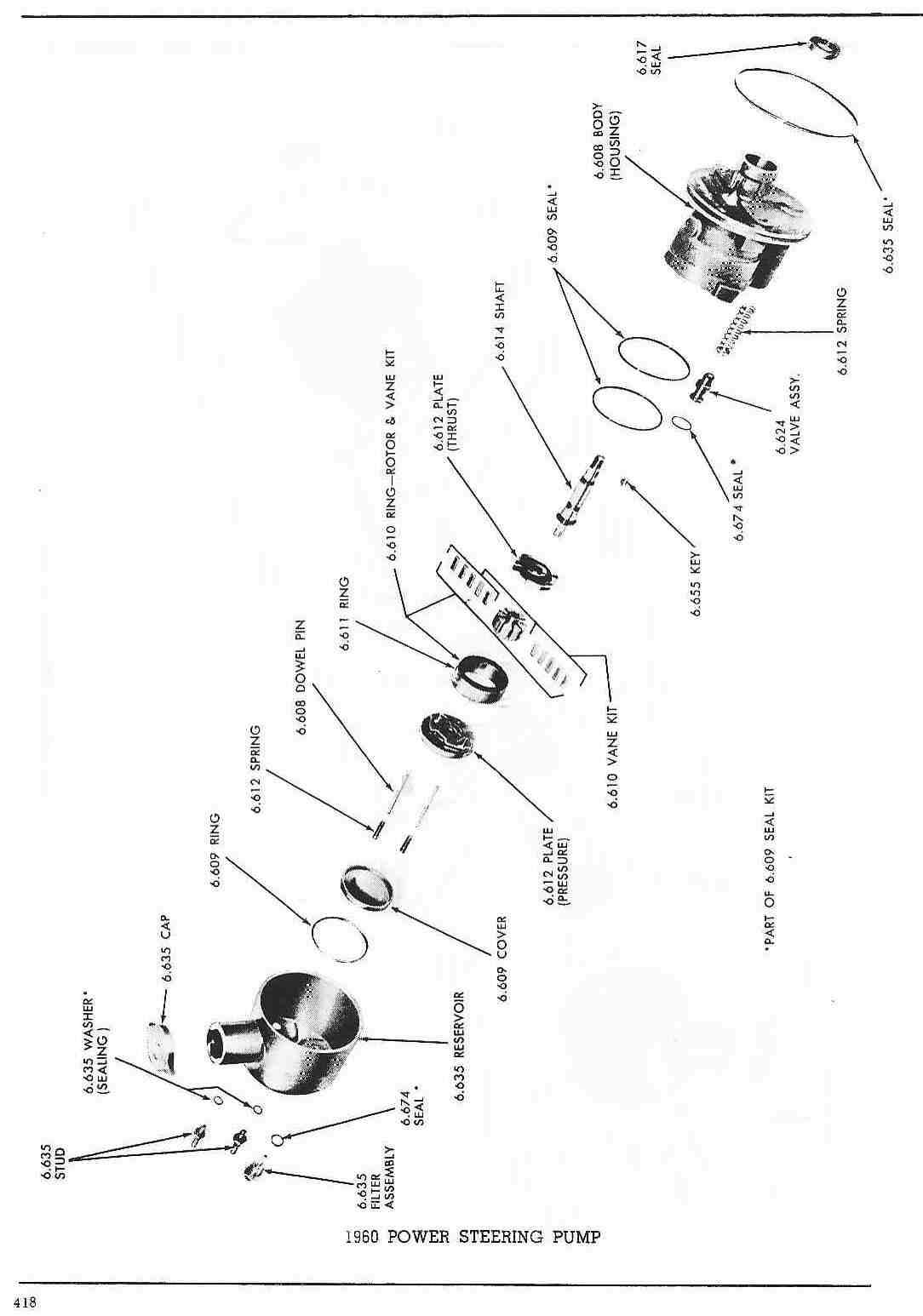

418 1960 Power Steering Pump

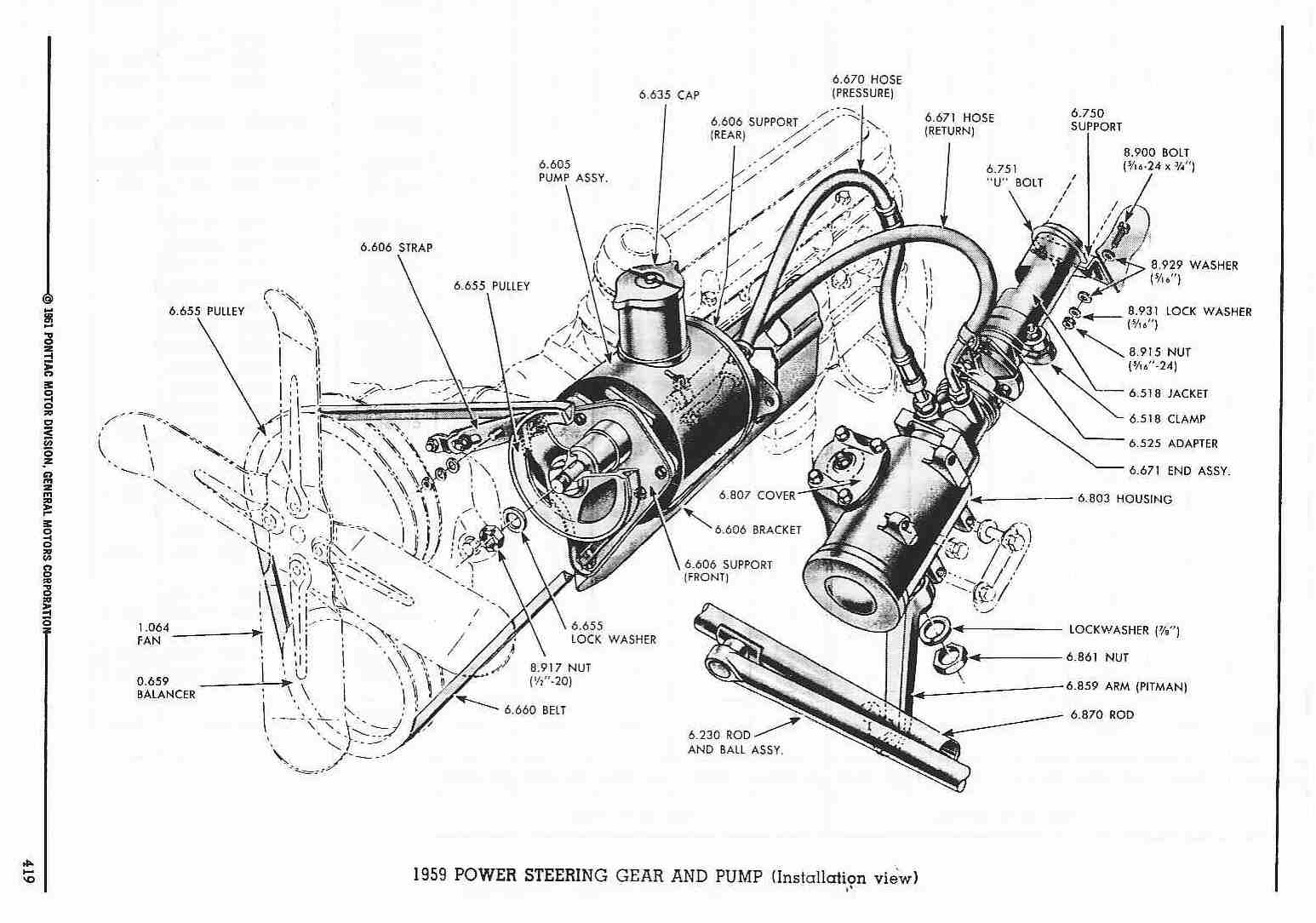

419 1959 Power Steering Gear and Pump (Installation View)

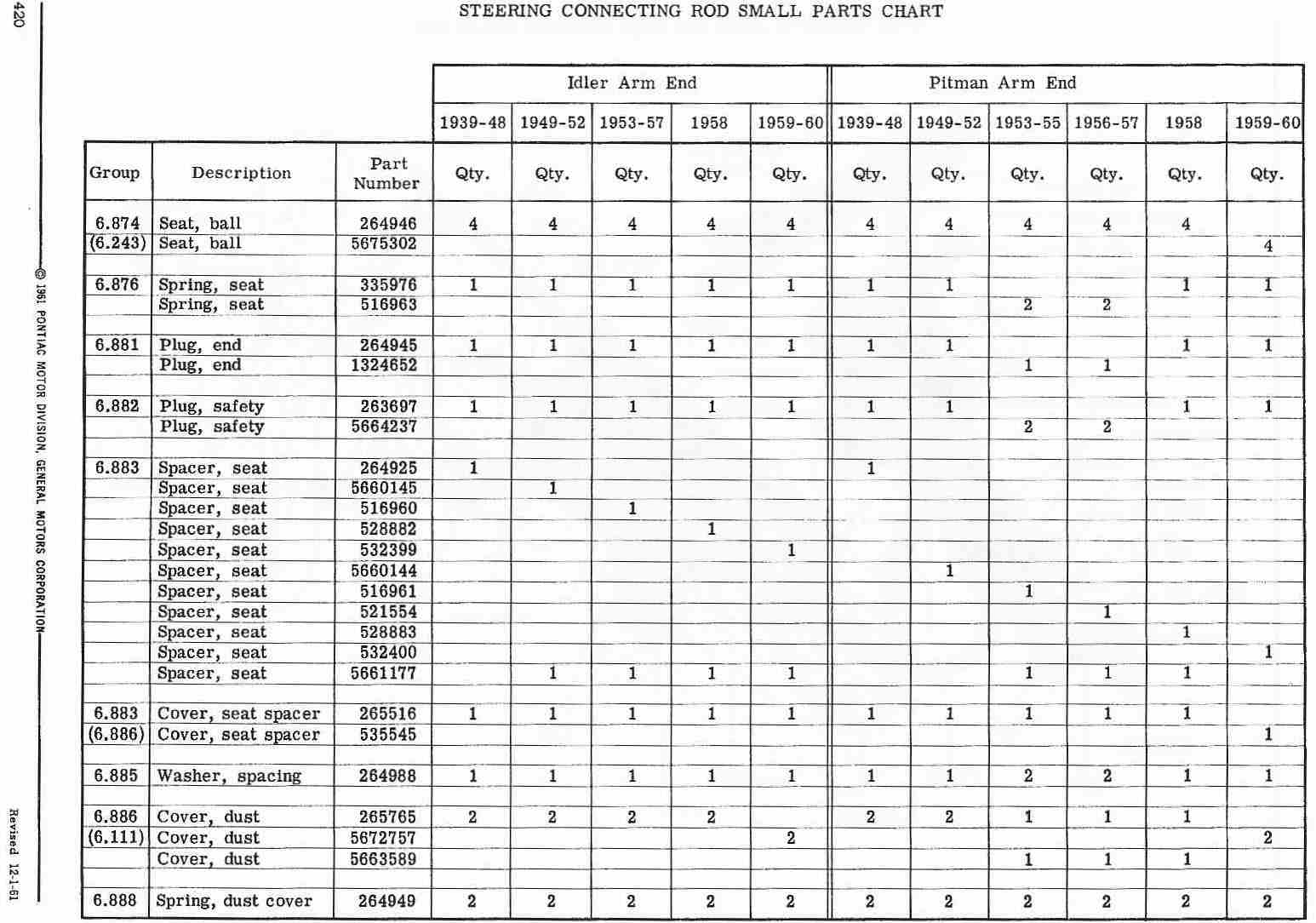

420 Steering Connecting Rod Small Parts Chart (1939-60)
421-449 parts listing 6.xxx  Front Axle and Steering Gear

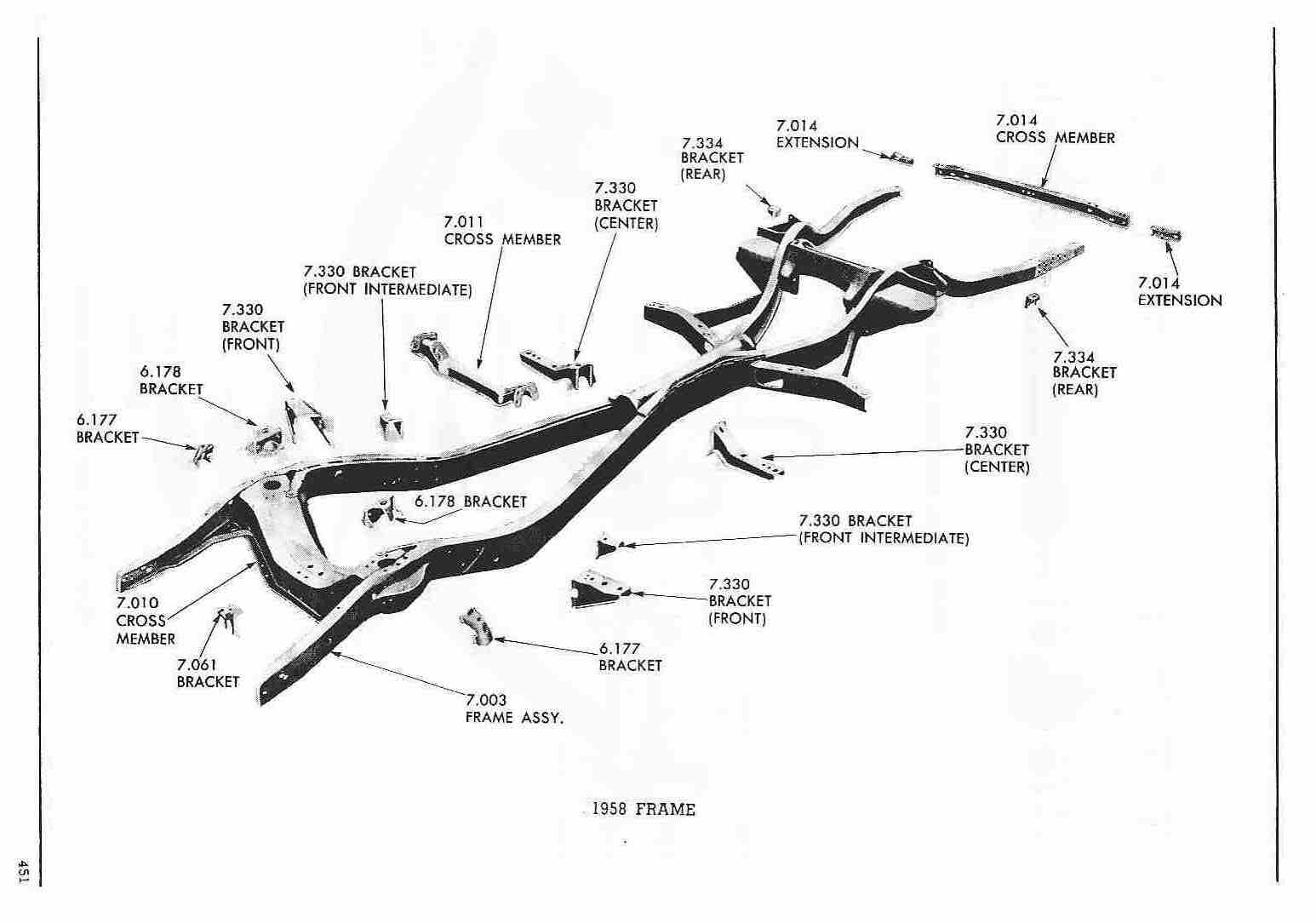

451 1958 Frame

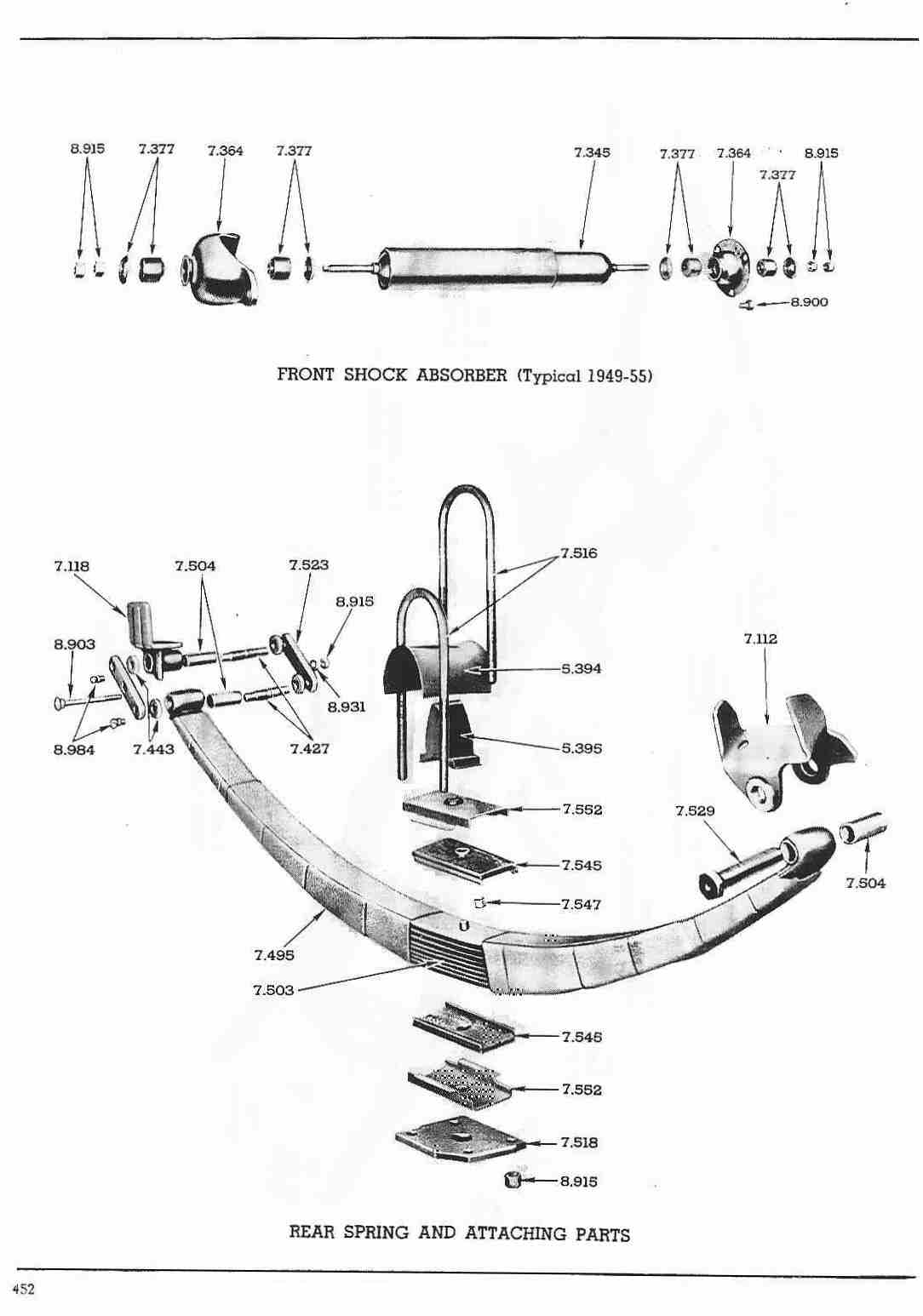

452 Front Shock Absorber (Typical 1949-55) / Rear Spring and Attaching Parts

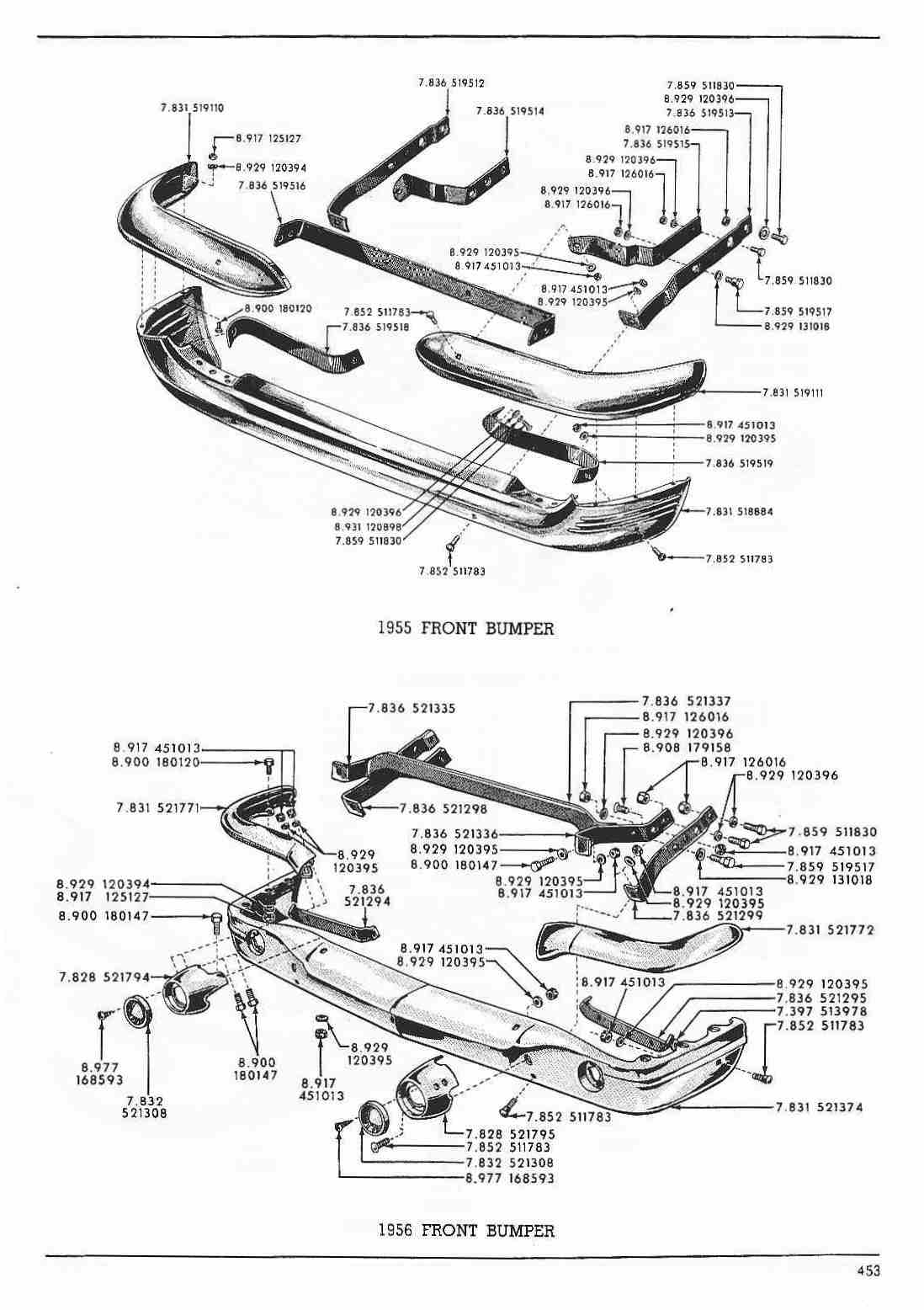

453 1955 / 1956 Front Bumper

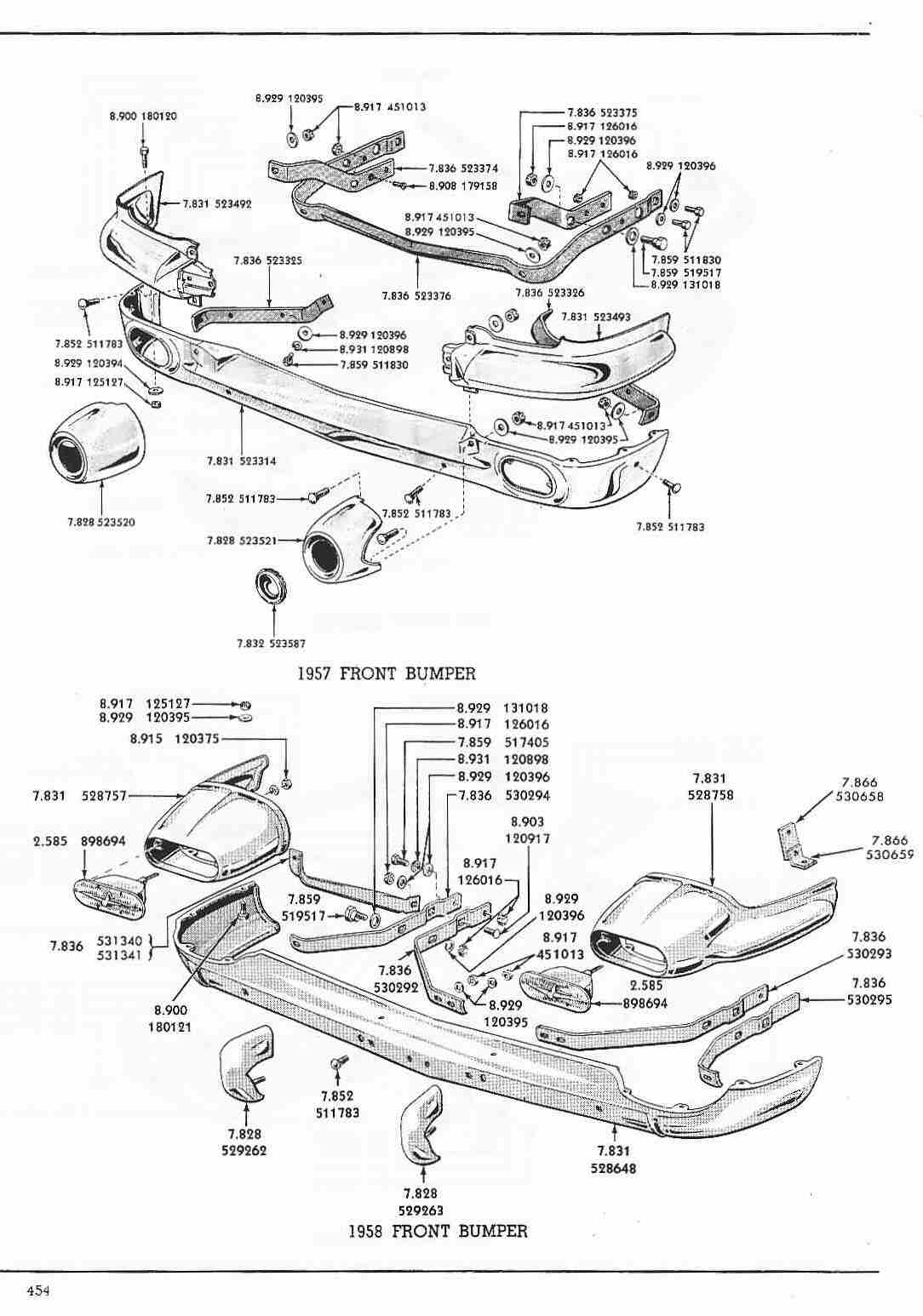

454 1957 / 1958 Front Bumper

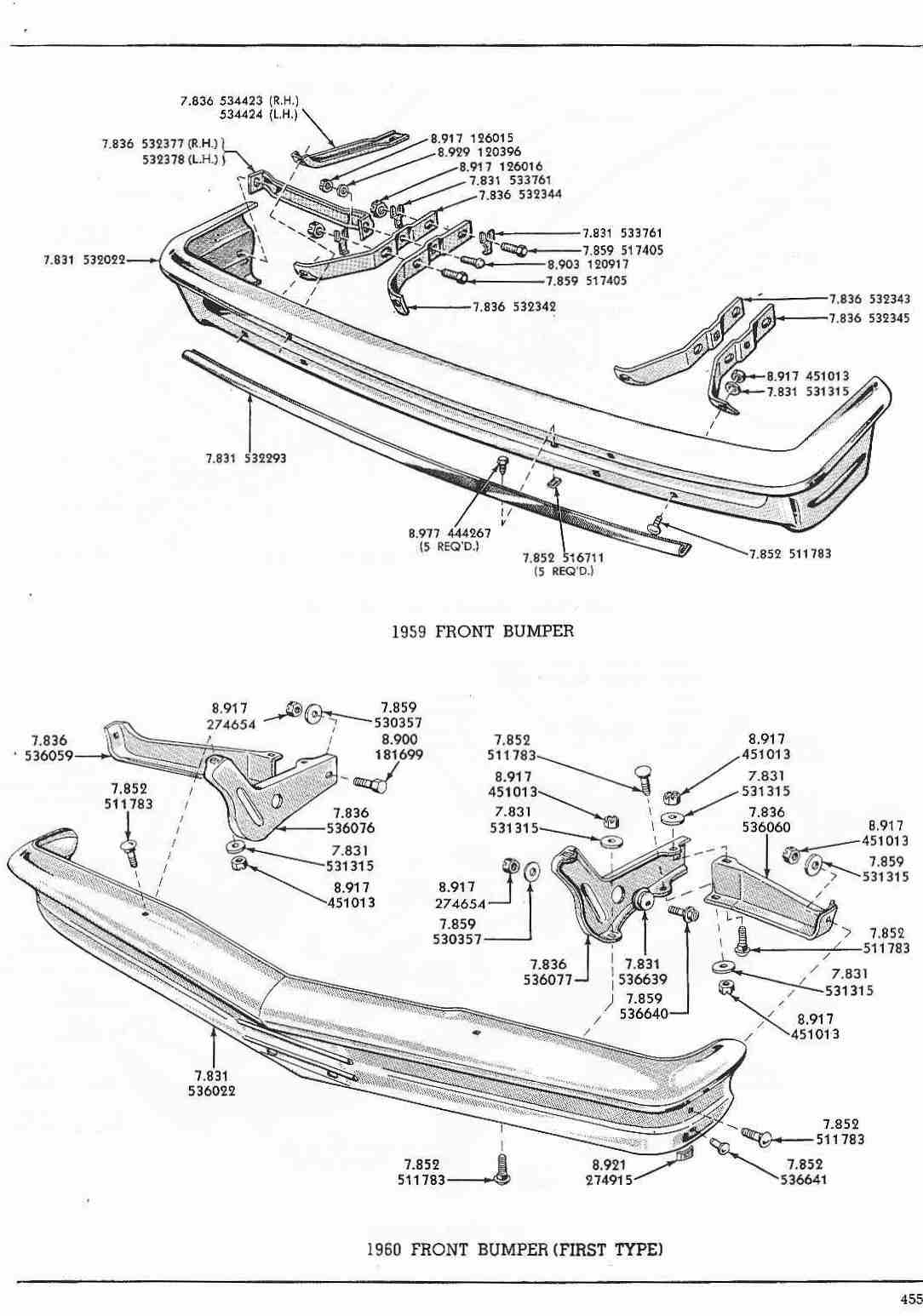

455 1959 / 1960 Front Bumper

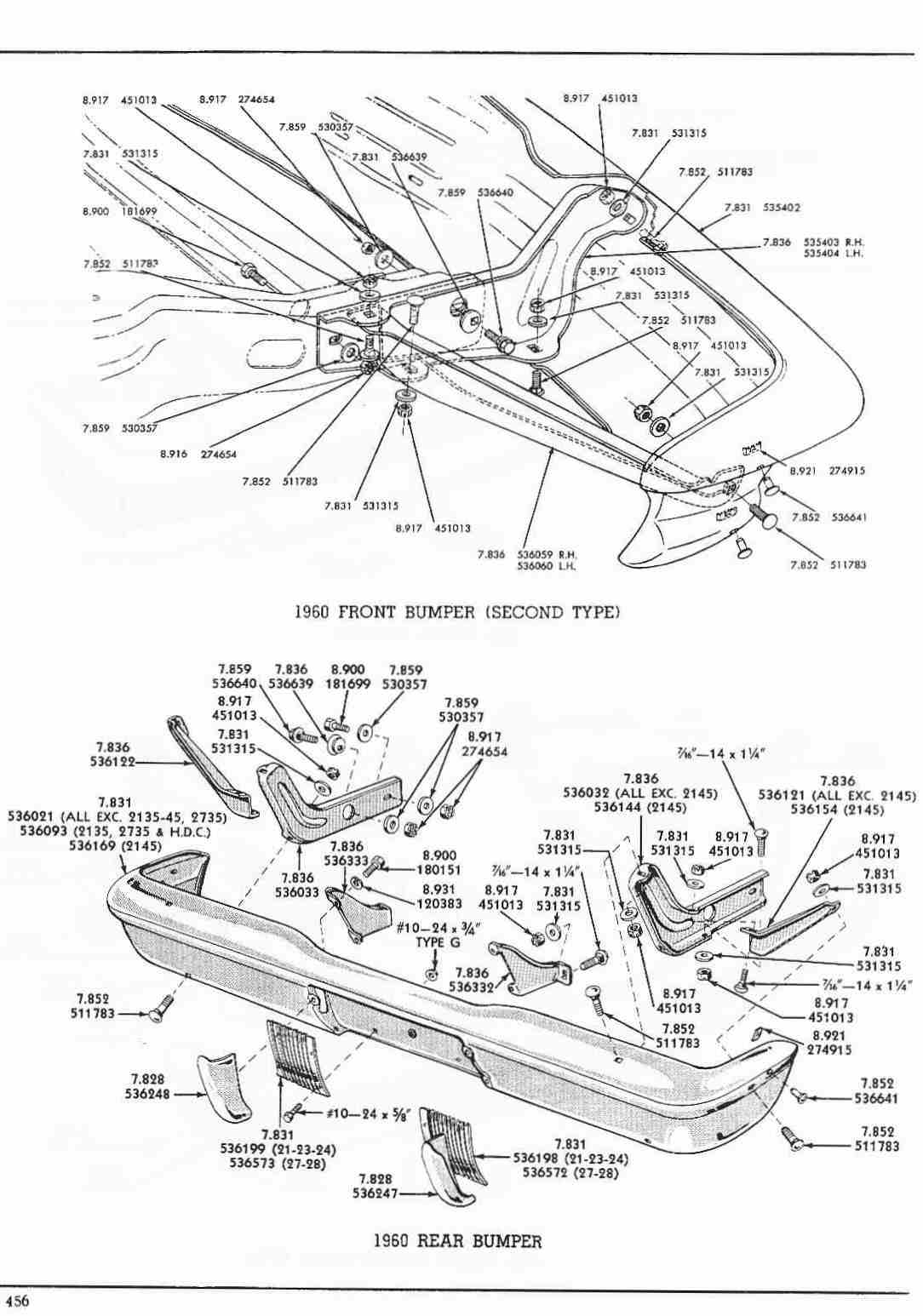

456 1960 Front Bumper (Second Type) / 1960 Rear Bumper
457 1958 Air Suspension Compressor

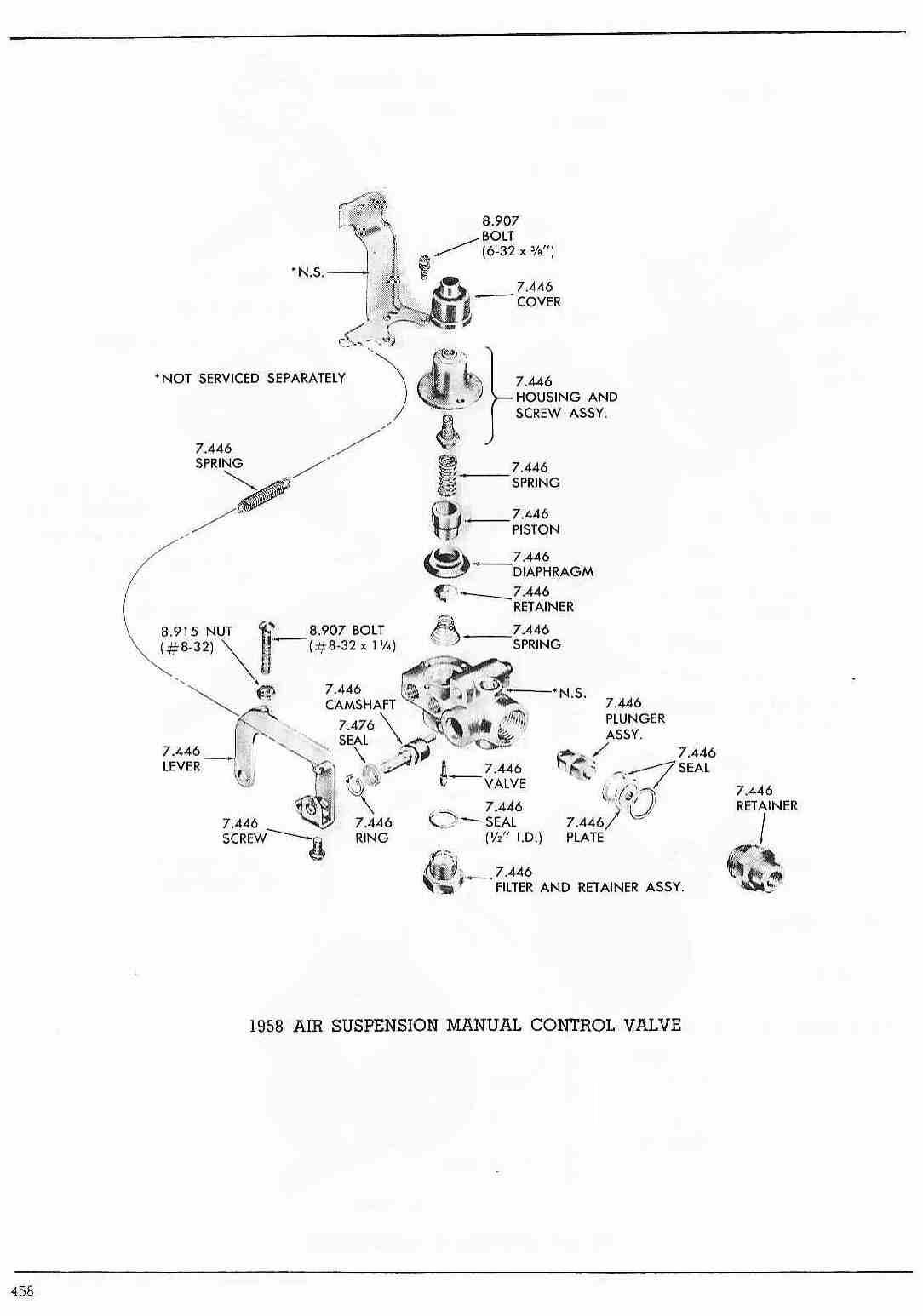

458 1958 Air Suspension Manual Control Valve

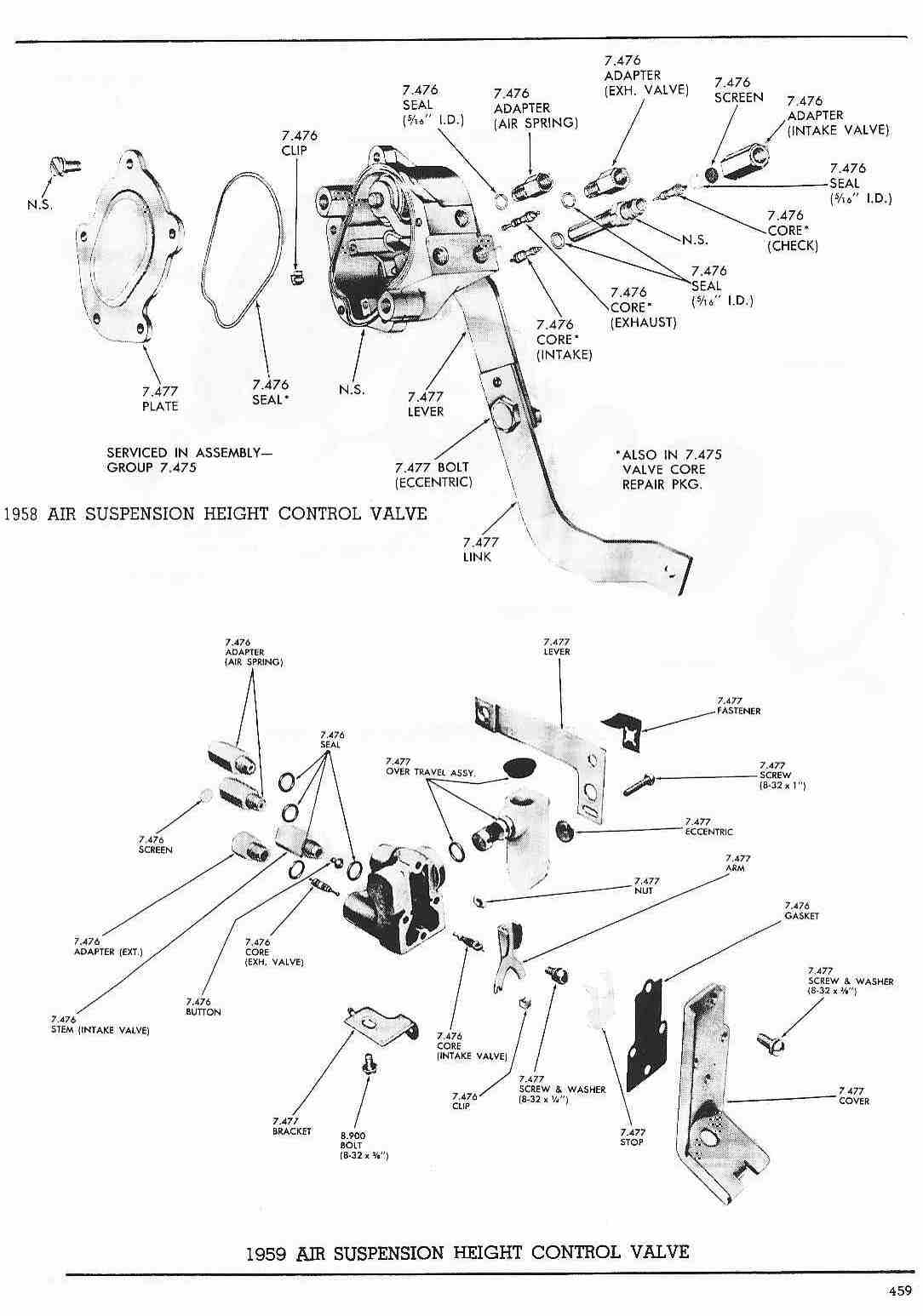

459 1958 / 1959 Air Suspension Height Control Valve

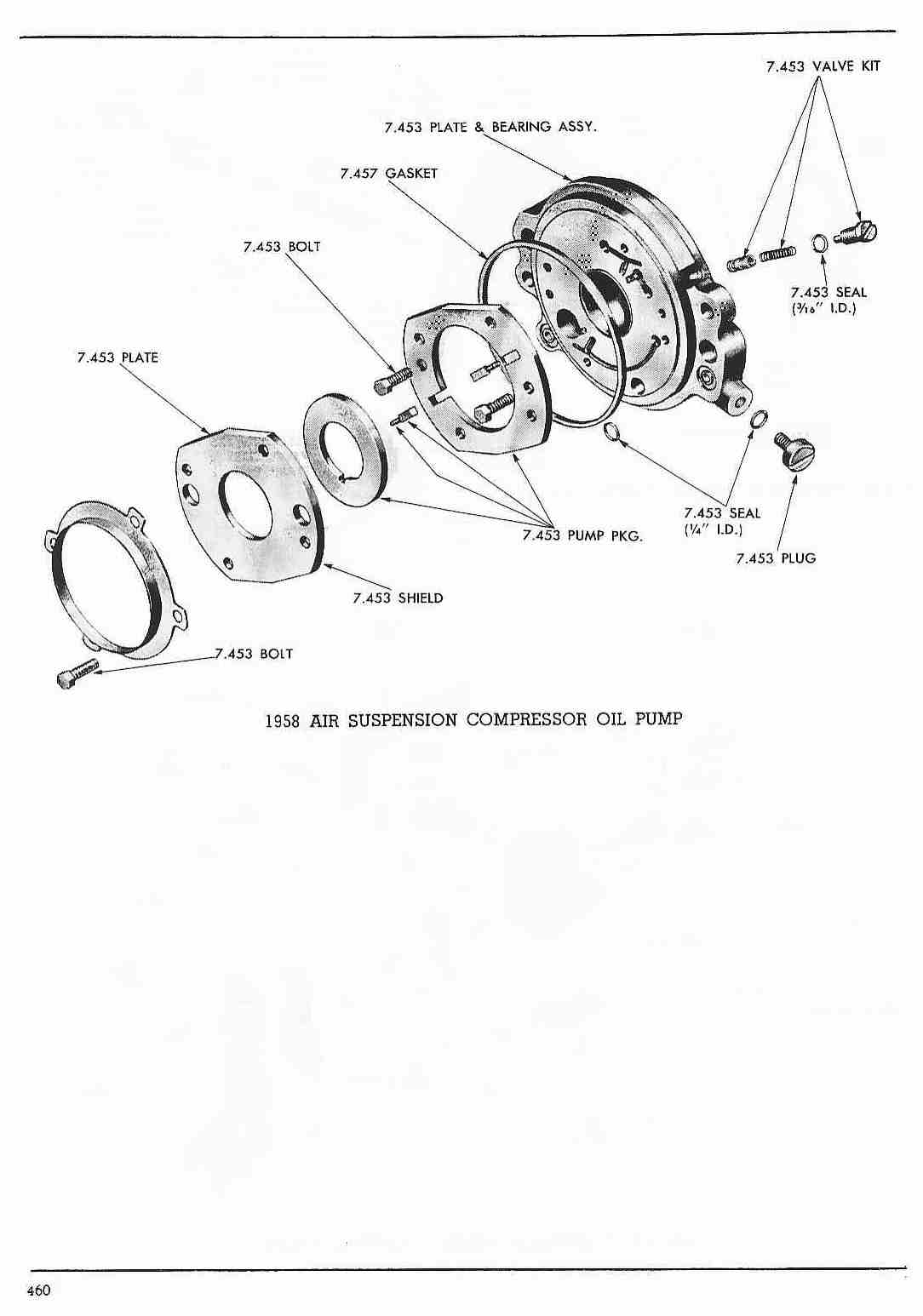

460 1958 Air Suspension Compressor Oil Pump
461-488 parts listing 7.xxx   Frame, Springs, Bumpers

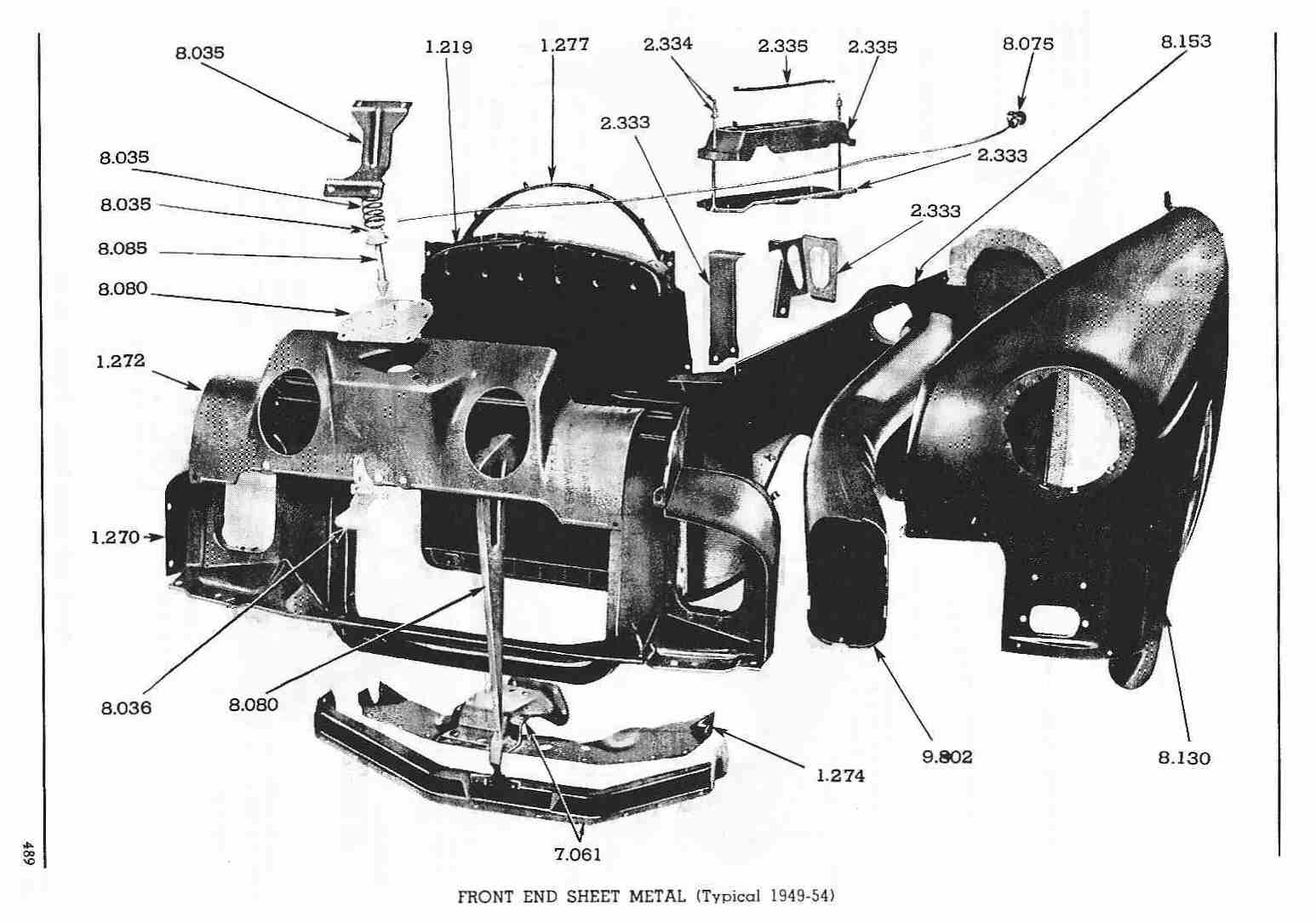

489 Front End Sheet Metal (Typical 1945-54)

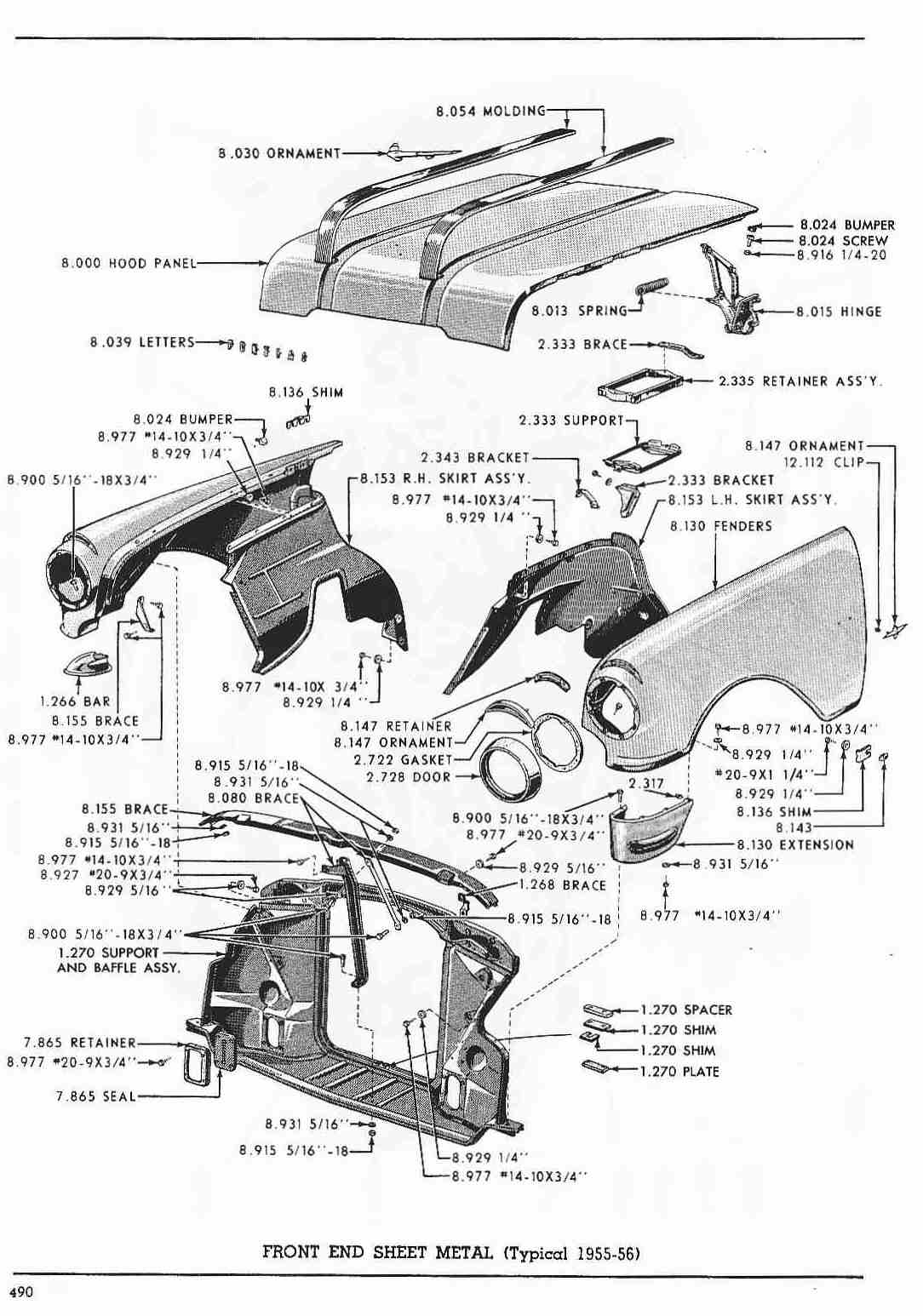

490 Front End Sheet Metal (Typical 1955-56)

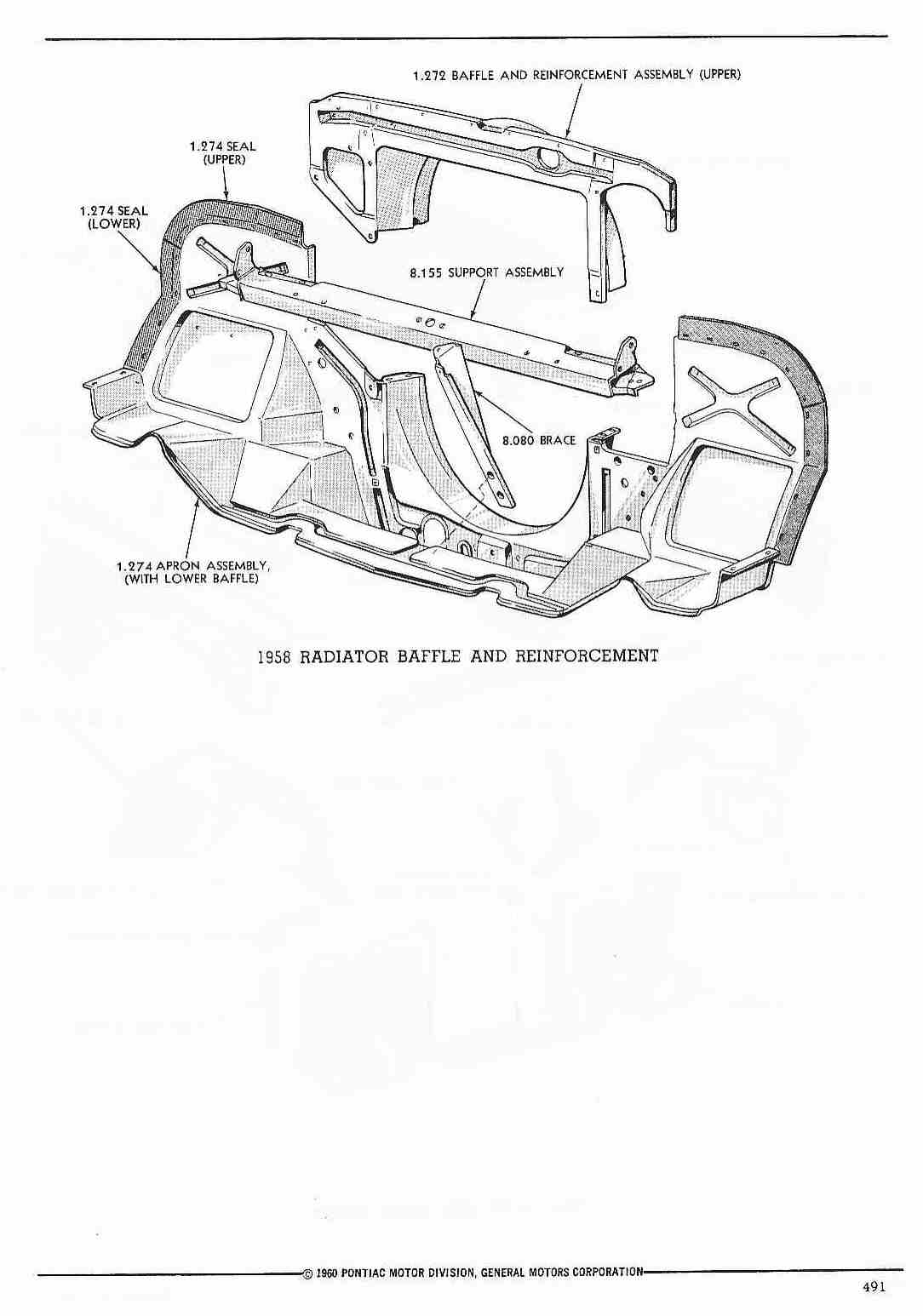

491 1958 Radiator Baffle and Reinforcement

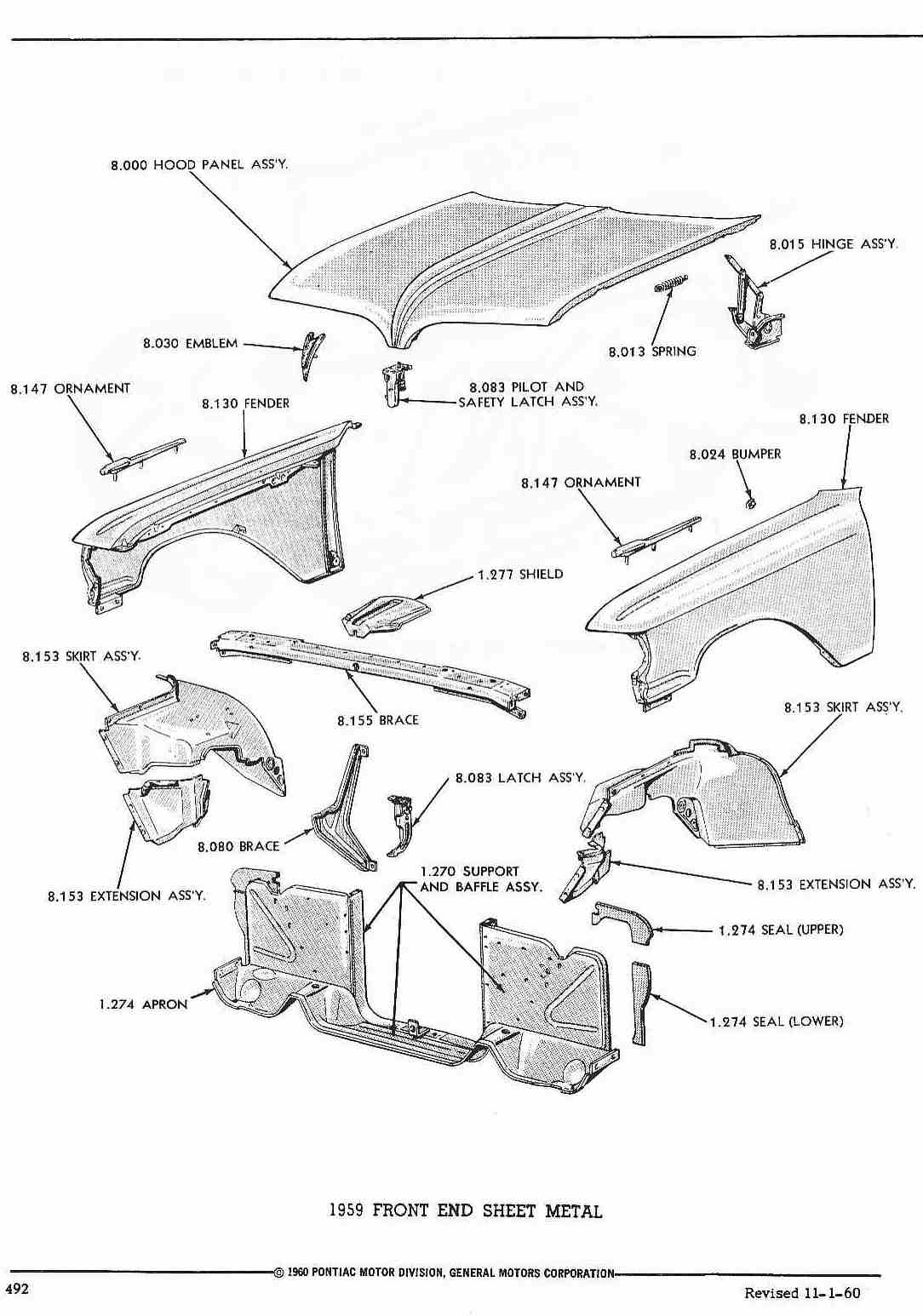

492 1959 Front End Sheet Metal

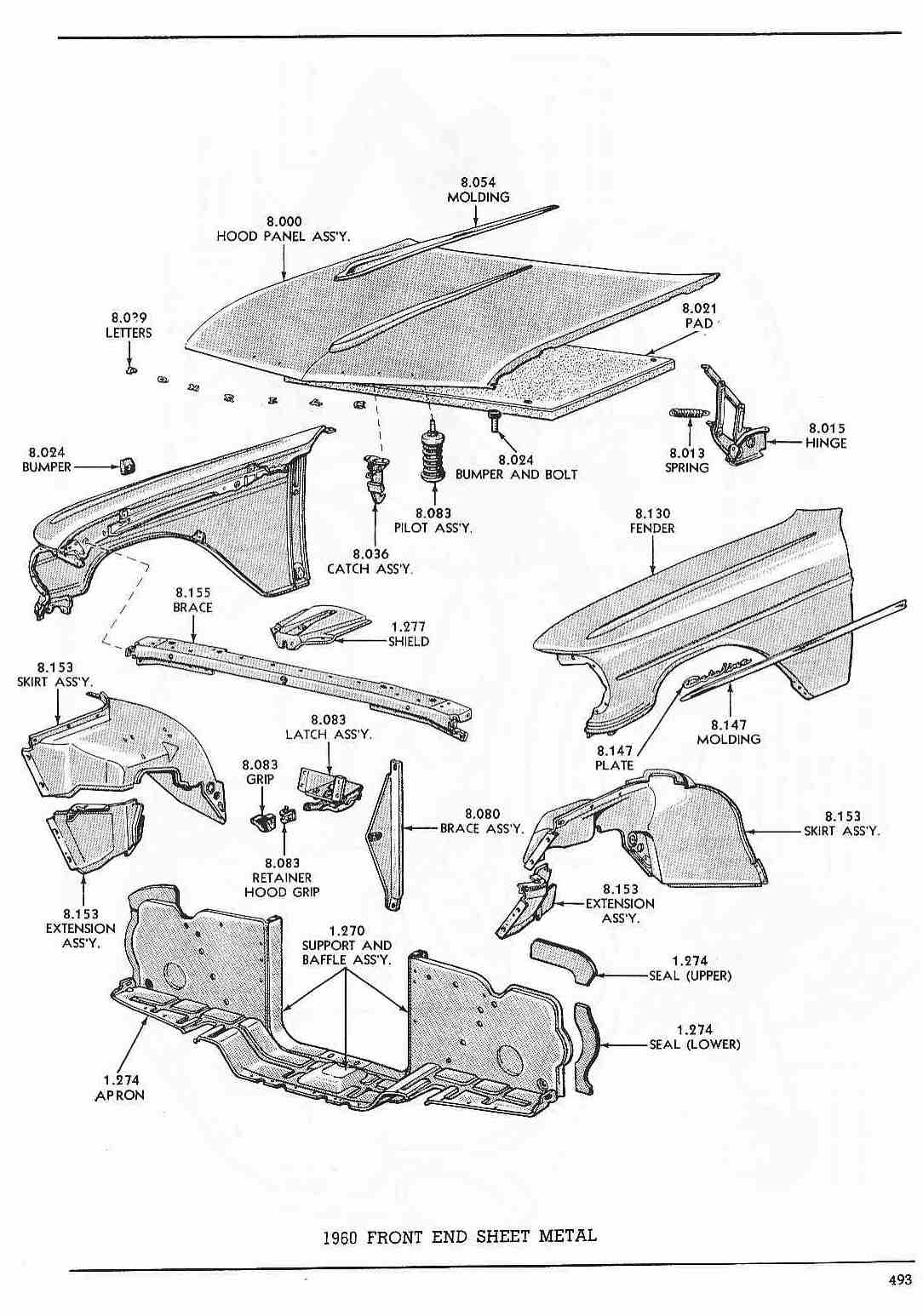

493 1960 Front End Sheet Metal

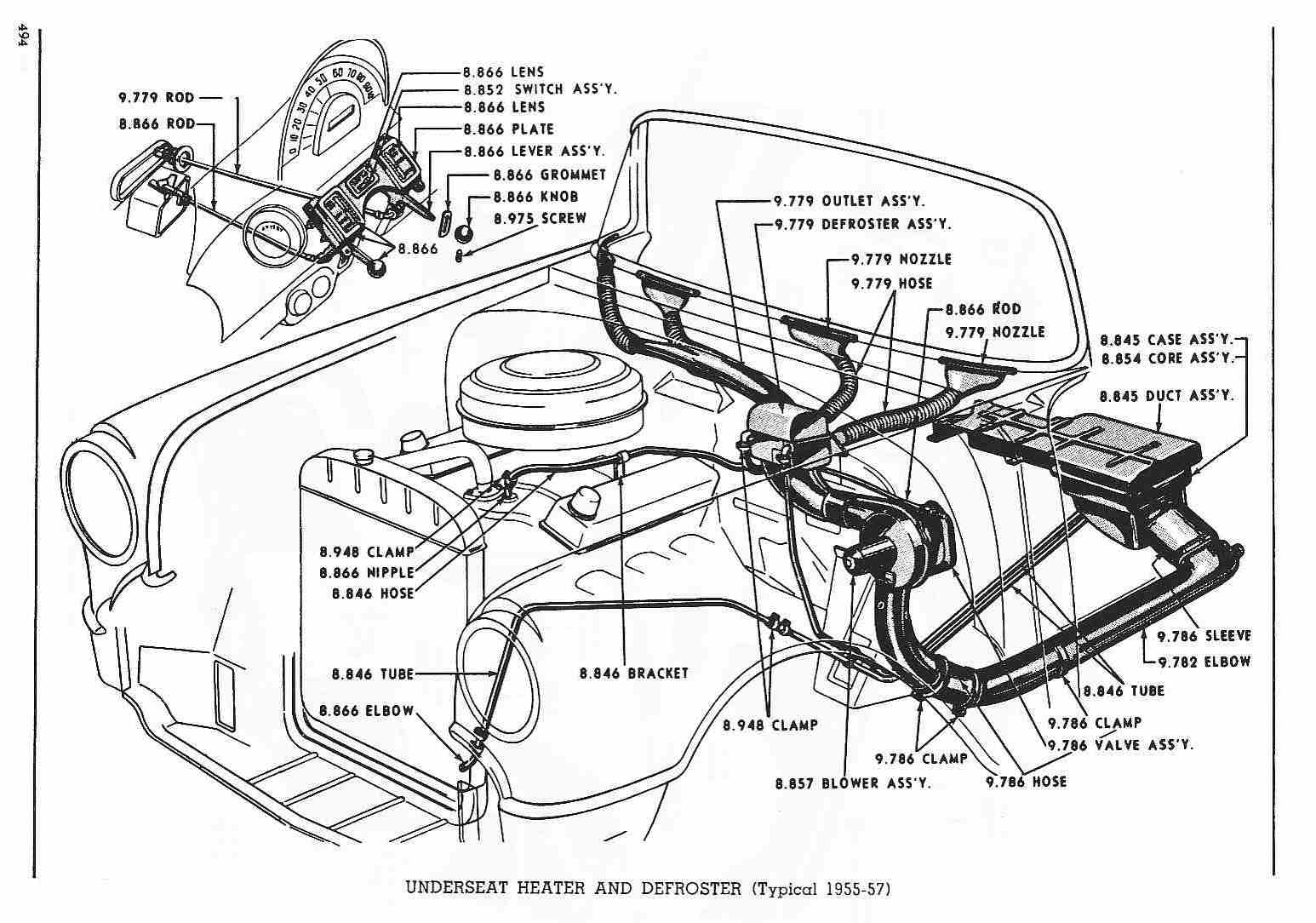

494 Underseat Heater and Defroster (Typical 1955-1957)

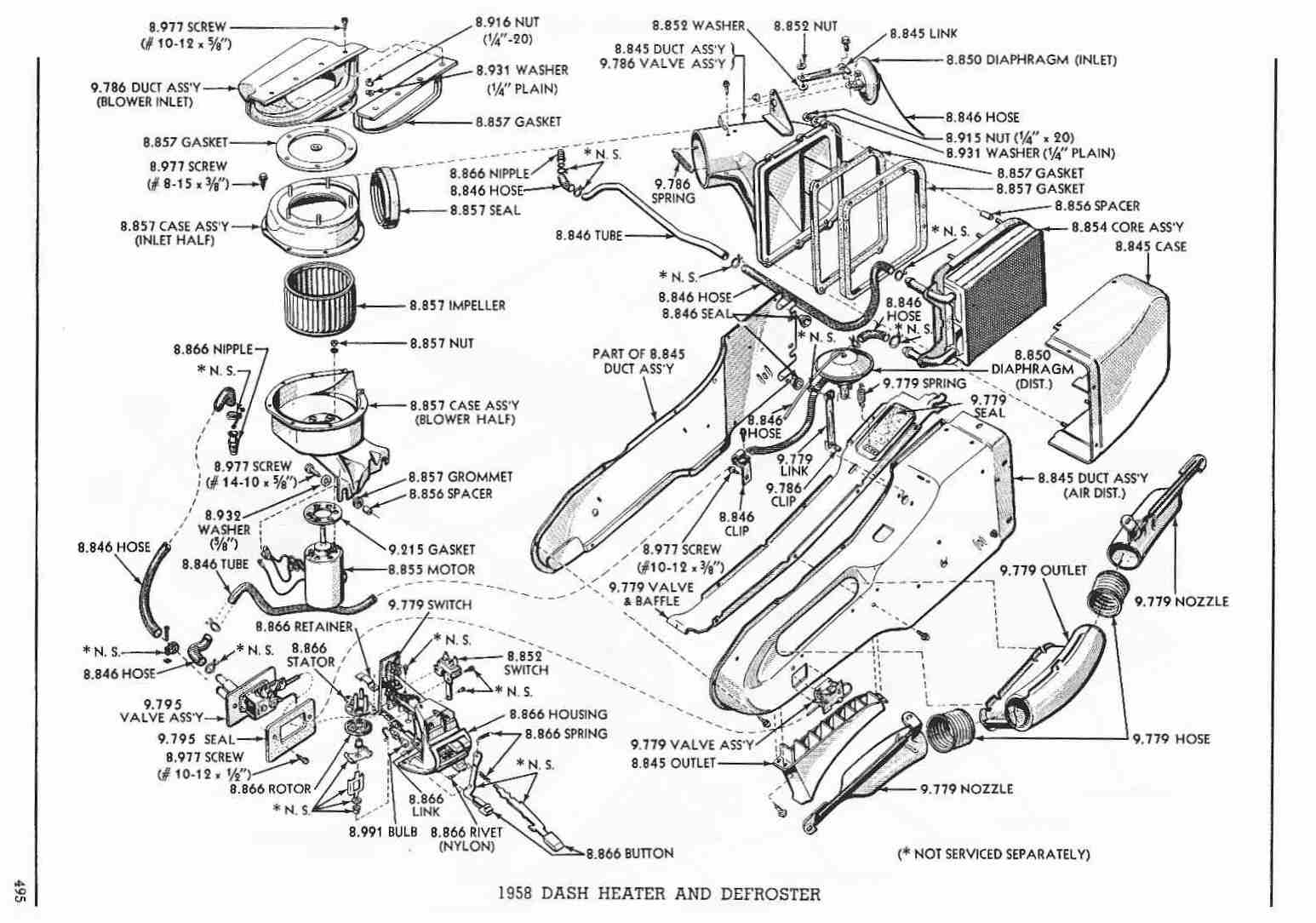

495 1958 Dash Heater and Defroster
496 1959 Heater and Defroster (Controls and Ducts)

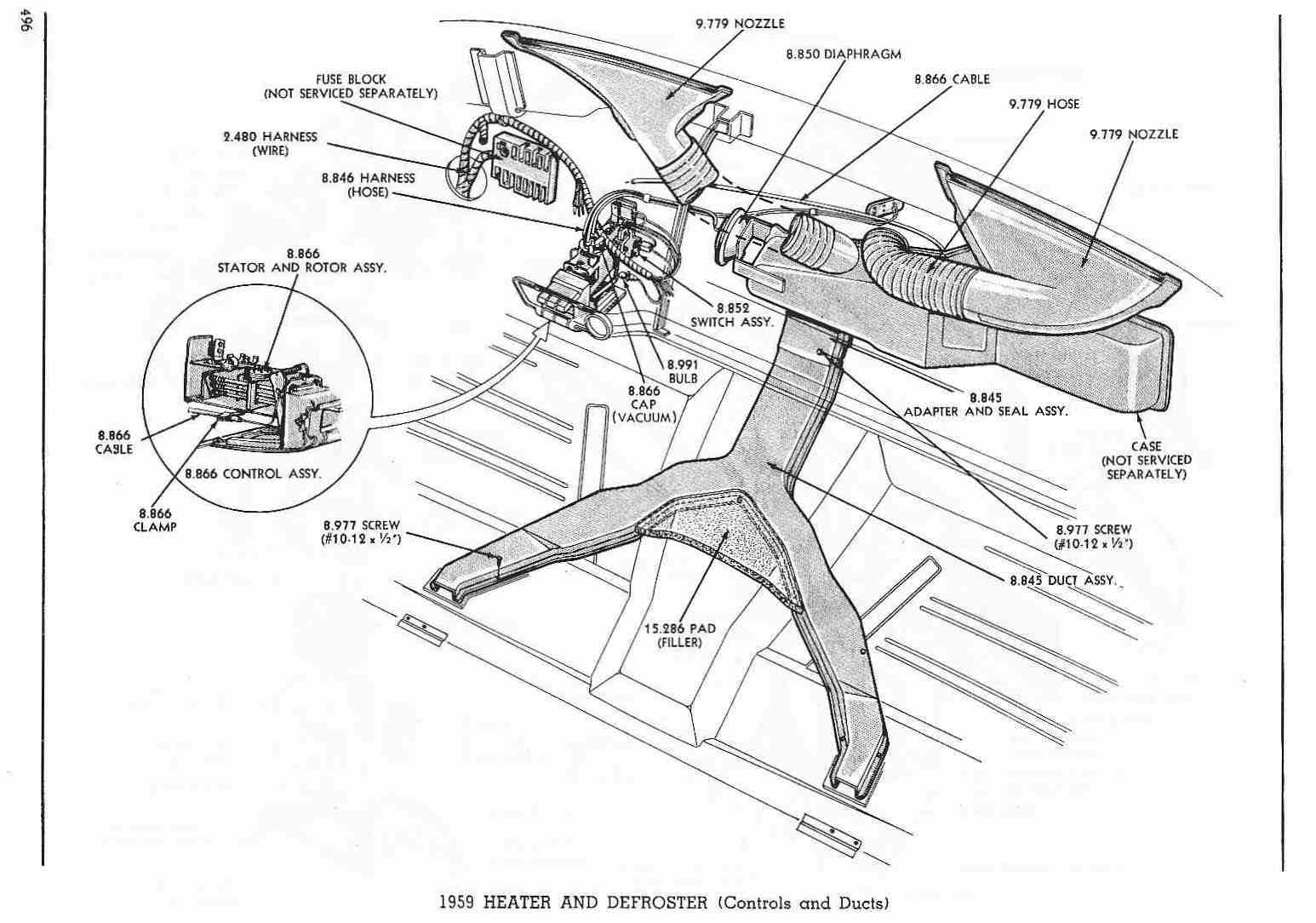

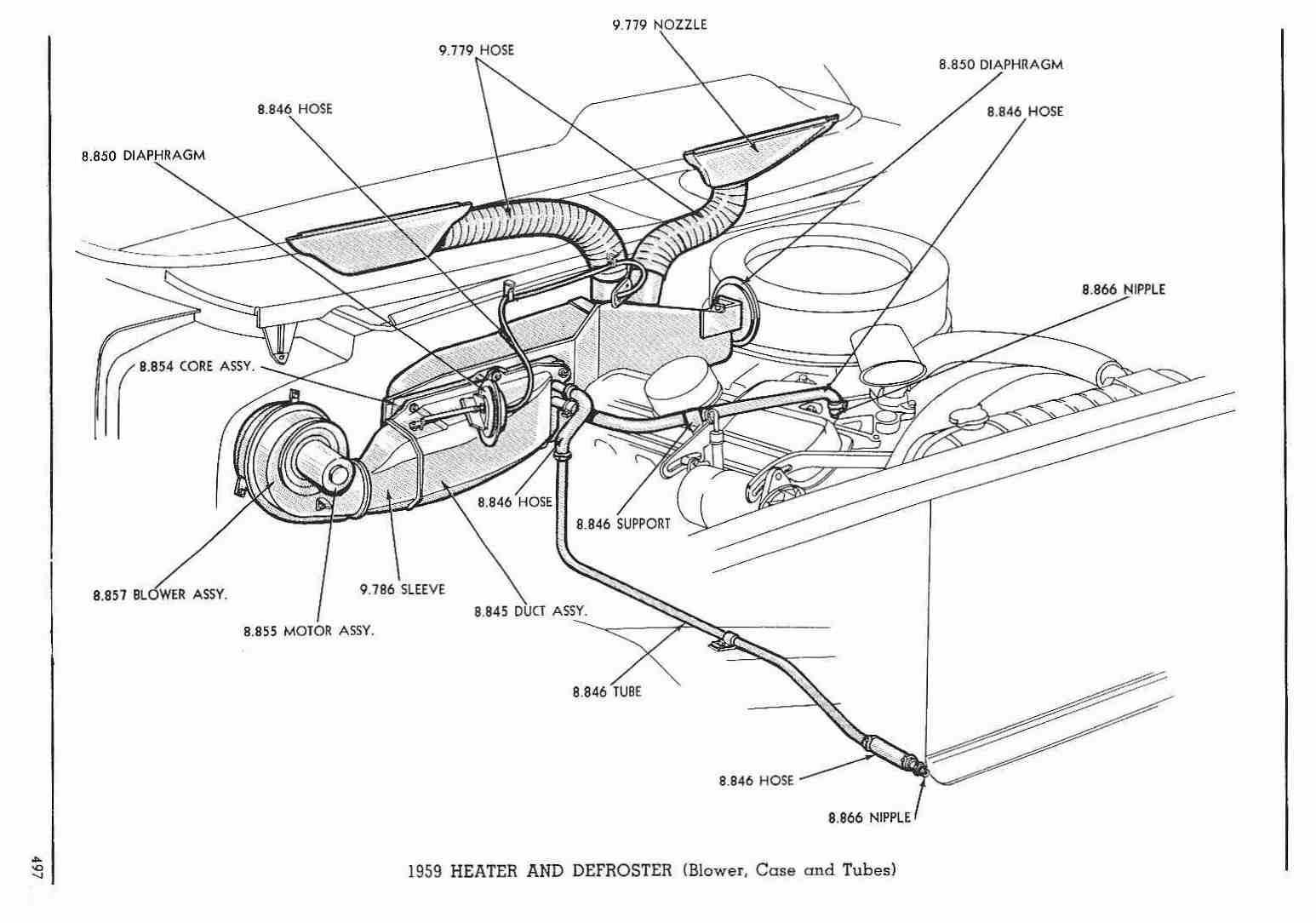

497 1959 Heater and Defroster ( Blower, Case and Tubes)
499-532 parts listing 8.xxx   Hood, Fenders, Aprons, Heater, Standard Parts, Bulbs

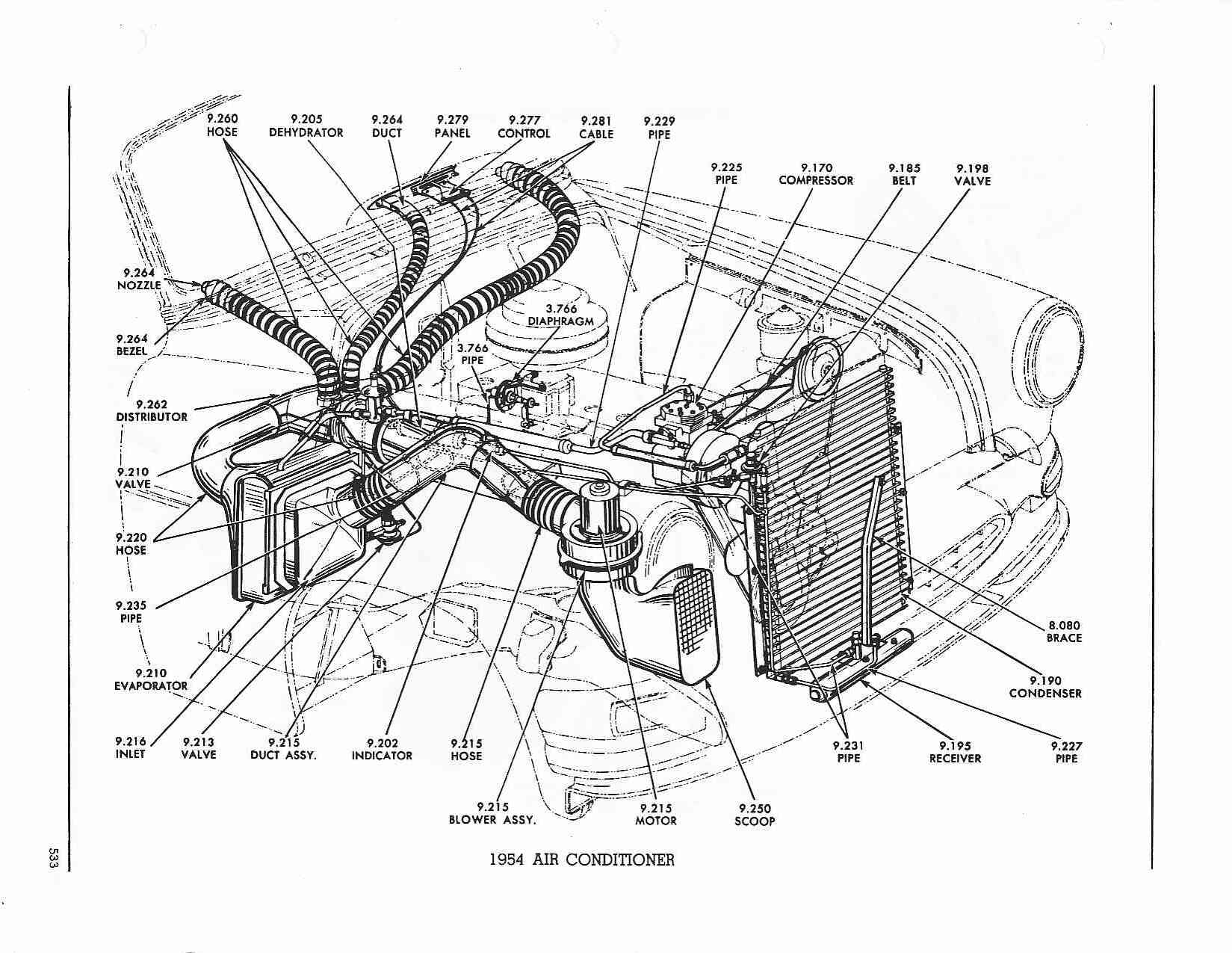

533 1954 Air Conditioner

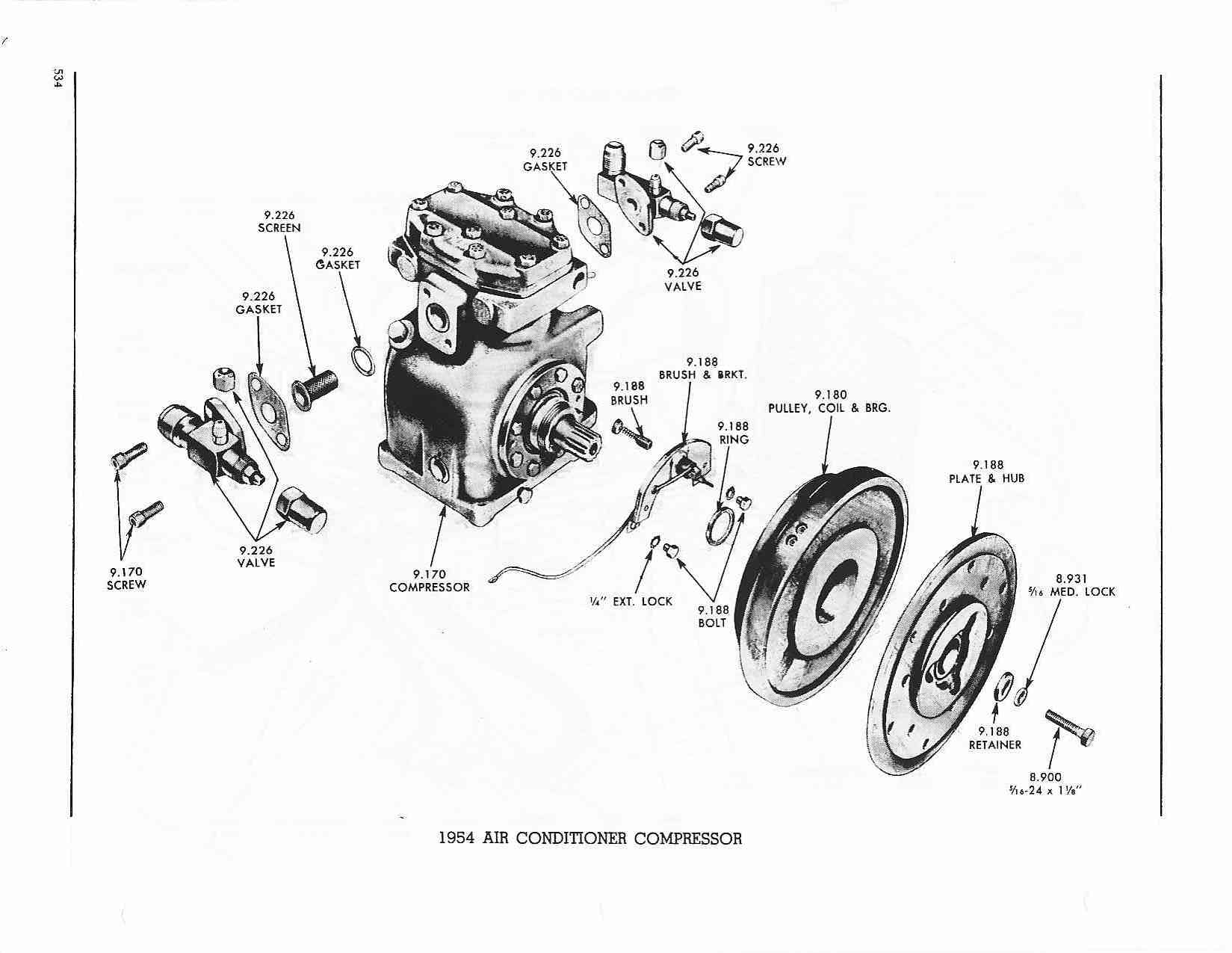

534 1954 Air Conditioner Compressor

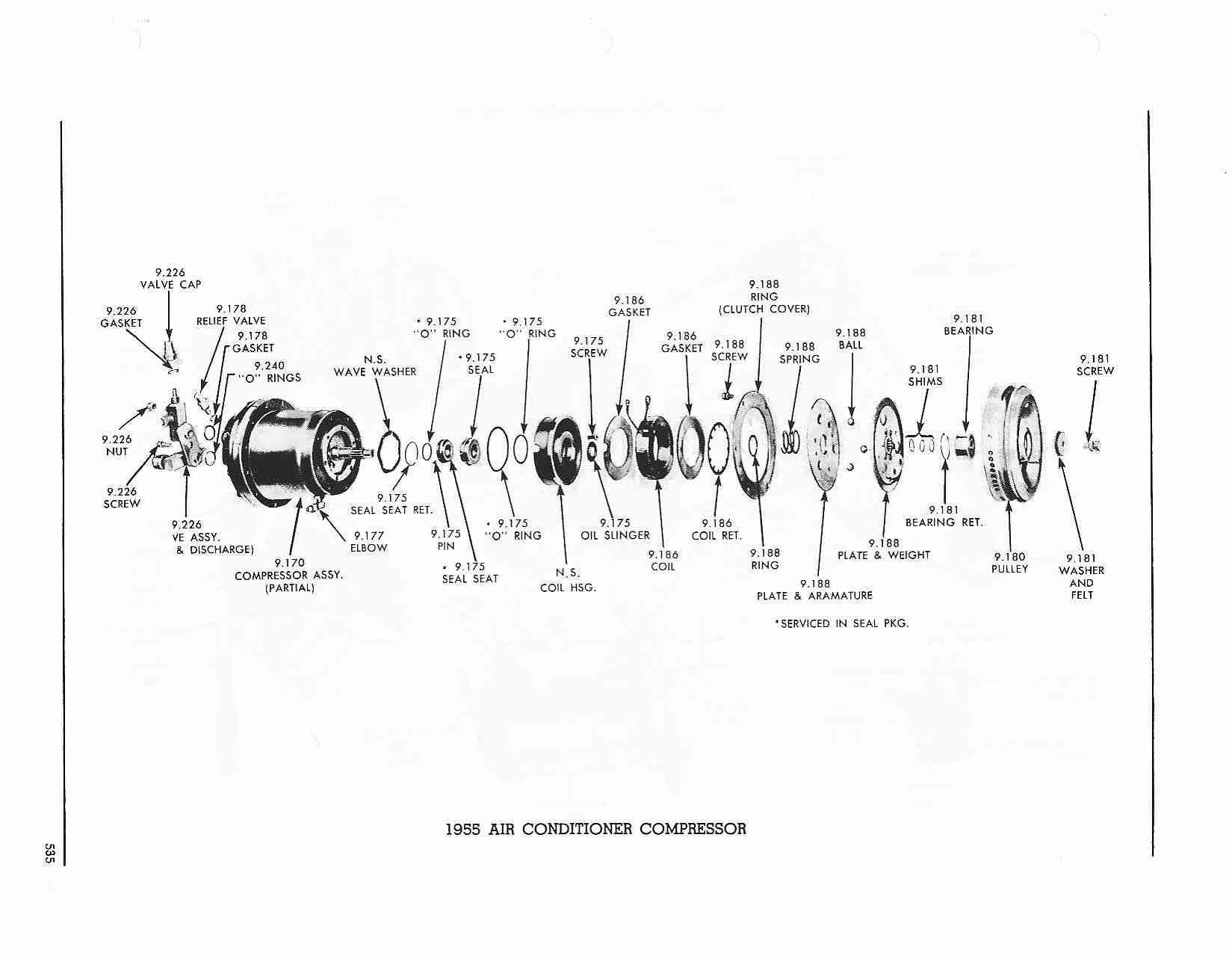

535 1955 Air Conditioner Compressor

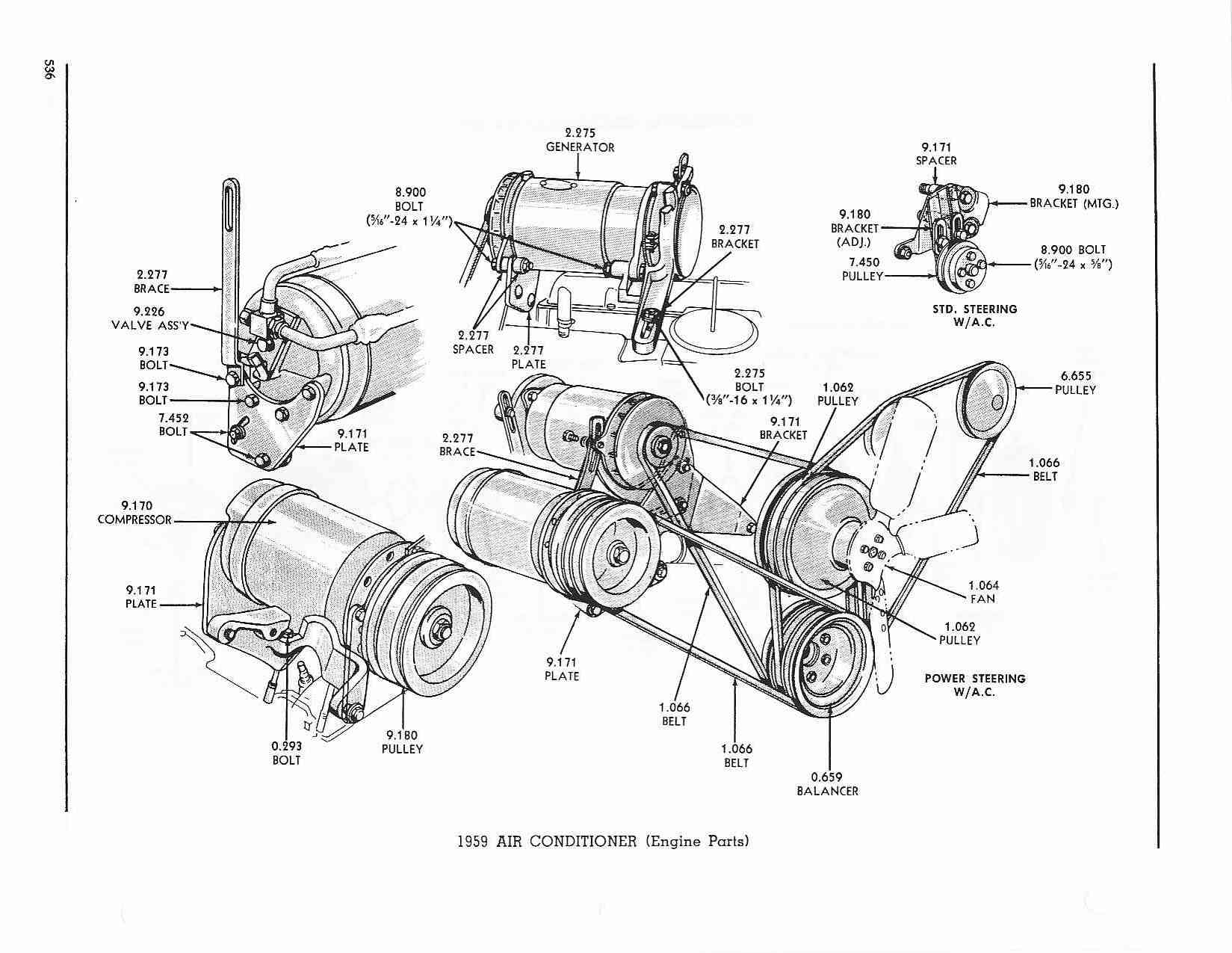

536 1959 Air Conditioner (Engine Parts)

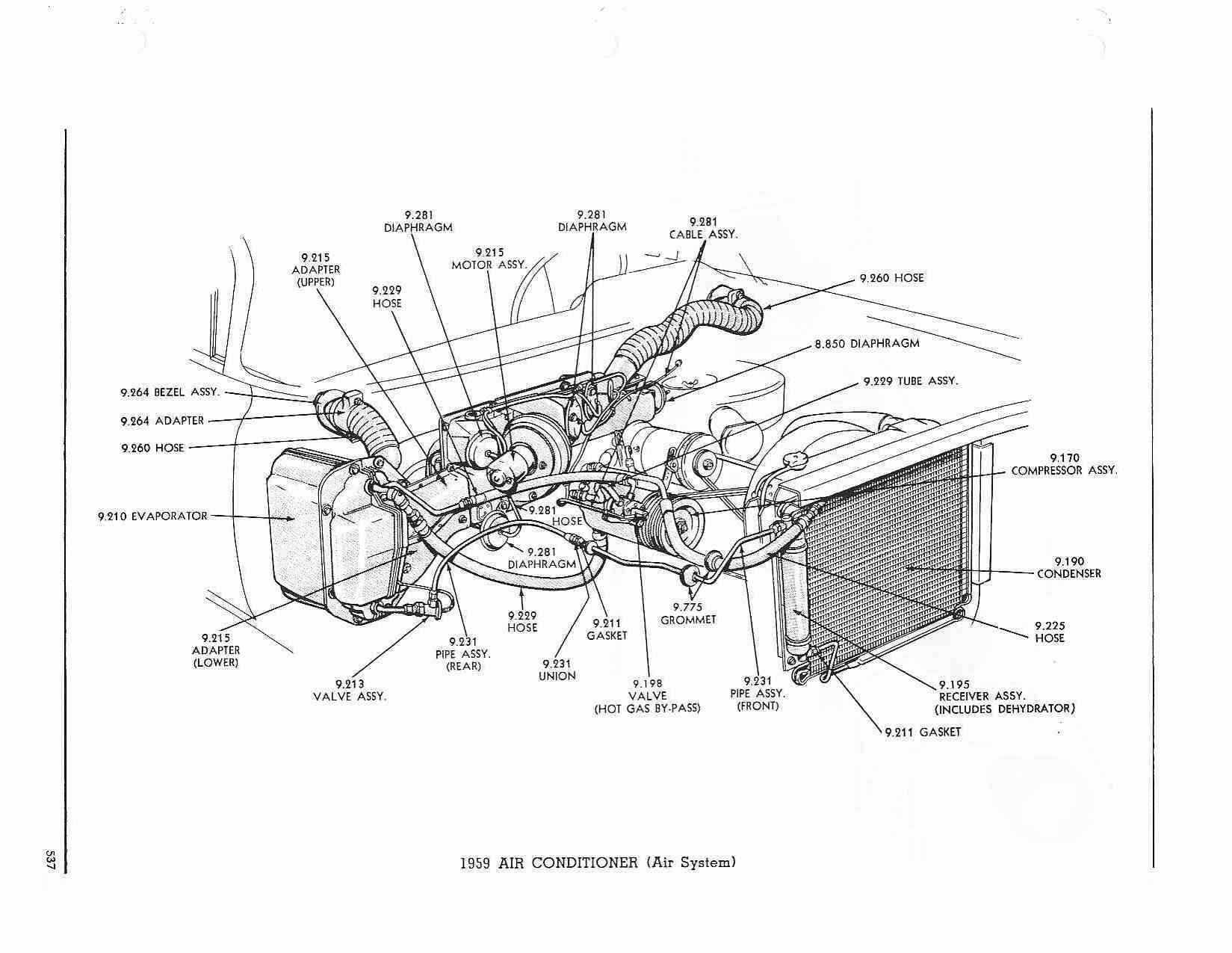

537 1959 Air Conditioner (Air System)

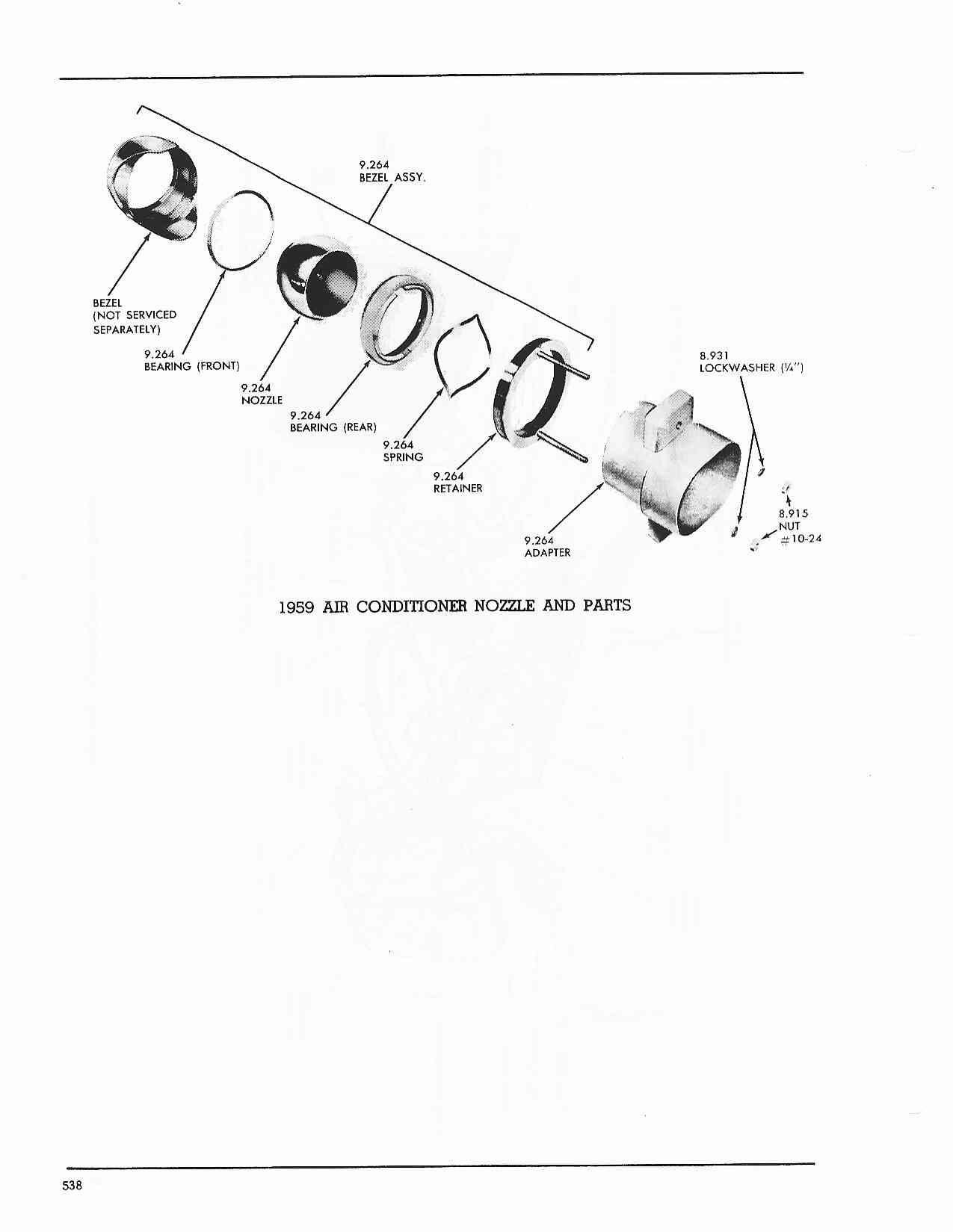

538 1959 Air Conditioner Nozzle and Parts

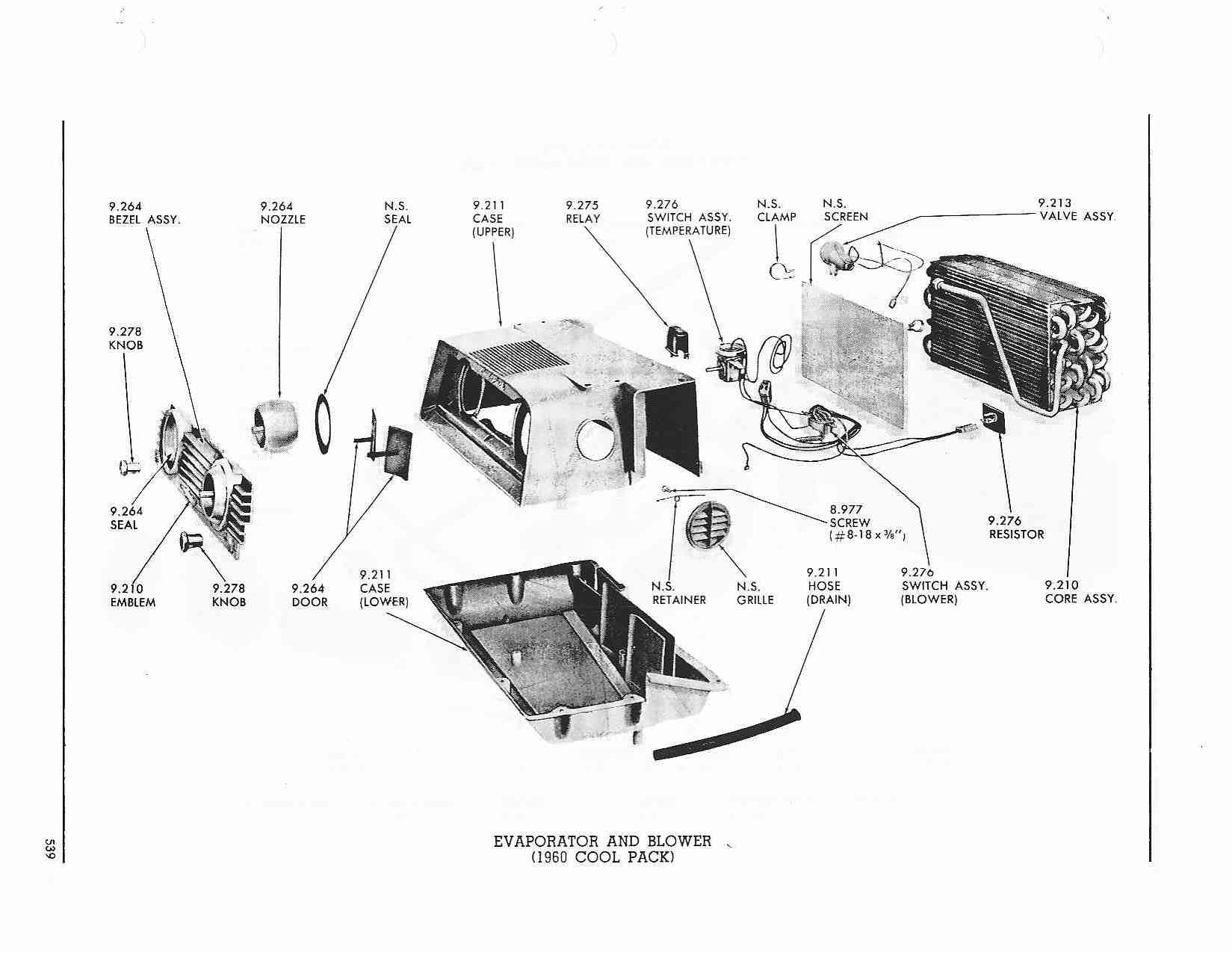

539 Evaporator and Blower (1960 Cool Pack)

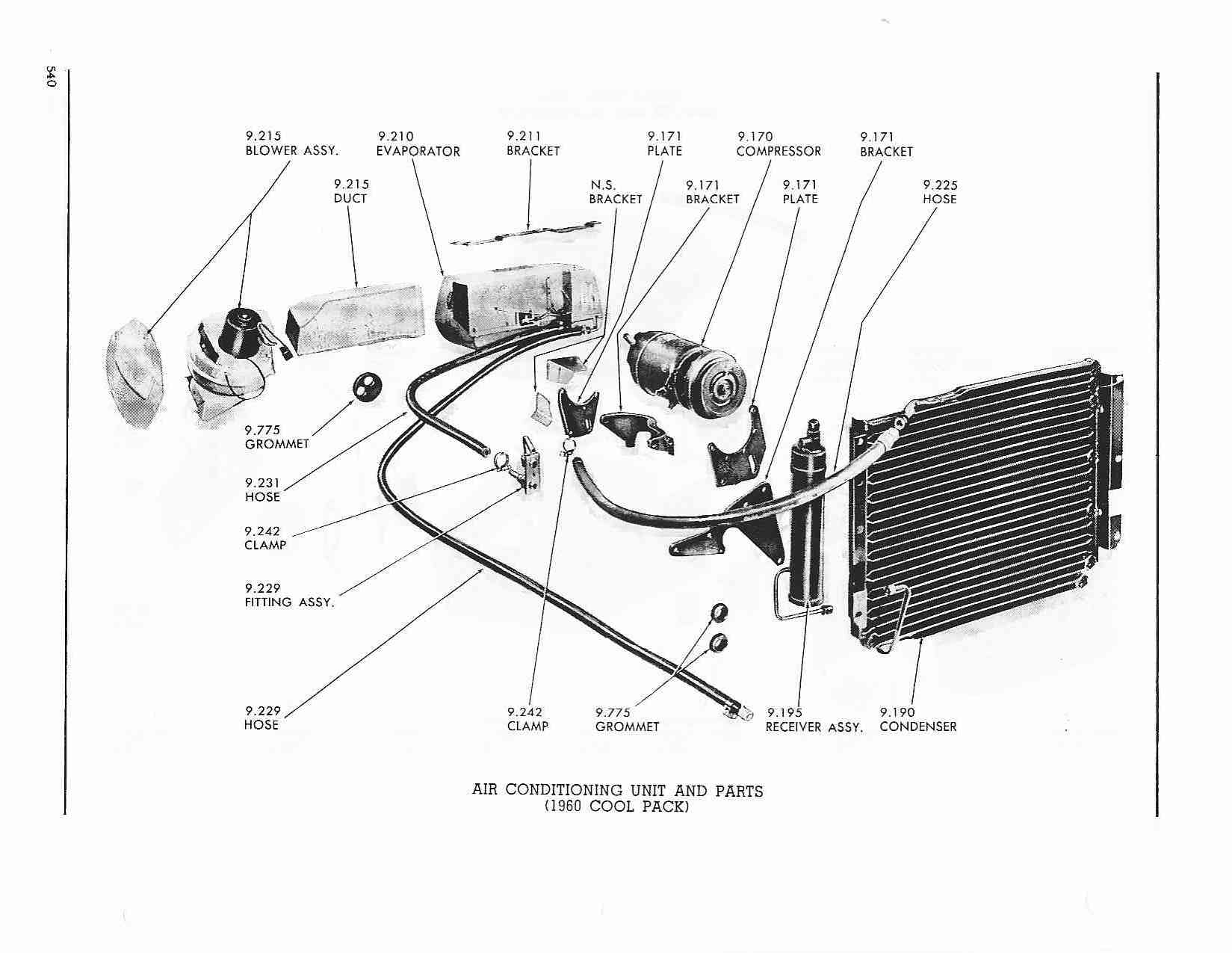

540 Air Conditioning Unit and Parts (1960 Cool Pack)

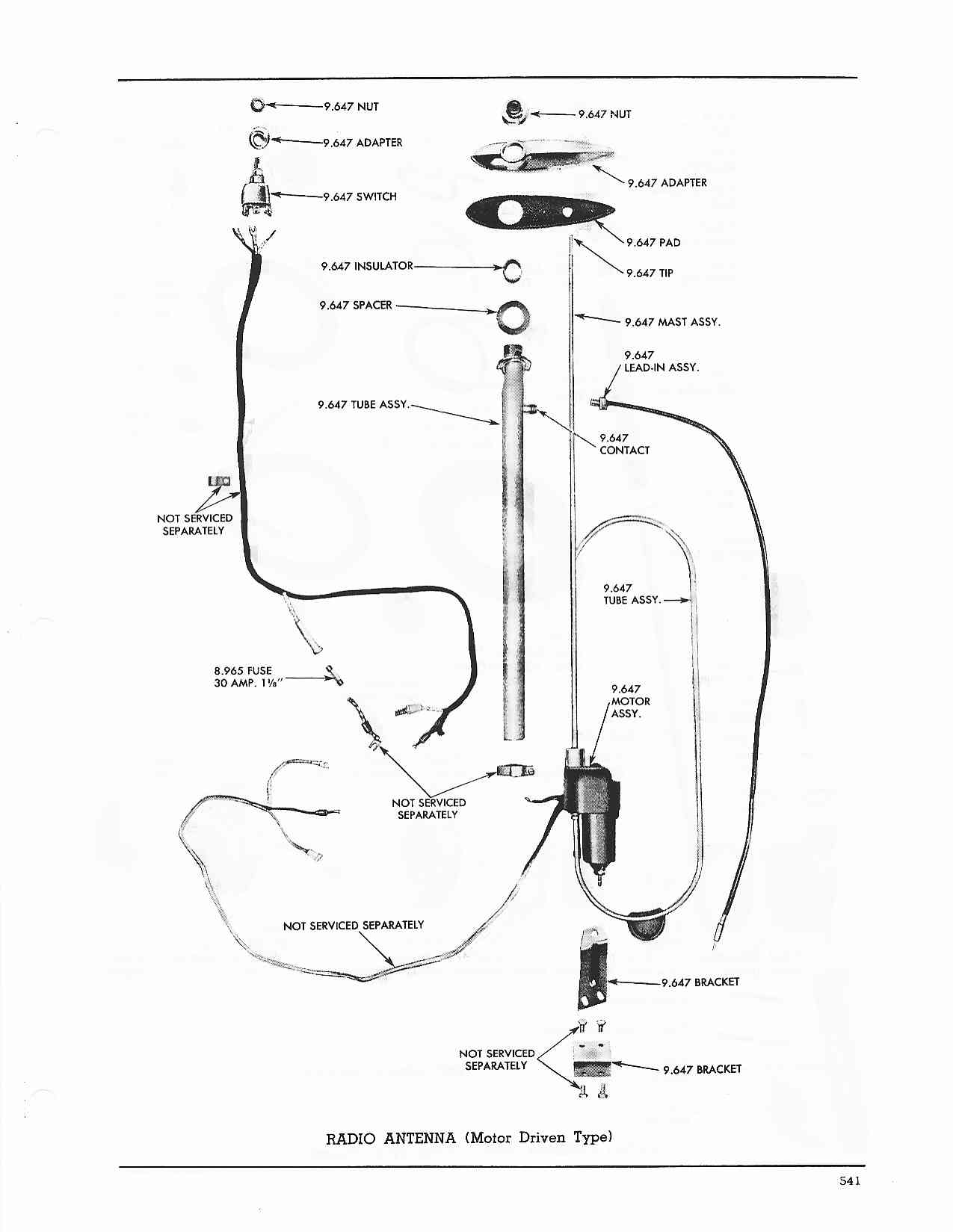

541 Radio Antenna (Motor Driven Type)

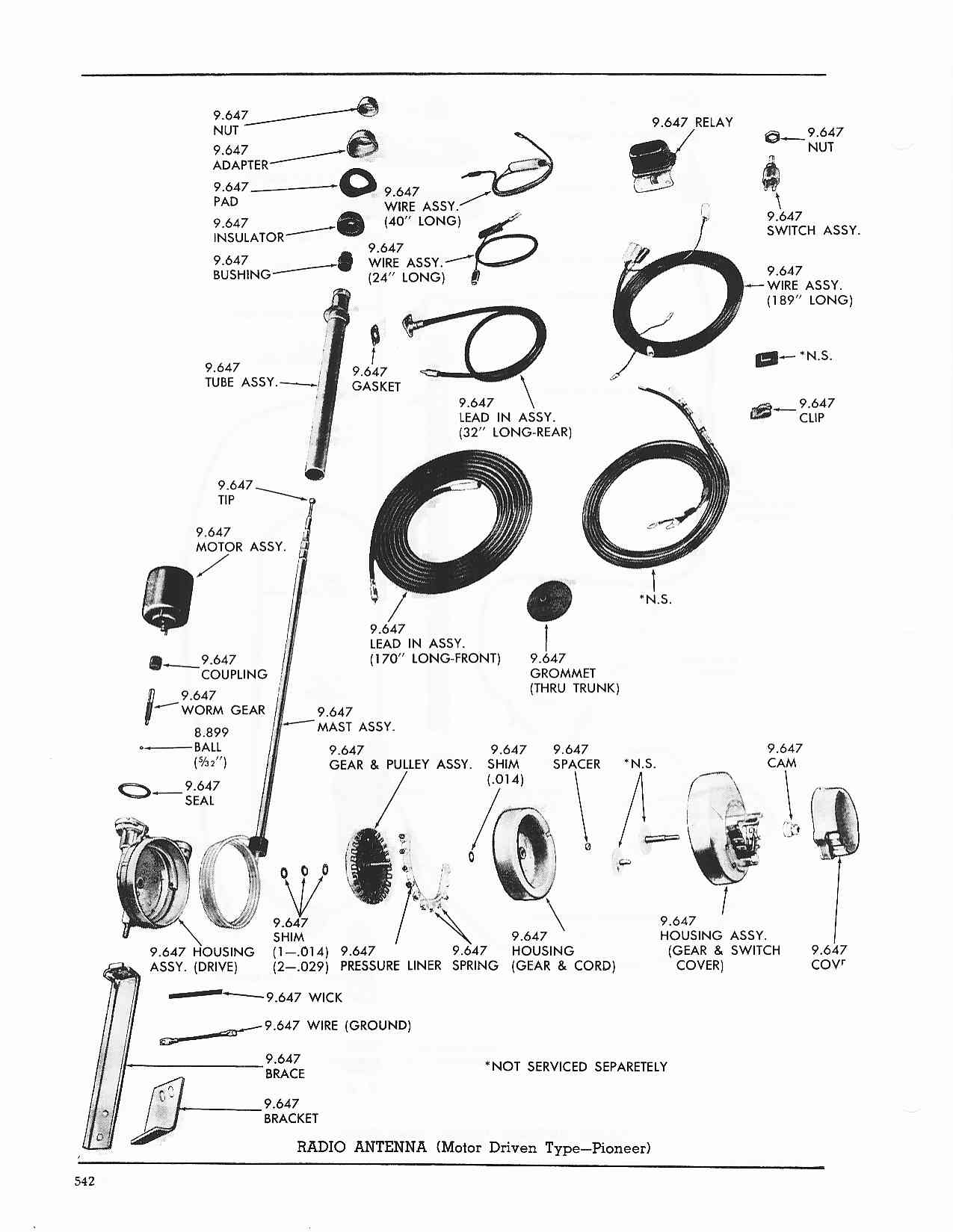

542 Radio Antenna (Motor Driven Type - Pioneer)
543-580 parts listing 9.xxx   Radio, Antenna, Clock, Defroster

 Body Parts Section

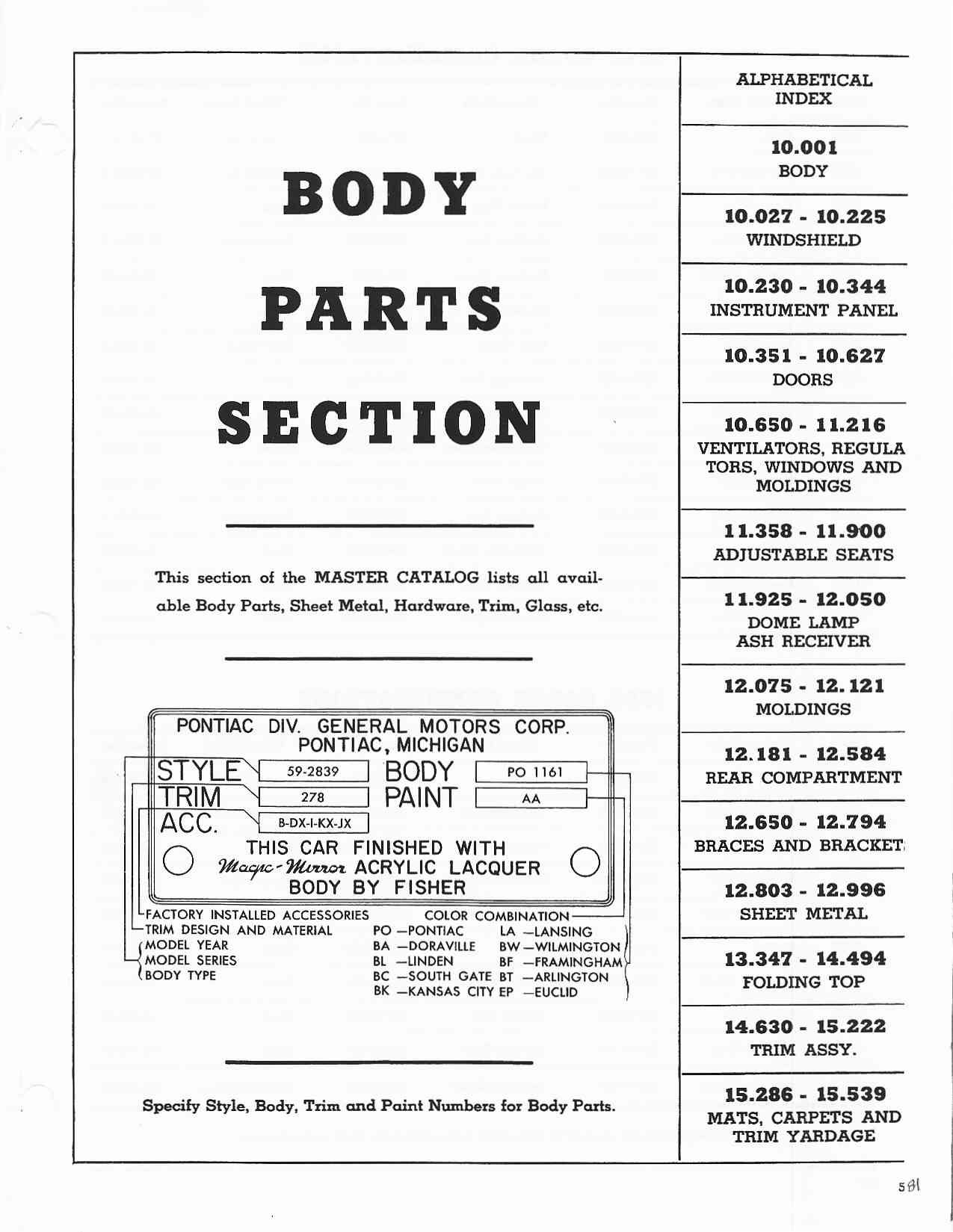

581 BODY PARTS SECTION Cover Page and Contents
582-612 Color Combinations 1949 - 1960
613-620 Trim Combinations 1946 - 1960
621-626 Body Alphabetical Index - index of body parts by part name

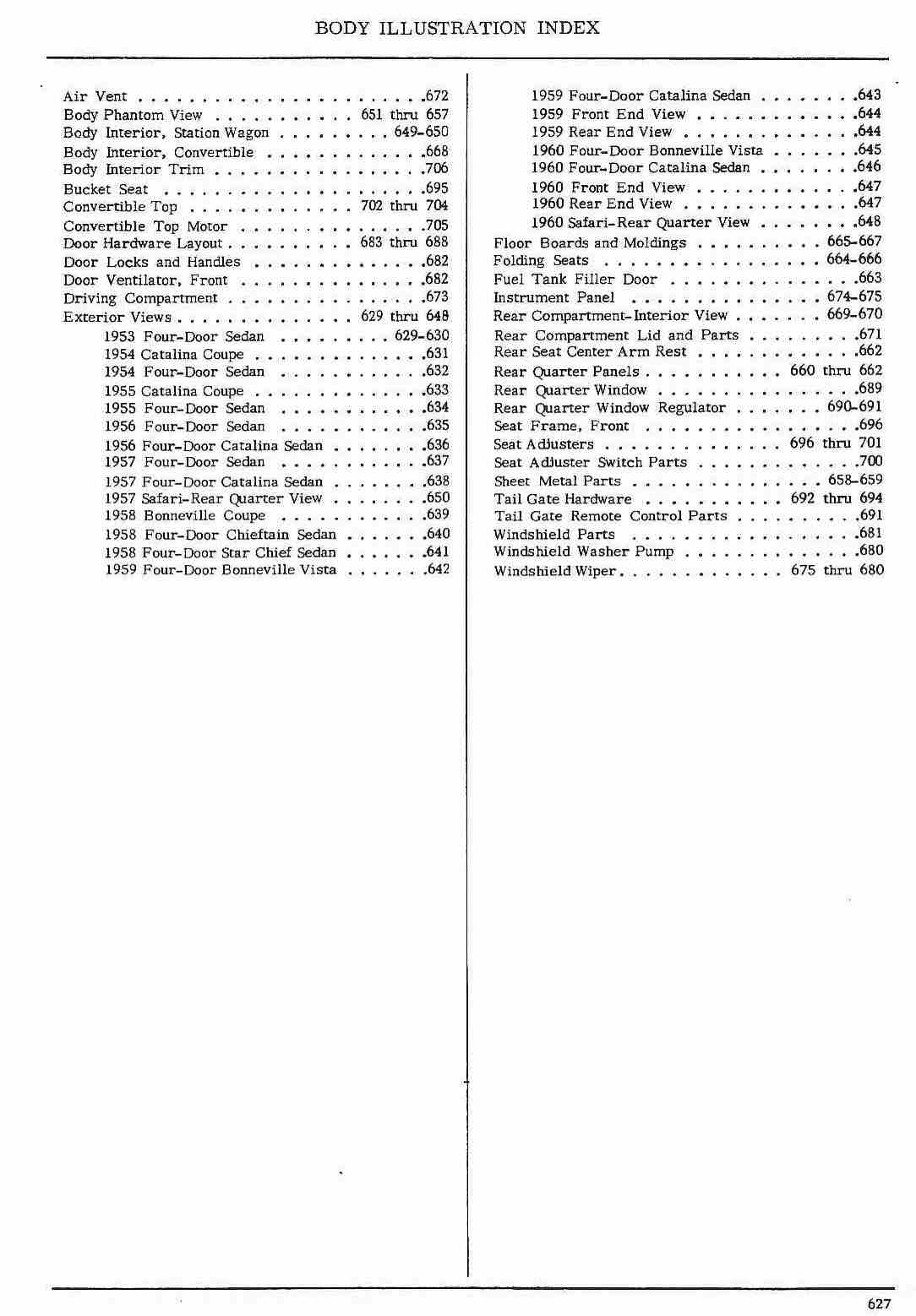

627 Body Illustration Index - index of Illustrations in this section


Begin Body Illustrations- Parts Listings (highlighted) at end

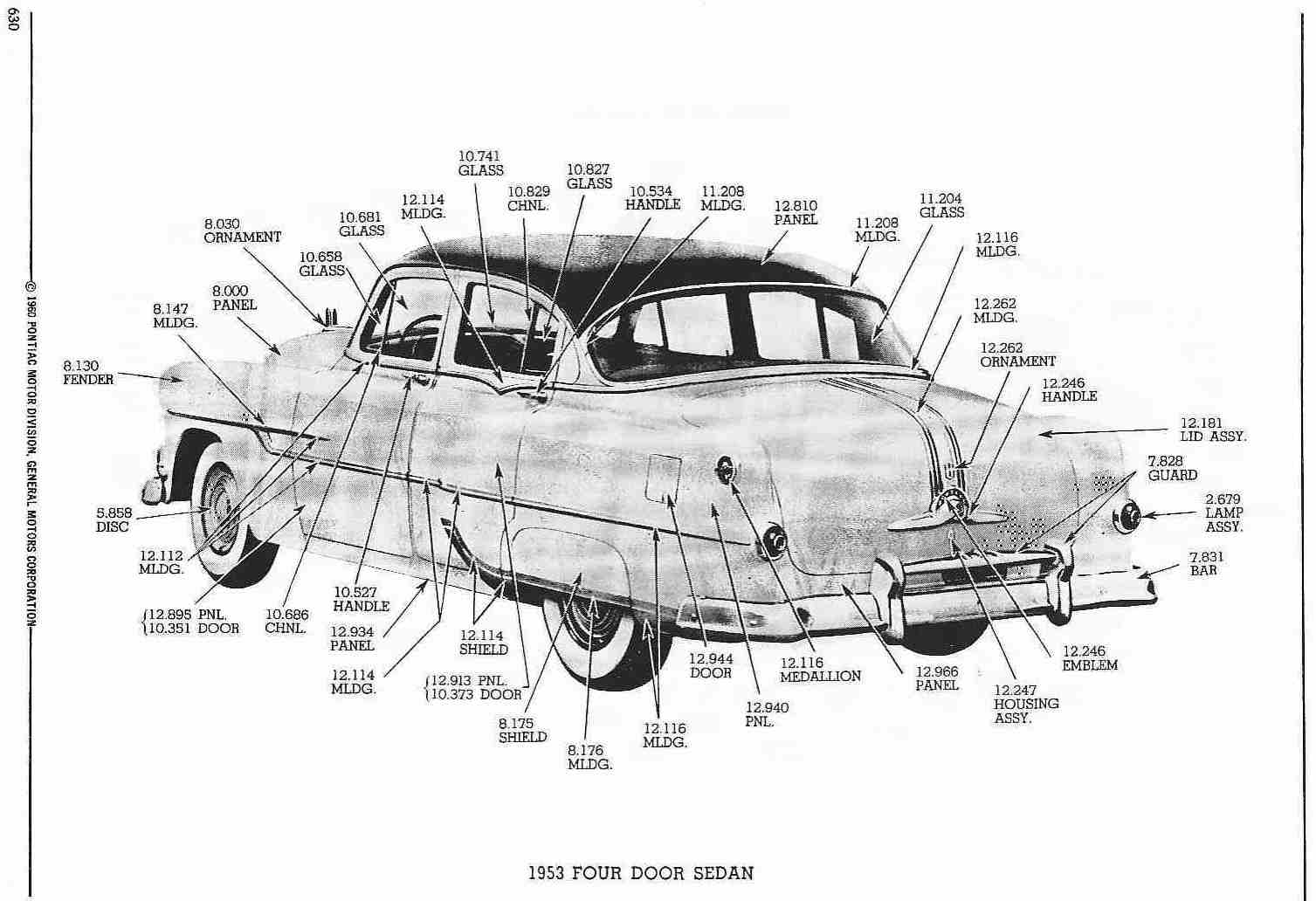

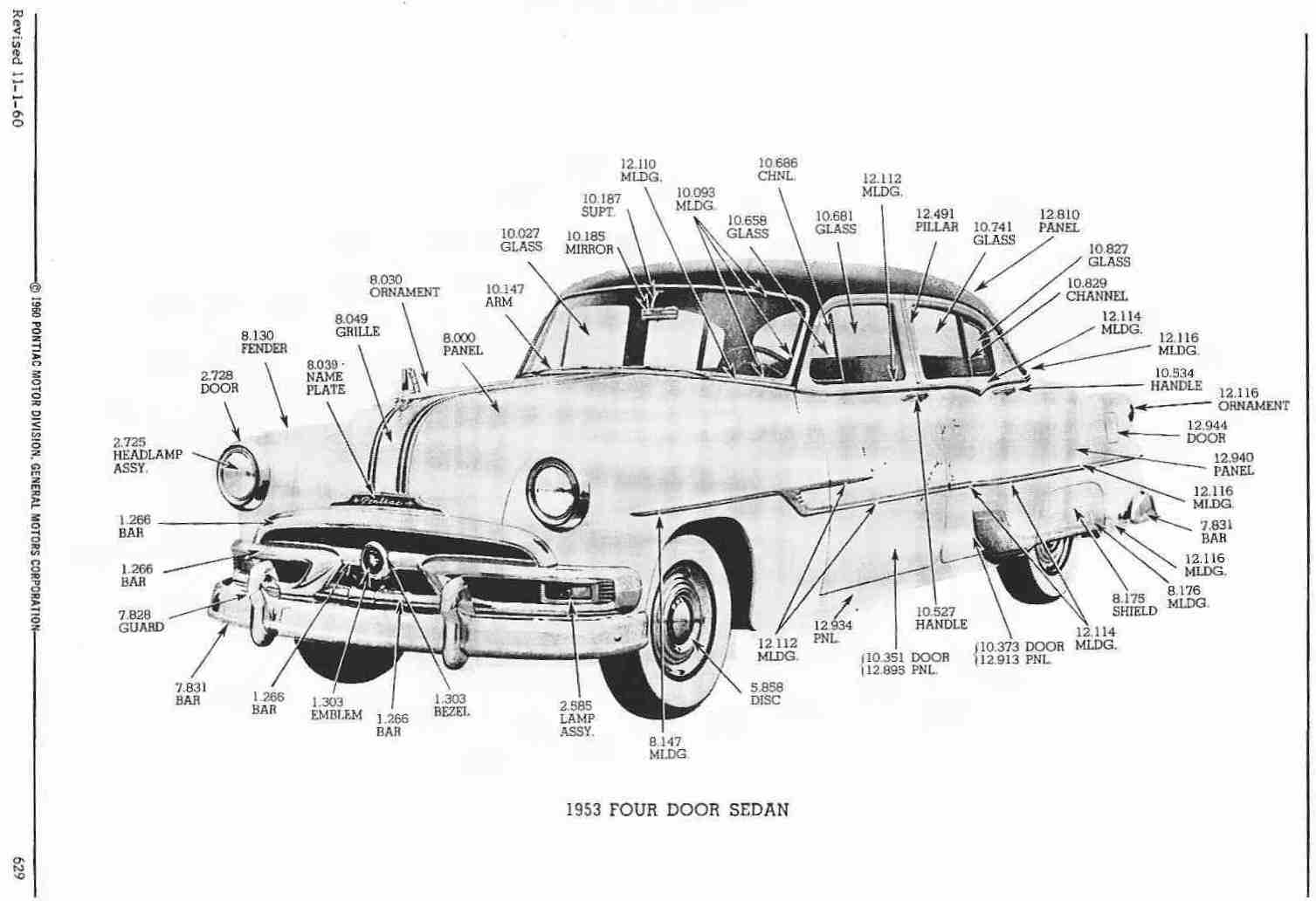

629 1953 Four Door Sedan
630 1953 Four Door Sedan

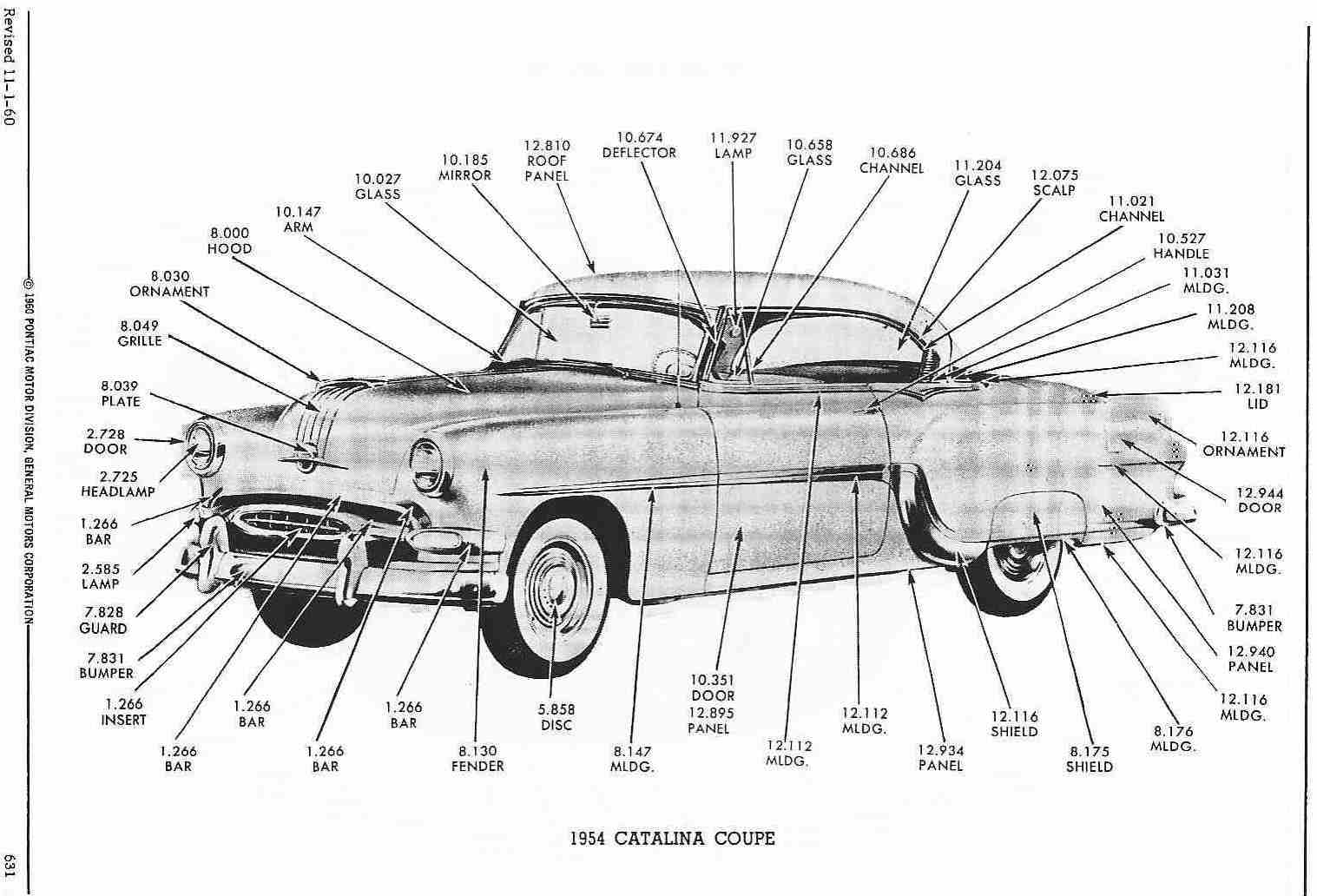

631 1954 Four Catalina Coupe

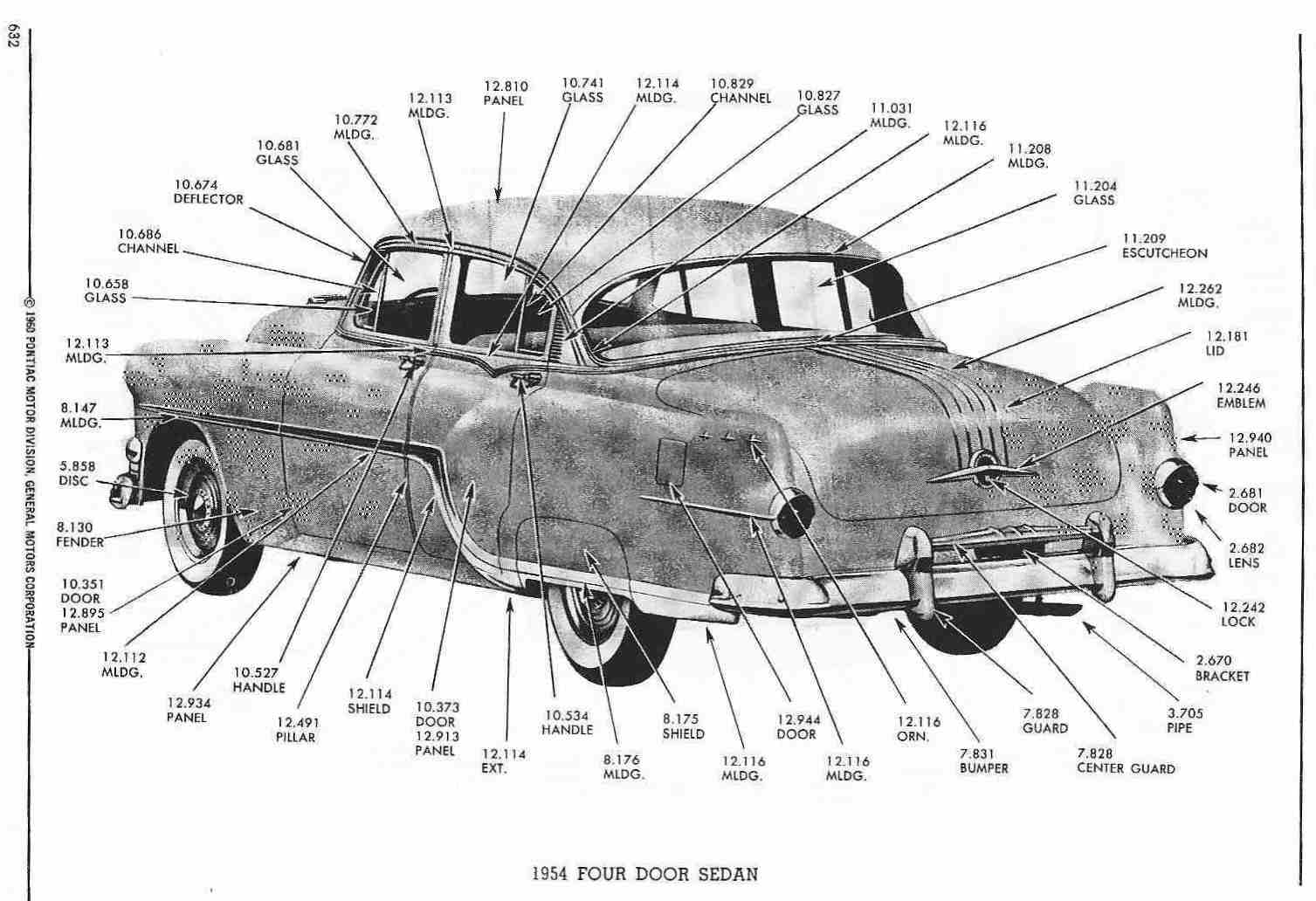

632 1954 Four Door Sedan

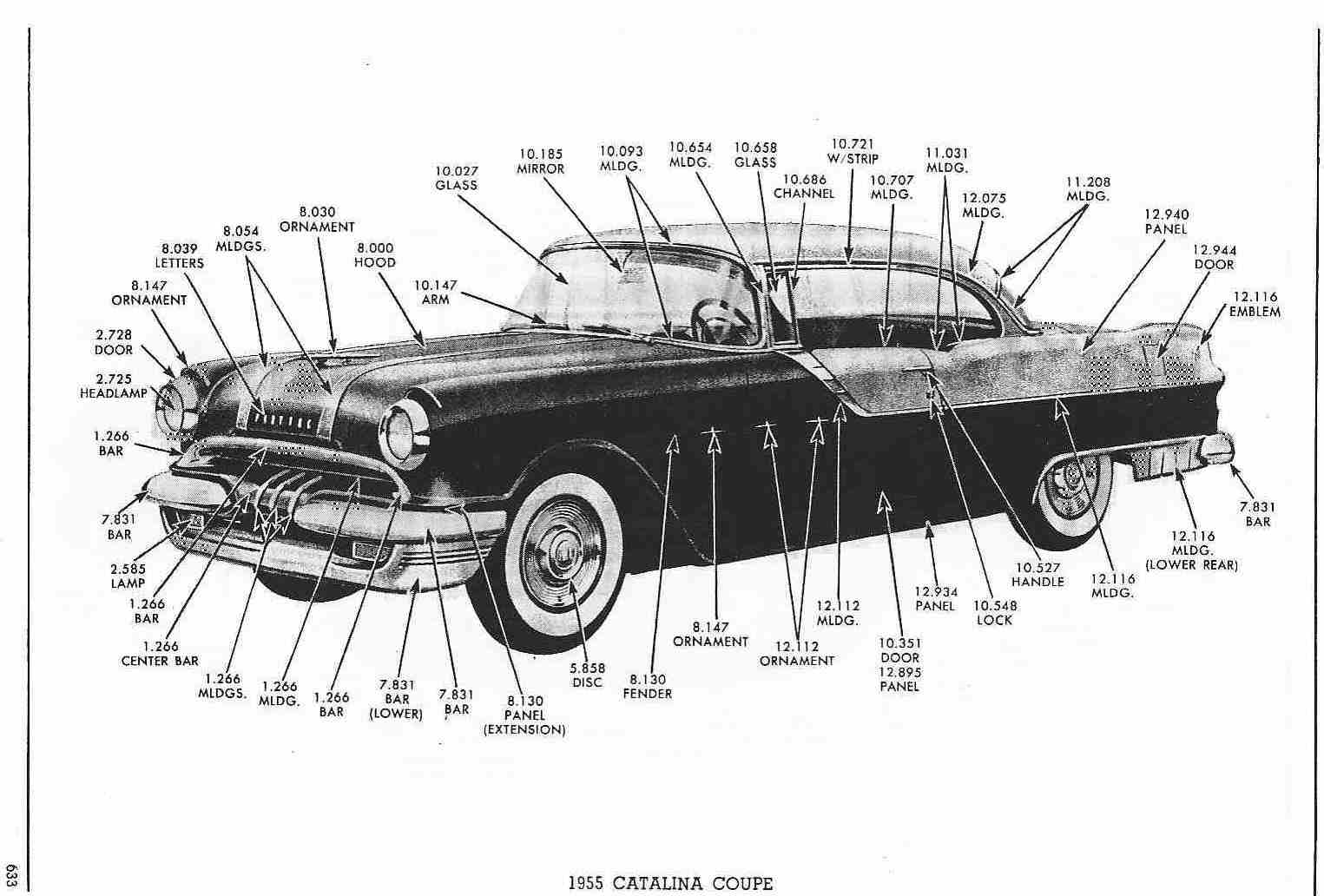

633 1955 Catalina Coupe (2-door hardtop)

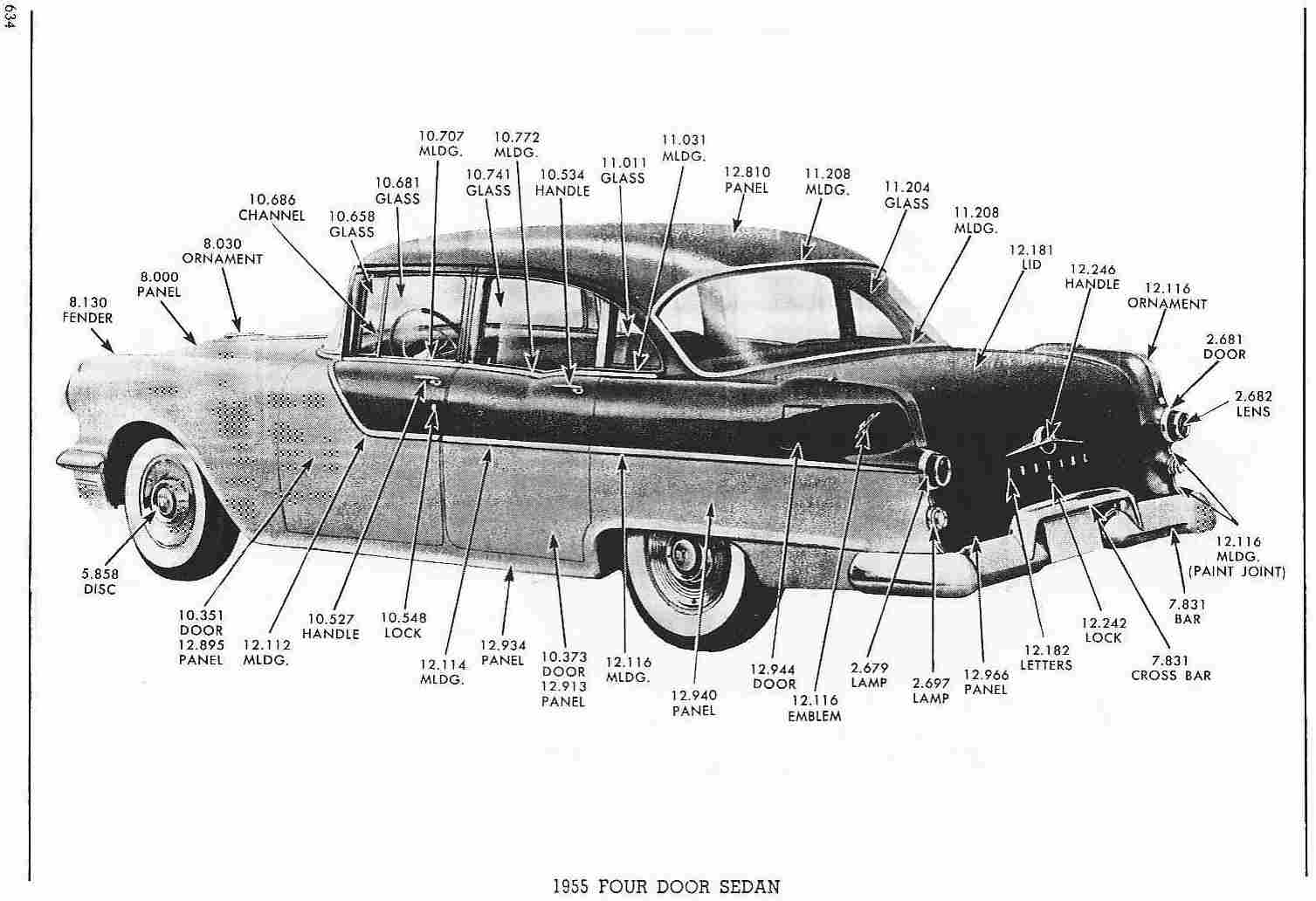

634 1955 Four Door Sedan

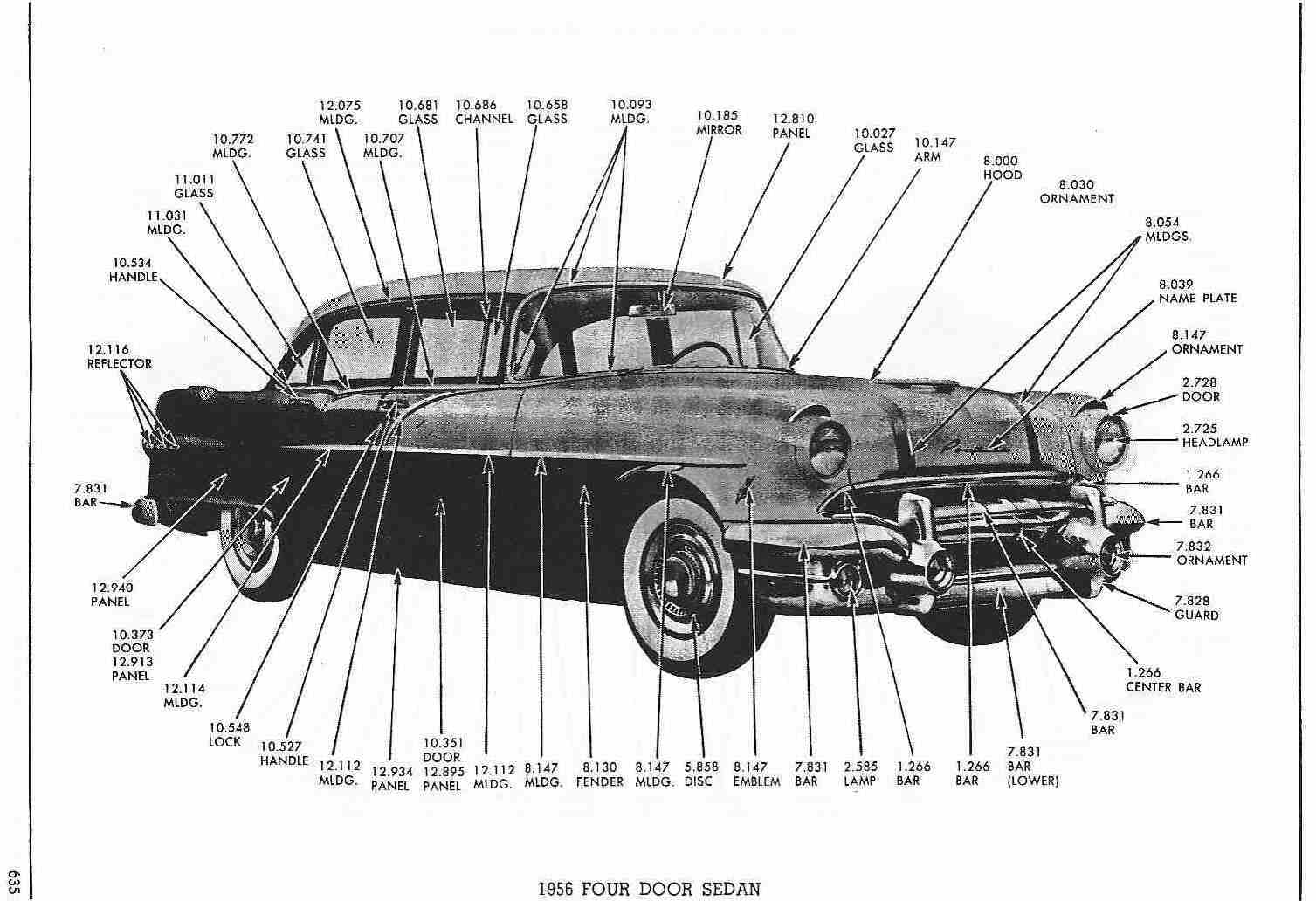

635 1956 Four Door Sedan

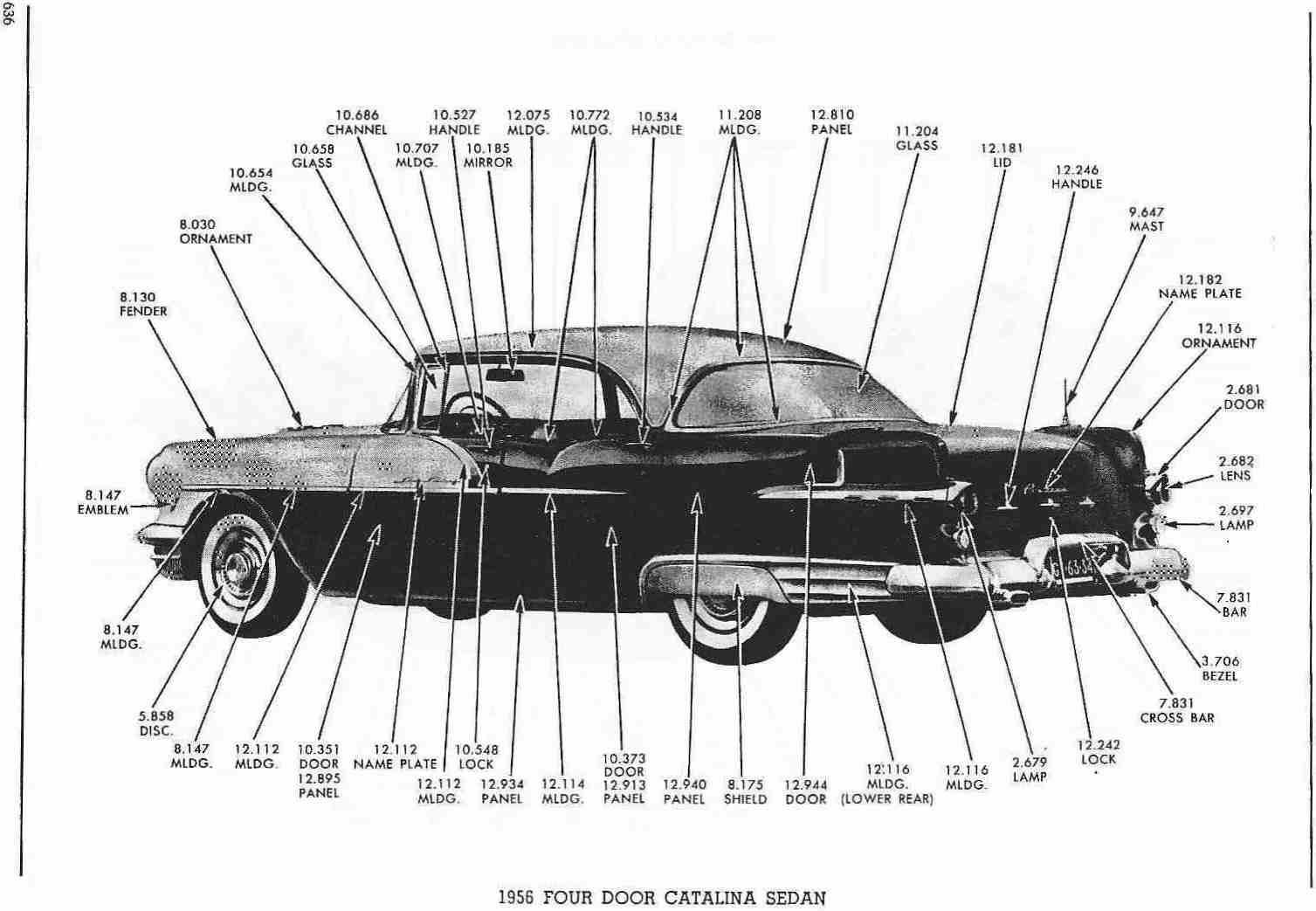

636 1956 Four Door Catalina Sedan (4-door hardtop)

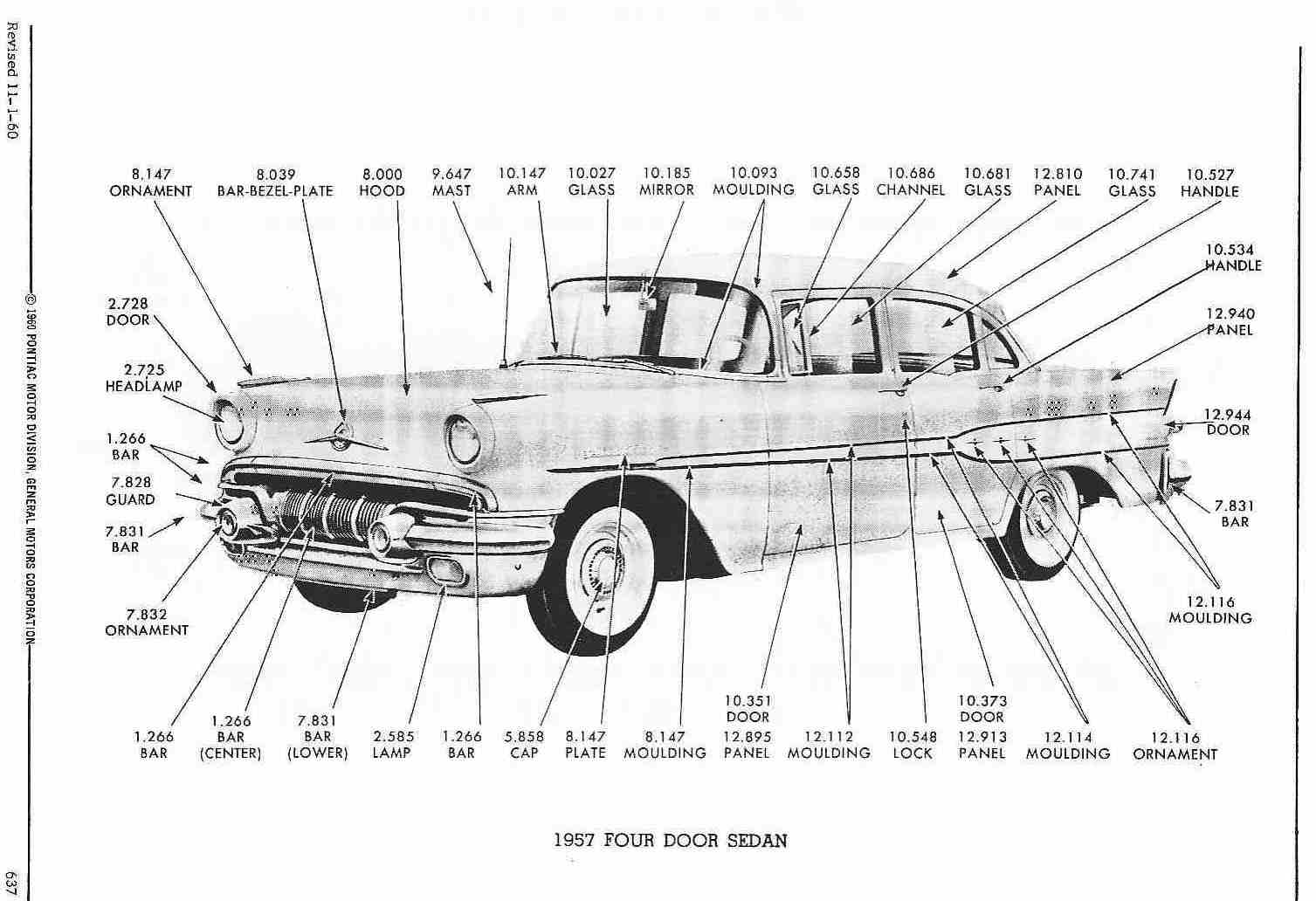

637 1957 Four Door Sedan

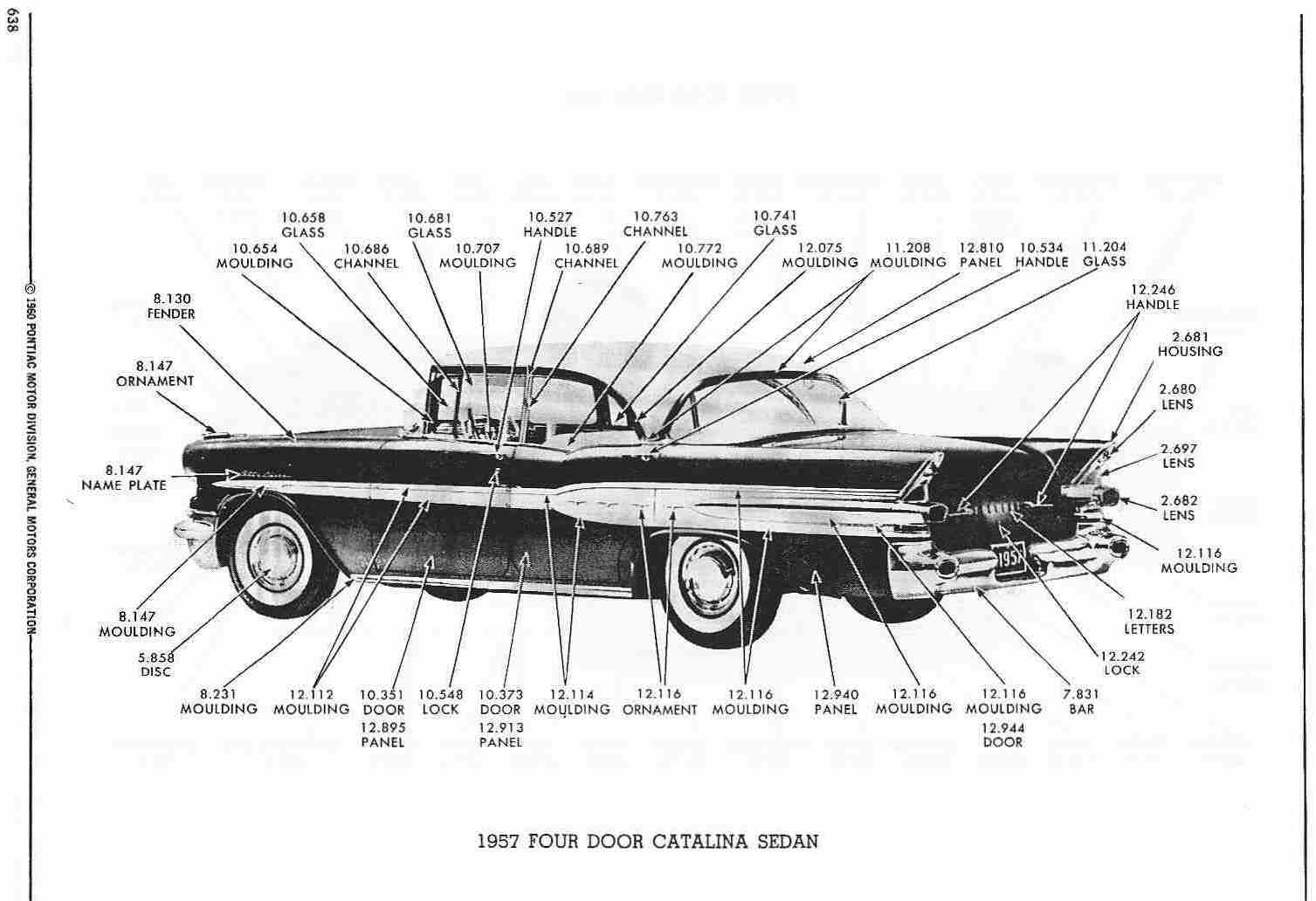

638 1957 Four Door Catalina Sedan (4-door hardtop)

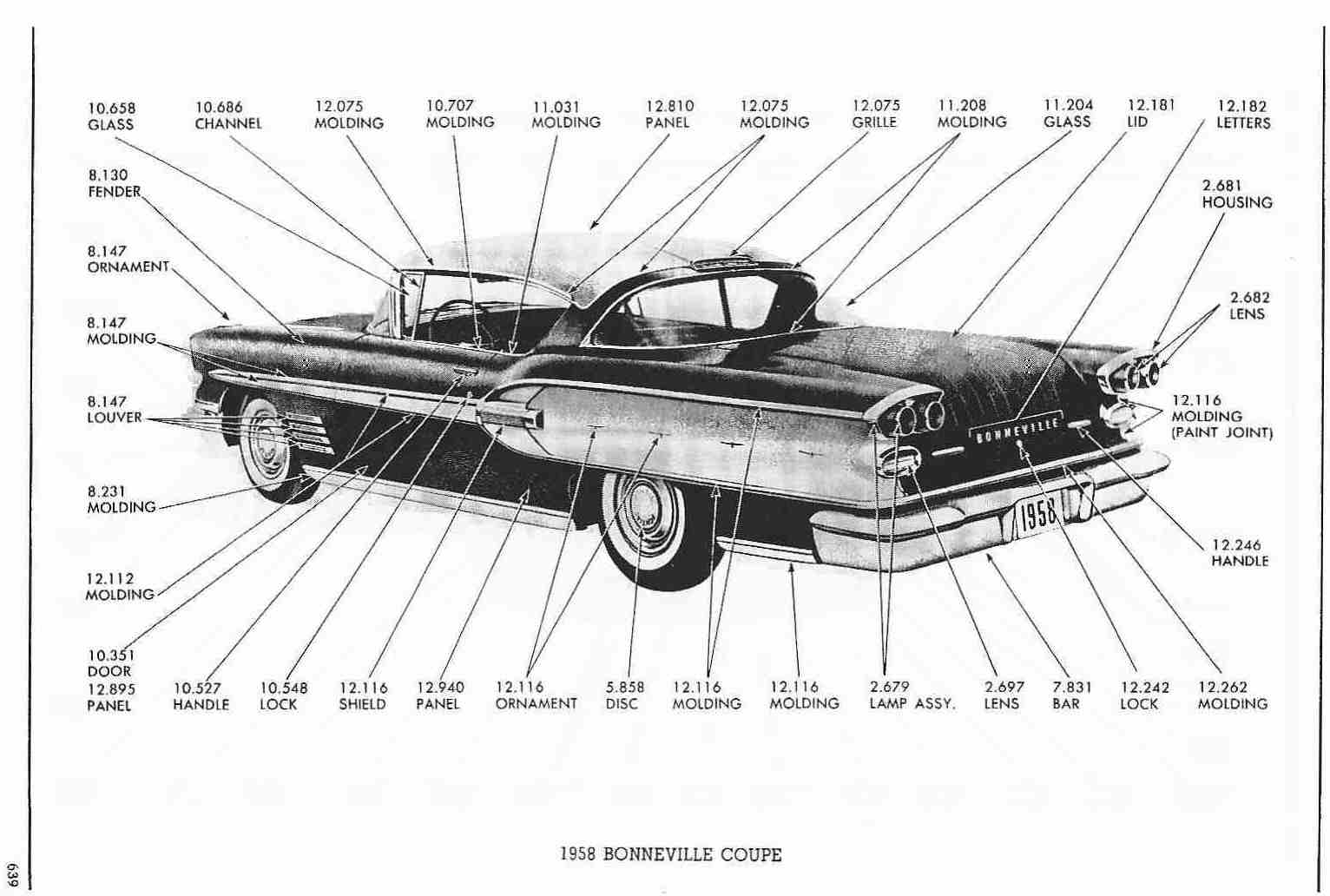

639 1958 Bonneville Coupe

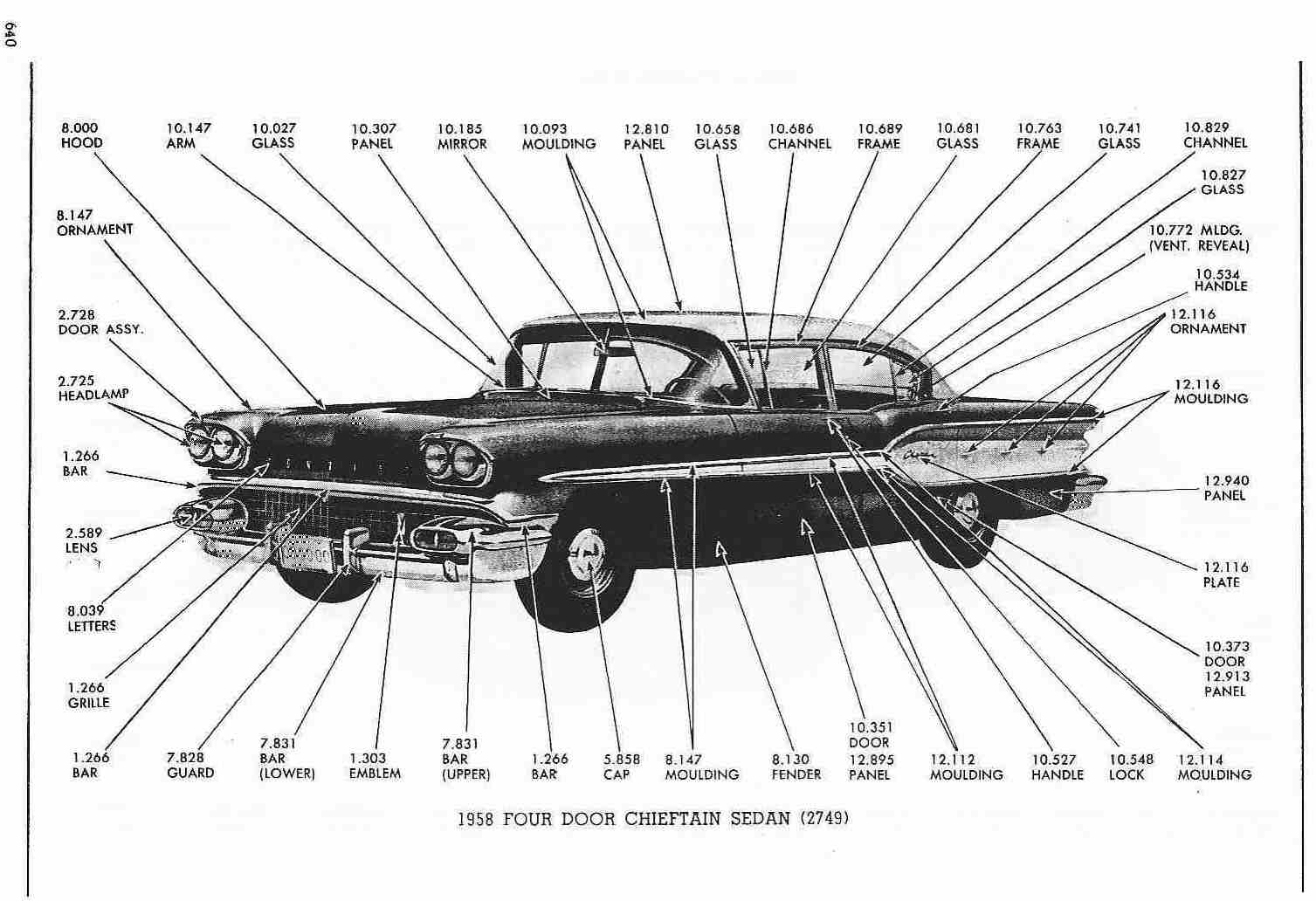

640 1958 Four Door Chieftain Sedan (2749)

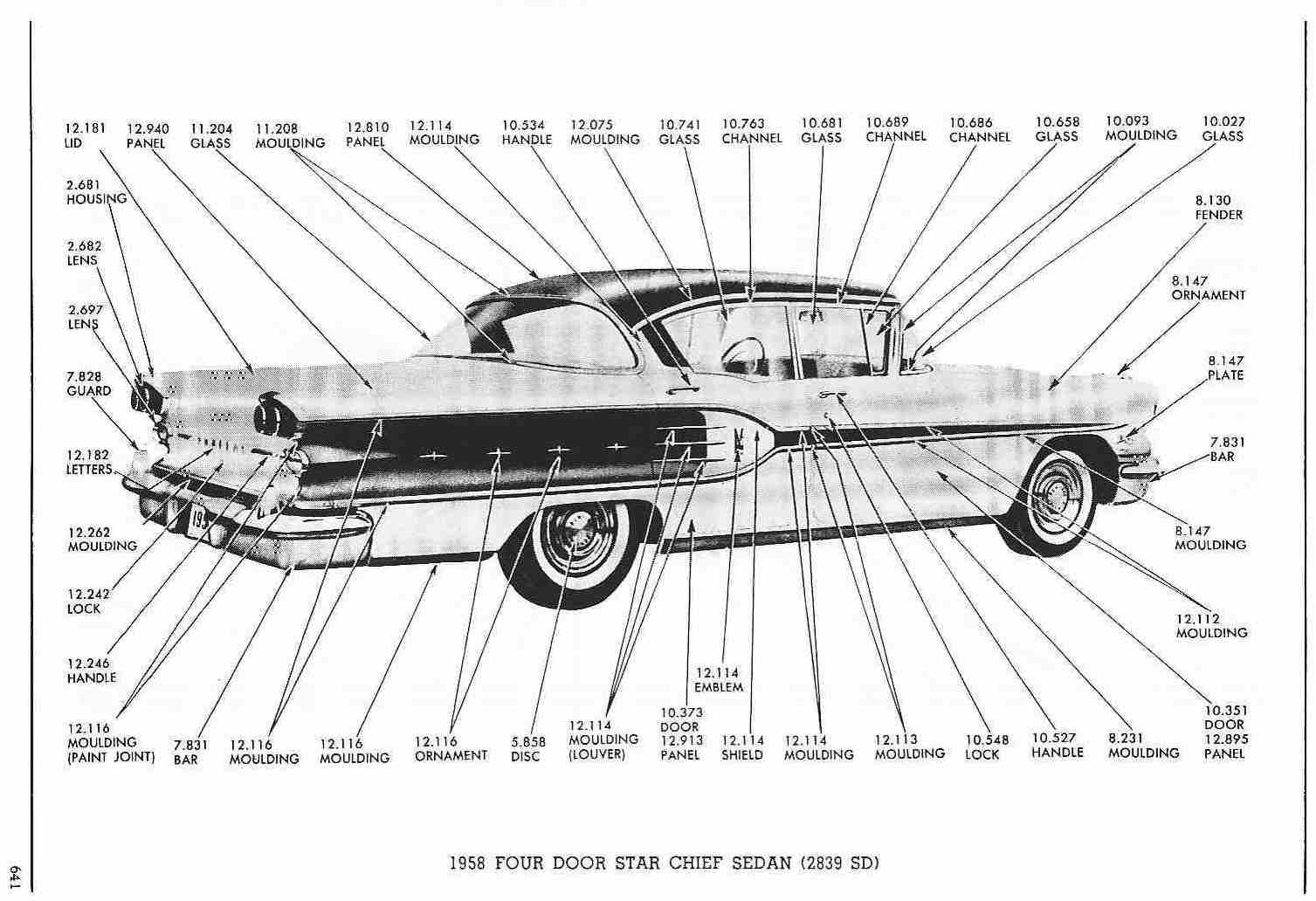

641 1958 Four Door Star Chief Sedan (2839SD)

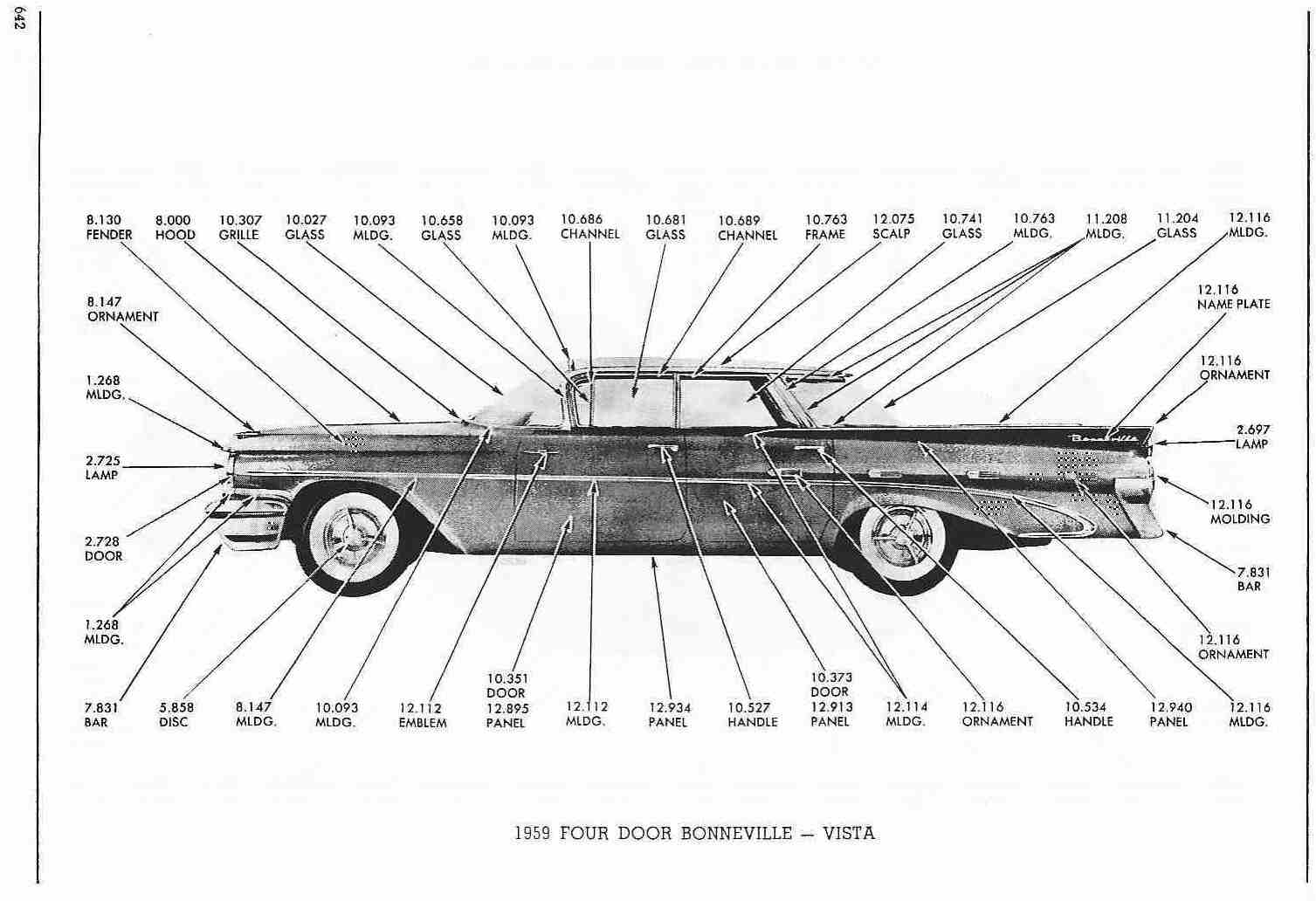

642 1959 Four Door Bonneville -- Vista

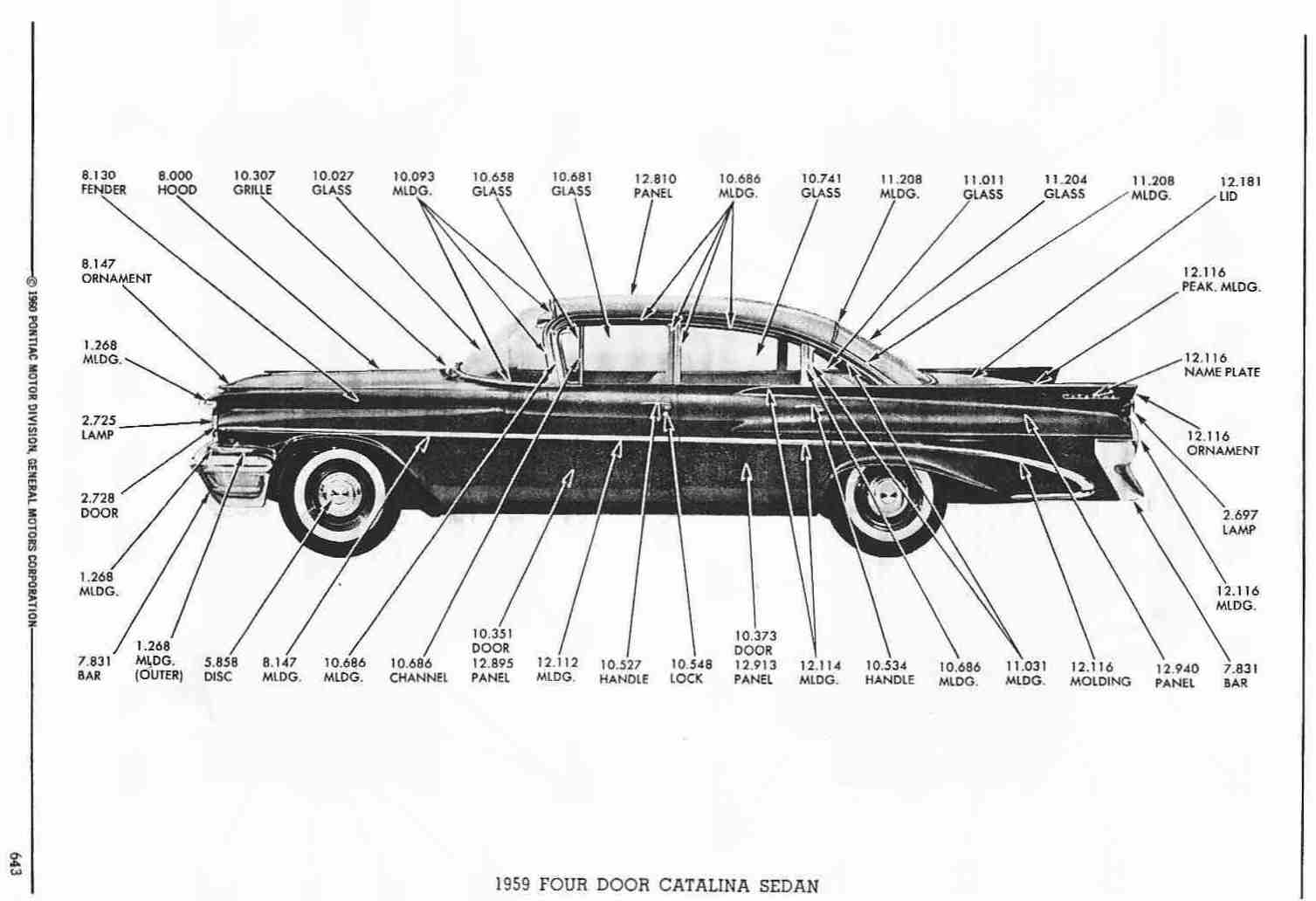

643 1959 Four Door Catalina Sedan

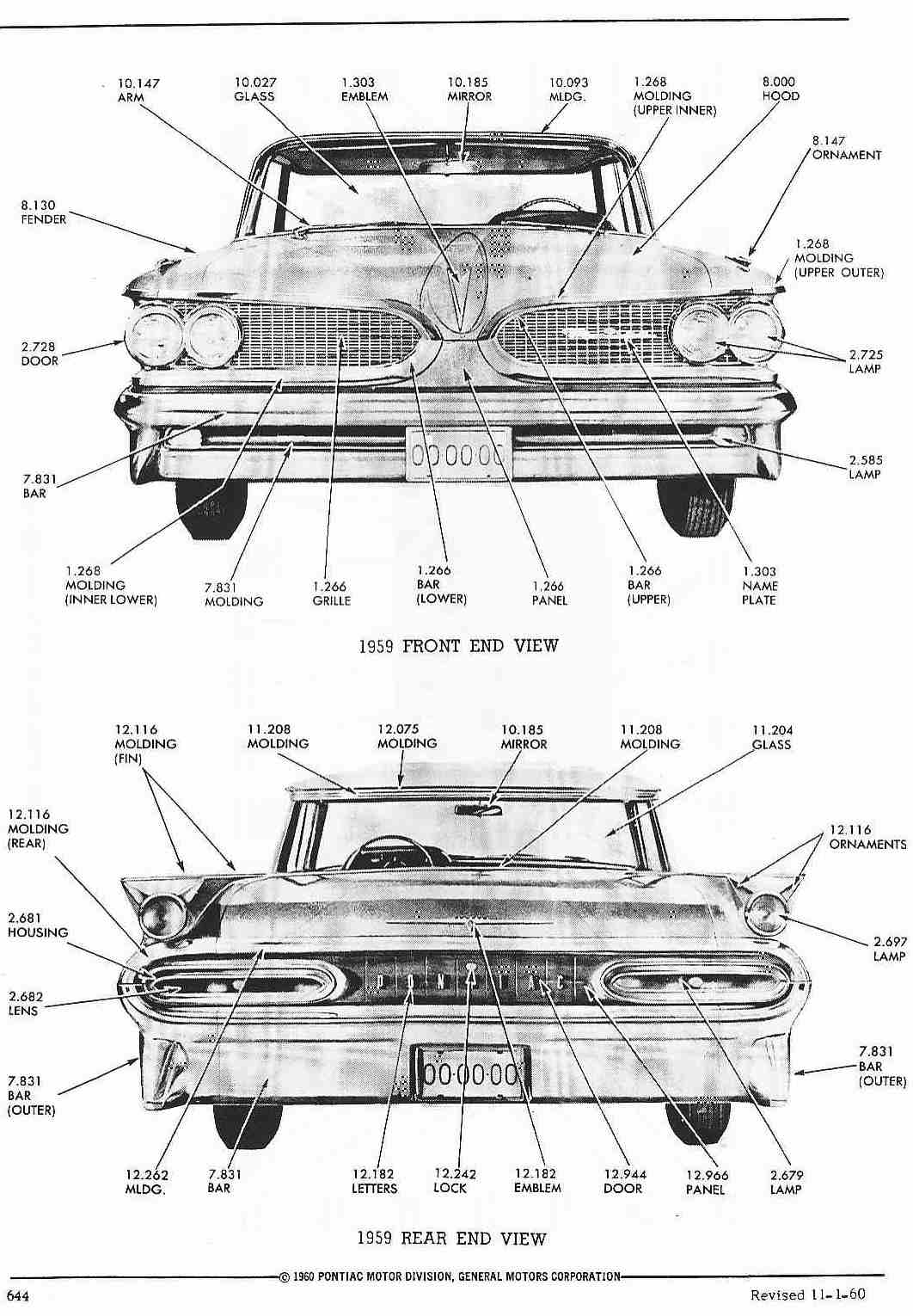

644 1959 Front End View / Rear End View

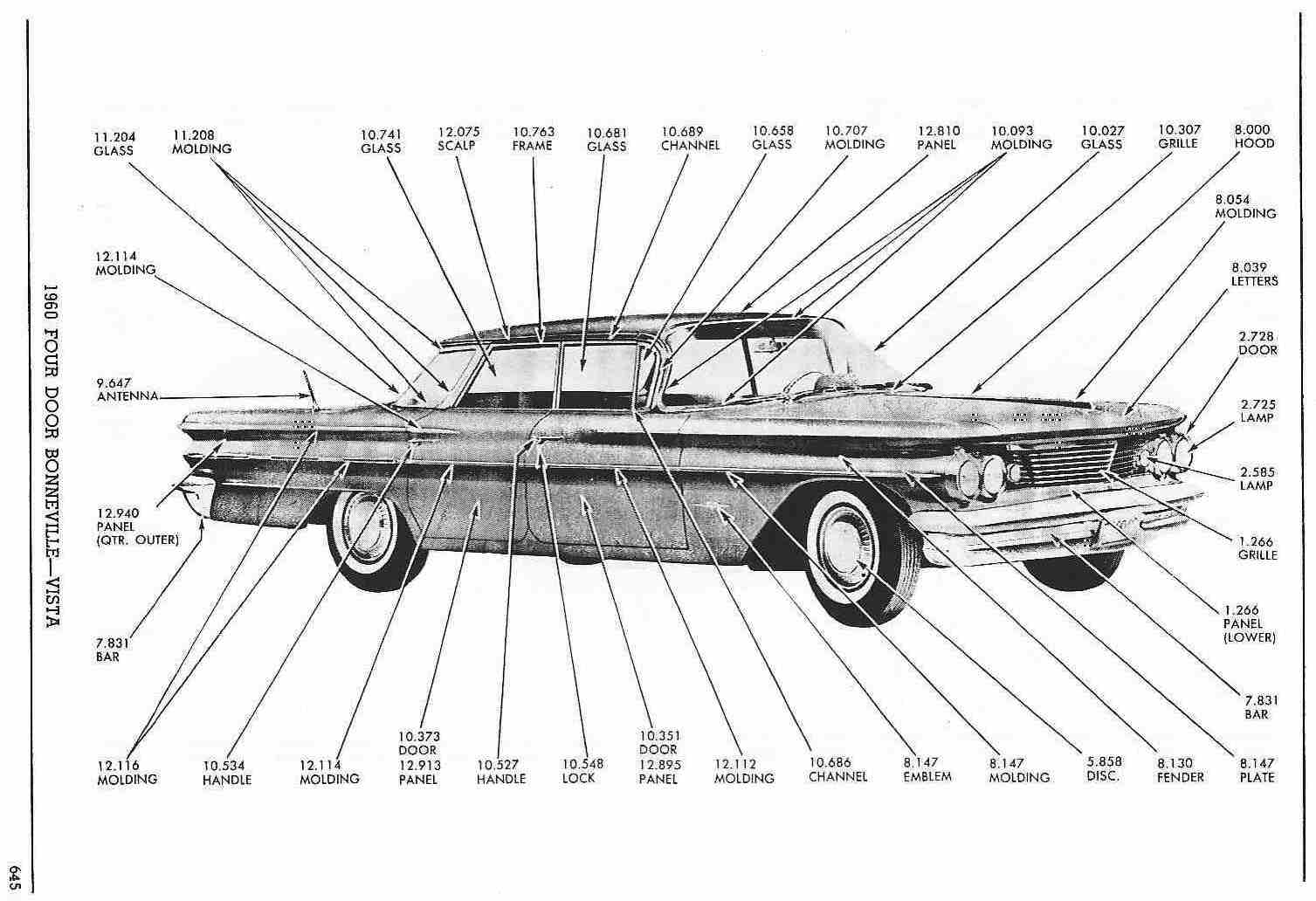

645 1960 Four Door Bonneville -- Vista

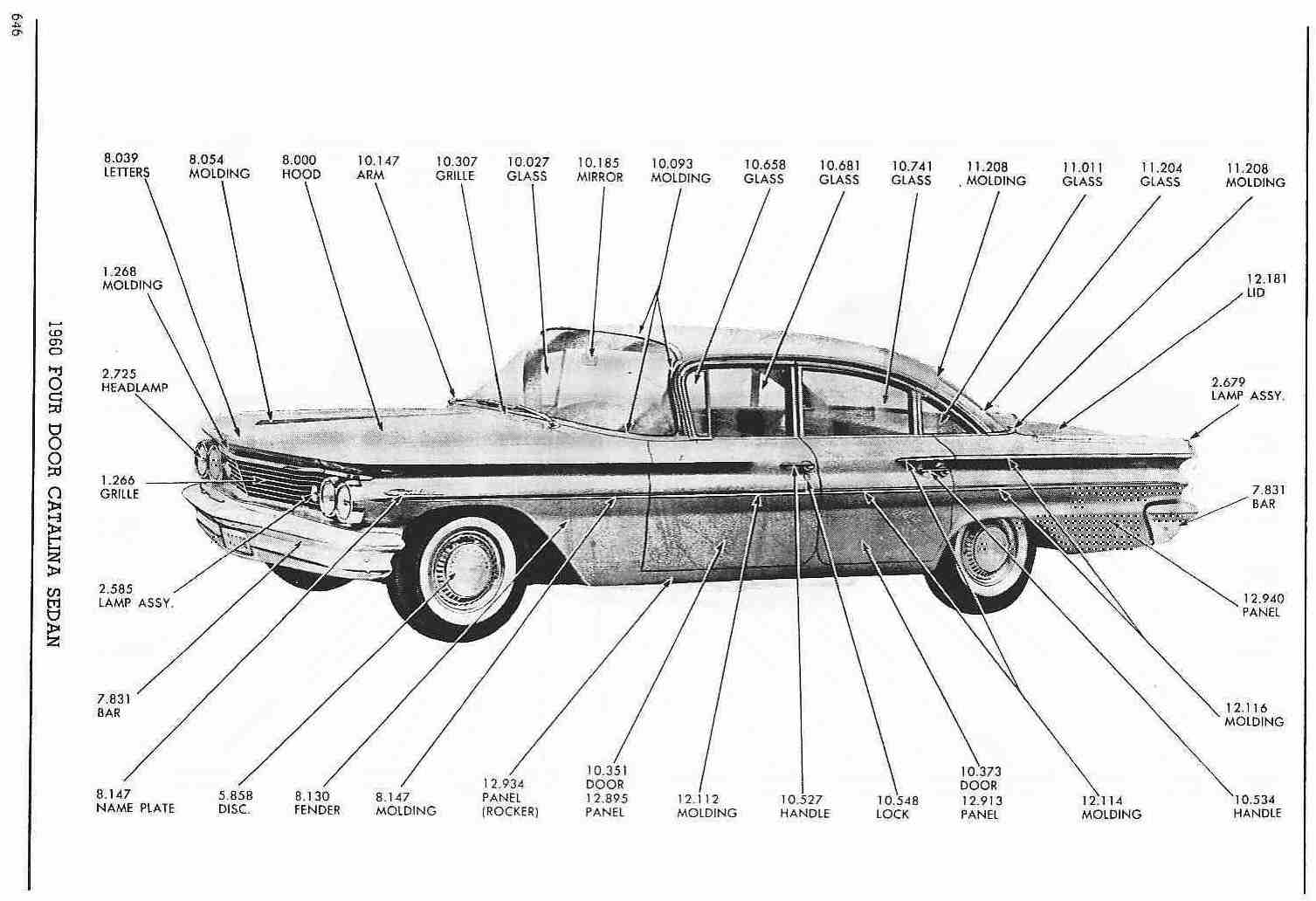

646 1960 Four Door Catalina Sedan

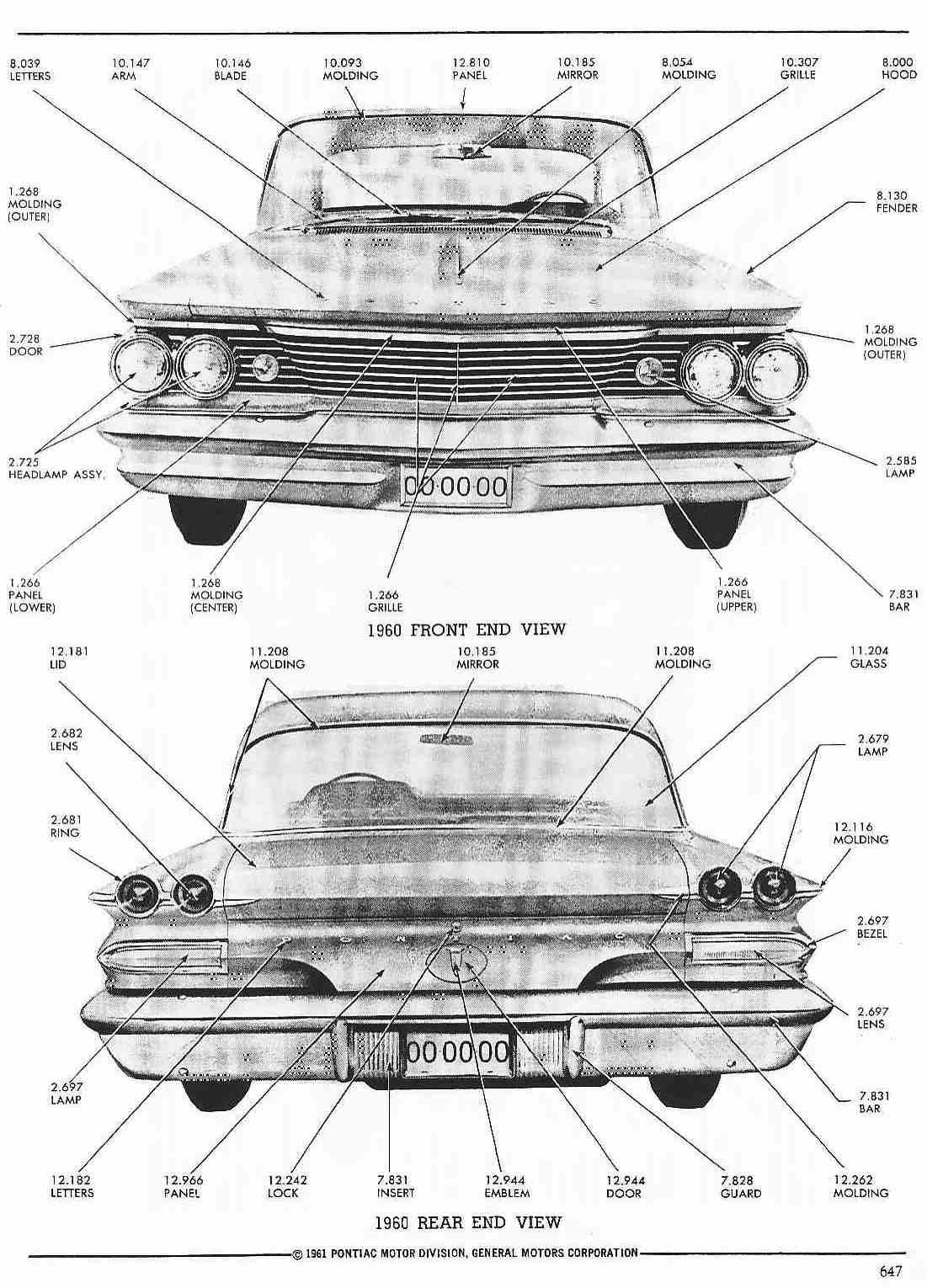

647 1960 Front End View / Rear End View

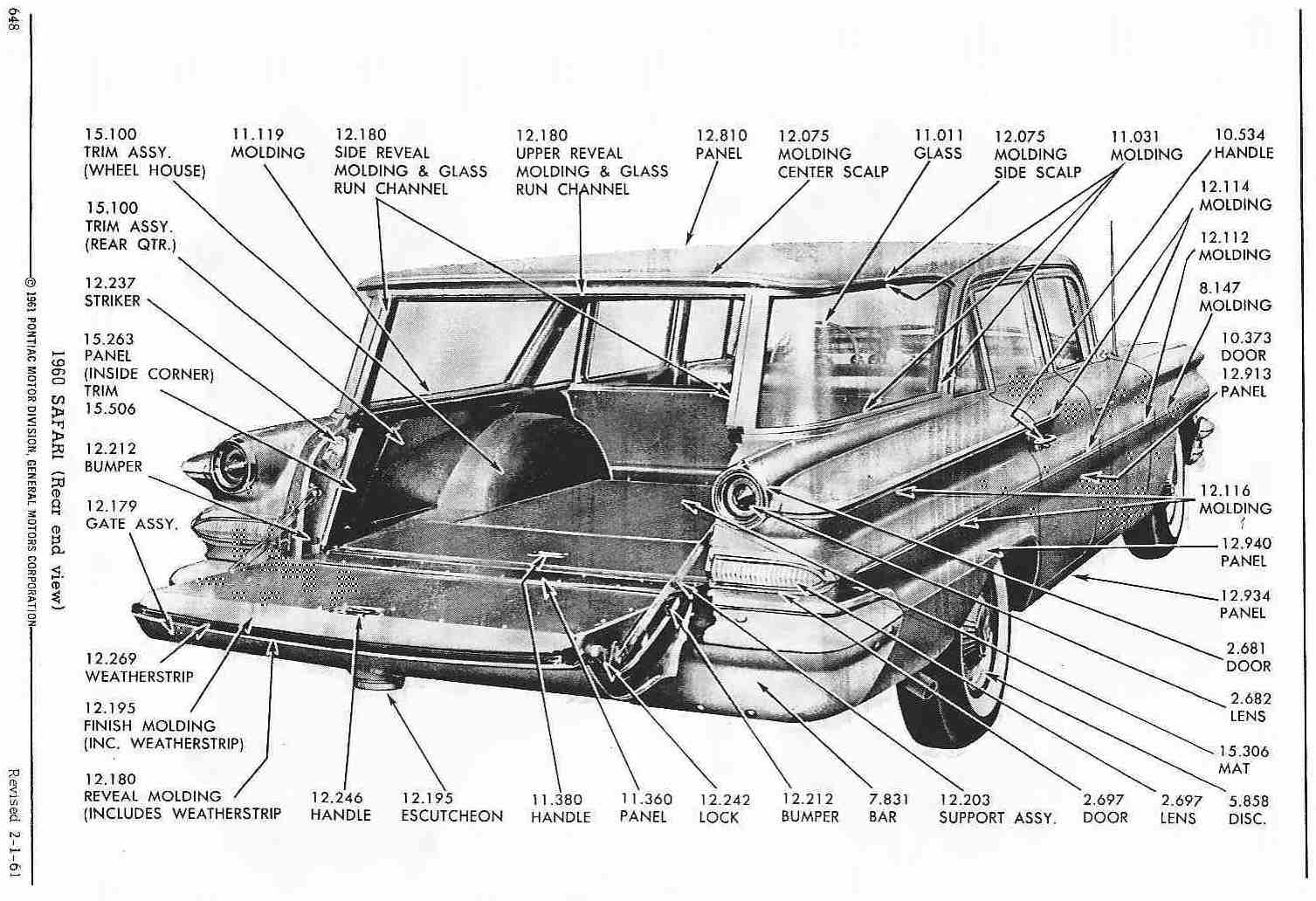

648 1960 Safari (Rear end view)

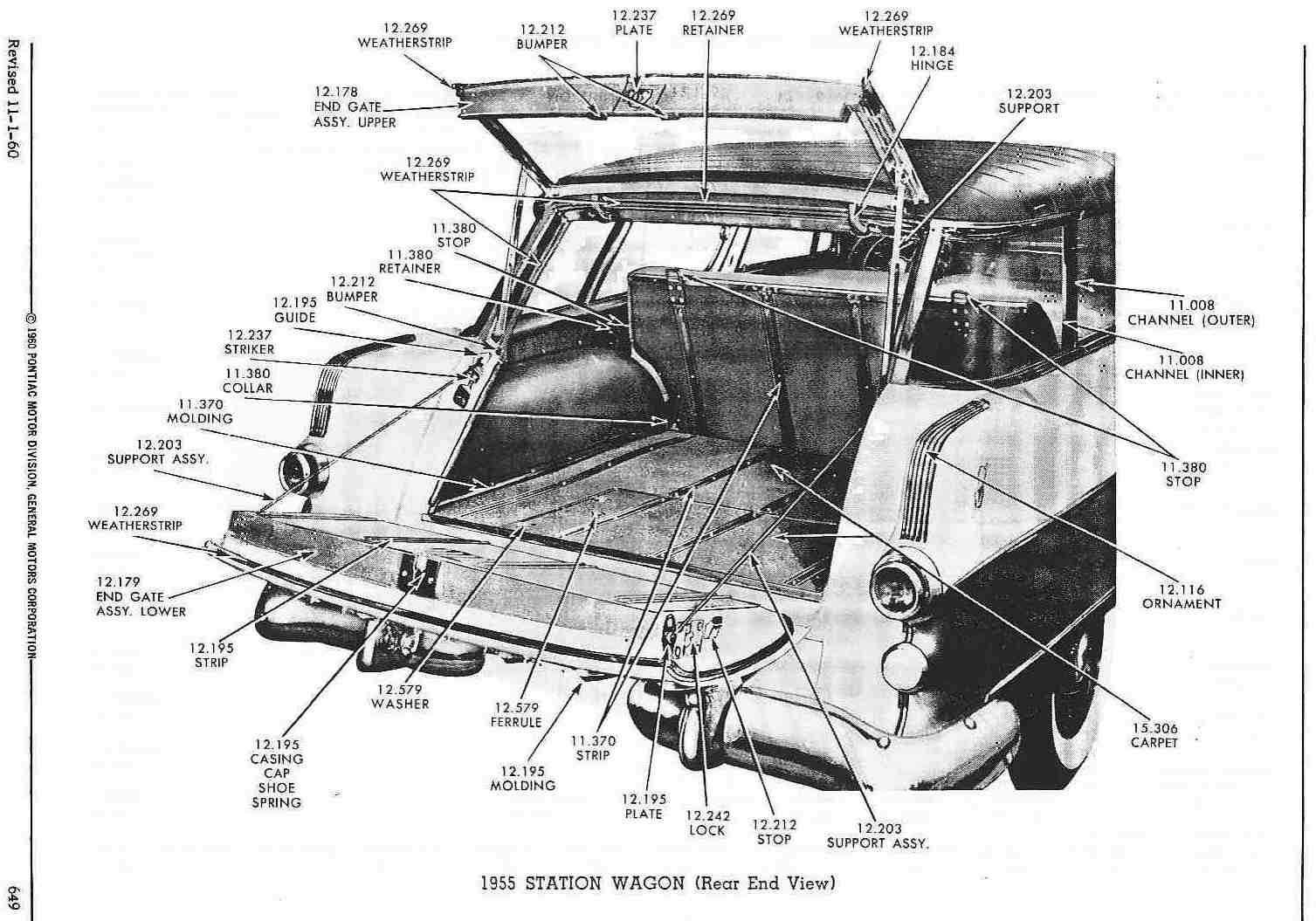

649 1955 Station Wagon (Rear End View) (Safari)

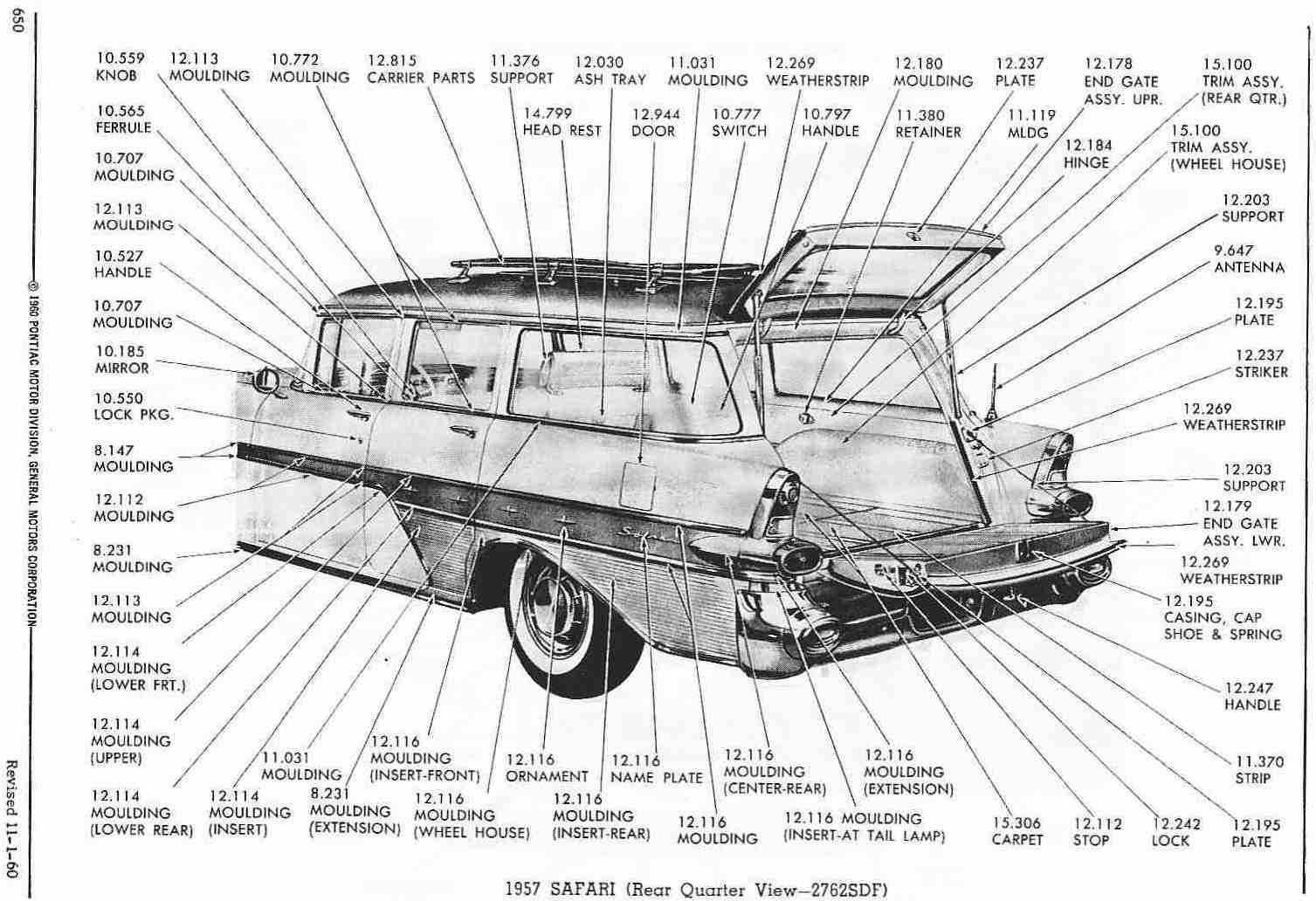

650 1957 Safari (Rear Quarter View - 2762SDF Transcontinental)

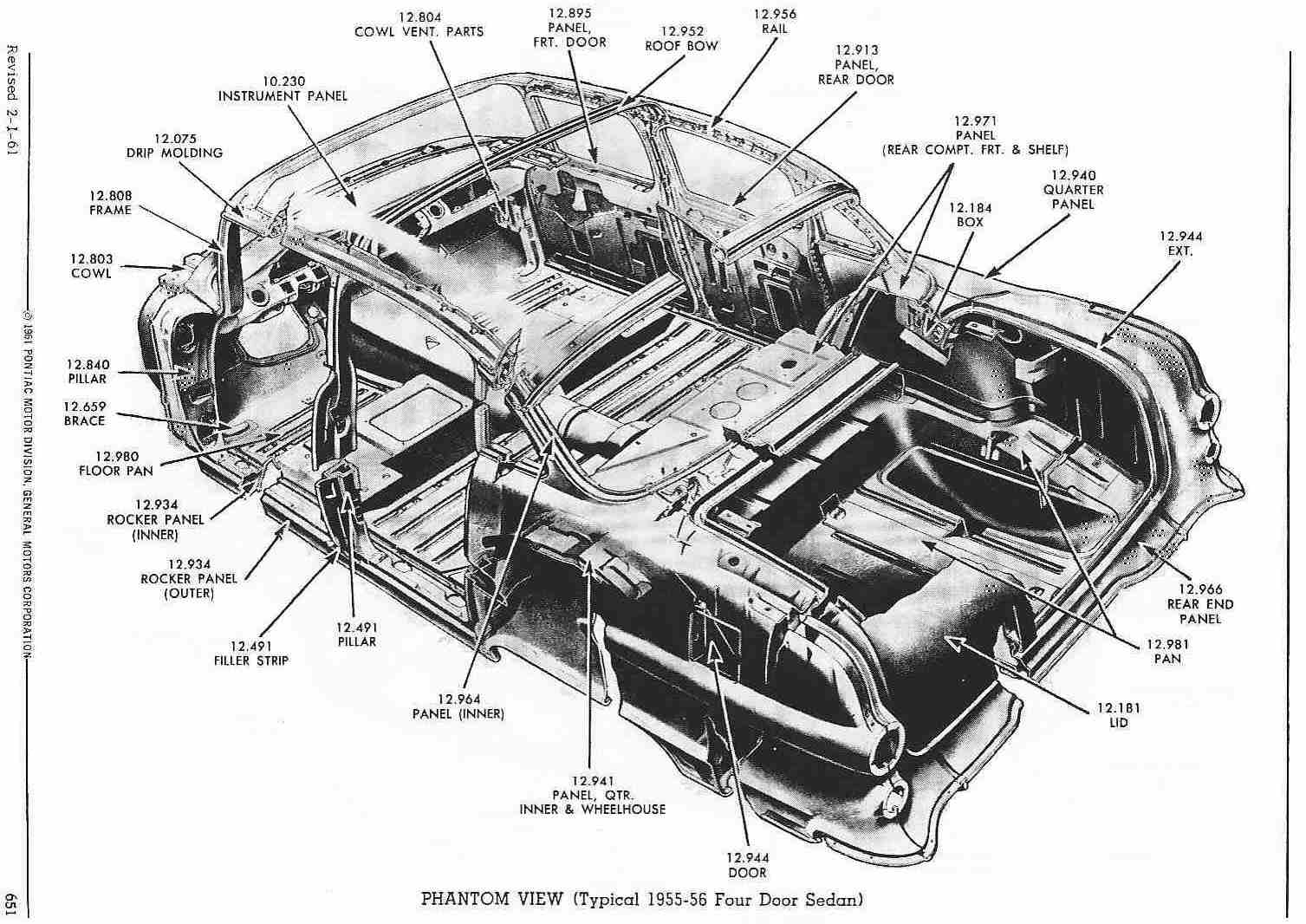

651 Phantom View (Typical 1955-56 Four Door Sedan)

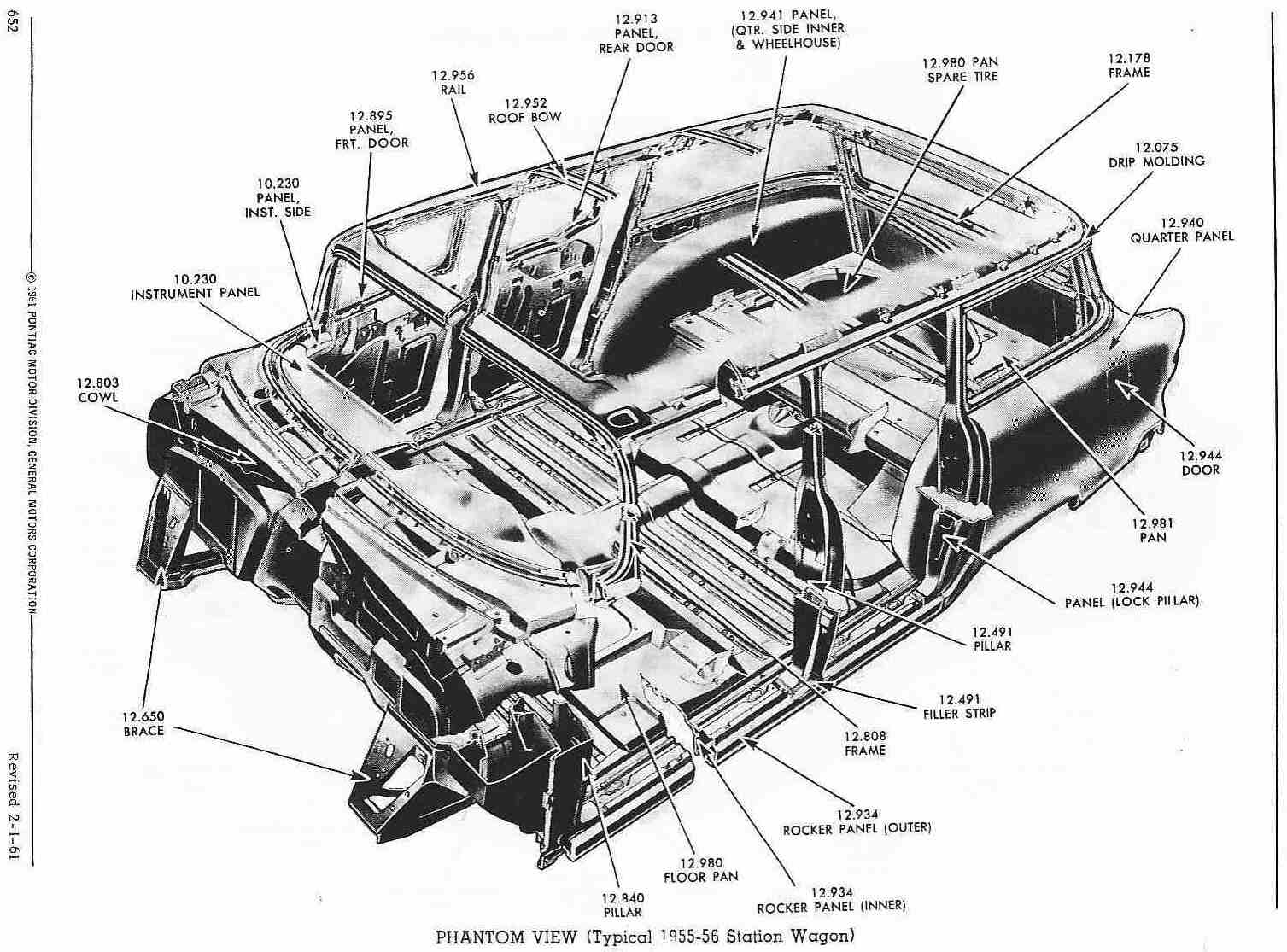

652 Phantom View (1955-56 Station Wagon)

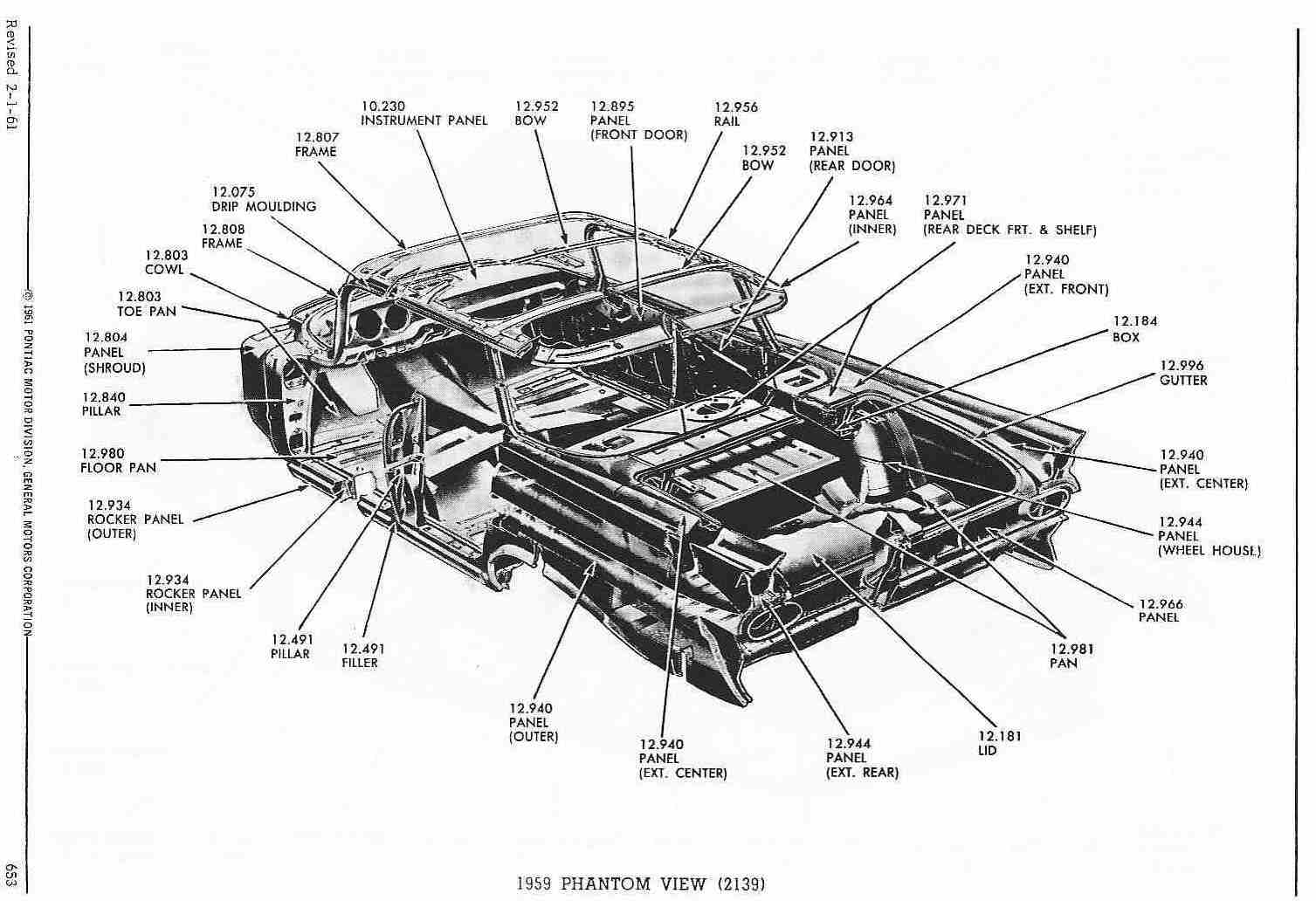

653 1959 Phantom View (2139)

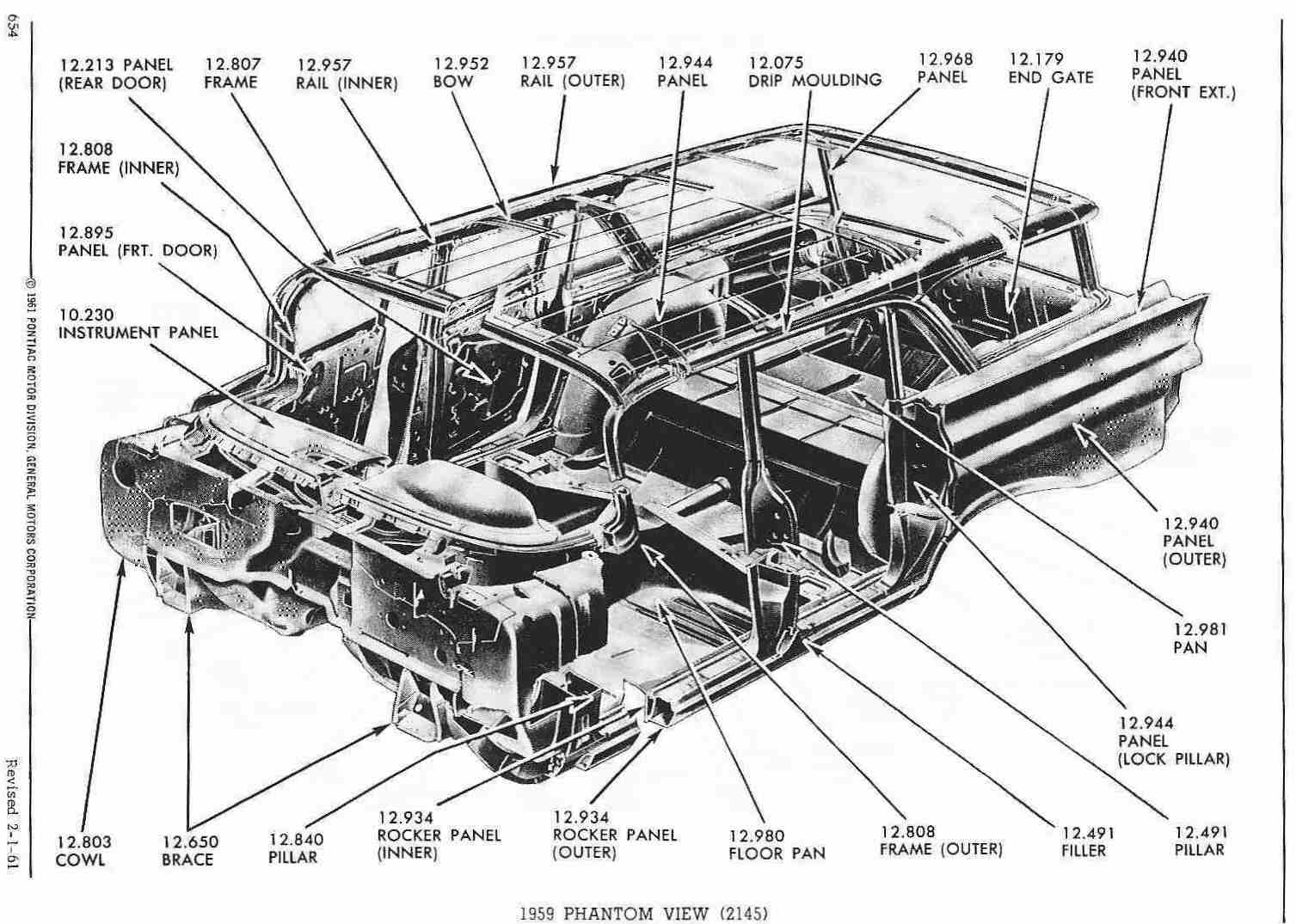

654 1959 Phantom View (2145 station wagon)
655 1960 Phantom View (2839 4-door hardtop)

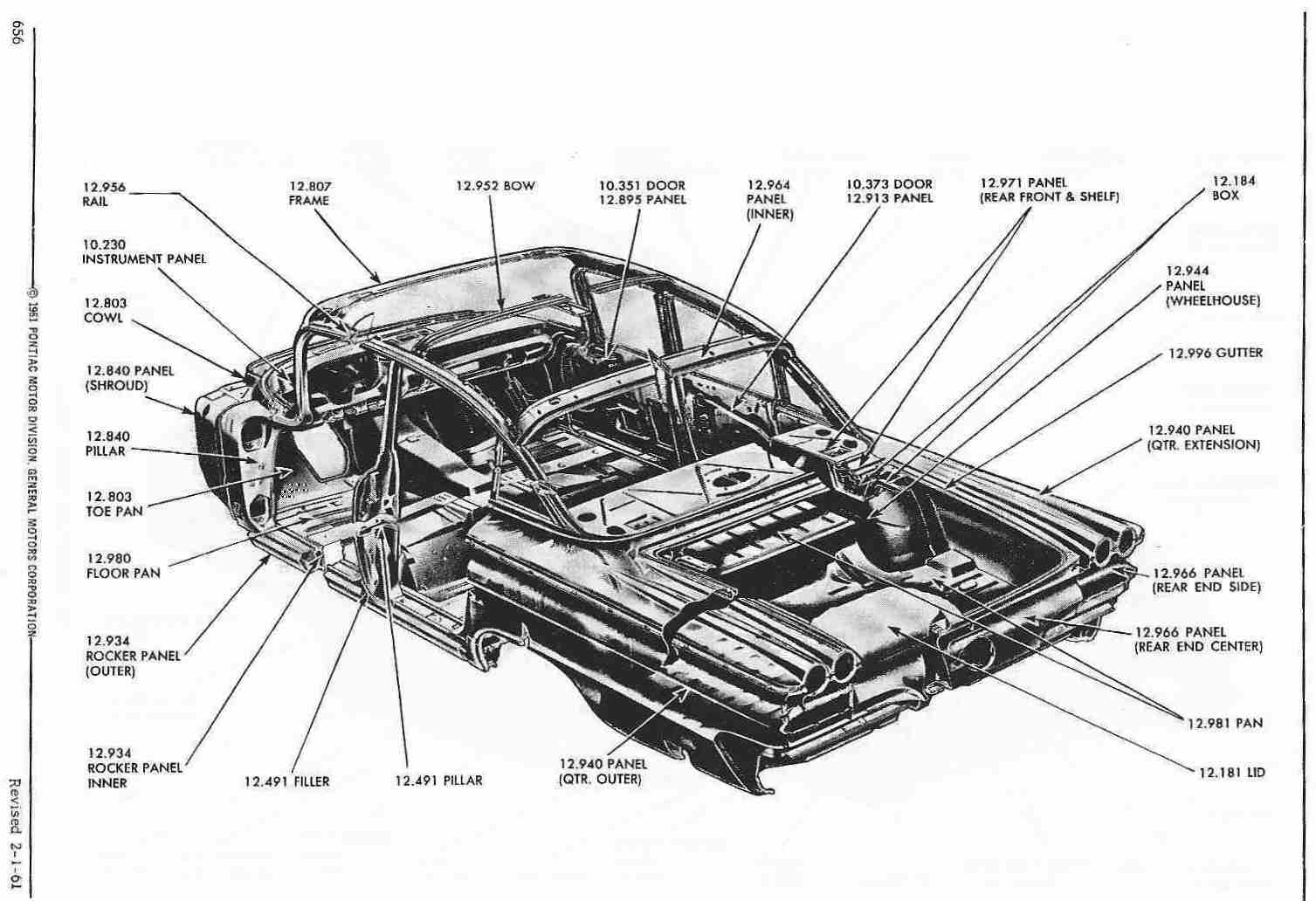

656 1960 Phantom View (4-door sedan)
657 1960 Phantom View (station wagon)

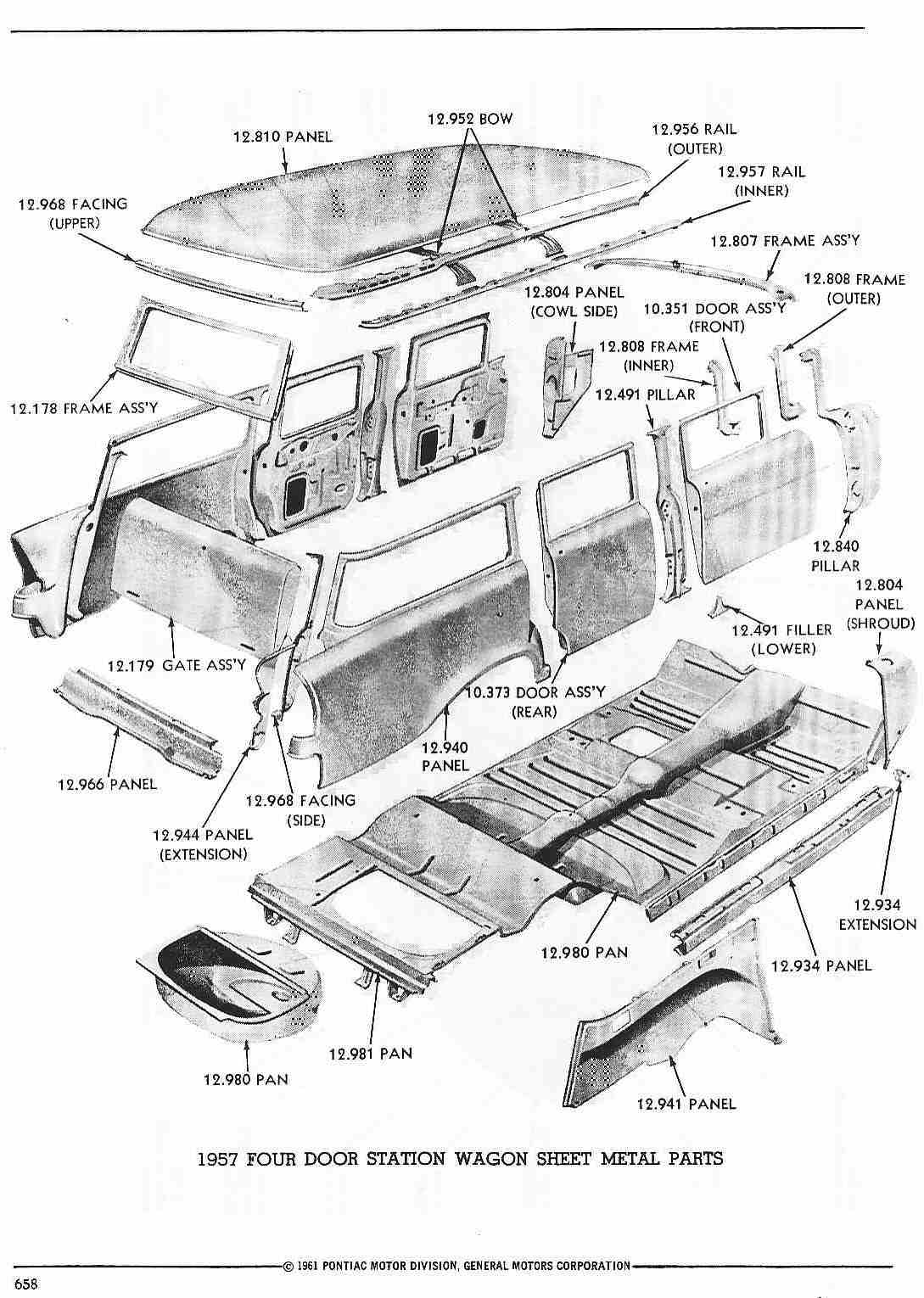

658 1957 Four Door Station Wagon Sheet Metal Parts

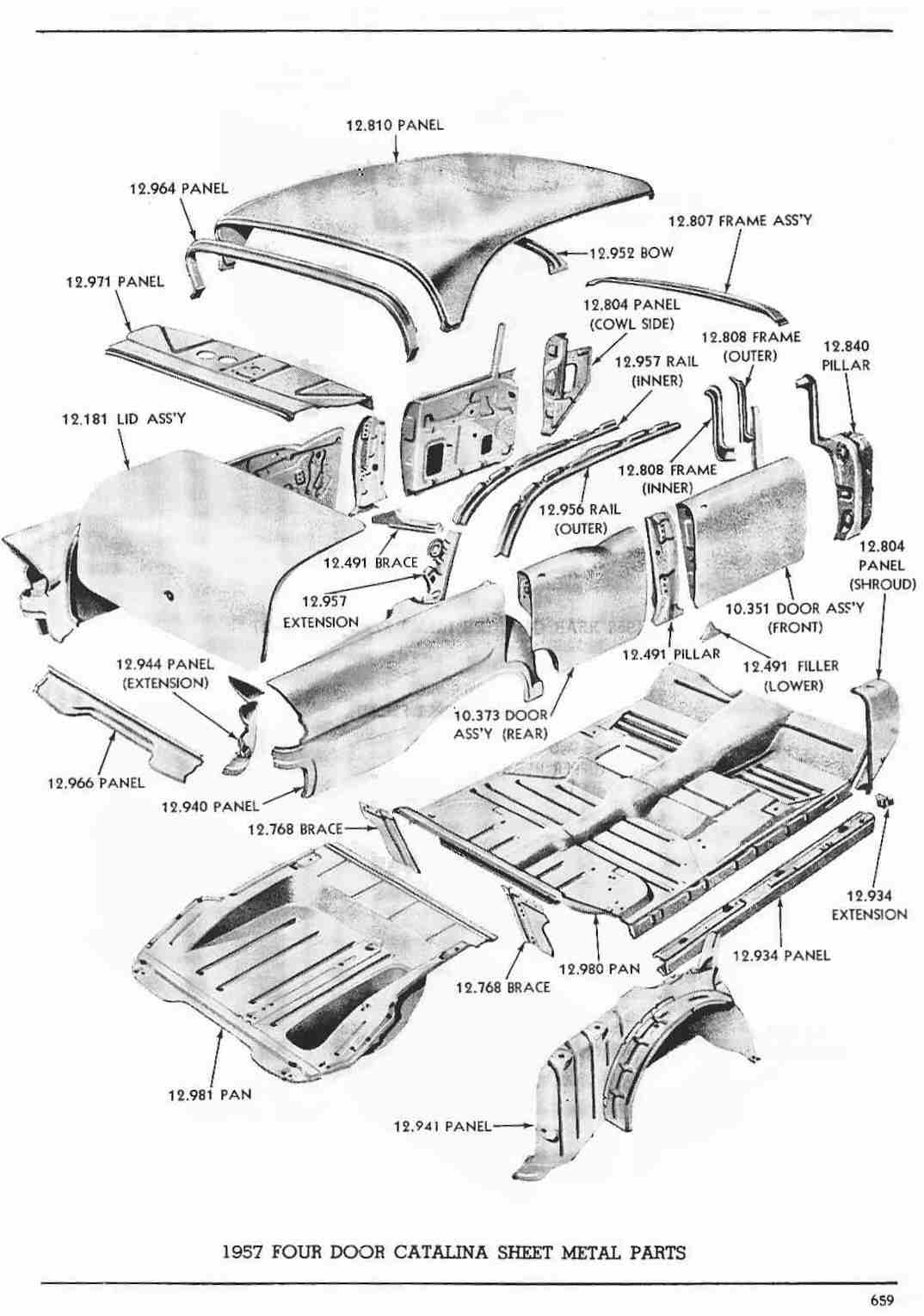

659 1957 Four Door Catalina Sheet Metal Parts

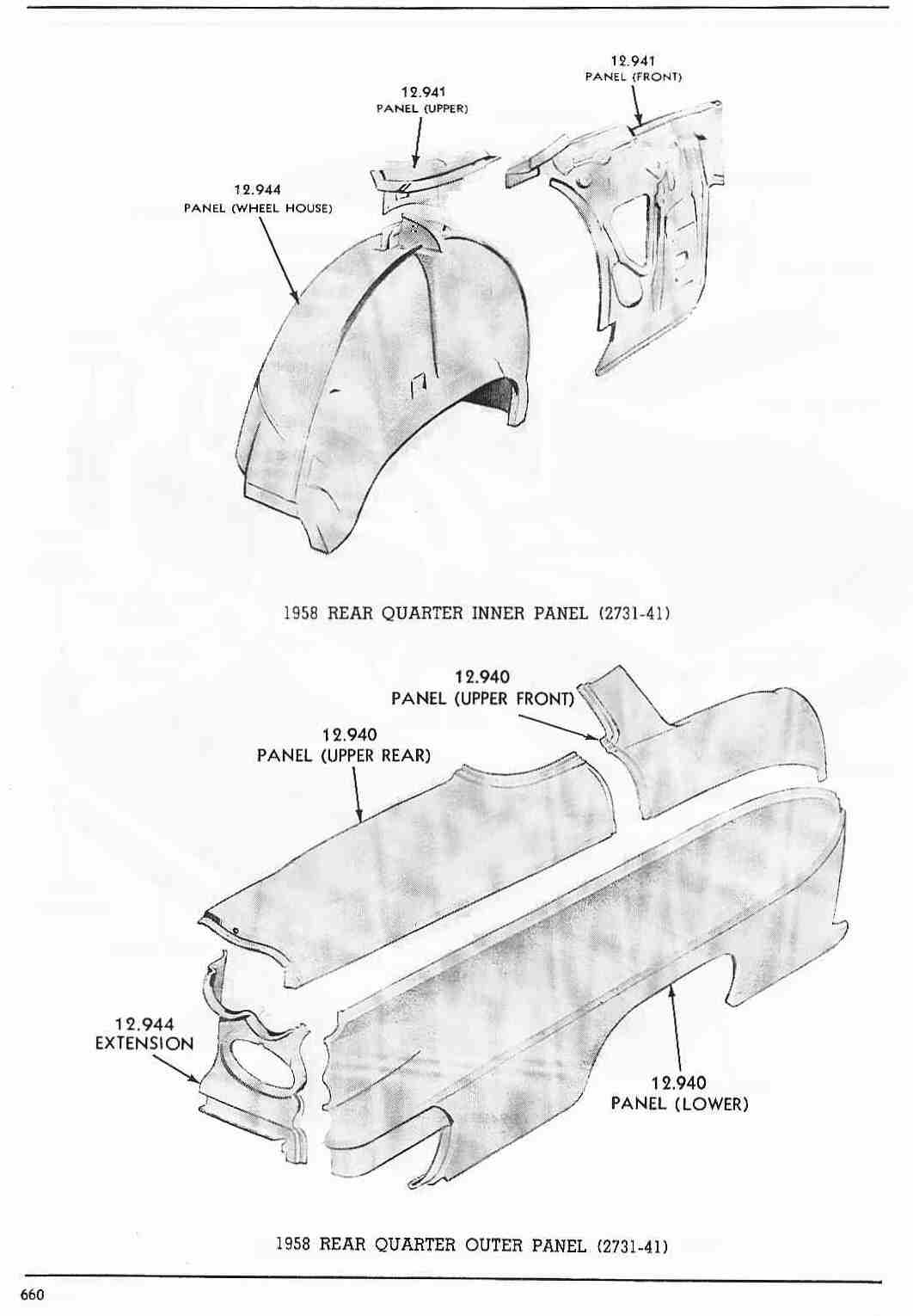

660 1958 Rear Quarter Inner Panel / Rear Quarter Outer Panel

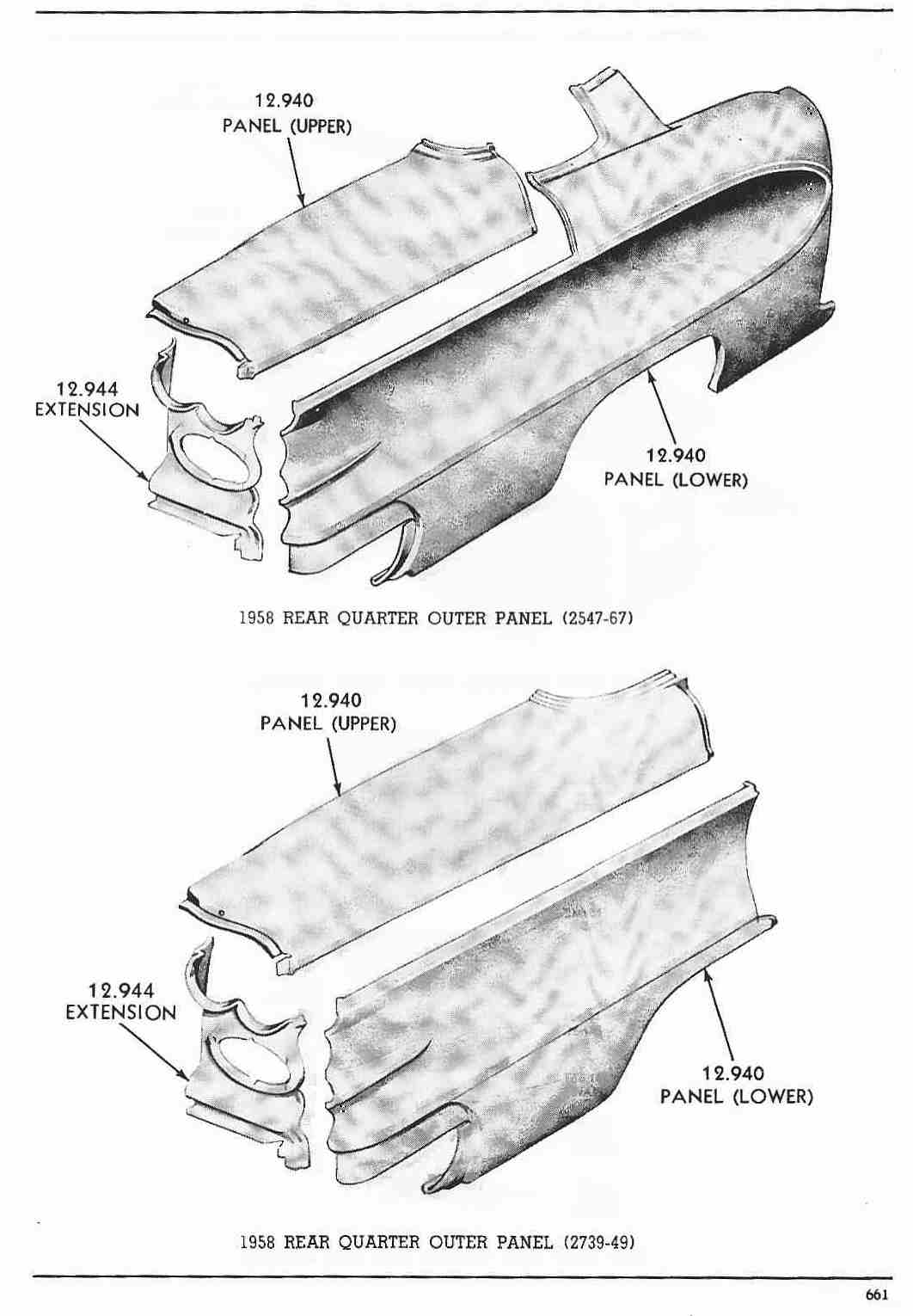

661 1958 Rear Quarter Outer Panel

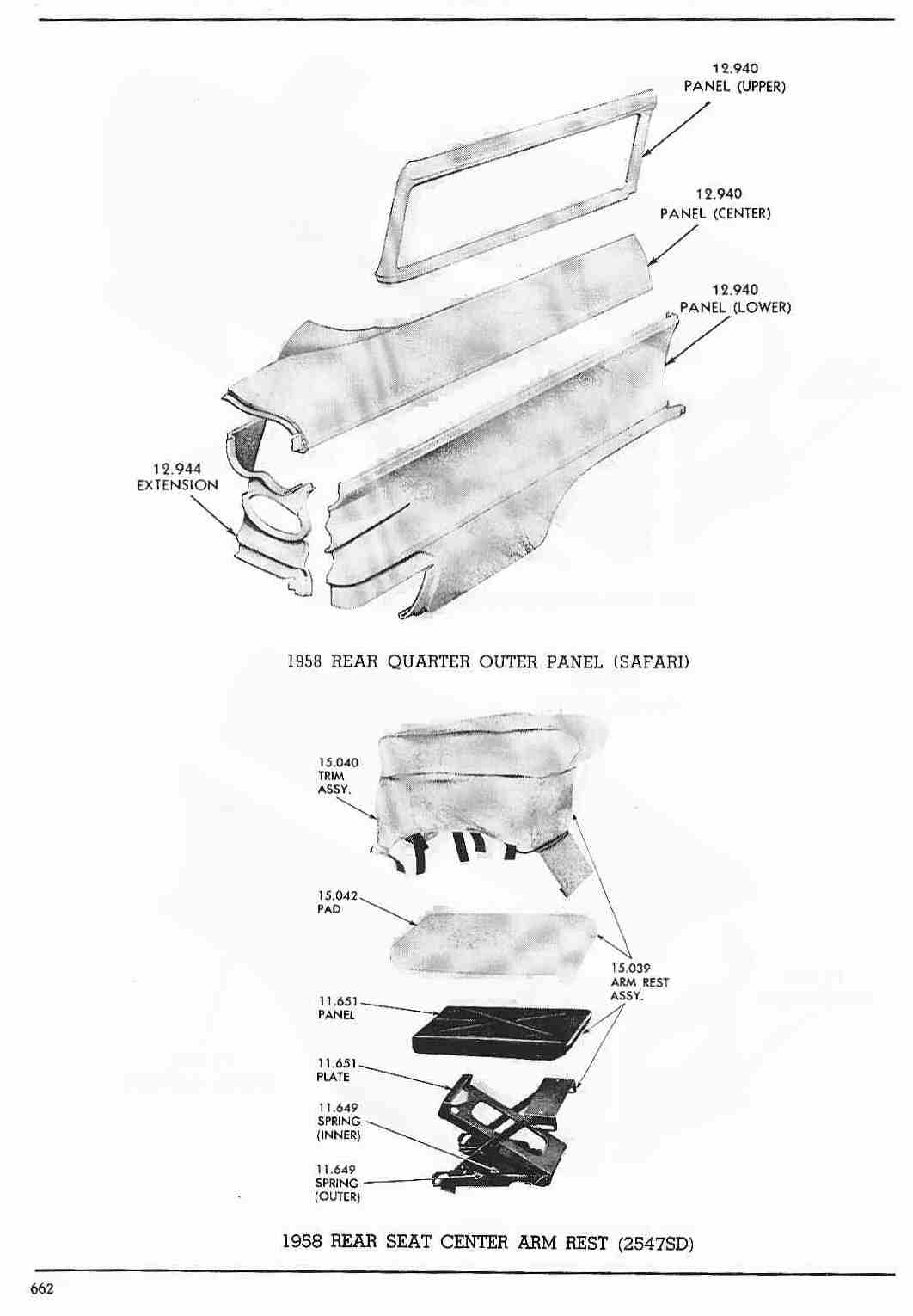

662 1958 Rear Quarter Outer Panel (Safari) / Rear Seat Center Arm Rest
663 1958 Fuel Tank Filler Door

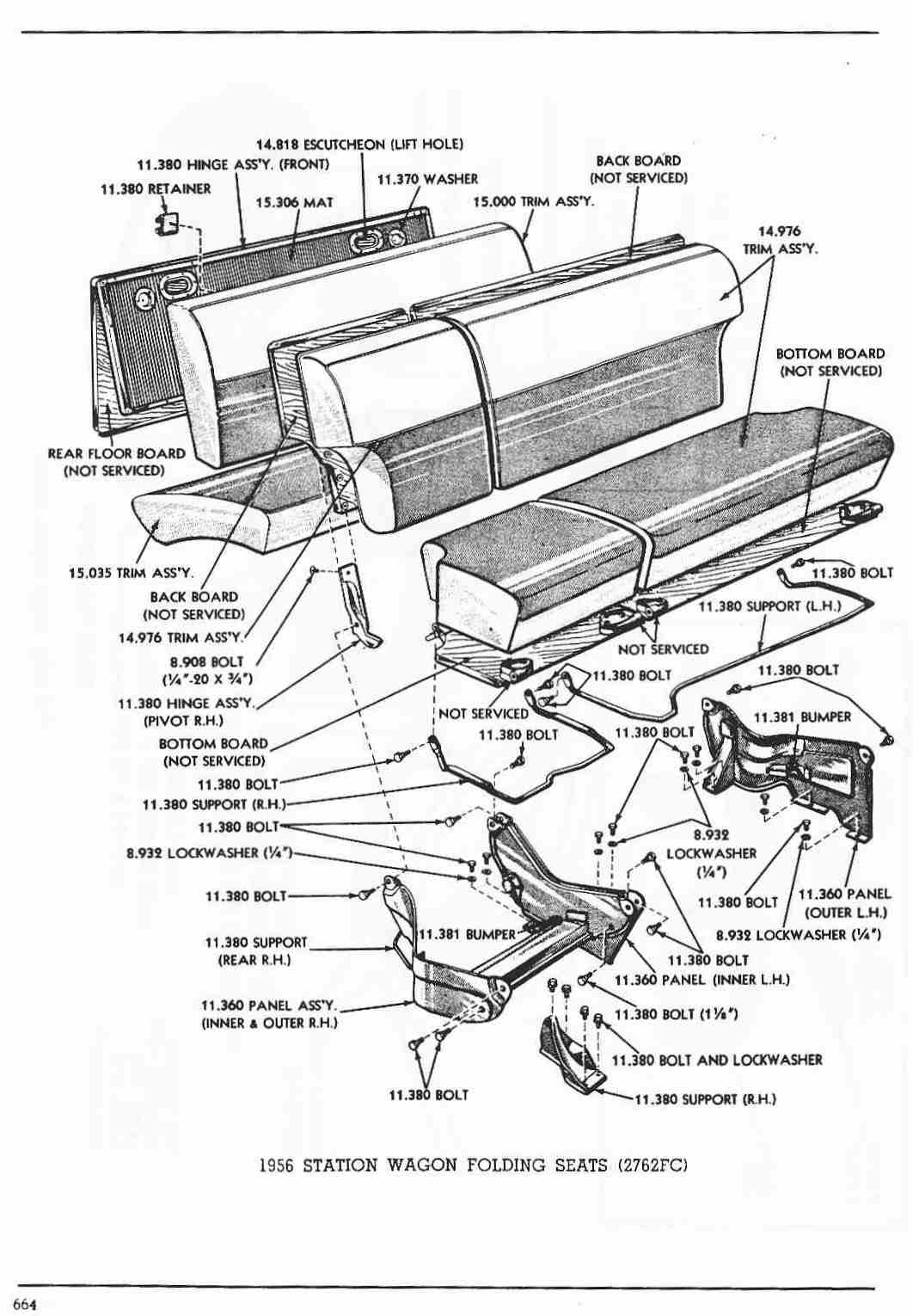

664 1956 Station Wagon Folding Seats (2762FC)

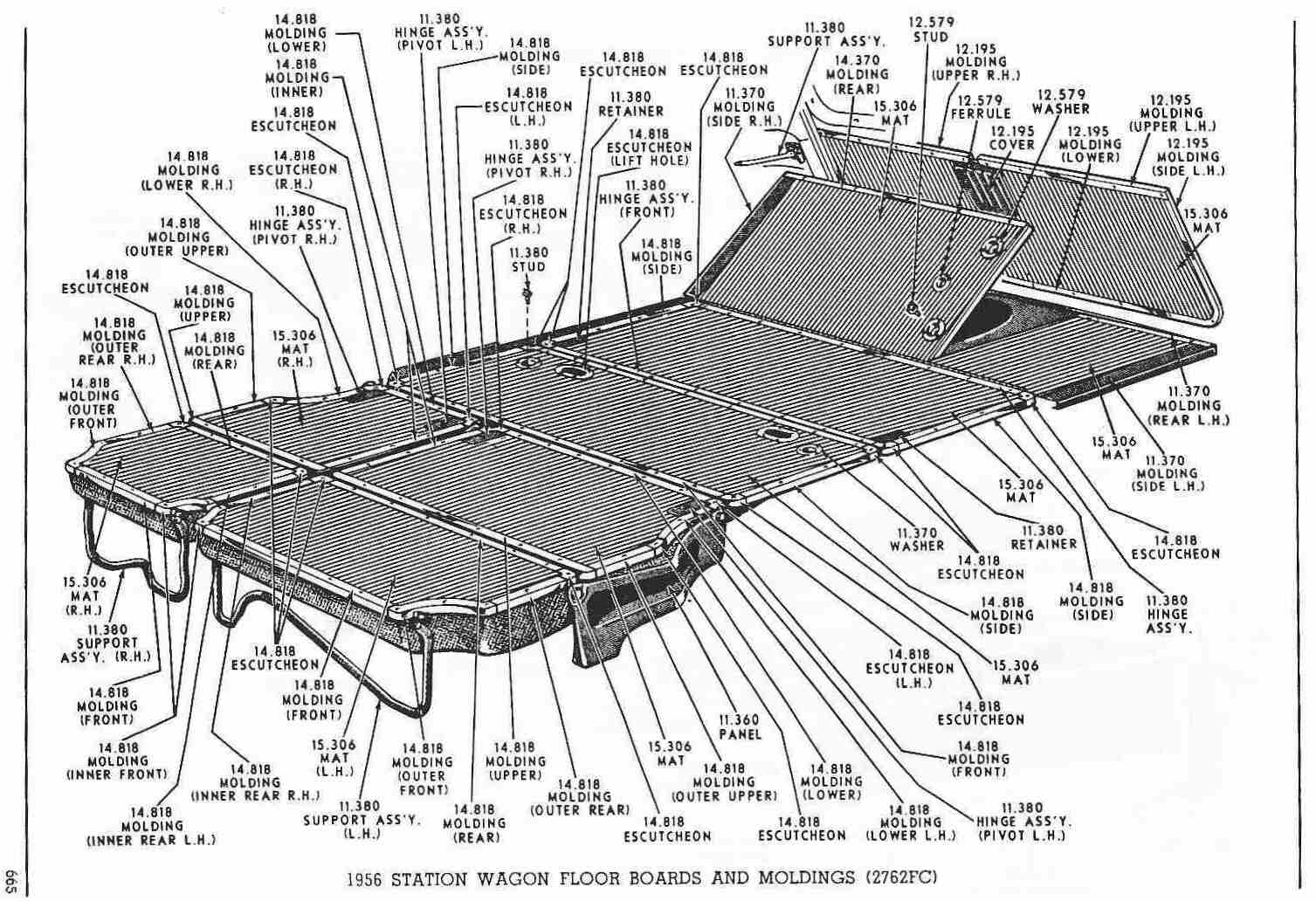

665 1956 Station Wagon Floor Boards and Moldings (2762FC)

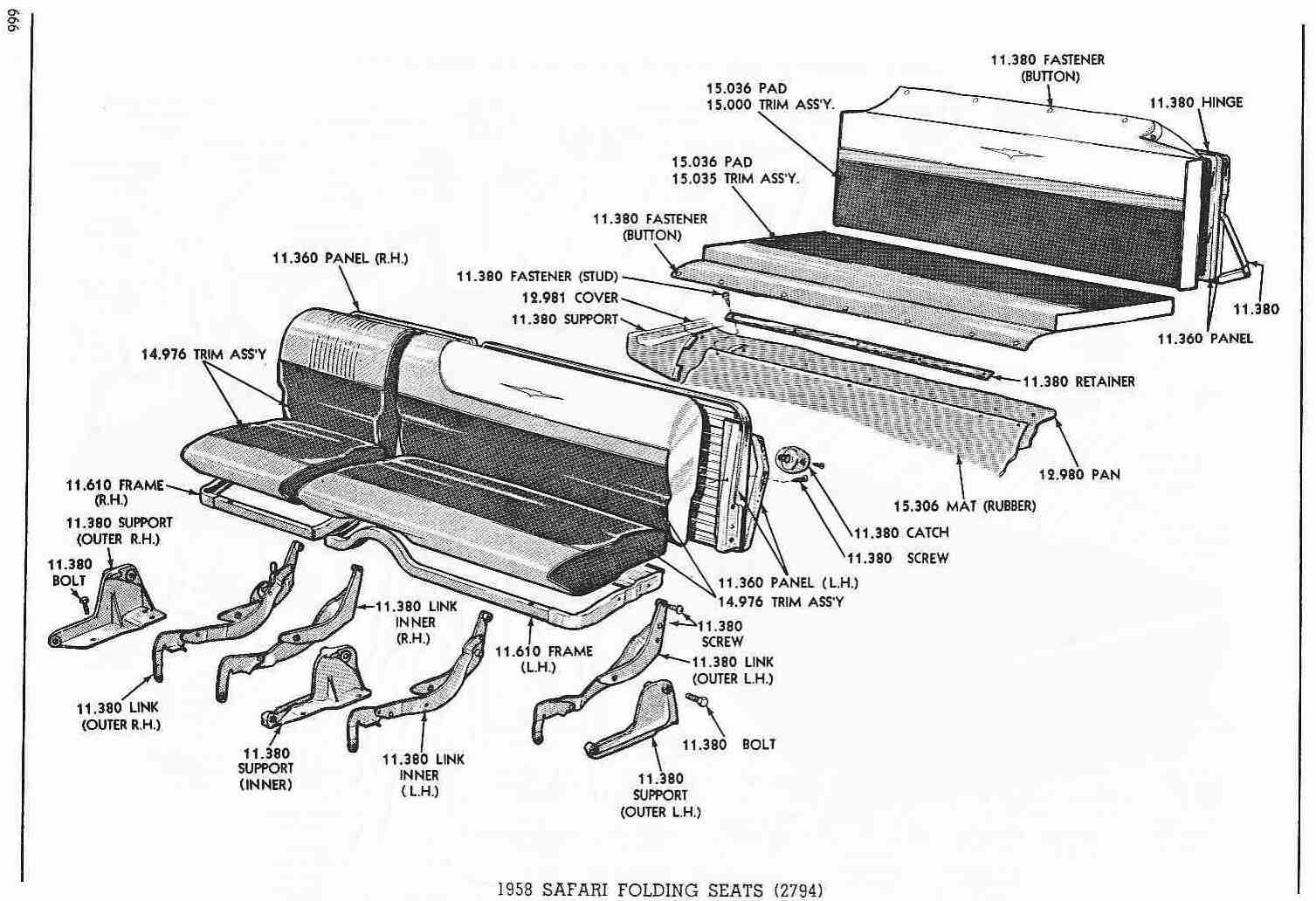

666 1958 Safari Folding Seats

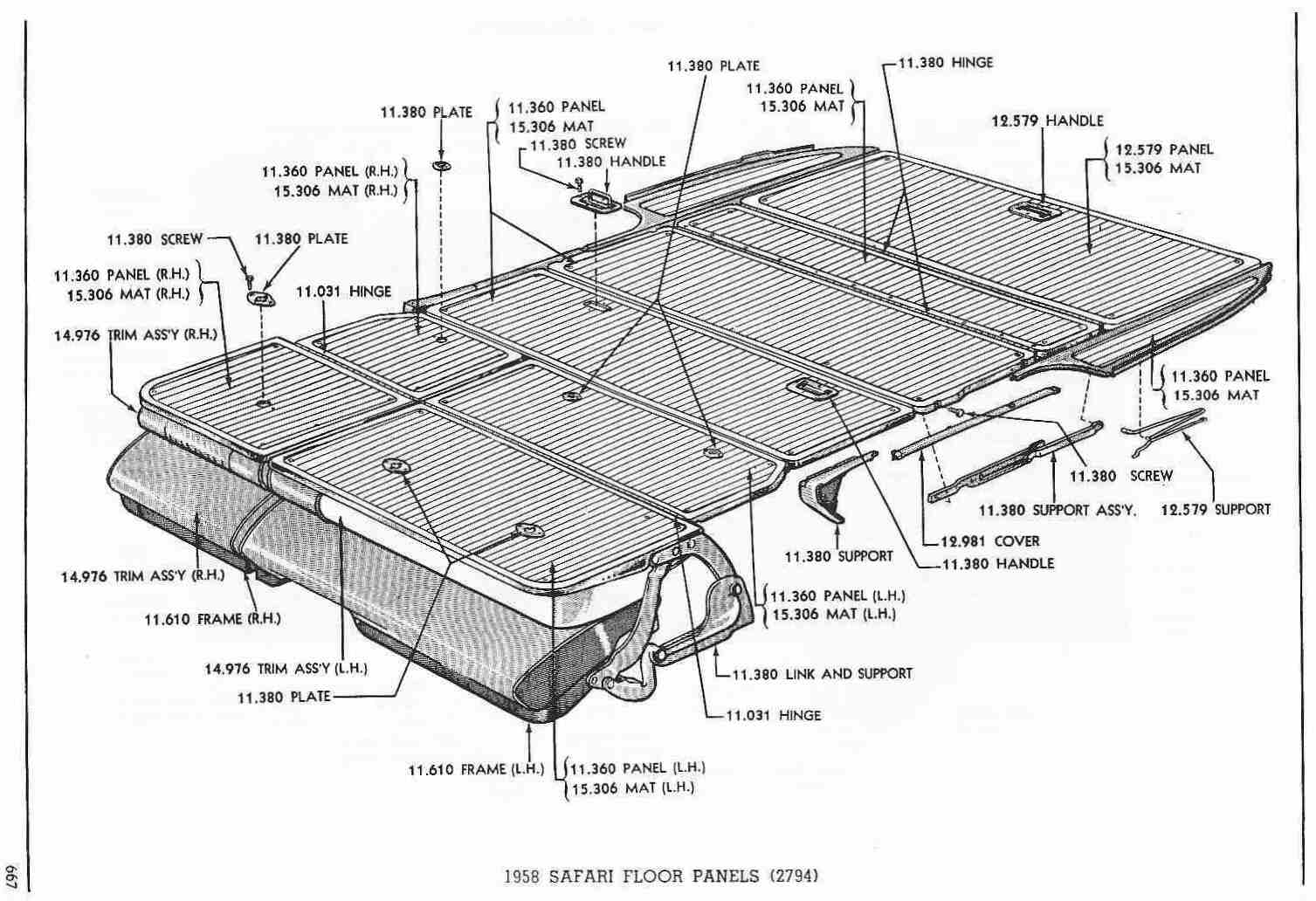

667 1958 Safari Floor Panels

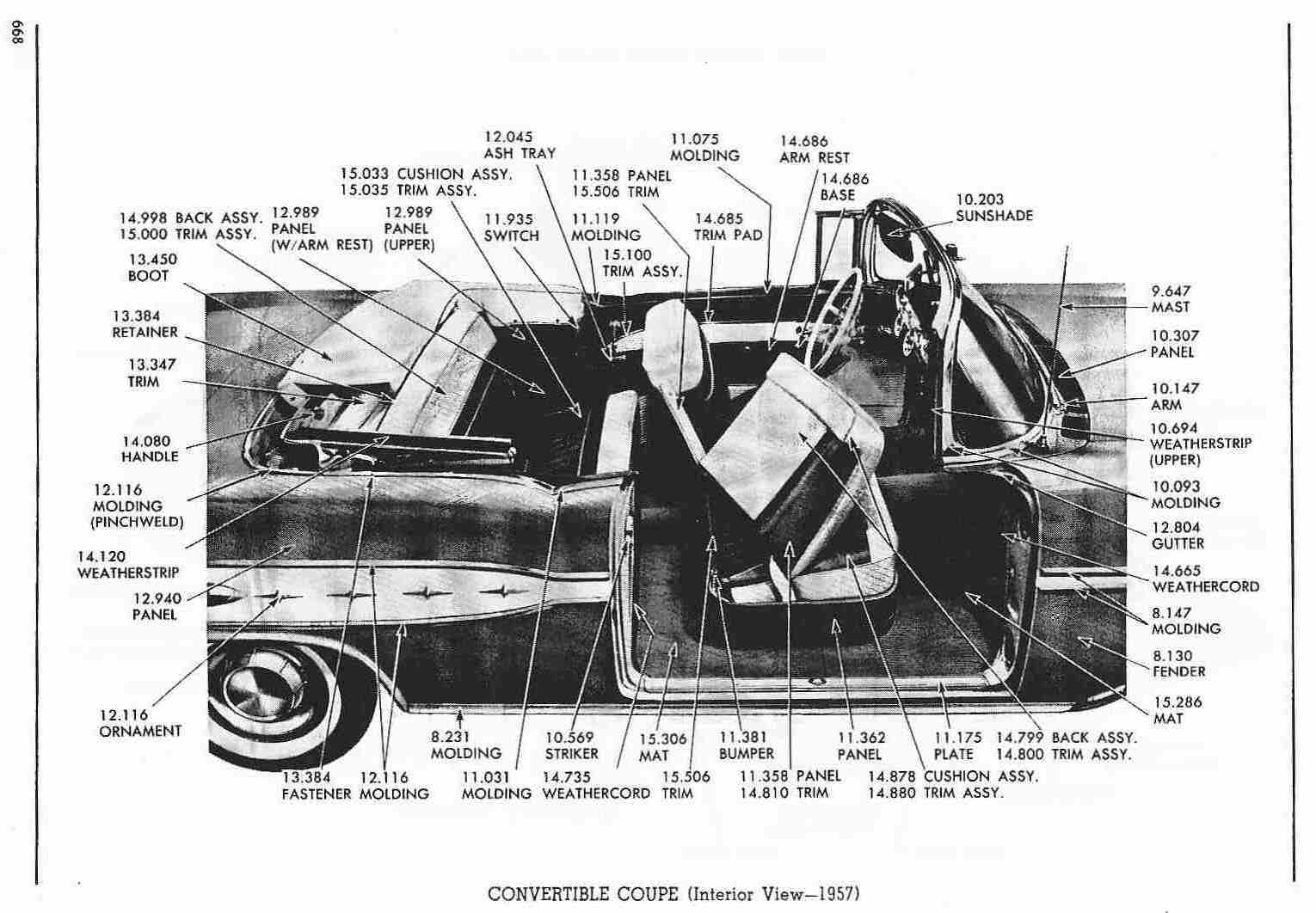

668 Convertible Coupe (Interior View -- 1957)

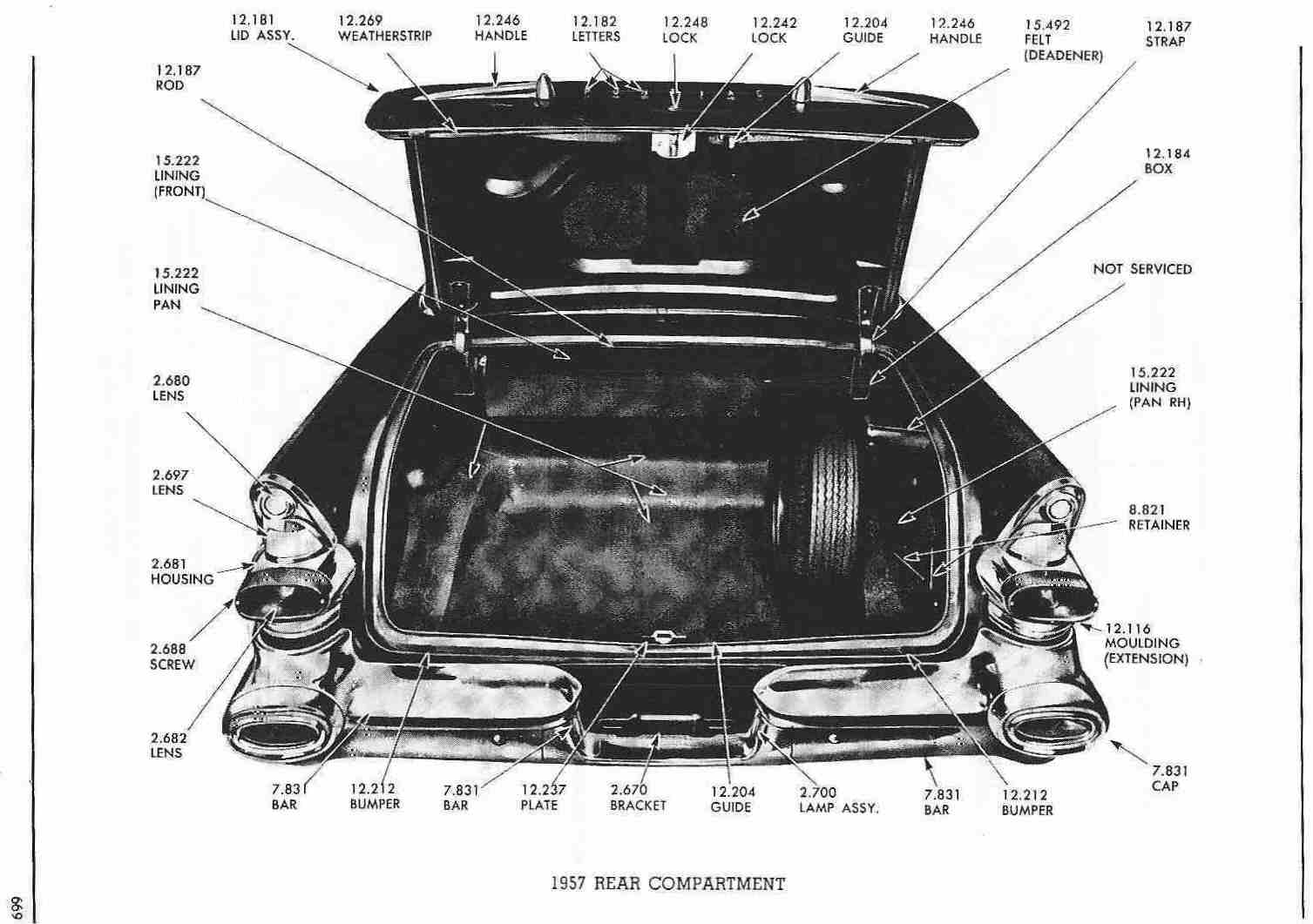

669 1957 Rear Compartment

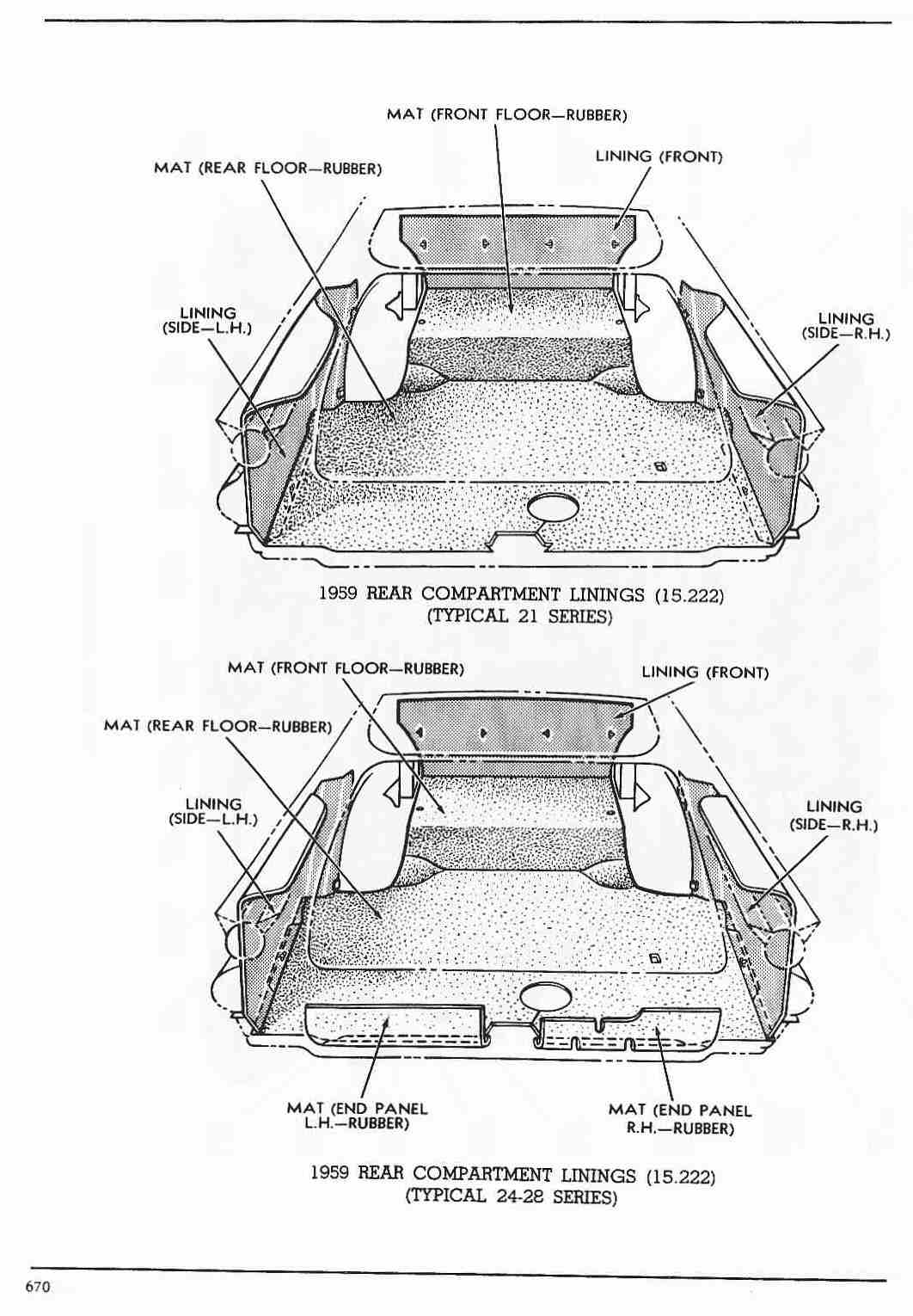

670 1959 Rear Compartment Linings (Typical 24-28 Series)

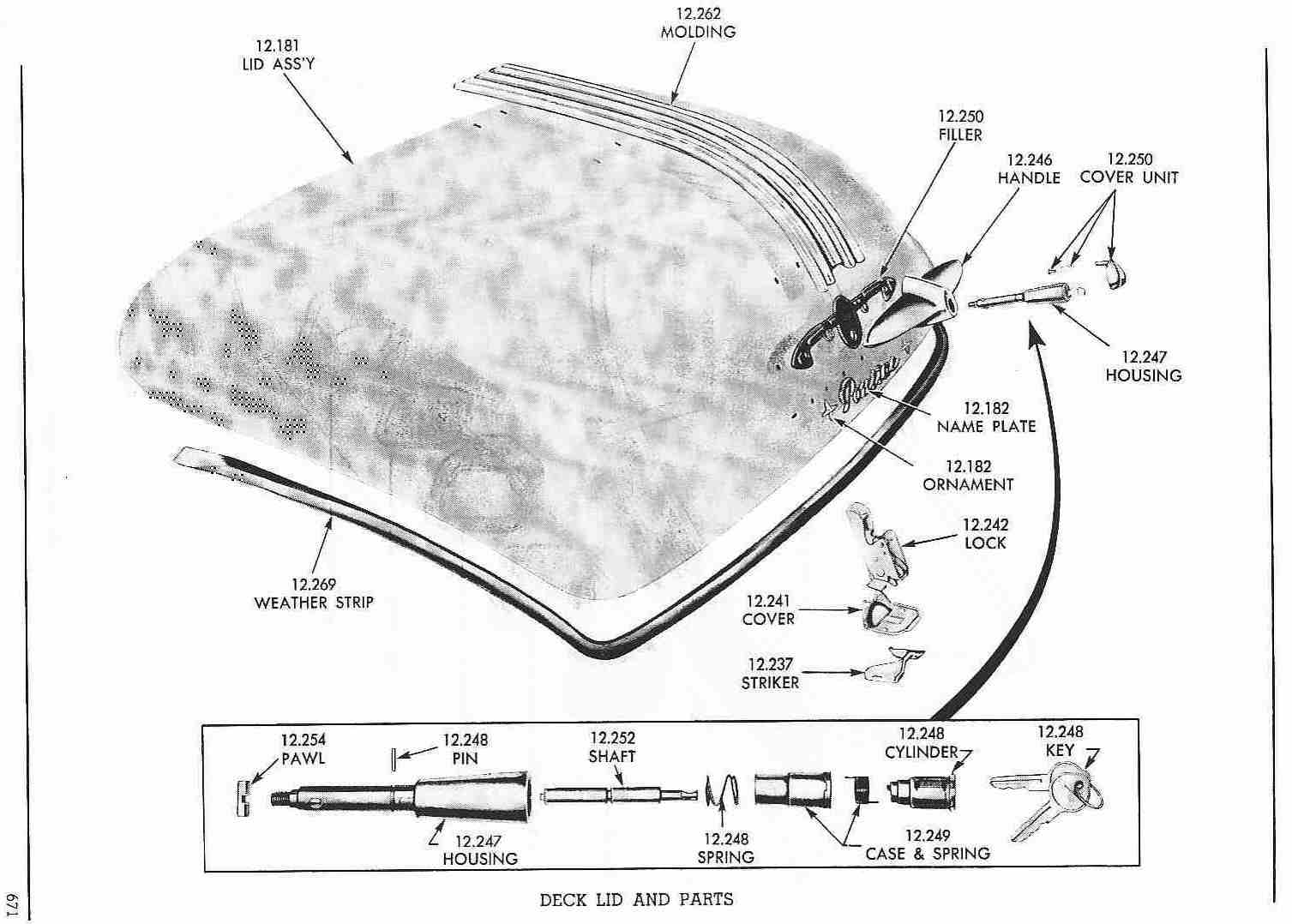

671 Deck Lid and Parts (1954)

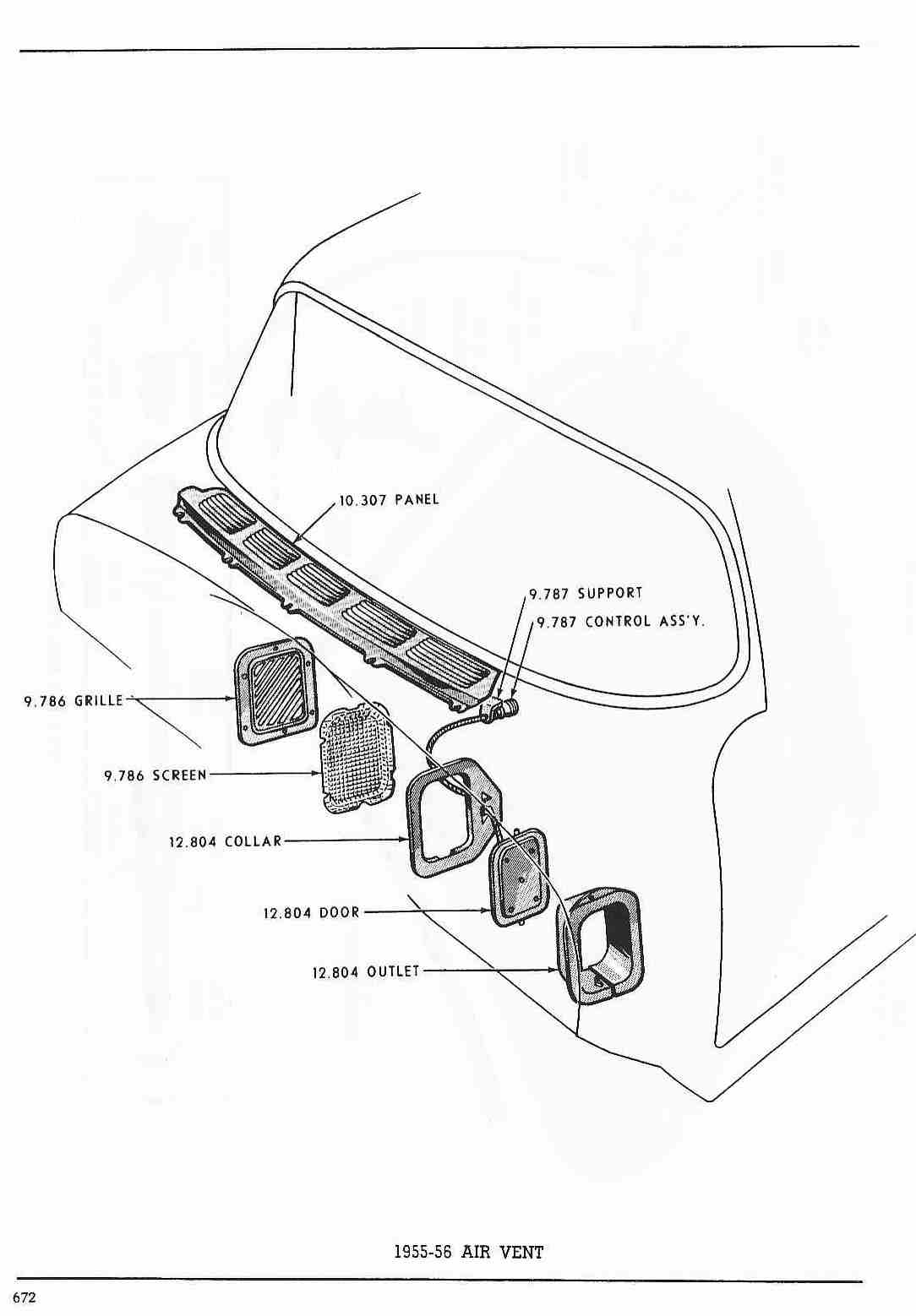

672 1955-56 Air Vent

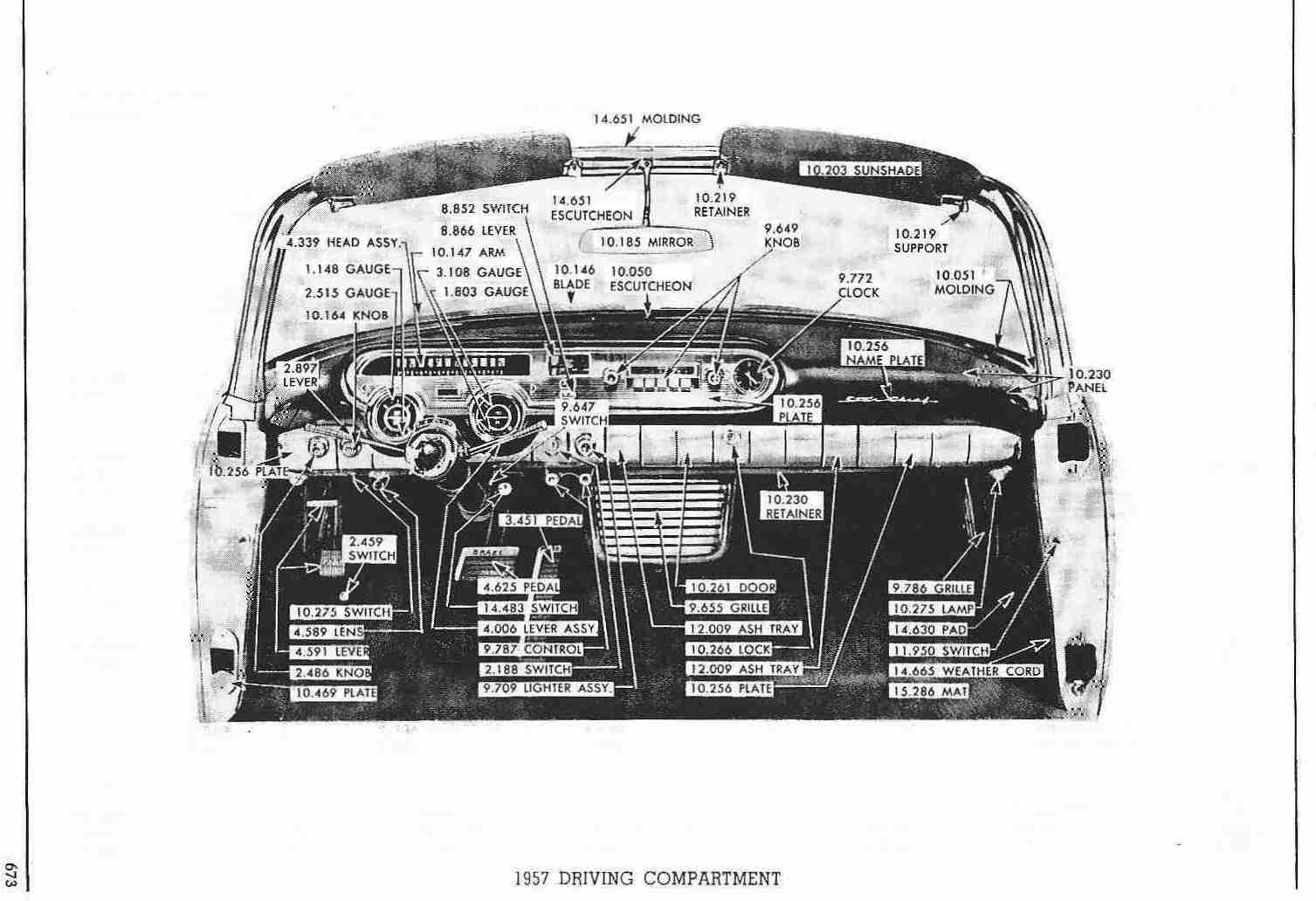

673 1957 Driving Compartment

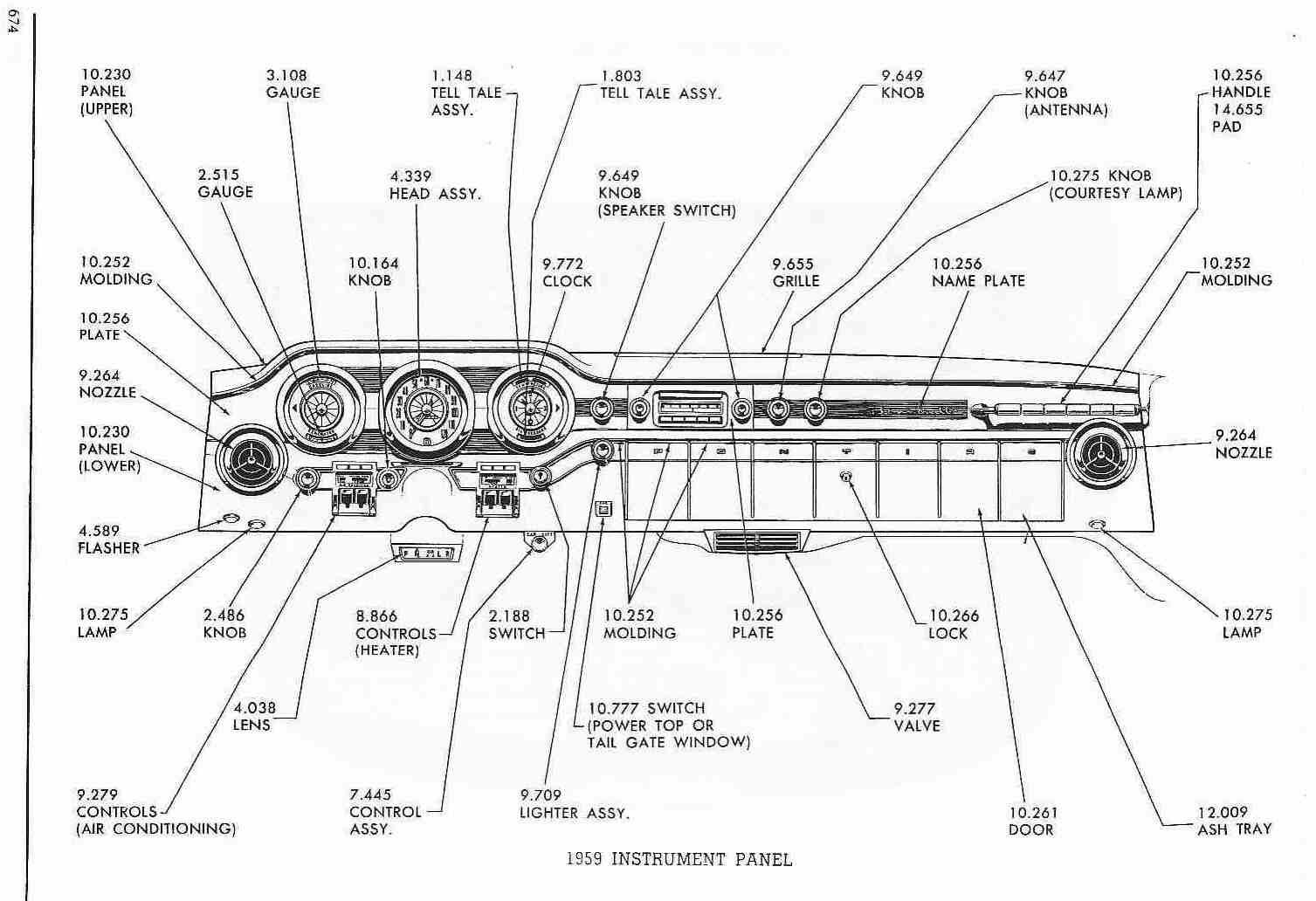

674 1959 Instrument Panel

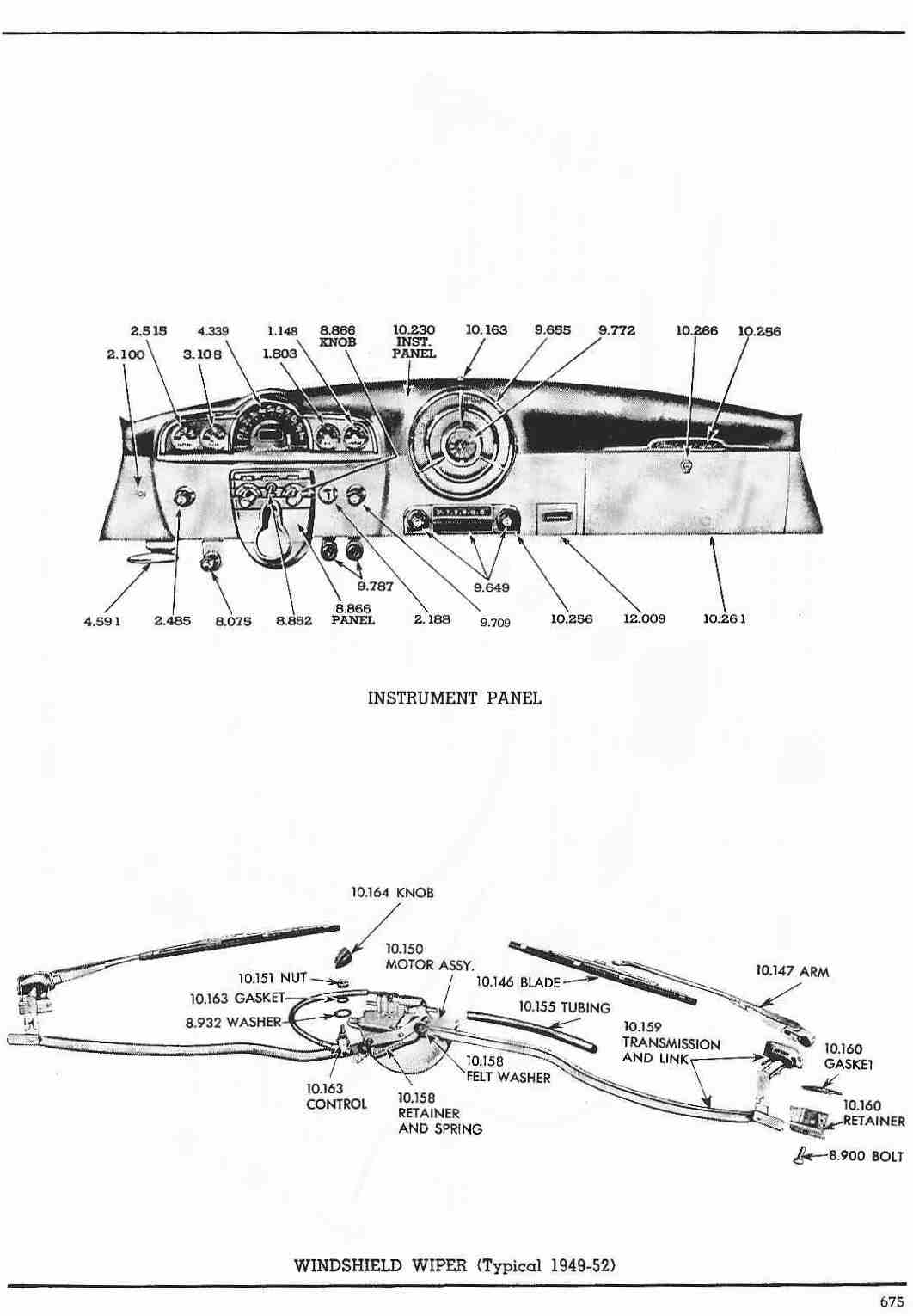

675 Instrument Panel (1954?) / Windshield Wiper (Typical 1949-52)

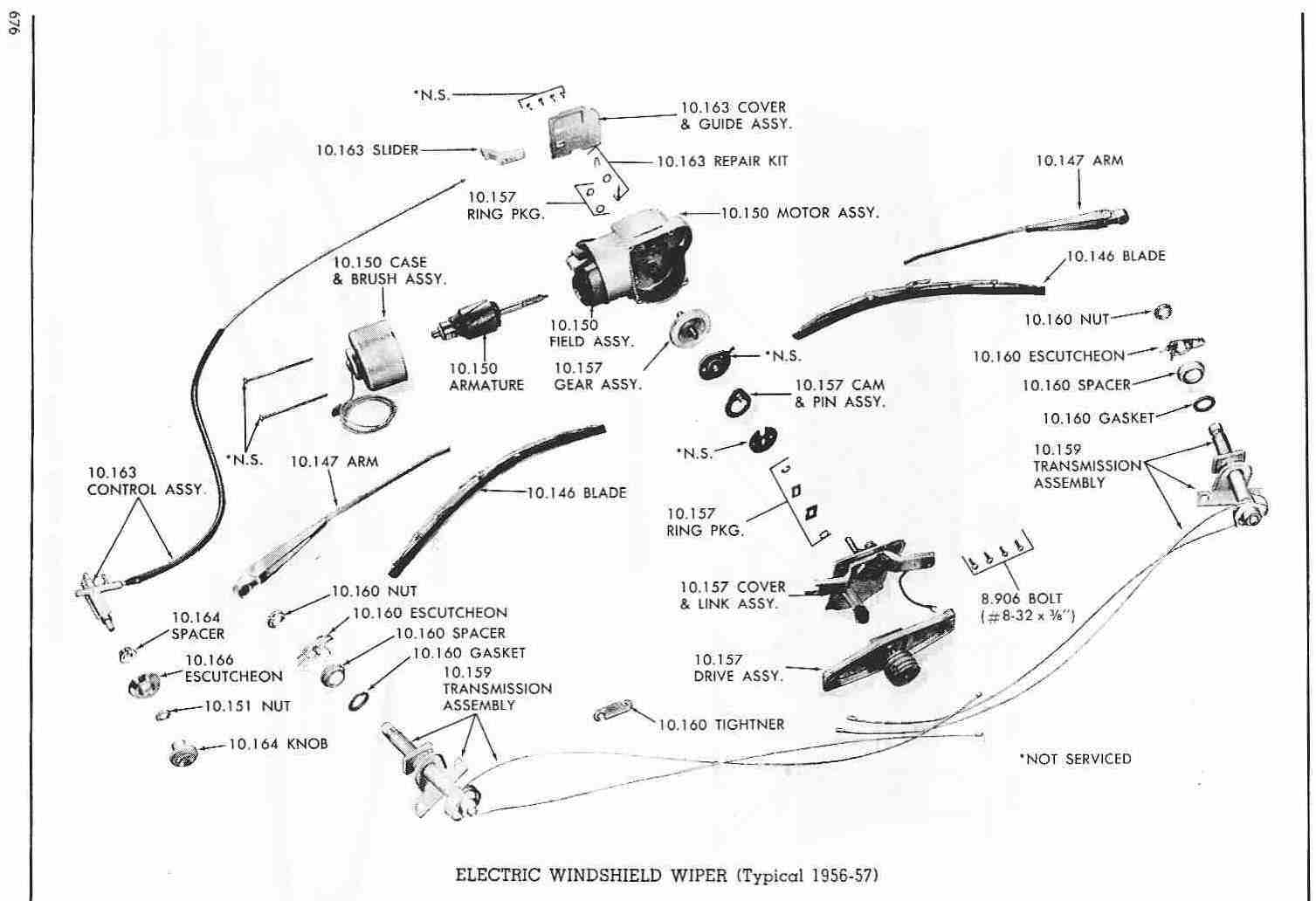

676 Electric Windshield Wiper (Typical 1956-57)

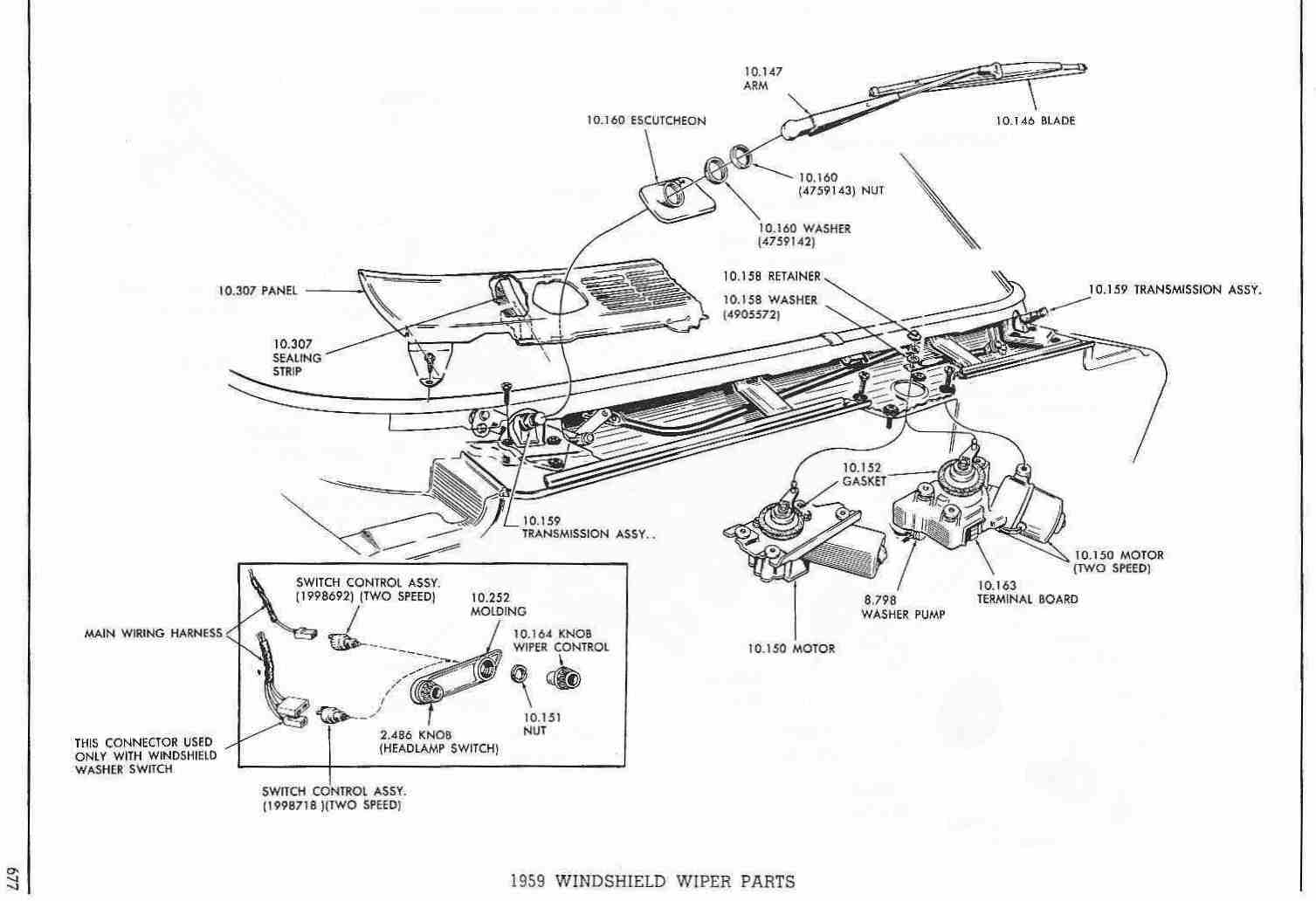

677 1959 Windshield Wiper Parts

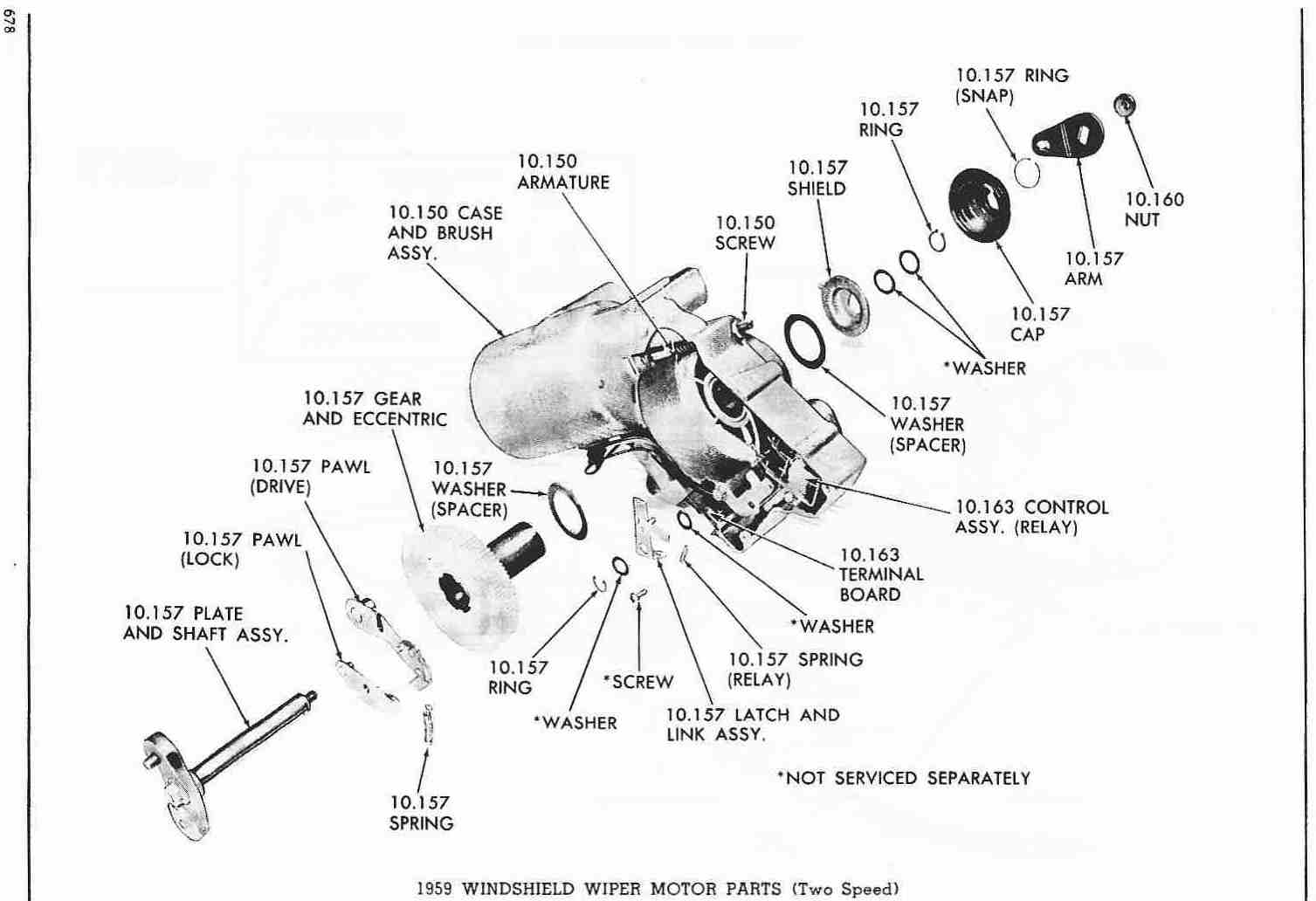

678 1959 Windshield Motor Parts (Two Speed)

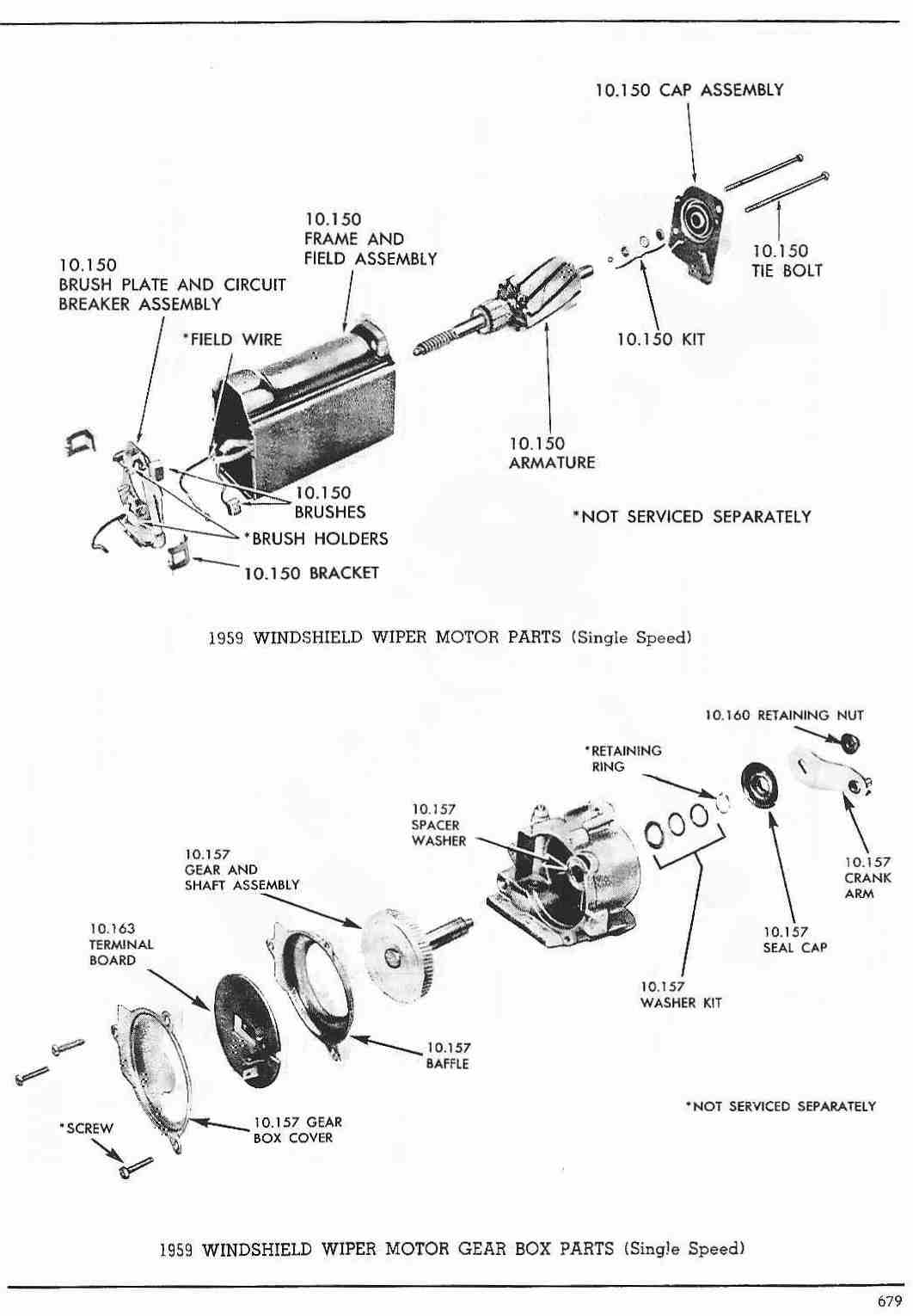

679 1959 Windshield Wiper Motor Parts (Single Speed)

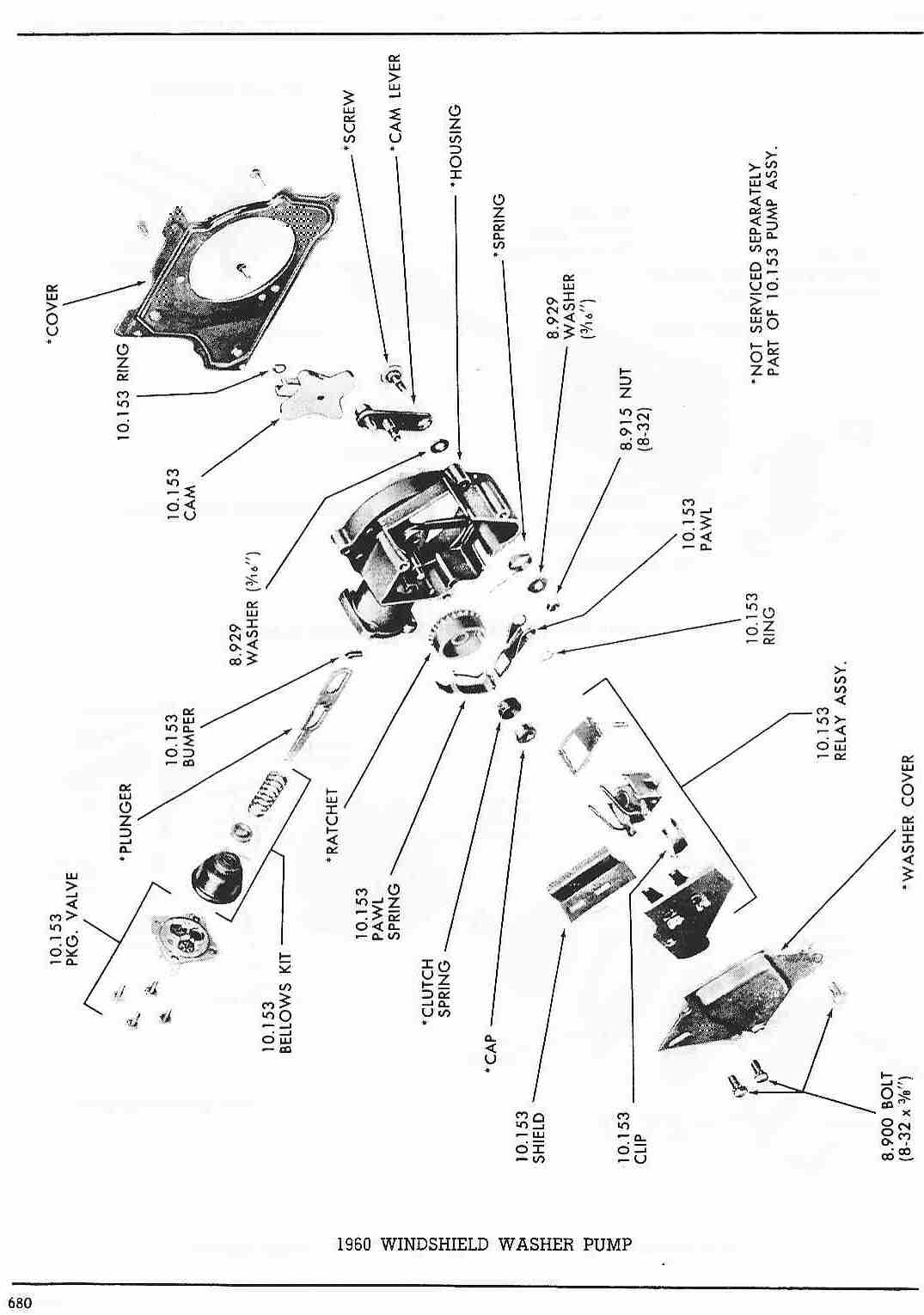

680 1960 Windshield Washer  Pump

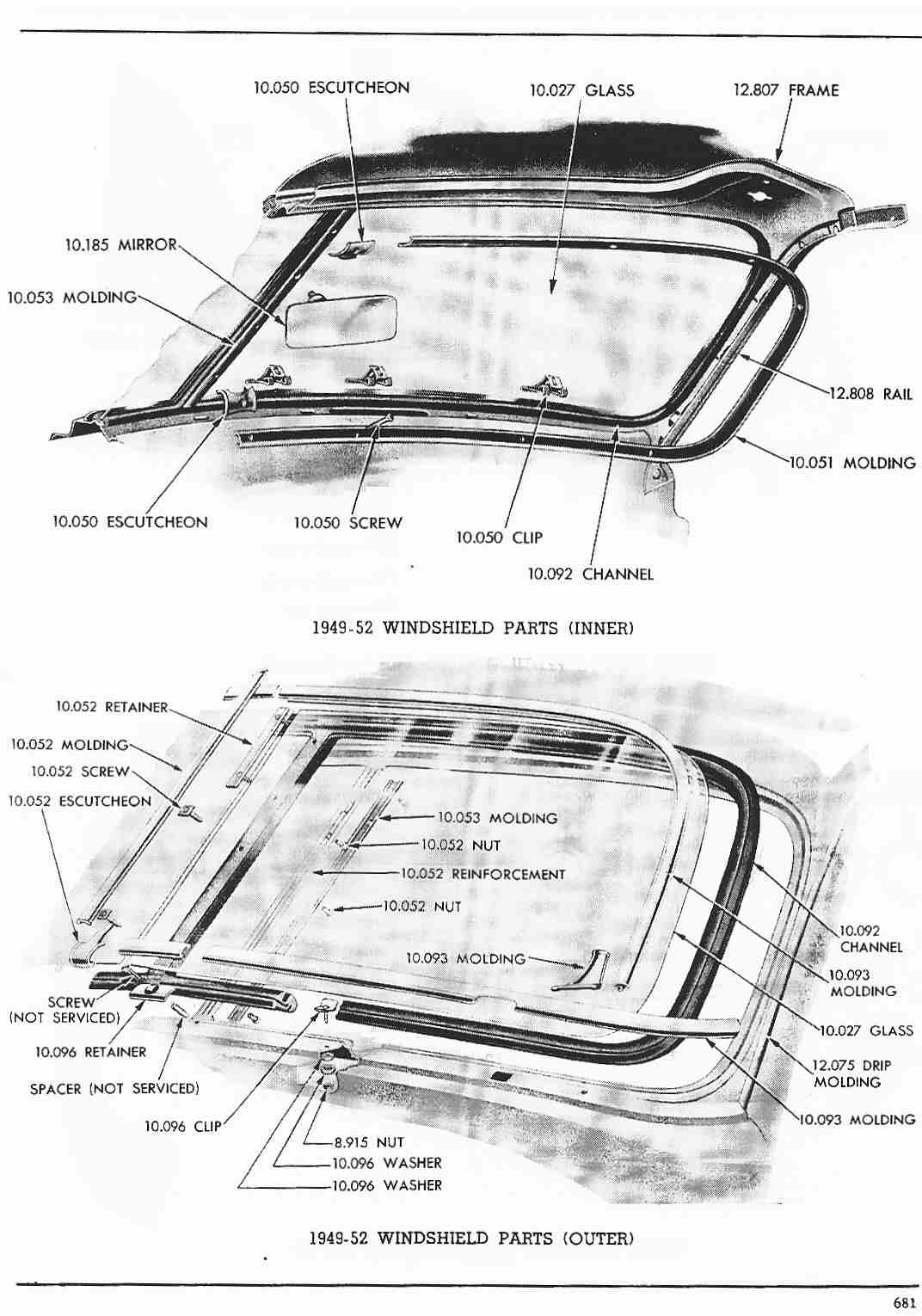

681 1949-52 Windshield Parts

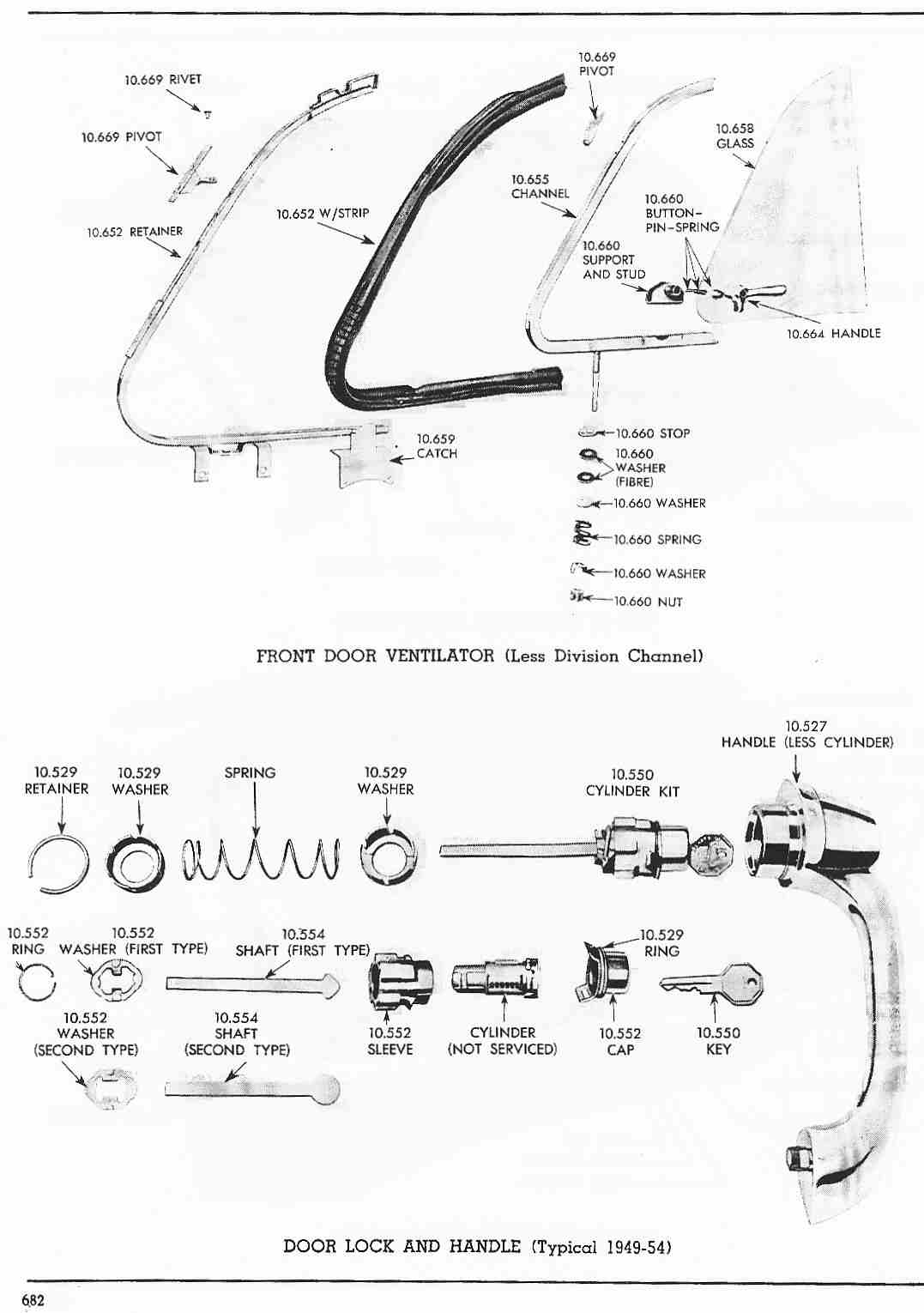

682 Front Door Ventilator / Door Lock and Handle (1949-54)
683 Front Door Hardware Layout

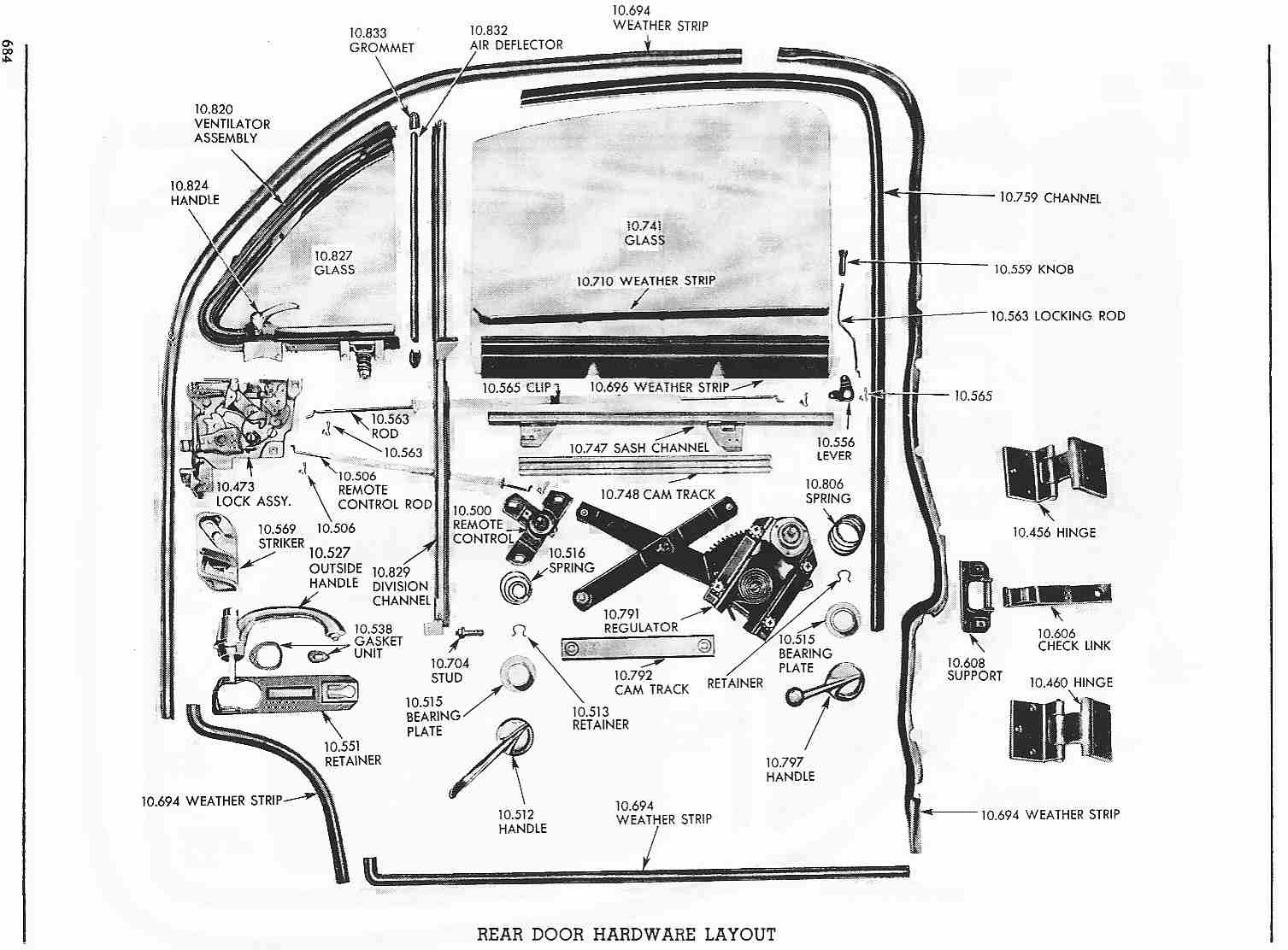

684 Rear Door Hardware Layout
685 Front Door Hardware Layout

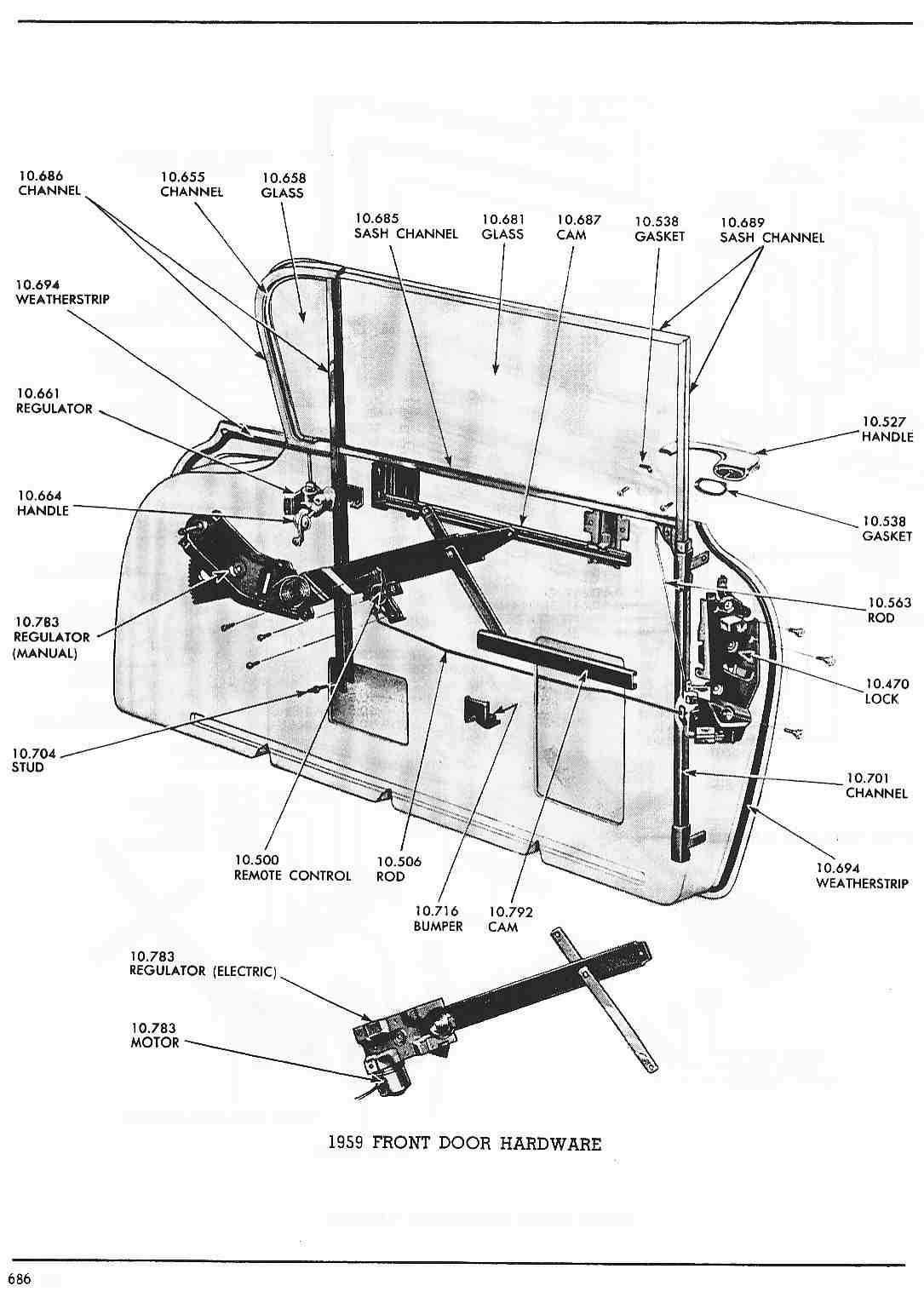

686 1959 Front Door Hardware

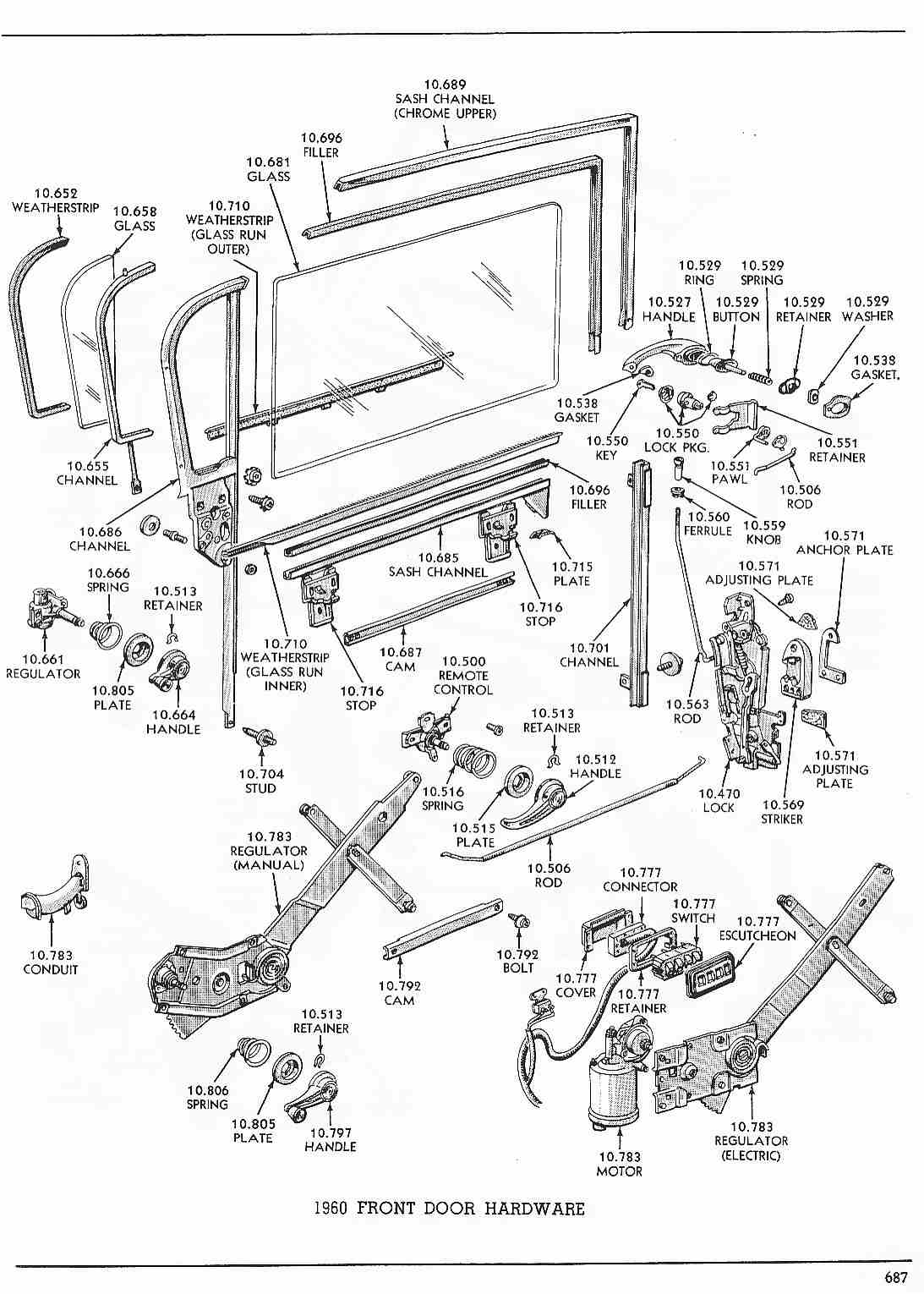

687 1960 Front Door Hardware

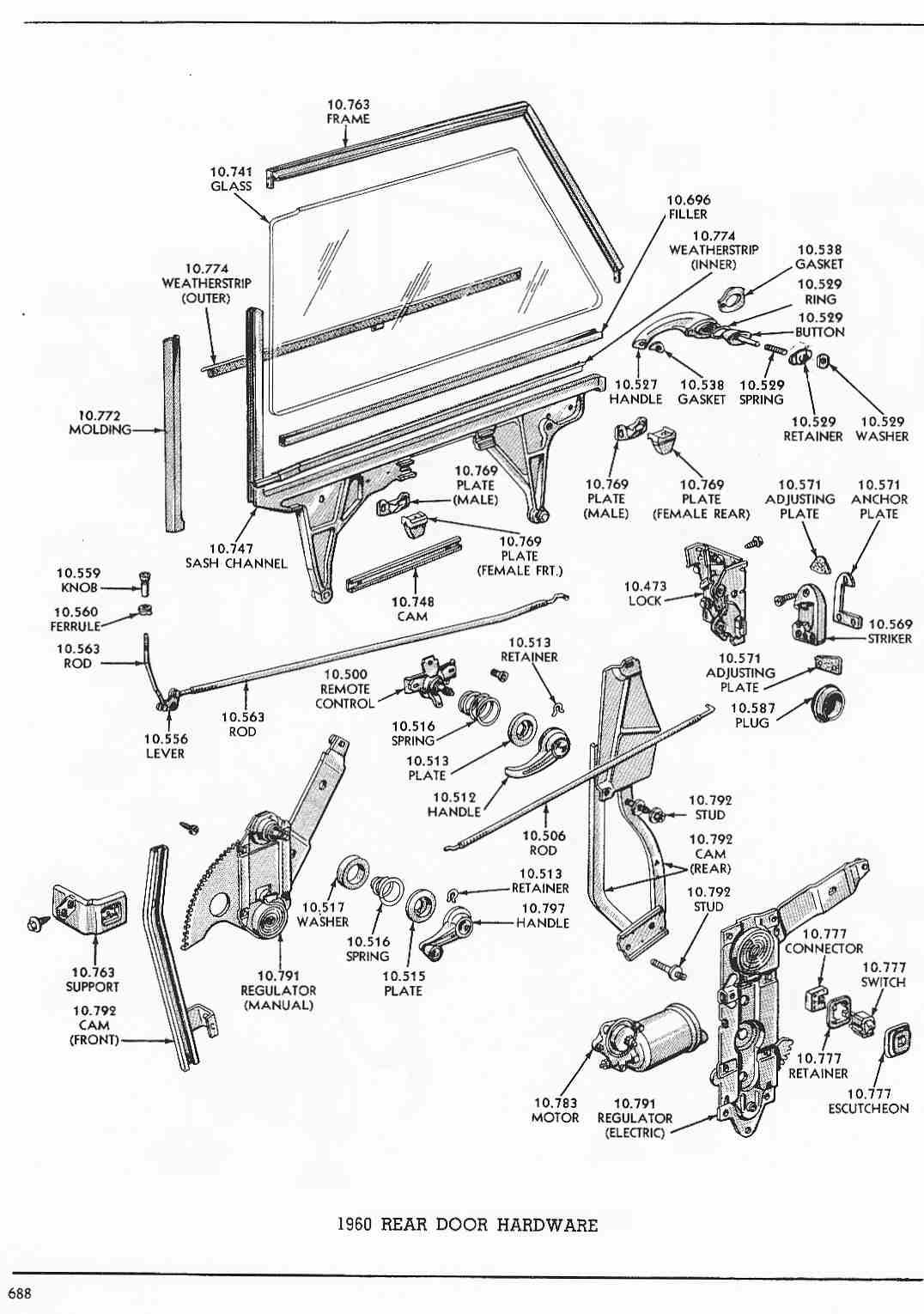

688 1960 Rear Door Hardware

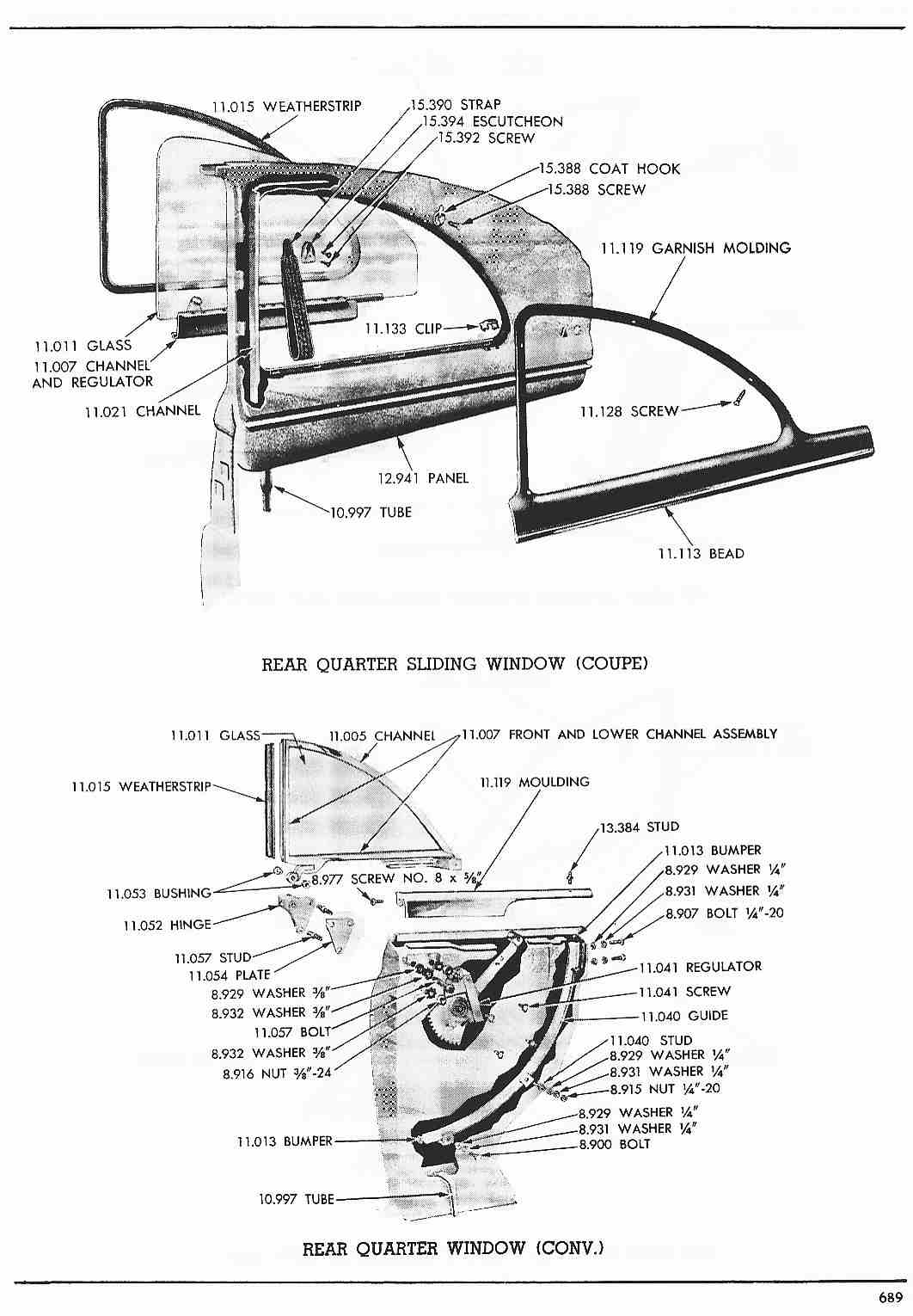

689 Rear Quarter Sliding Window (Coupe) / Rear Quarter Window (Conv.)

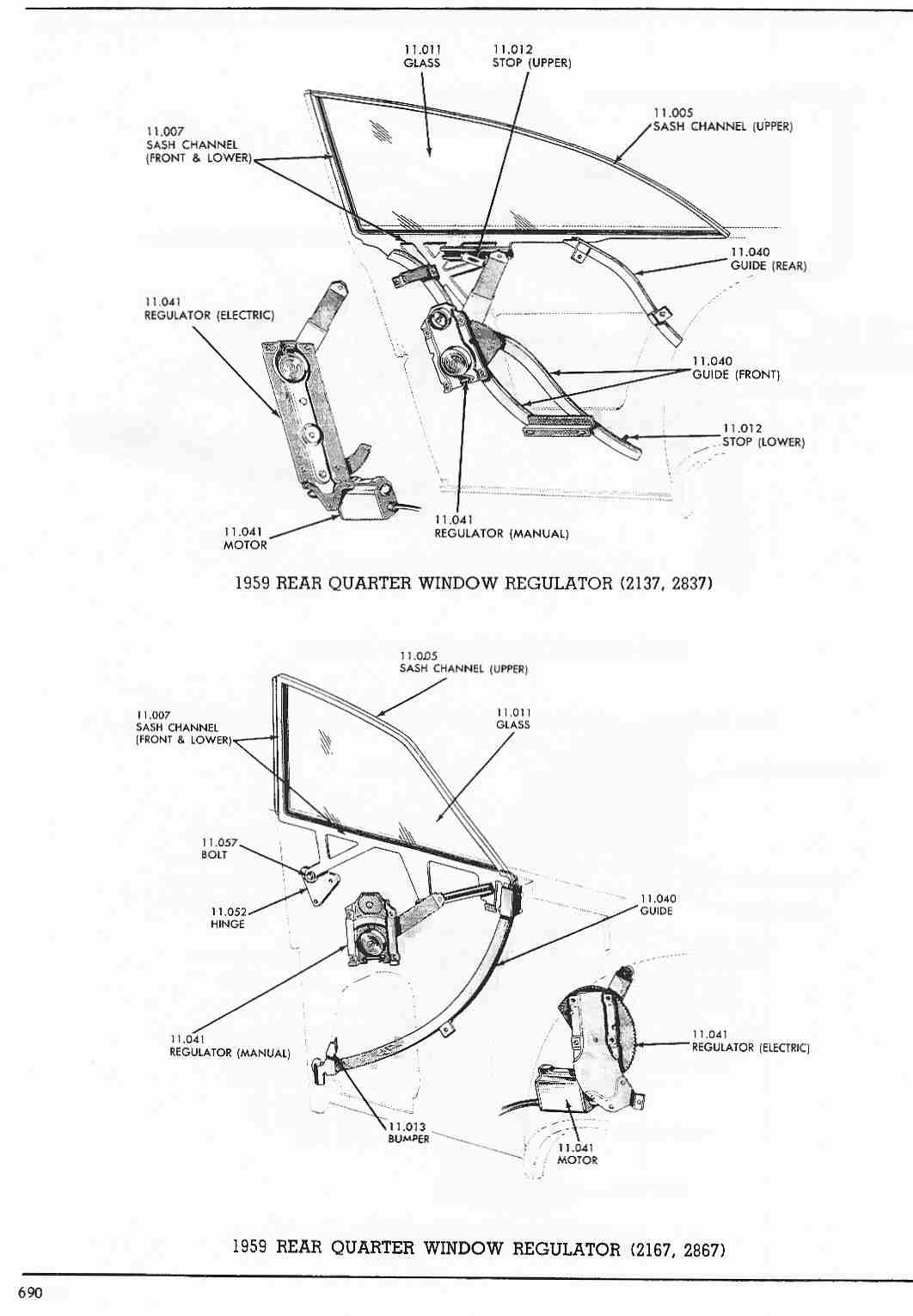

690 1959 Rear Quarter Window Regulator

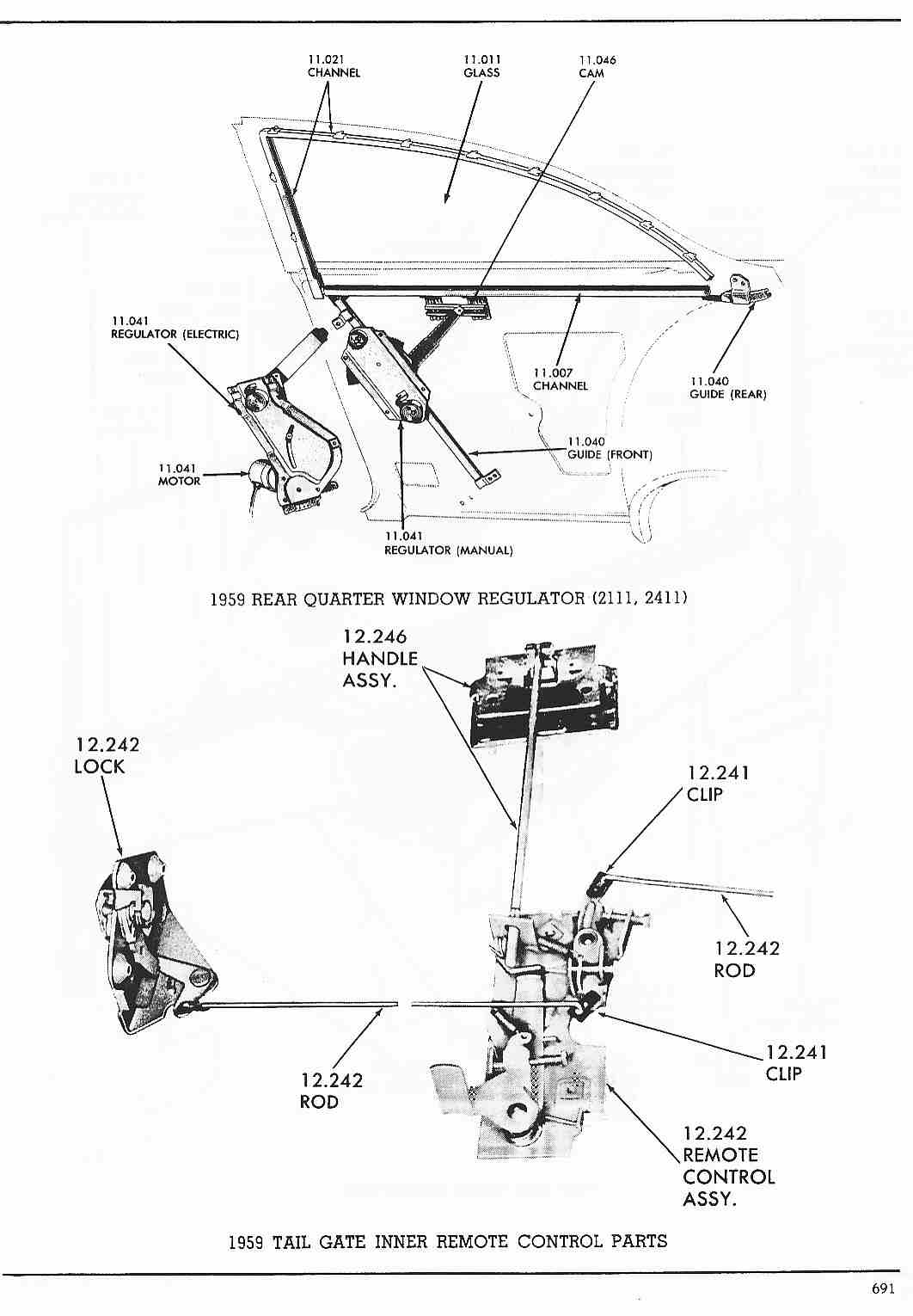

691 1959 Rear Quarter Window Regulator / Tail Gate Remote Control Parts

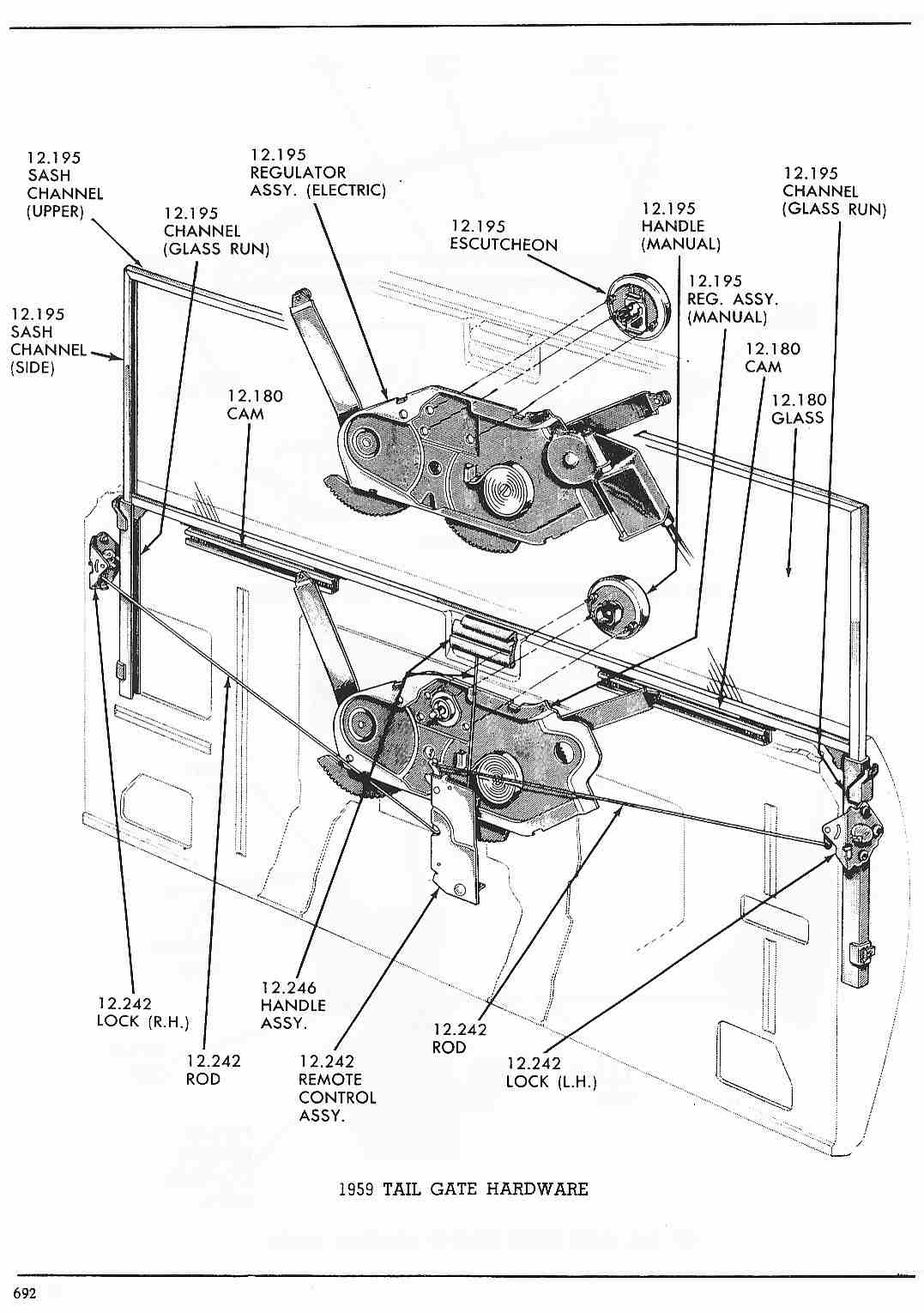

692 1959 Tail Gate Hardware

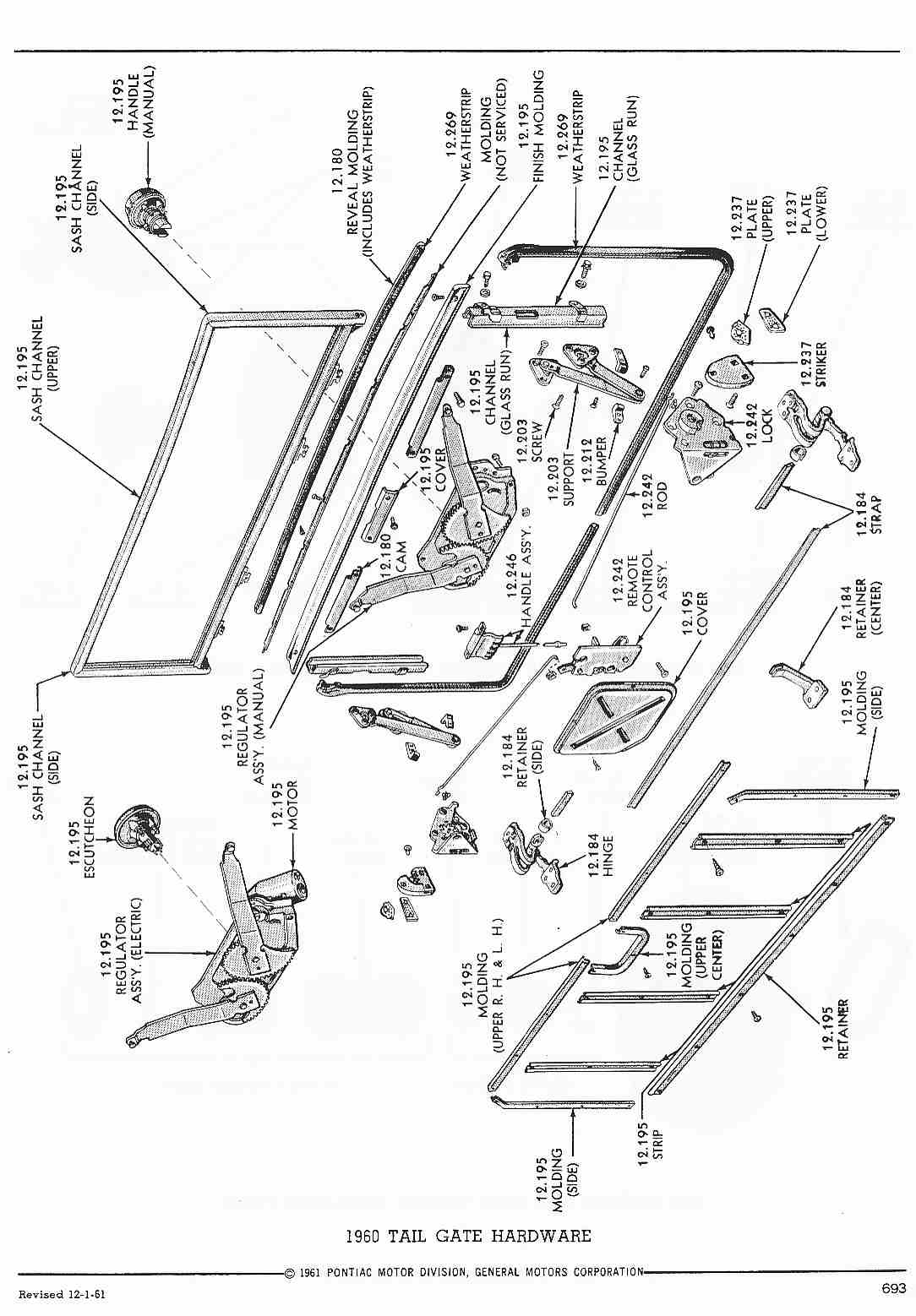

693 1960 Tail Gate Hardware

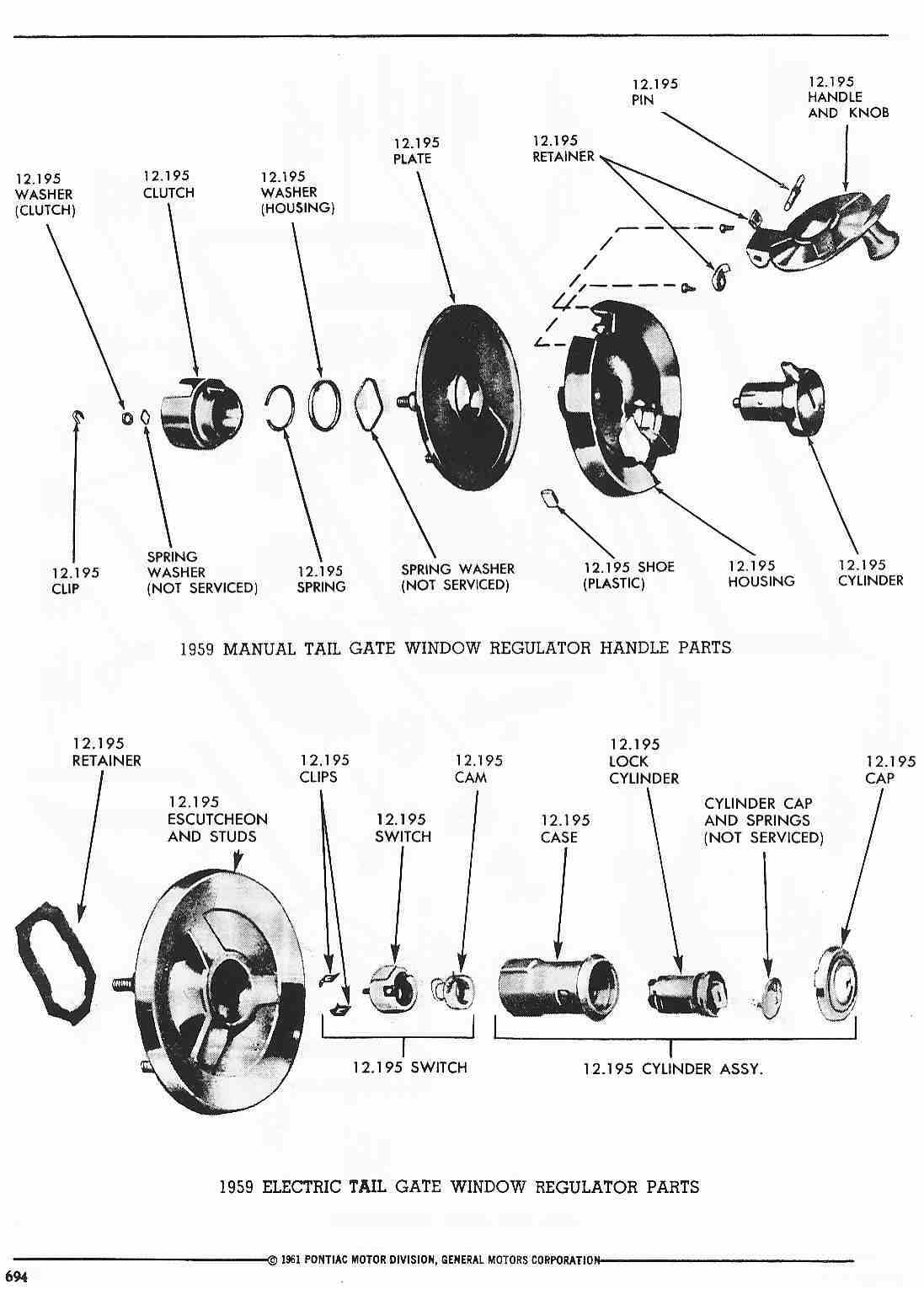

694 1959 Tail Gate Window Regulator

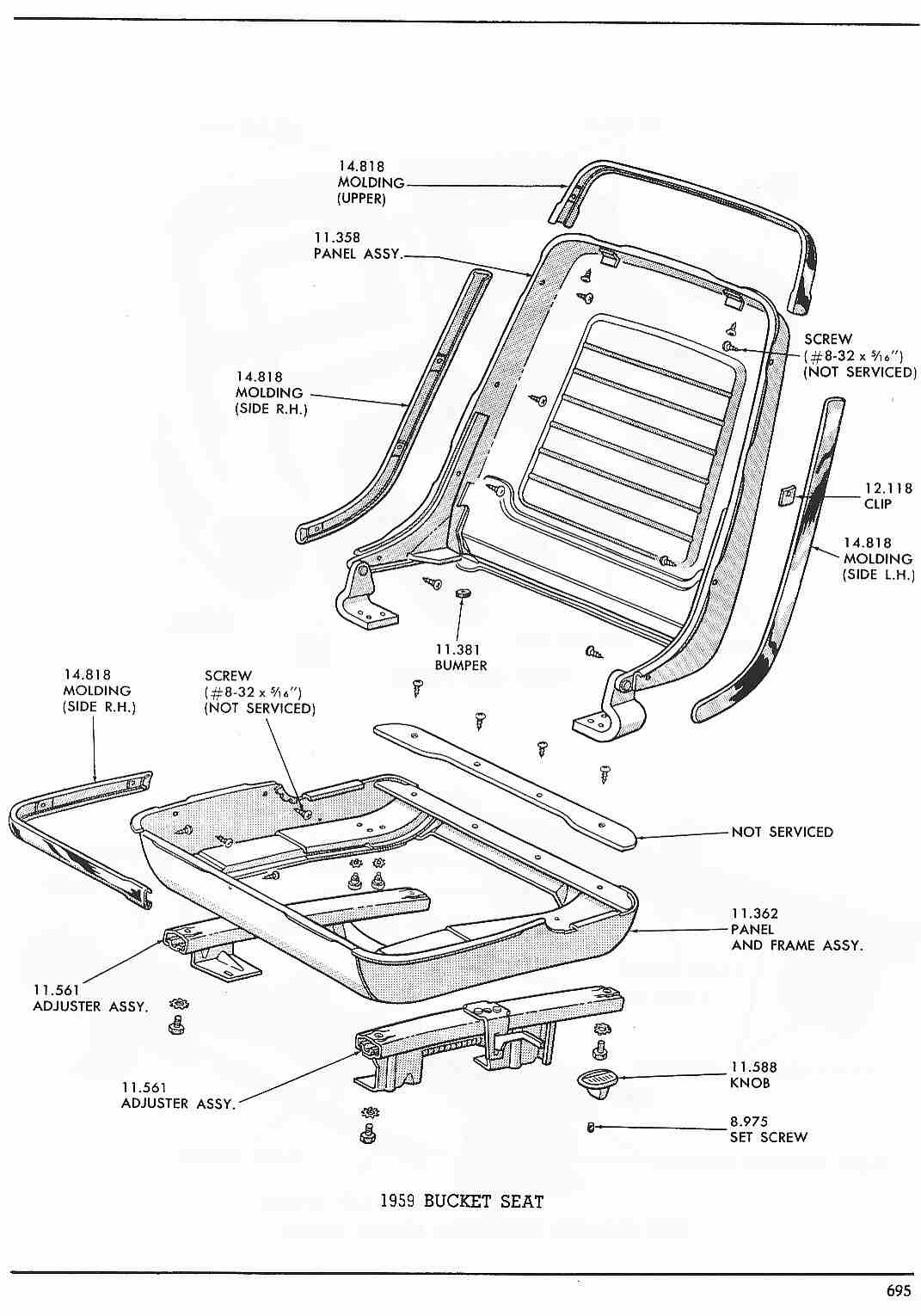

695 1959 Bucket Seat

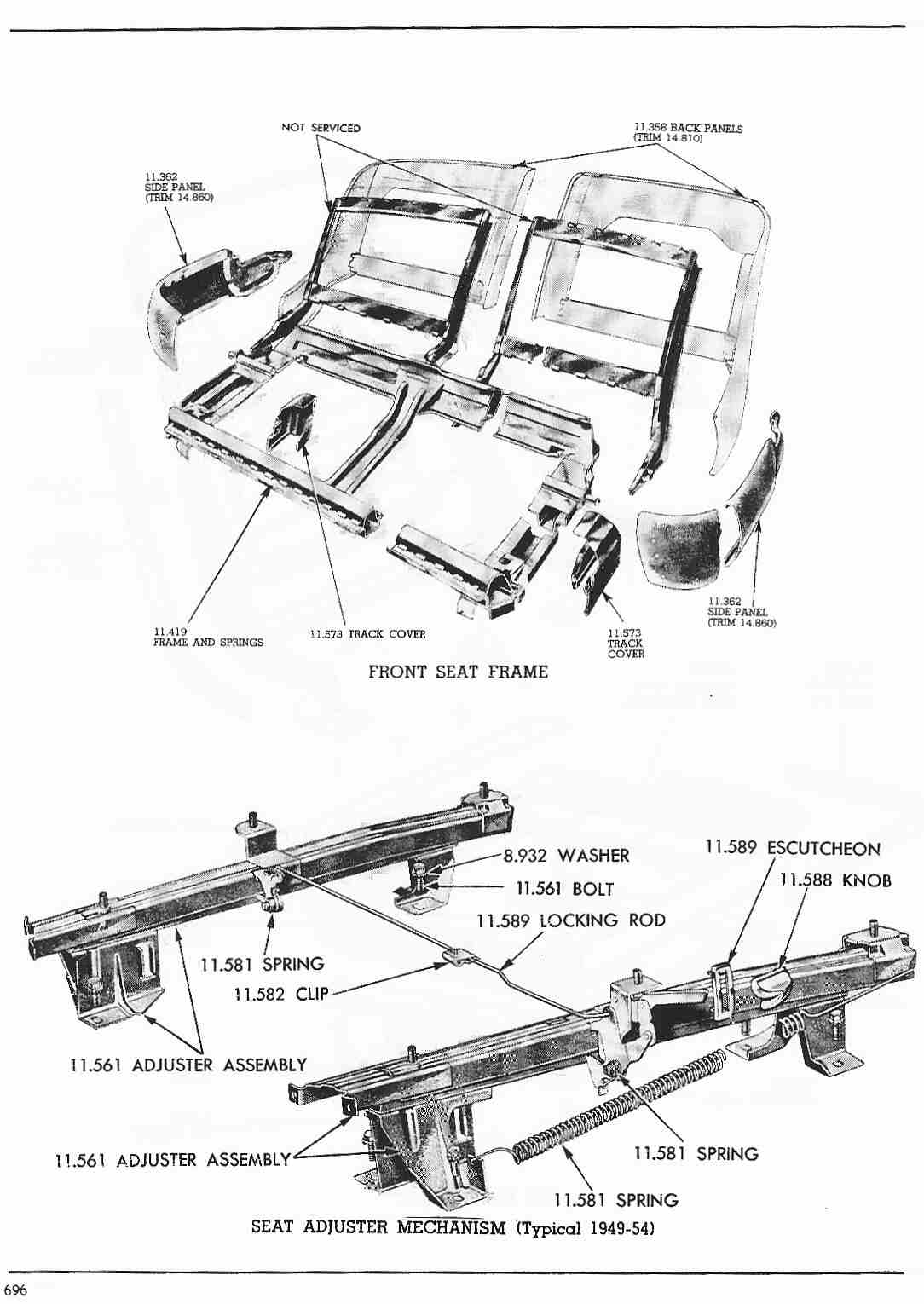

696 Front Seat Frame / Seat Adjustor Mechanism

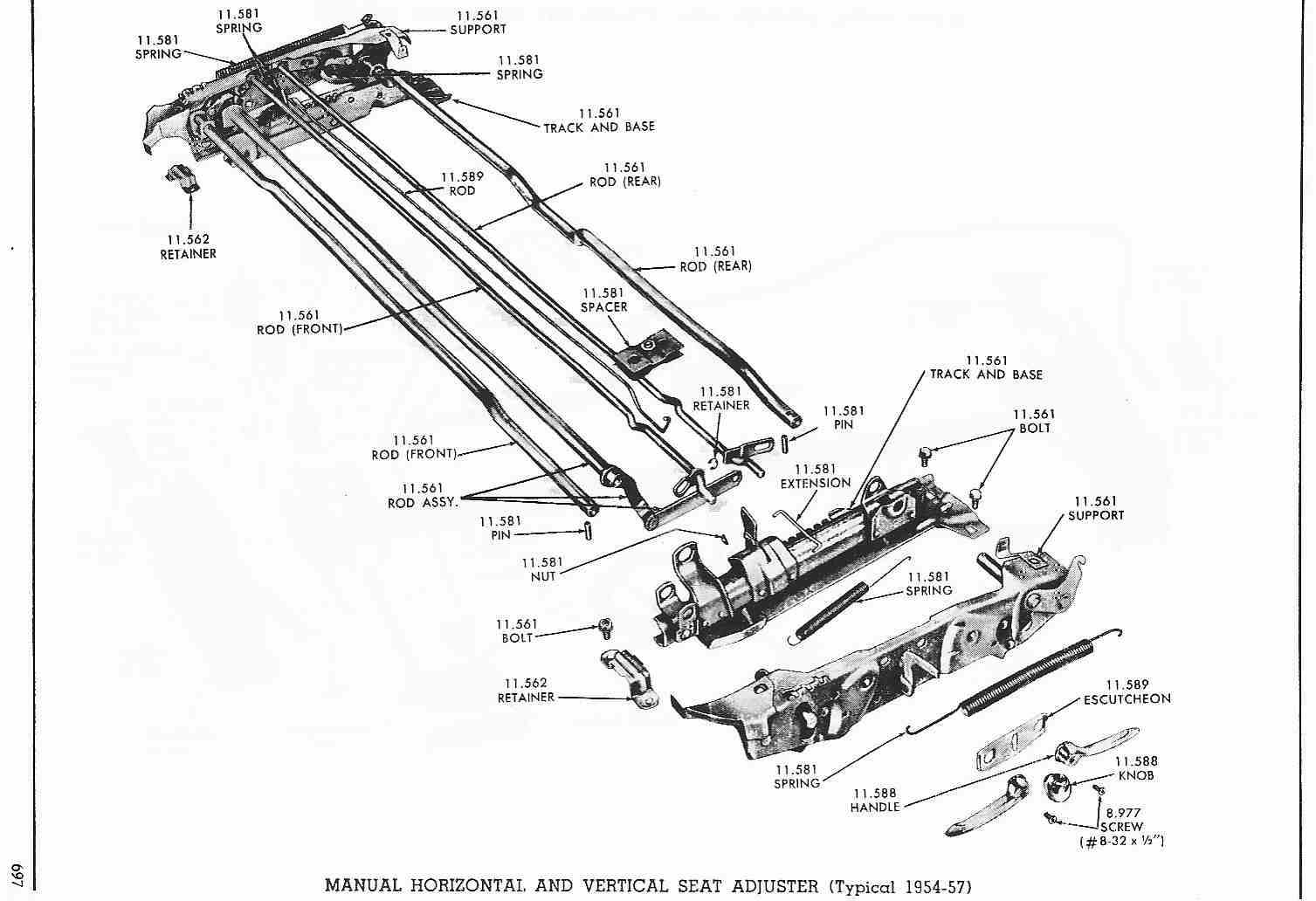

697 Manual Horizontal and Vertical Seat Adjustor (Typical 1954-57)

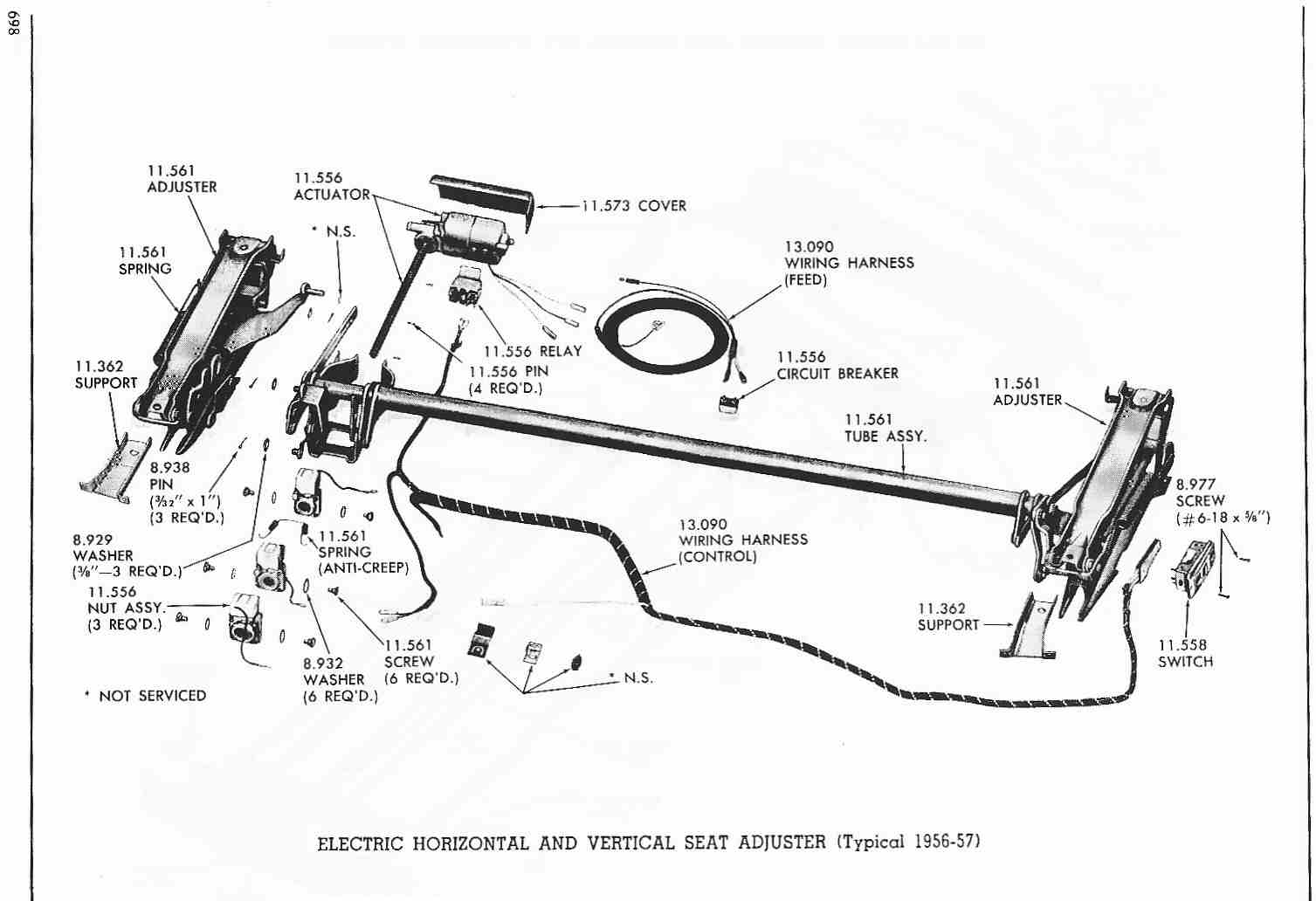

698 Electric Horizontal and Vertical Seat Adjustor (Typical 1956-57)

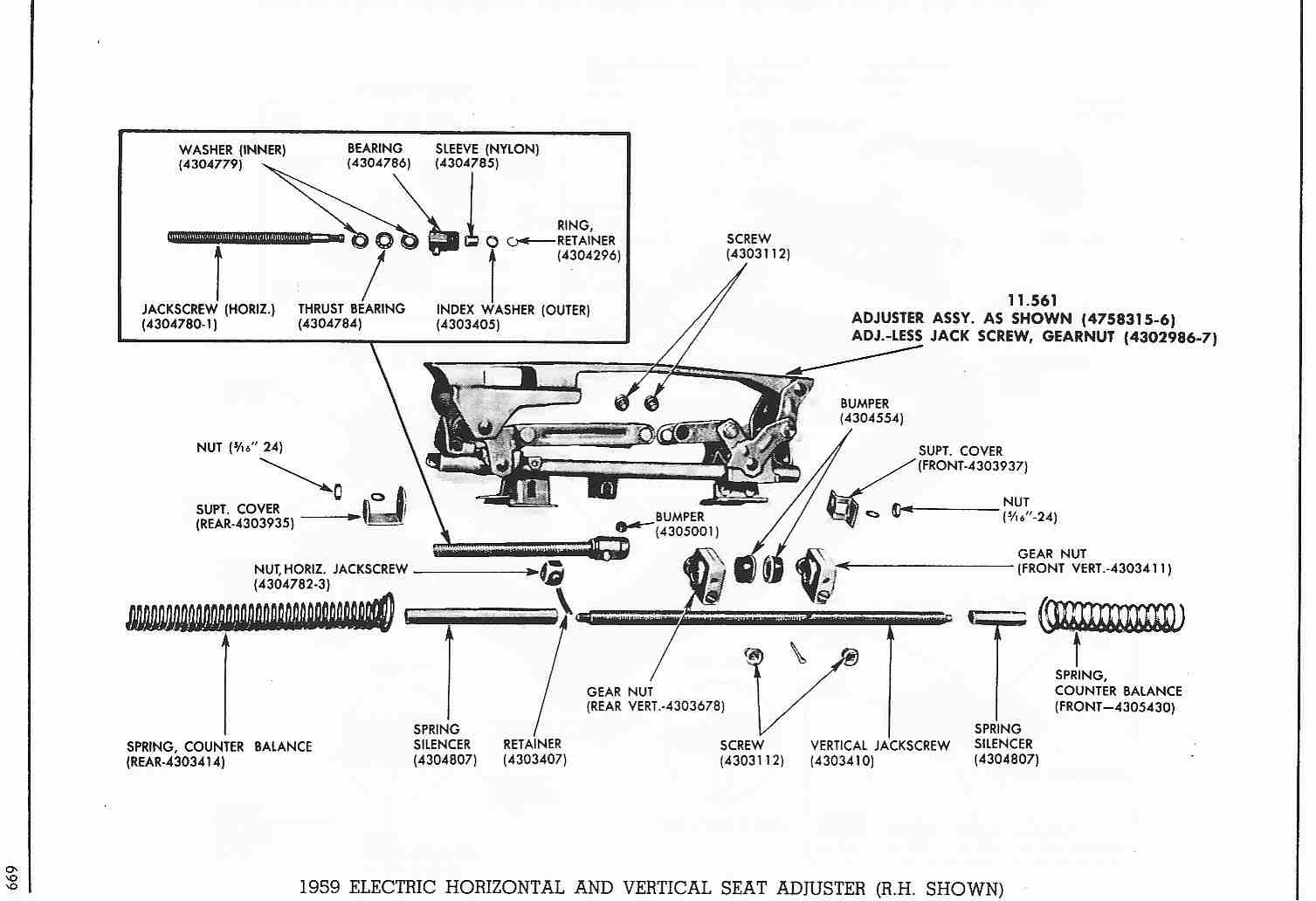

699 1959 Electric Horizontal and Vertical Seat Adjustor

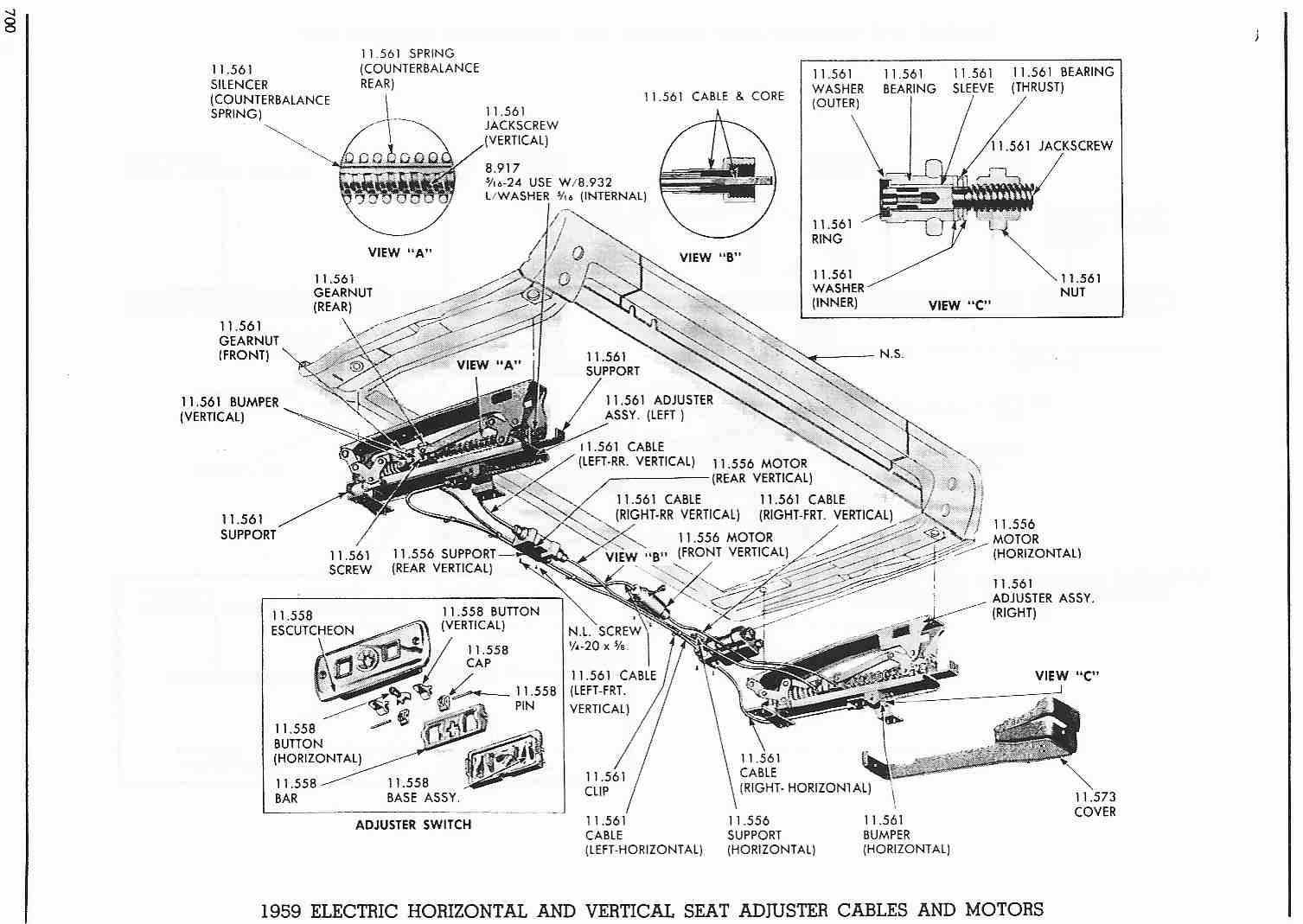

700 1959 Electric Horizontal and Vertical Seat Adjustor Cables and Motors

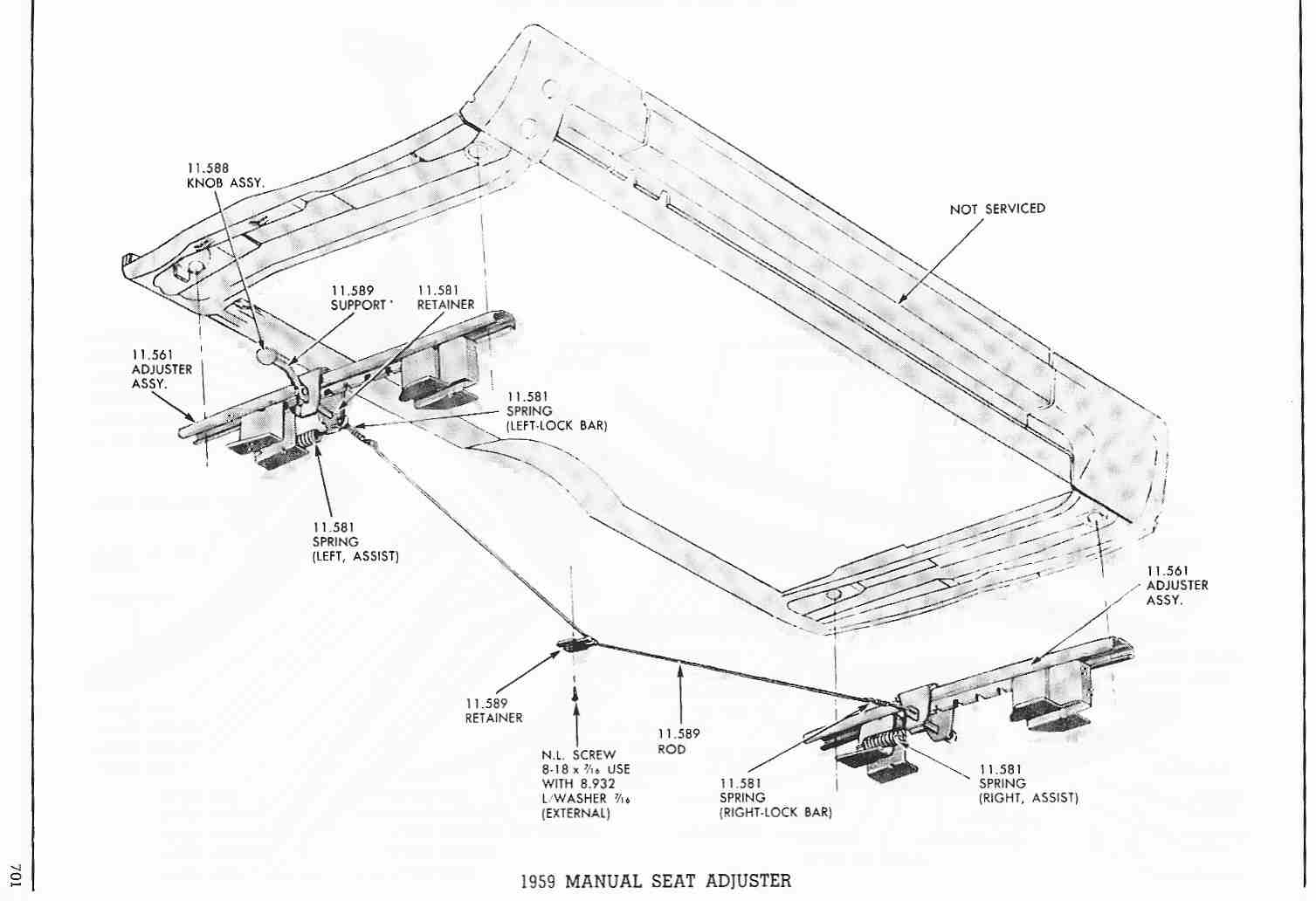

701 1959 Manual Seat Adjuster

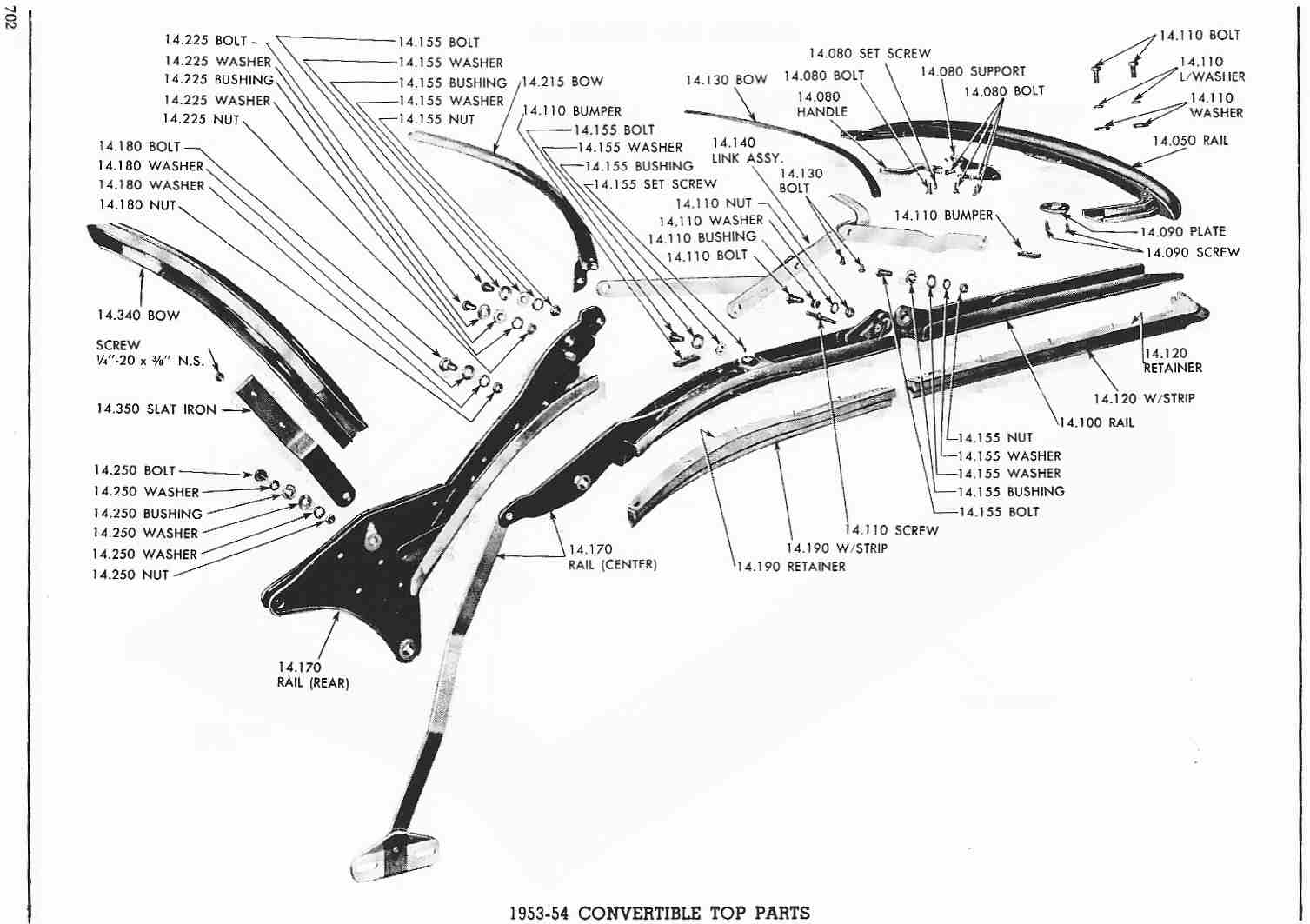

702 1953-54 Convertible Top Parts

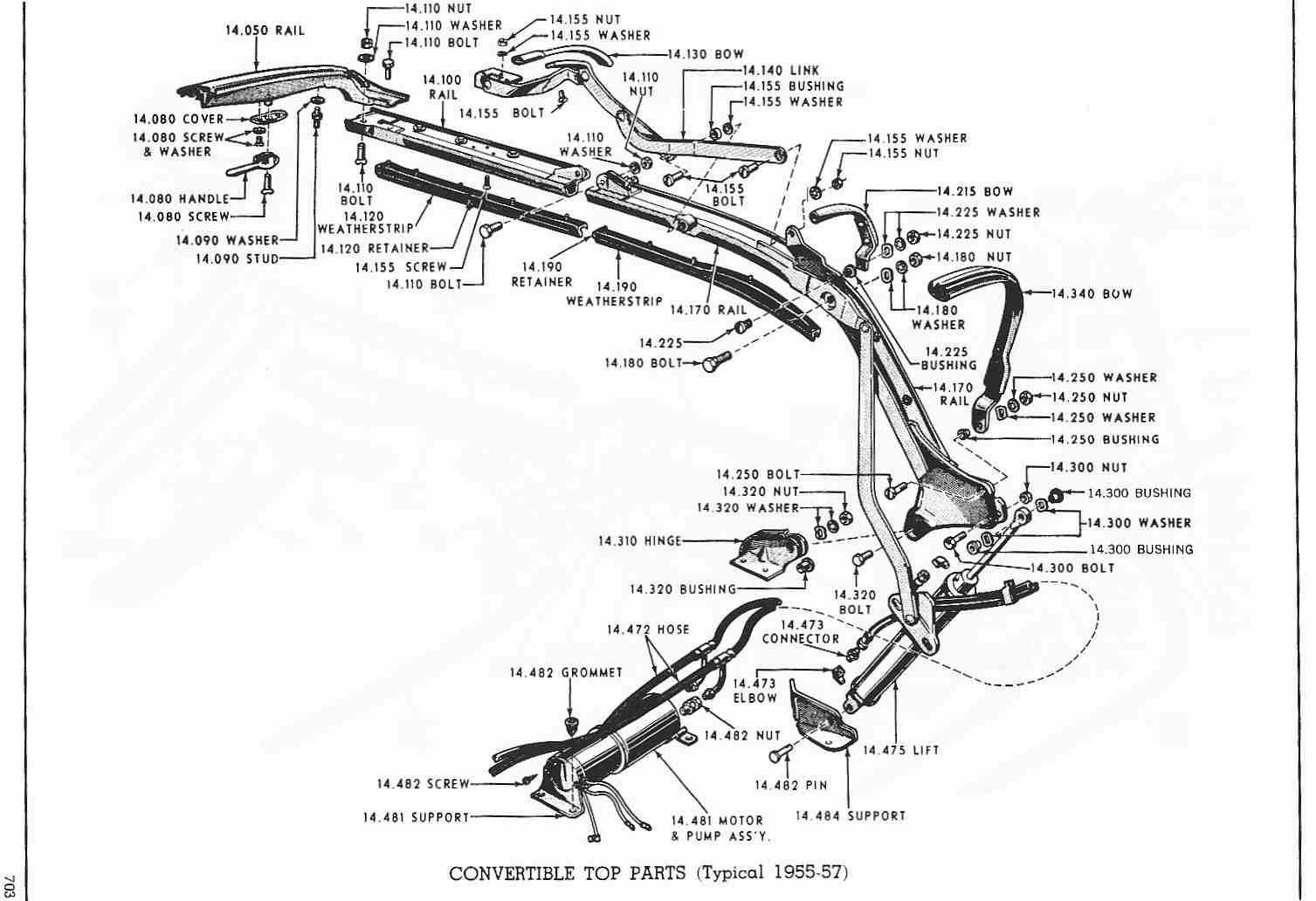

703 Convertible Top Parts (Typical 1955-57)
704 1960  Convertible Top Frame Work (Typical of 1959)

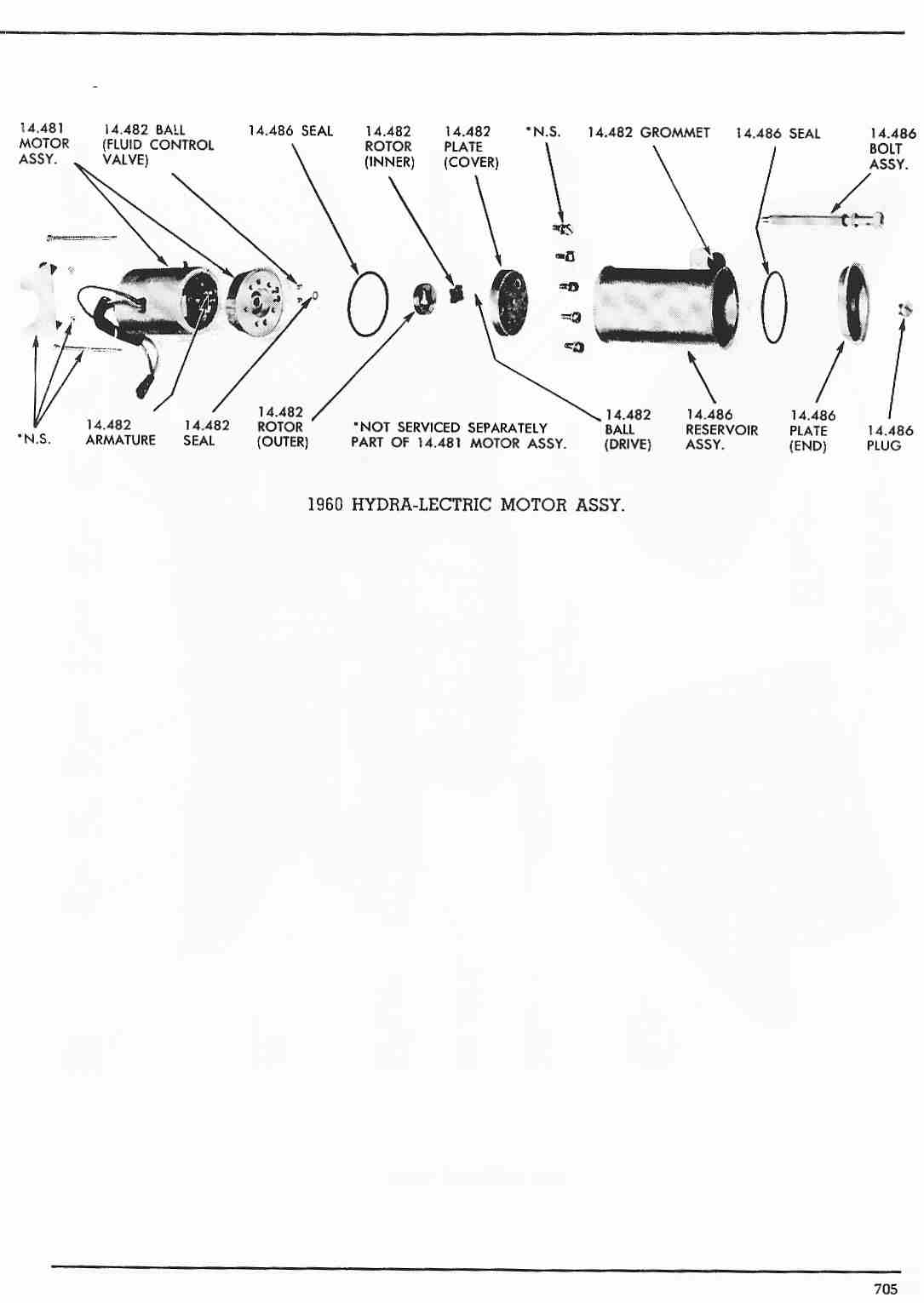

705 1960 Hydra-lectric Motor Assy.

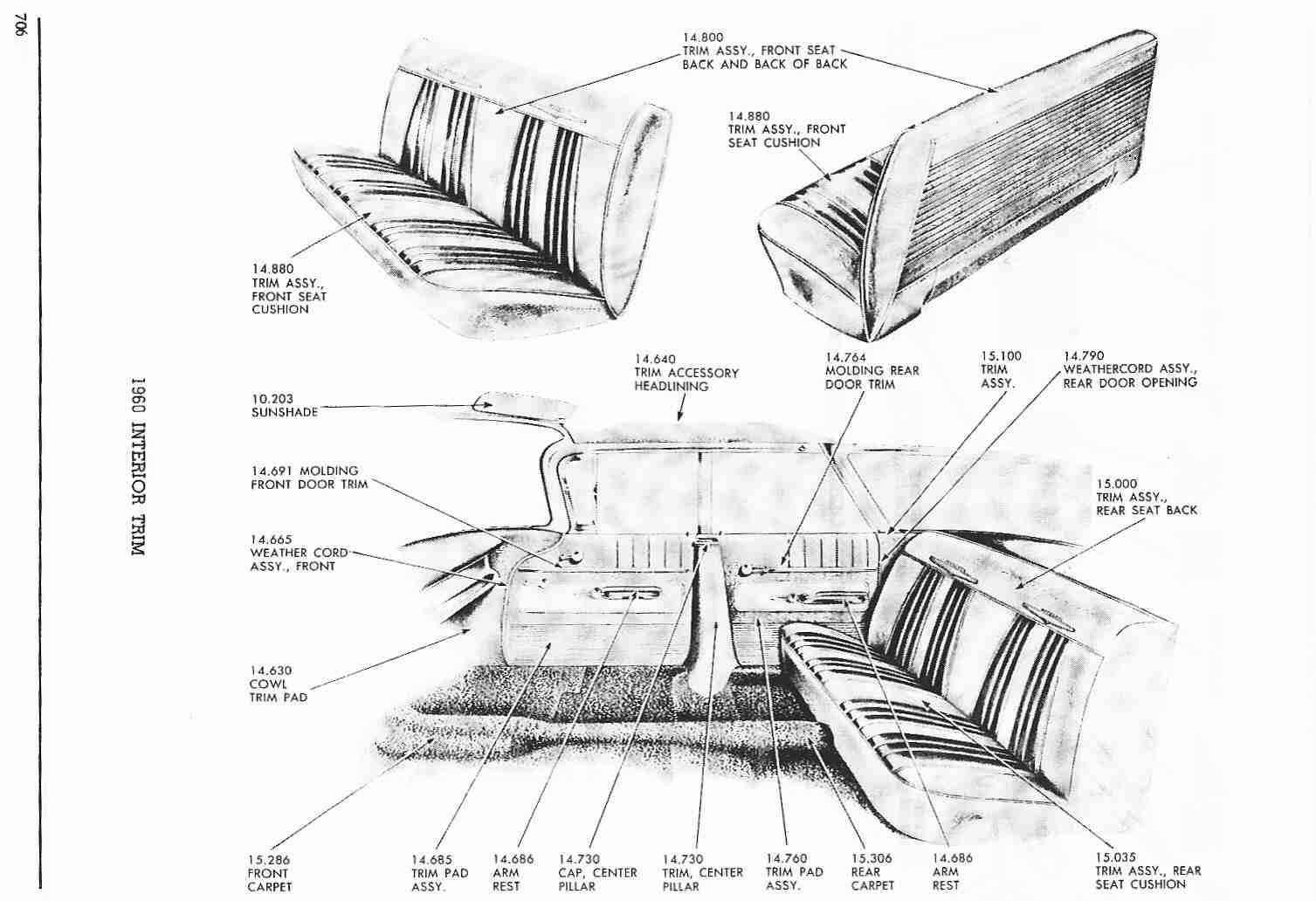

706 1960 Interior Trim
707-772 parts listing 10.xxx
775-811 parts listing 11.xxx
813-876B parts listing 12.xxx
877-882 parts listing 13.xxx
883-956 parts listing 14.xxx
957-1022 parts listing 15.xxx
